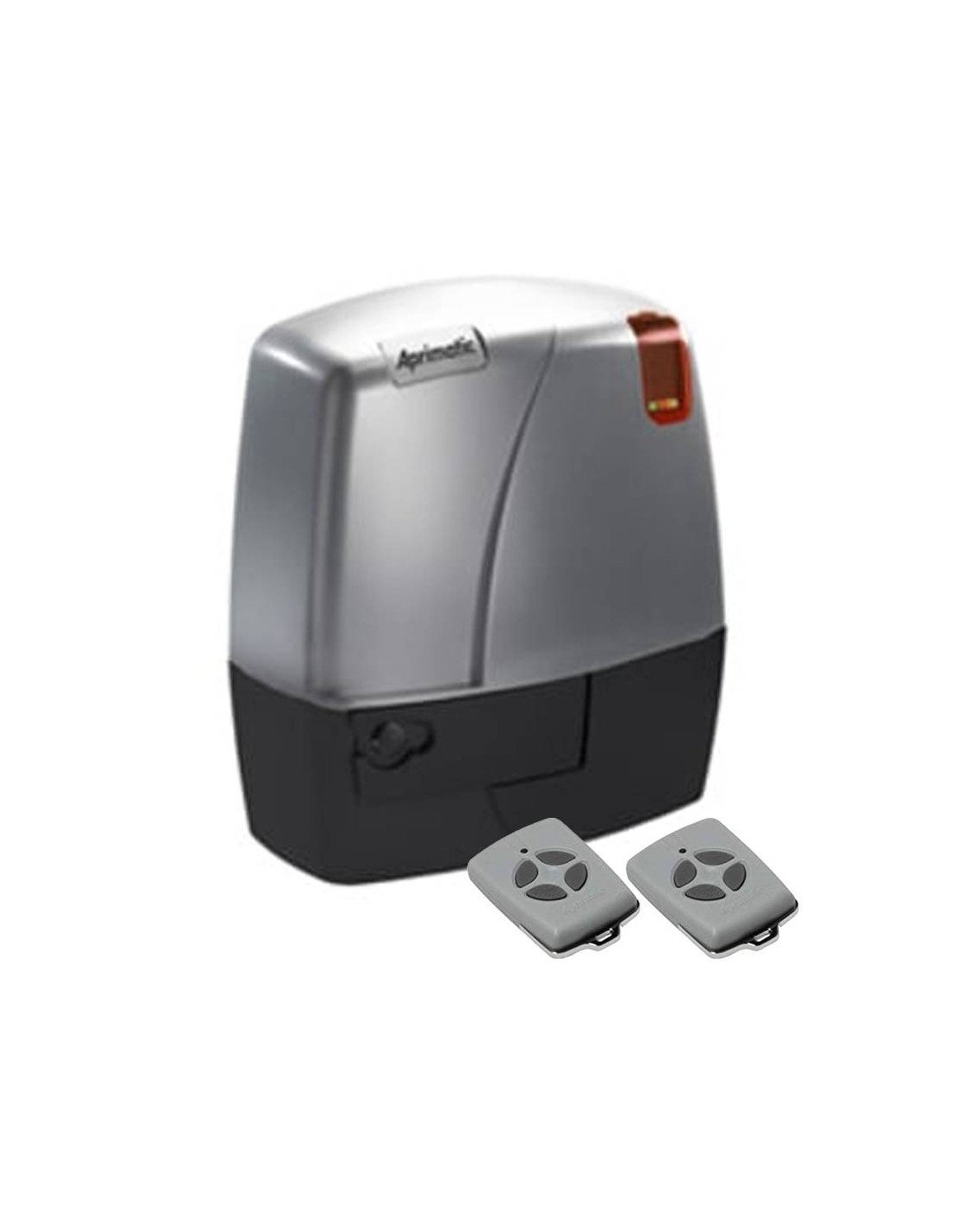

Quick motor Aprimatic "ONDA FAST 424" 24V for sliding doors up to 400 KG and 320mm/s for residential use.

Incorporates the maneuver box, with anti-plastic system to invest the maneuver in case of detection of obstacles. Unlock to custom key in case of lack of power.

ONDA 424 FAST is a motor reducer designed to automate sliding gates with grease lubrication of gears. The irreversibility of the motor reducer allows a perfect and safe closure of the shutdown, avoiding the installation of an electrolock and in case of lack of power, the unlocking device located on the front of the motor reducer allows manual opening and closing. The operator is equipped with an electronic friction system that guarantees a regulation of the push on the cancel.

In addition the electronic investment device (optional) through encoder makes the ONDA 424 FAST engine safe and reliable operator allowing in a simple way to respect the regulations in which such product is used.

• Operator "RÁPIDO" of 24 Vcc residential use for sliding doors up to 400 Kg.
• Blade speed up to 320 mm/s
• Inversion for obstacle detection.
• Self-learning of working parameters.
• Optional battery kit

TECHNICAL CHARACTERISTICS

• Food: 230 Vac ±5% - 50/60 Hz
• Power: 320 W
• Speed of the blade: 320 mm/s
• Maximum weight: 400 Kg
• Movement control: Encoder
• Service factor: 50%
• Cycles/hour: 25
• Protection Degree: IP55
• Thermal range: -20oC/+55oC
• Weight: 7 Kg

ACTION

MANUAL

Instruction manual Aprimatic ONDA 424 FAST
