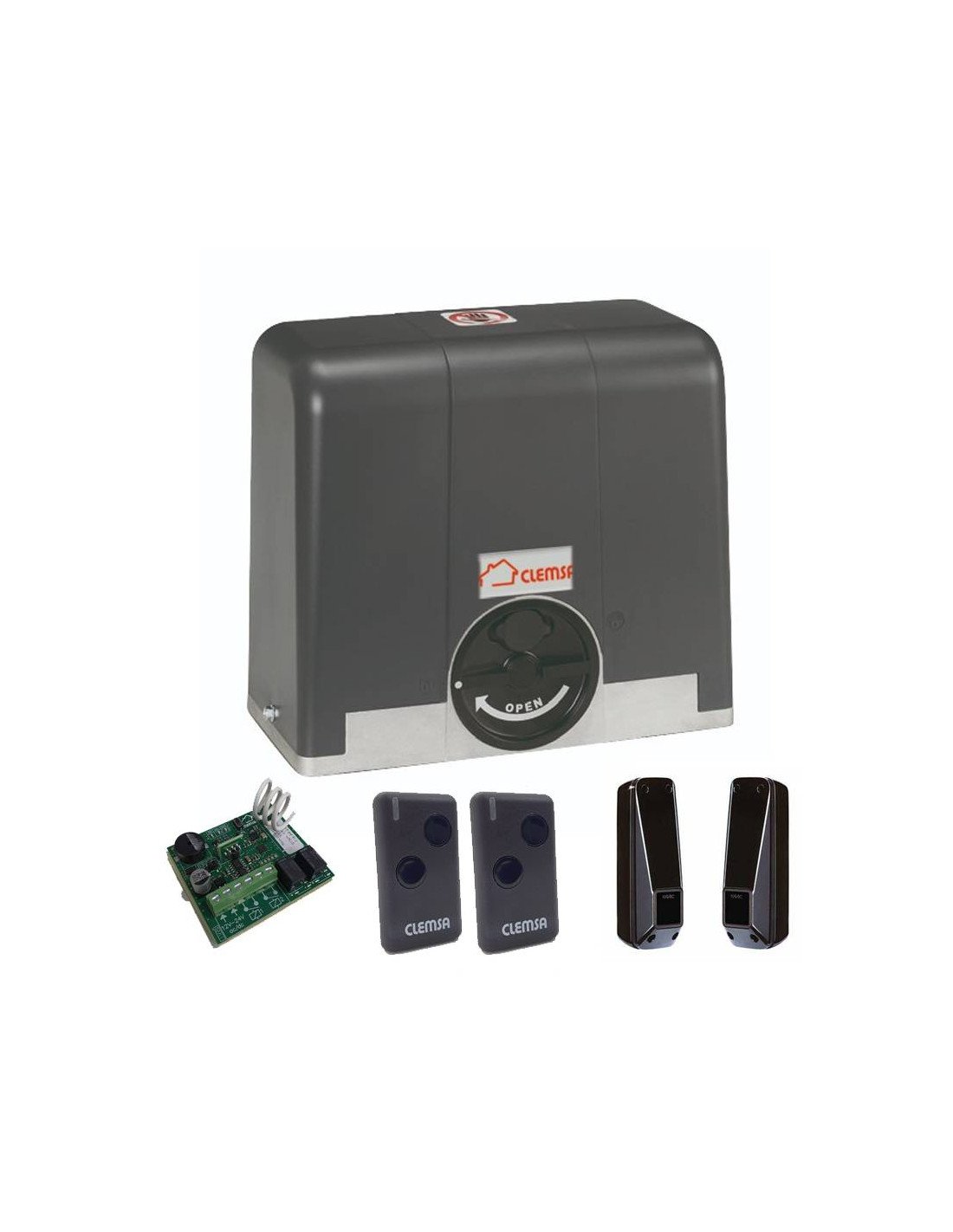

KIT AC862N INCLUDES:

• 1 unit 350000003798: AC862N sliding motor for doors up to 800 kg
• 1 unit 737000: foundation plate
• 1 unit 120000002903: Universal receiver RNE248U two channel Mutan-II
• 2 unid 110000002740: 2 channel emitter Mutant NT2S black
• 1 unit 785104: Security photocell FAAC XP20W
• 1 unit 400006785148It shall be so designed that it can be used in a wide range of applications

TECHNICAL CHARACTERISTICS AC862N

• Control panel incorporated: CLASS 62 C
• Food: 230 VAC
• Power530 W
• Current: 2.4 TO
• Thermal protection: 140 (self-adjusting)
• Capacitor: 12,5 uF
• Maximum thrust force: 590 N
• Starting thrust force410 N
• Type of pinionThe Z16 mod. 4
• Maximum weight cancel: 900 KG
• Velocity: 12 m/min
• Use: residential/community
• Continuous use time (rot) at 20oC11 min
• Operating weight: 10 KG
• Degree of protection: IP44

CHARACTERISTICS CLASS 62 C

• Food: 230 VAC
• Output from accessories: 12/24 Vac - 25 W
• Signalling lamp: 230 V TO 60 W
• Operating logicManual, semi-automatic and automatic
• Opening/closing/pause timeProgrammable from 0 to 256 sec
• Closure and pedestrian openingFor the purposes of this Regulation:
• Tickets: Pusher, safety, end of run, auxiliary, capacitors, actuators
• Exits: Signalling lamp, TSM6 traffic light card, test, power supply
• Programmable functions: stop at opening, reverse at closing, photocell shutdown, warning, shutdown, current return, photocell check, soft stop, anti-crush.
• ProgrammingLCD Display
