Clemsa

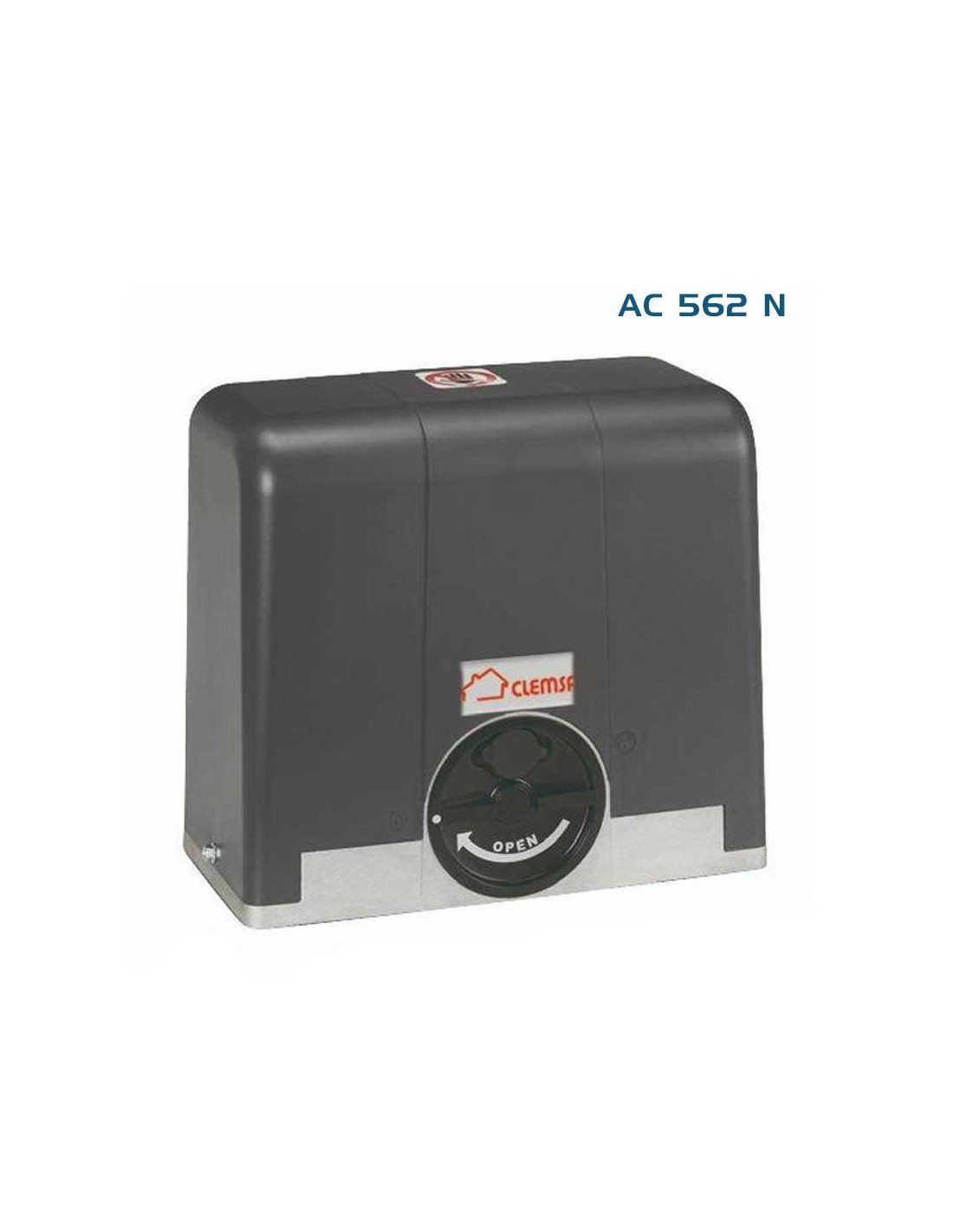

CLEMSA 'AC562N' sliding motor for residential doors up to 500 kg
Referencia: 350000003797
€323.00
IVA excluido
390,83 €
IVA incluido
Sliding engine Clemsa "AC562N" electromechanical 230 V for residential doors up to 500 kg. It incorporates a manoeuvre chart CLAS62C. The actuator has magnetic running ends, levered unlock system, aluminum body painted with polyester powders and ABS crankcase. in addition, thanks to its anti-crush system and smooth stopping we will have an engine with reliability and maximum precision.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain
Except bulky
Sliding engine Clemsa "AC562N "Electromechanical 230V For residential doors up to 500 kg. It incorporates Class62C maneuvering box. The actuator has magnetic career finishes, unlocking system with cam, painted aluminum body with polyester powders and ABS crankcase. Also, thanks to its anti-crushing and soft stop system we will have a motor with reliability and maximum precision.
Technical characteristics AC562N
- Built-in control box: CLAS 62 C
- Feed: 230 VAC
- Power: 350 W
- Current: 1.6 A
- Termoprotección: 140 (self-regulating)
- Capacitor: 10 UF
- Push force max: 390 N
- Starting thrust force: 300 N
- Pineapple: Z16 mod. 4
- Maximum weight cancel: 500 kg
- Speed: 12 m / min
- Use: Residential / Community
- Continuous use time (ROT) at 20ºC: 9 min
- Operator weight: 9.2 kg
- Degree: IP44
Characteristics CLAS 62 C
- Feed: 230 VAC
- Output: 12/24 VAC - 25 W
- Signaling lamp: 230 V - 60W
- Operating logics: Manual, Semiautomatic, Automatic
- Opening time / closure / pause: Programmable 0 - 256 sec
- Closure and pedestrian opening: Programmable 0 - 255 cm
- Tickets: Pulsator, Safety, Final, Assistant, Capacitors, Drives
- Outputs: Signage lamp, TSM6 traffic light card, test, power accessories
- Programmable functions: Stop in opening, investment at closure, close by photocell, preafaway, closure, current return, photocell check, soft unemployment, anti-explashing.
- Programming: LCD DISPLAY
Manuals
Product Details
350000003797
Data sheet
- Maximum door weight
- Between 500 and 650 kg
- Type of engine
- Electromechanical 230V
- Type of door
- Residential door
