KIT Motor Beninca "BULL624ESA" 24V for intensive use communal sliding doors up to 600 KG. It incorporates a control unit with receiver, encoder and personalized unlock key.

CHARACTERISTICS

• Heavy-duty 24 Vdc geared motor with built-in power unit, ESA SYSTEM energy saving system and encoder

• The encoder device ensures maximum safety and precision during the movement of the door

• Anti-crush system with amperometric detection

• Predisposed for operation with batteries with no current

• Metal release lever

SPECIFICATIONS

• Power supply: 230 Vac (50-60Hz)
• 24 Vdc motor power supply
• Maximum current consumption 0.5 A
• Stand-by power consumption ≤ 1.5 W
• Maximum thrust 857 N
• Opening speed 5.8 ÷ 9.75 m/min
• Duty cycle heavy use
• IP44 degree of protection
• Built-in central
• Built-in receiver
• Encoder
• Virtual Encoder: NO
• Magnetic limit switches: NO
• Rack and pinion M4 Z14
• Operating temperature -20°C /+50°C
• Lubrication: GREASE
• Maximum door weight: 600 kg
• Weight: 11.7 kg
• Kit weight: 12.4 kg

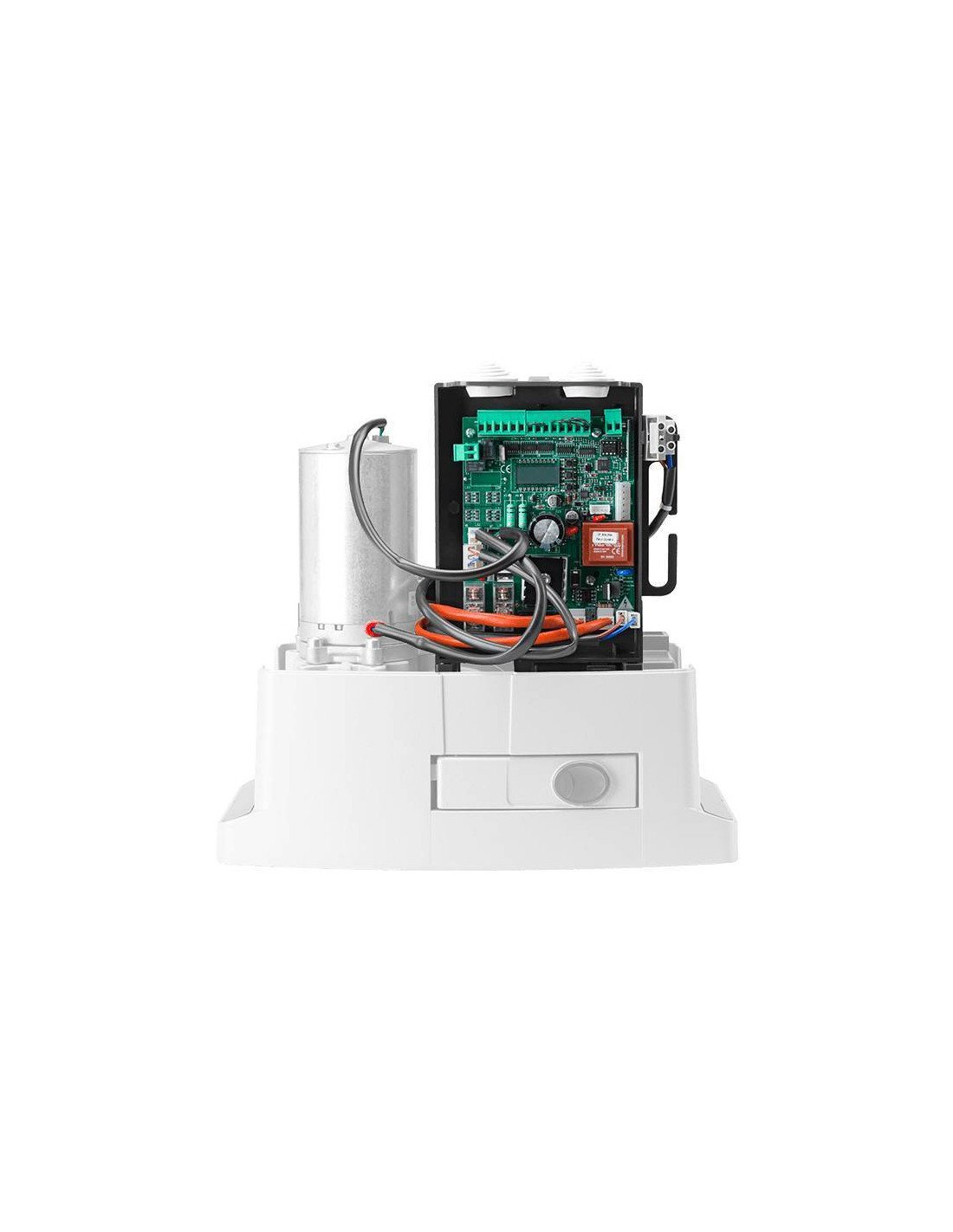

CP ELECTRONIC BOARD. B24ESA

• Built-in LCD display
• Built-in radio receiver 433.92 MHz 64 codes and ARC radio coding
• Integrated ESA SYSTEM device for energy savings
• Removable power strips
• Automatic, semi-automatic and man-present operating logic
• End-of-race tickets
• Separate inputs for active photocell in open-close and active photocell only in closing
• Pedestrian entrance, step-by-step and stop
• Safety Sensitive Edge Input N.C. or 8K2
• Two configurable outputs such as door open indicator pilot light, service light, second radio channel or zone light
• Photocell Test
• Self-adjusting of operating parameters
• Electronic torque adjustment with automatic calculation for each travel point (STC SYSTEM)
• Anti-crush safety with ampere meter detection and encoder management
• Adjustable decelerations
• Possibility to configure parameters and management of remote controls with Advantouch system
• Number of manoeuvres
• Programming Access Password
• Maintenance Notice

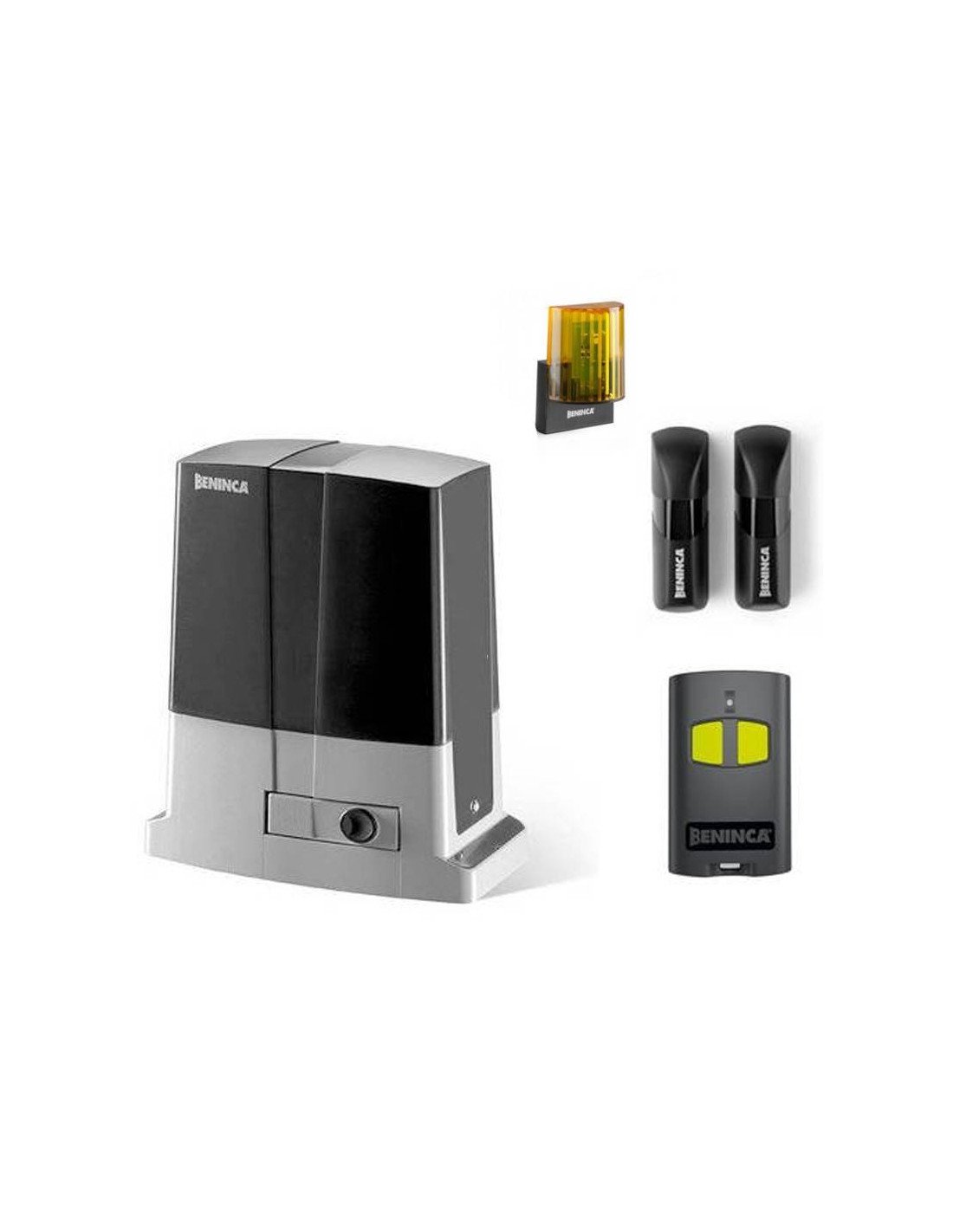

KIT CONTENTS

• 1 pc BULL624ESA: 24V geared motor with encoder up to 600 KG
• 1 pc PUPILLA. A: Sender-Receiver Photocell Pair
• 1 pc LAMPI24. LED: Flashing Lamp
• 1 pc TO. GO2VA: RollingCode 2-channel transmitter
