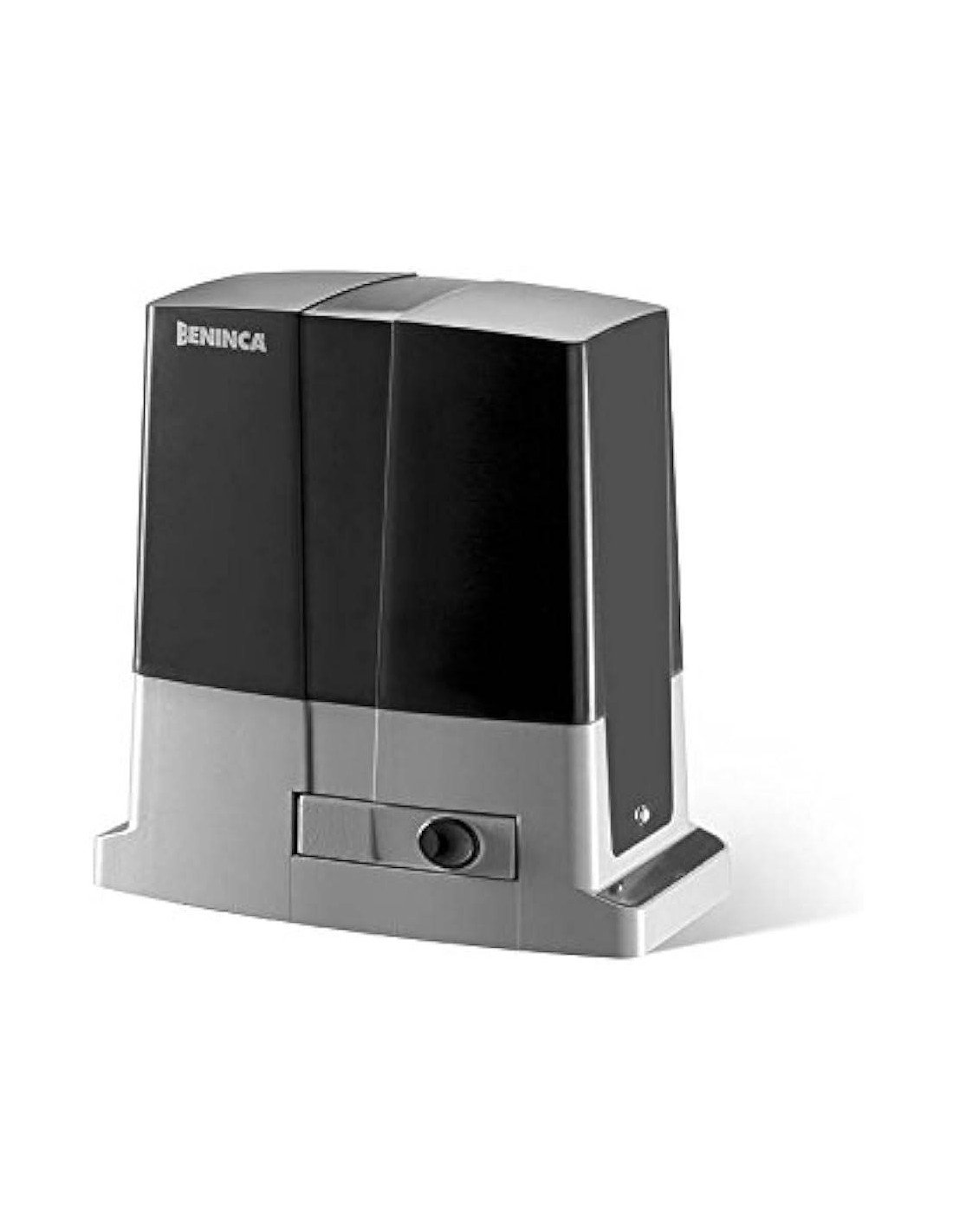

Sliding engine Beninca "BULL5M' 230V for residential use up to 500 KG with built-in receiver. What. Possibility to optionally add Encoder and Magnetic Race Ends.

CHARACTERISTIC

• Electromechanical gear motor 230Vac for residential doors of up to 500 KG
• Central and built-in receiver

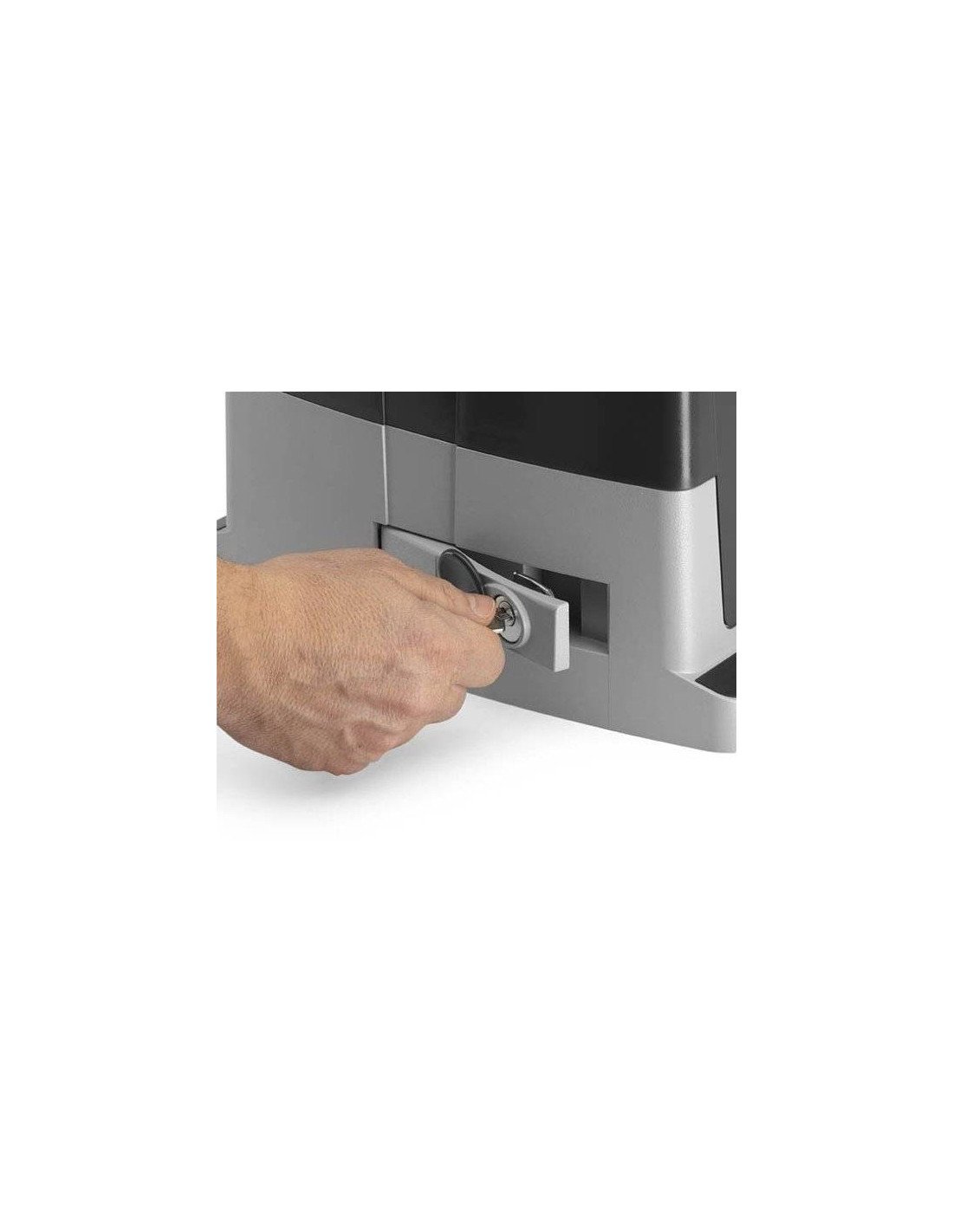

• Customized unlock key
• Possibility of connecting the encoder via MAG.E accessory
• The encoder device ensures anti-crushing safety and precision during door movement
• Metallic unlocking lever
• Magnetic race terminals available as accessories (MLS)

Installation staff included. Measures 325x100x5 mm, engine mounting distance 300x75 mm, 4 holes ø 9 mm

TECHNICAL CHARACTERISTICS

• Power supply: 230 VAC (50-60 Hz)
• Power supply: 230 VAC
• Maximum current consumption: 1,3 A
• Maximum thrust: 650 N
• For the purposes of this Regulation, the following definitions shall apply:
• Working cycle: 30%
• Degree of protection: IP44
• Incorporated power plant
• Integrated receiver
• Encoding
• In the case of vehicles of categories N1 and N2
• Magnetic running ends: NO (can be optionally added)

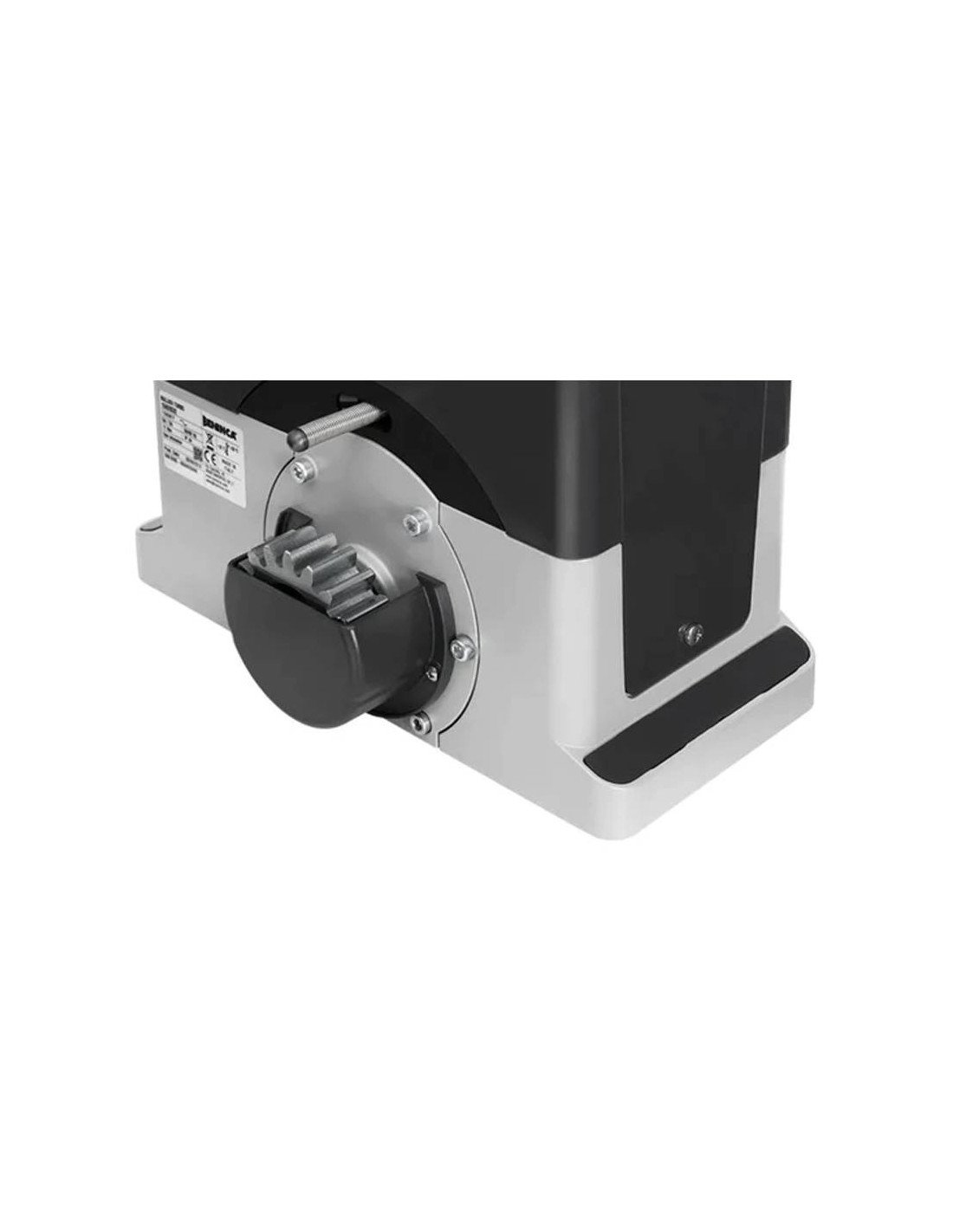

• Other bars and rods M4 Z18
• The test shall be carried out in accordance with the requirements of this Regulation
• LubricationThe following: FAT
• Maximum weight of the door: 500 kg
• Weight: 11.3 kg
• Weight of the kit: 12,1 kg

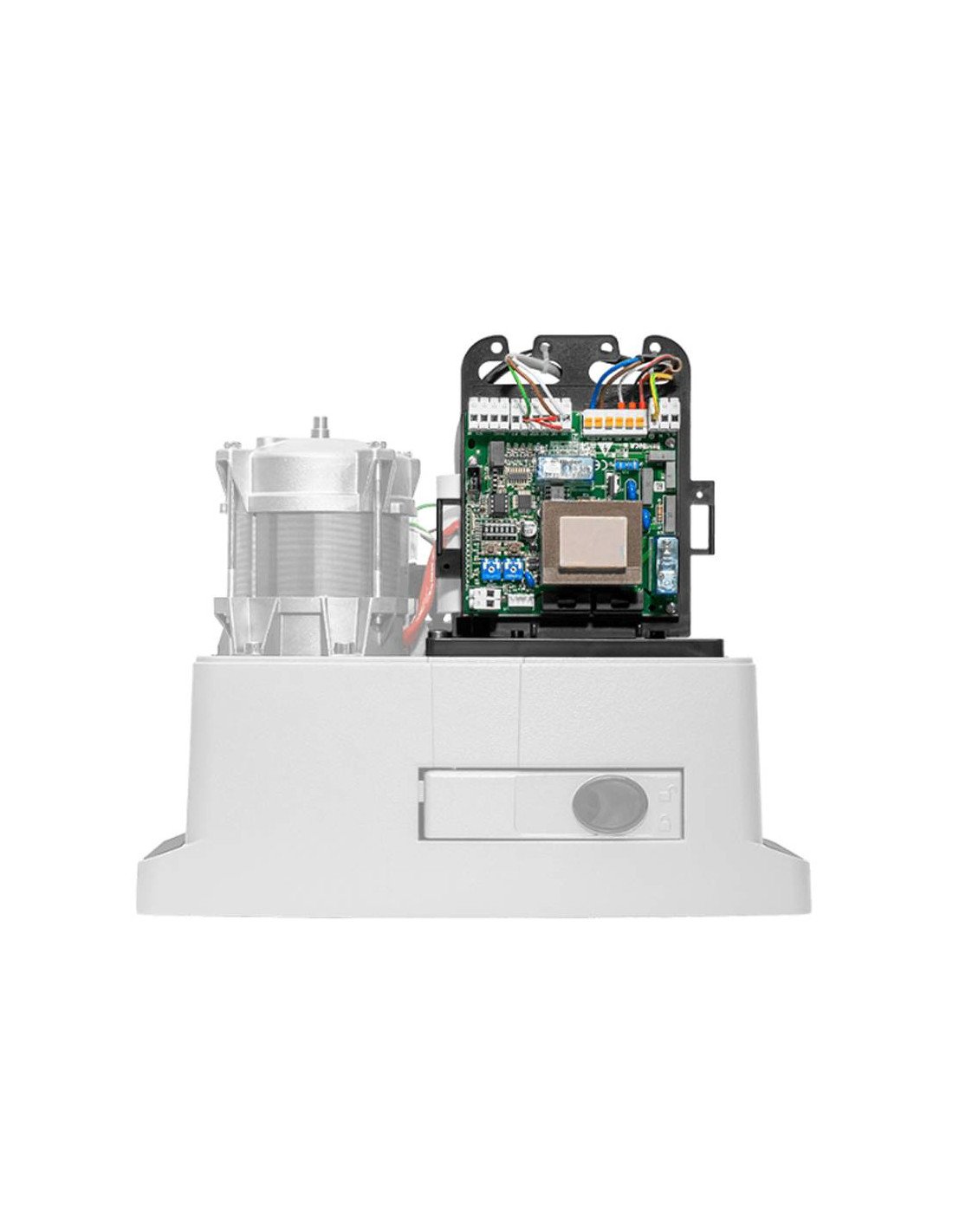

CP.CORE MANEUVER BOARD

• Adjustment of parameters and operating logic by trimmer and DIP switches
• Built-in radio receiver 433,92 MHz 64 codes and ARC radio coding
• Machinery for making pulp of fibrous cellulosic material
• Automatic, semi-automatic and man-present operating logic
• Input encoder MAG.E for obstacle detection
• Tickets for the end of the motor race
• Step-by-step entry, stop and photocell
• Step by step input configurable as aperture
• Standby entrance configurable as closure or pedestrian
• Programmable photocell input active at both opening and closing, or active at closing only
• Output for pilot light for open door
• Self-adjustment of operating parameters and decelerations
• Controlled deceleration
• Electronic torque setting at 5 levels
• Possibility of managing remote controls stored in an integrated receiver with Advantouch system

MEASURES

MANUAL

Instruction manual Beninca BULL5M
