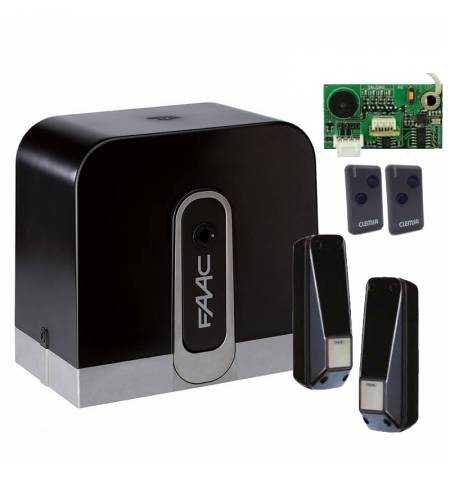

Sliding motor kit FAAC C720 / C721 24V | 400-800 kg
C720/C721
€431.00
VAT excluded
521,51 €
Tax incl.
The motor kit FAAC C720 / C721 24V It is designed to automate residential, community and frequently used sliding doors.
Both models incorporate a 24V Brushing Engine, electronic central FAAC E721, magnetic career endings and an electronic force regulation system with obstacle detection.
Its reduction mechanism using mobile axes allows to obtain a high mechanical performance, reduce vibrations during operation and provide a quieter and uniform movement of the door.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
Motor kit FAAC C720 / C721 24V for sliding doors
The motor kit FAAC C720 / C721 24V it is designed to automate residential, community and frequently used sliding doors.
This product is available in two versions:
- FAAC C720: for sliding doors up to 400 kg.
- FAAC C721: for sliding doors up to 800 kg.
Both models incorporate a 24V Brushing Engine, electronic central FAAC E721, magnetic career endings and an electronic force regulation system with obstacle detection.
Its reduction mechanism using mobile axes allows to obtain a high mechanical performance, reduce vibrations during operation and provide a quieter and uniform movement of the door.
Main features
- Electromechanical gearmotor for sliding doors.
- Available for doors up 400 kg or 800 kg.
- Equipment feed 220-240V AC.
- Electric motor 24V DC.
- Electronic FAAC E721 built-in.
- Electronic regulation of speed and engine operation.
- Electronic anti-explashing device.
- Electronic encoder for movement control.
- Movement investment when an obstacle is detected.
- Magnetic career endings.
- Maximum speed of the door up 18 m / min.
- Recommended maximum length of upper 15 meters.
- Pinion Z28 Module 4.
- Integrated mechanical lock.
- Unlocking manual to move the door in case of lack of current.
- Reduction of vibrations and noise during movement.
- Prepared for the optional installation of emergency battery.
- Degree Ip44.
Comparative FAAC C720 and FAAC C721
| Features | FAAC C720 24V | FAAC C721 24V |
|---|---|---|
| Supply voltage | 220-240V AC - 50/60 Hz | 220-240V AC - 50/60 Hz |
| Electric motor | Brush engine 24V DC | Brush engine 24V DC |
| Maximum power | 170 W | 290 W |
| Maximum pair | 18 nm | 30 nm |
| Maximum Push Force | 320 n | 530 n |
| Reduction ratio | 1:49 | 1:49 |
| Maximum length of the leaf | 15 m | 15 m |
| Maximum weight of the door | 400 kg | 800 kg |
| Maximum speed | 18 m / min | 18 m / min |
| Speed regulation | Electronic regulation | Electronic regulation |
| Run-up | Magnetic | Magnetic |
| Pinion | Z28 Module 4 | Z28 Module 4 |
| Encoder | Electronic encoder | Electronic encoder |
| Force regulation | Electronic card | Electronic card |
| Operating temperature | -20 ° C to +55 ° C | -20 ° C to +55 ° C |
| Degree | Ip44 | Ip44 |
| Weight | 8 kg | 8 kg |
| Dimensions | 300 × 180 × 280 mm | 300 × 180 × 280 mm |
| Frequency | 100% | 100% |
| Electronic card | FAAC E721 built-in | FAAC E721 built-in |

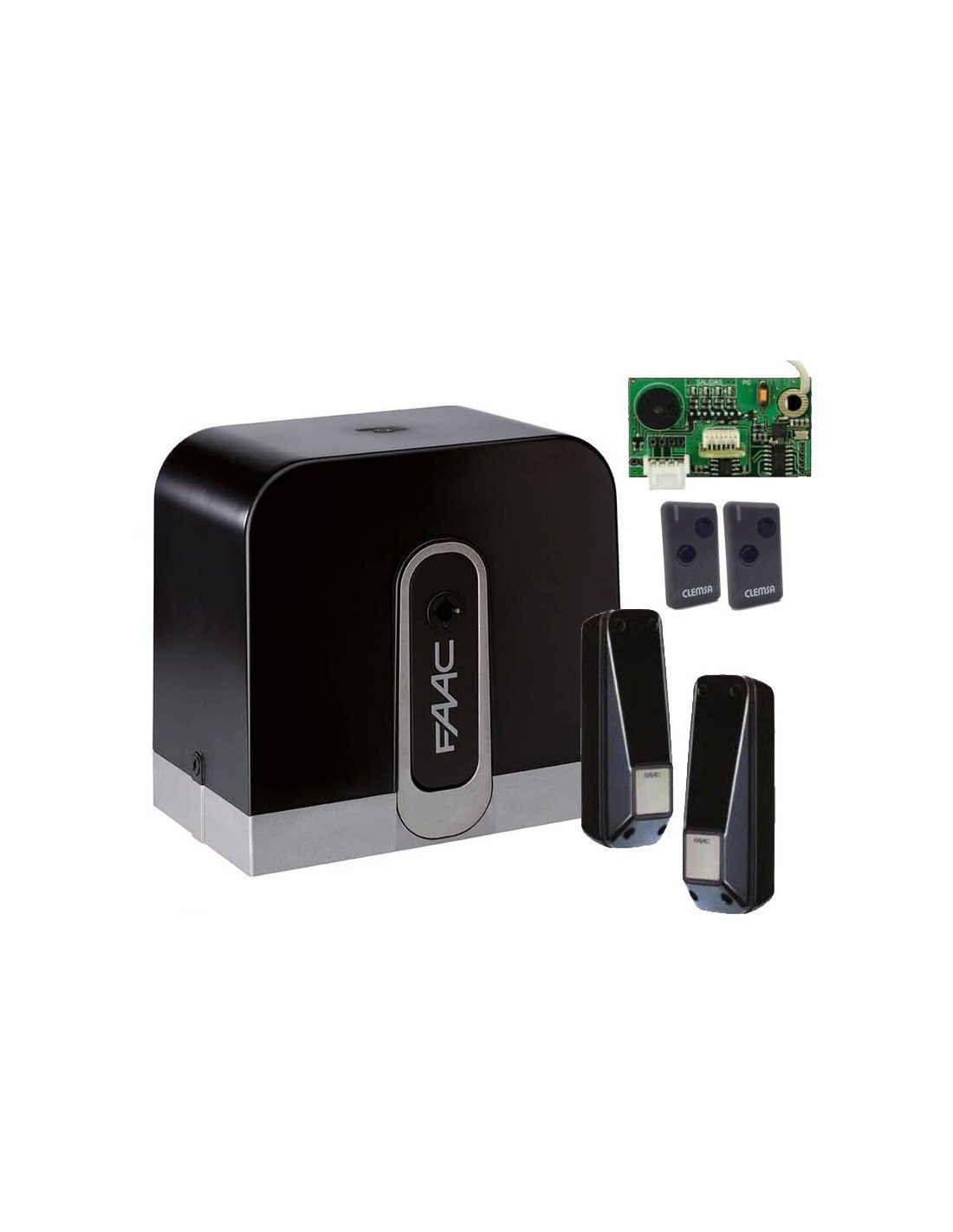

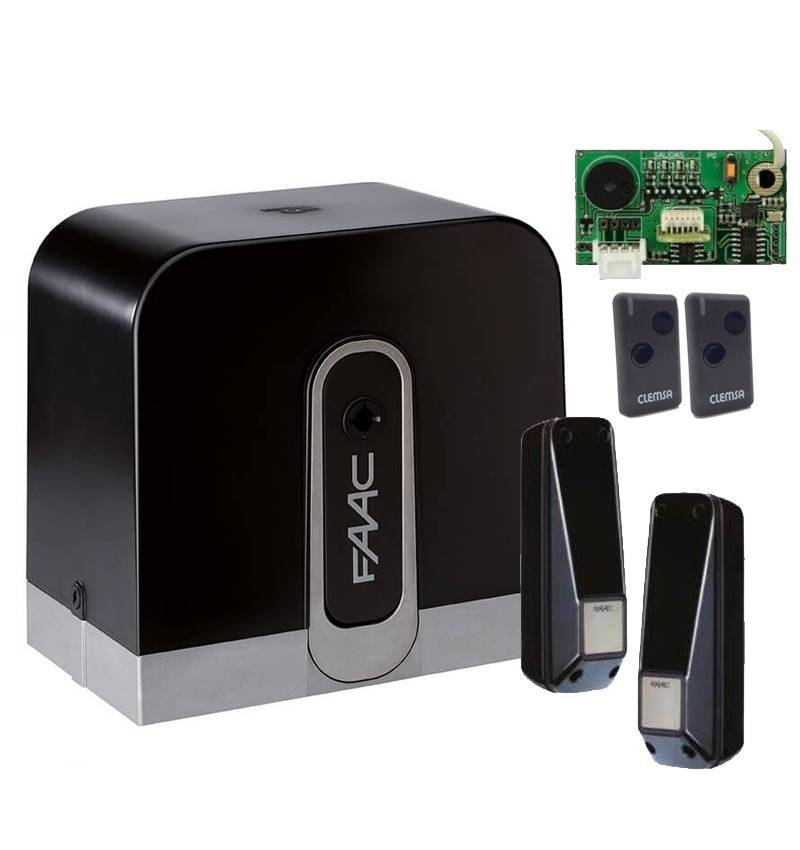

Kit FAAC C720 NT 2 S XP20W
Kit reference: 3202119C720A
Complete Kit to automate sliding doors up 400 kg.
| Reference | Kit content | Quantity |
|---|---|---|
| 109320 | Engine FAAC C720 24V for sliding door up to 400 kg | 1 |
| 120000002902 | 2 433/868 MHz receiver of 2 channels | 1 |
| 110000002730 | Emitter NT 2 S M-II 433 MHz of 2 channels, black color | 2 |
| 785104 | Ballocell FAAC XP20W D, maximum range 20 meters | 1 |
| 400006785148 | 3V lithium pile CR2 for photocell | 1 |
Kit FAAC C721 NT 2 S XP20W
Kit reference: 3202119C721A
Complete Kit to automate sliding doors up 800 kg.
| Reference | Kit content | Quantity |
|---|---|---|
| 109321 | Engine FAAC C721 24V for sliding door of up to 800 kg | 1 |
| 120000002902 | 2 433/868 MHz receiver of 2 channels | 1 |
| 110000002730 | Emitter NT 2 S M-II 433 MHz of 2 channels, black color | 2 |
| 785104 | Ballocell FAAC XP20W D, maximum range 20 meters | 1 |
| 400006785148 | 3V lithium pile CR2 for photocell | 1 |

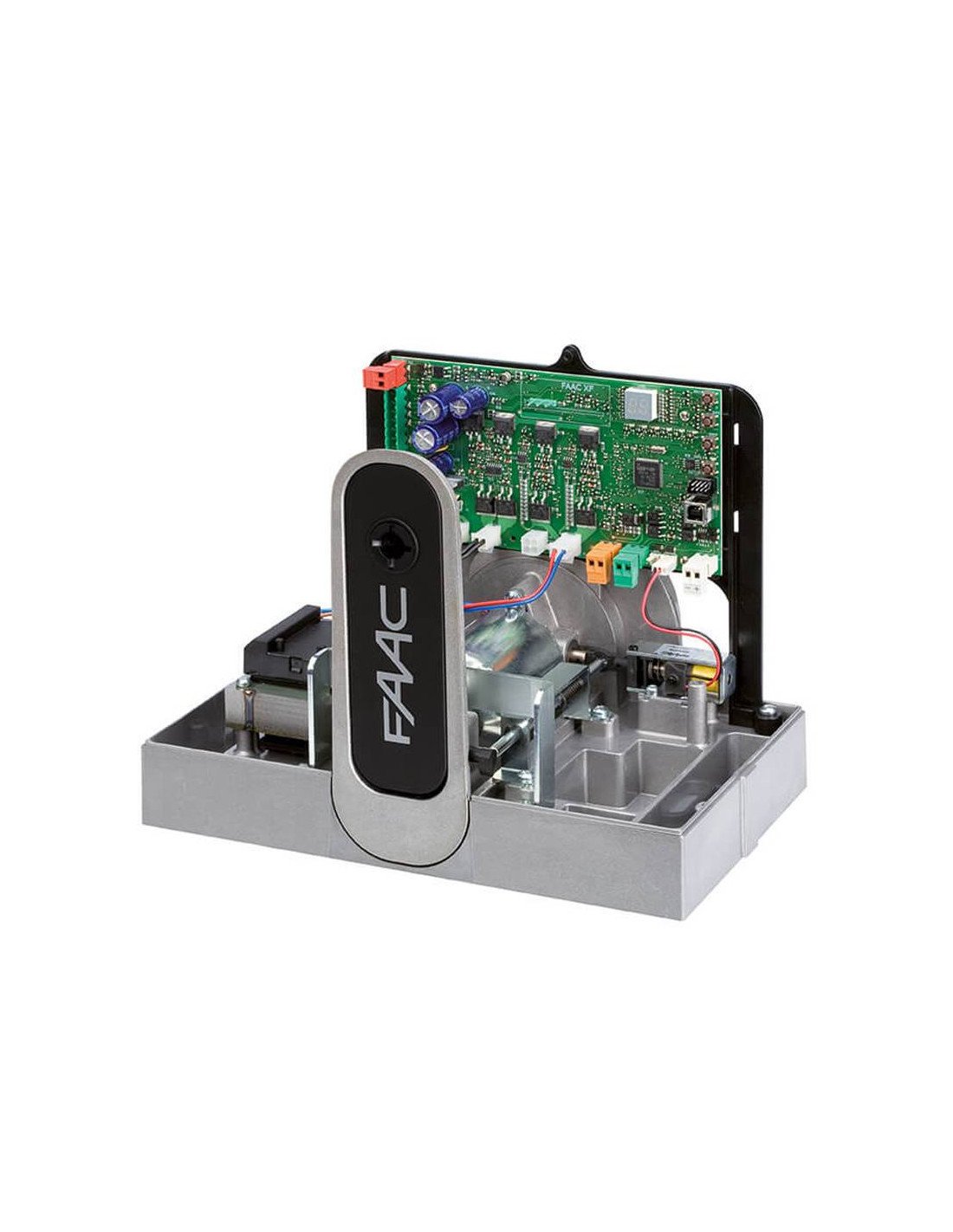

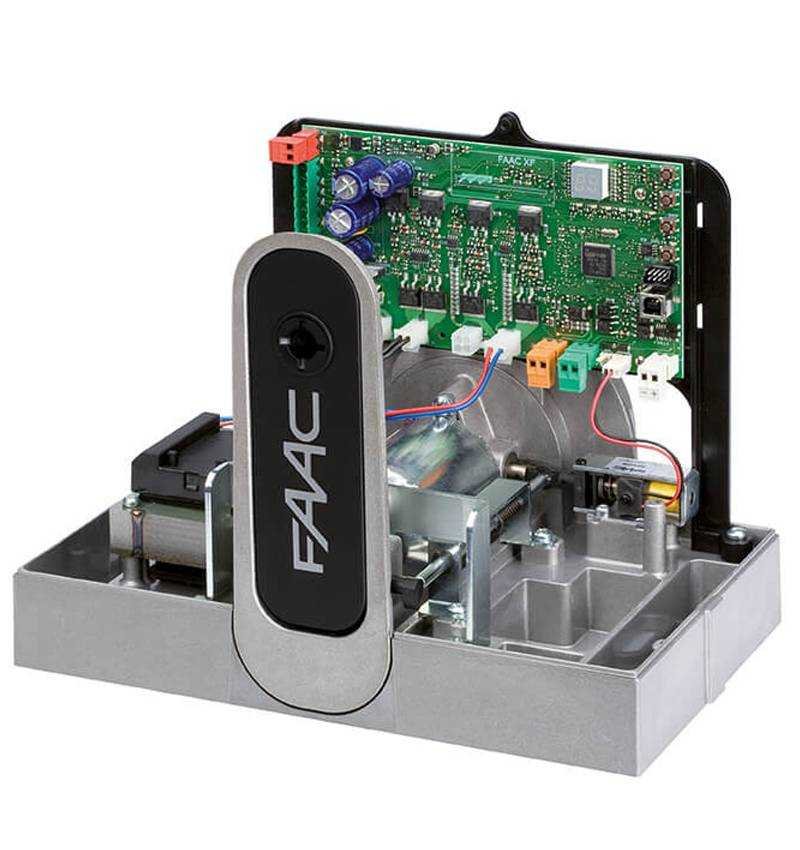

Operation and security
The built-in electronic power plant controls the movement of the door and electronically regulates the force of the engine. The obstacle detection system allows the movement when the door finds a resistance during the maneuver.
The magnetic strokes stop the door at the opening and closing positions using the magnets installed on the rack.
When the engine is stopped, the mechanical locking system keeps the door closed without the need to install an additional electric lock.
In case of power failure, the motor can be unlocked by the key and the front lever to manually move the door.
Installation
Before installing the automation, it should be checked that the door is manually moving smoothly, that the guide is correctly level and that the structure is suitable for weight and dimensions of the sheet.
The installation, programming and regulation of the safety devices must be performed by a qualified professional.
Important: the zipper, the flashing lamp and other installation accessories not indicated in the previous tables are not included in the kit.
Kit
Measures FAAC C720 / c721
- Maximum door weight
- Between 700 and 850 kg
Up to 400kg - Type of engine
- Electromechanical 24V
- Type of door
- Community portal
Residential door
