Motor kit Beninca Bull6M 230V for sliding doors up to 600 kg

Sliding engine Beninca Bull6m It is a reliable and robust solution designed for the automation of residential and community sliding doors up to 600 kg. This automatism stands out for its solid construction, high performance and ease of installation, being an ideal option for professionals seeking durability and security.

This model incorporates a 230V electromechanical gearmotor With integrated control center, offering stable and precise operation. Is equipped with Electromechanical Standing End (Mechanical), a classic and reliable system that allows a simple adjustment and economic maintenance.

The Beninca Bull6m Does not include Serial Encoder, although it allows its integration by optional accessory, which makes it a versatile team adaptable to facilities that require a higher level of anti-explaught safety.

Thanks to its robust design, its internal mechanics of high quality and its fluid performance, this engine guarantees a long service life even under conditions of frequent use. In addition, its incorporated plant facilitates programming and compatibility with accessories such as photocells, receivers and access control systems.

Main features:

• ✔ Motor for sliding doors up to 600 kg
• ✔ Power: 230 Vac
• ✔ Electromechanical (mechanical) running endings
• ✔ Without encoder (optional using accessory)
• ✔ Built-in control unit
• ✔ Residential and community use
• ✔ Simple installation and reduced maintenance

The Beninca Bull6m It is a safe and efficient option to automate sliding doors, offering a perfect balance between benefits, reliability and cost.

Technical characteristics

Characteristics Central cp.bull6-se

• Integrated LCD screen
• Integrated radio receiver 433.92 MHz 64 codes and encoding of radio arc
• Removable terminals
• Logic of automatic, semi-automatic and man present
• End of the engine runway
• Photocell input (Pho) active both in opening and closing
• Photocell input (PHC) active only in closing
• Input for sensitive edge N.C. or 8k2
• Configurable assembly entry as a pedestrian
• Two configurable outputs as an open door light indicator, courtesy light, zone light, second radio channel, photocell test, flash light, alarm contact
• Exit for intermittent light connection
• Operating parameters autoset
• Separate electronic regulations of the opening and closing speed
• Adjustable delays
• ESA + integrated for energy saving
• PREDISPOSITION FOR OPERATION WITH CONTUPPONED DOORS VARY SYSTEMBER CARD (OPTIONAL)
• Prepared for connection of accessories x.be (KNX) and Q.BE (MQTT)
• Configuration, diagnosis, firmware update and remote control management through the Beup application, using the pro.up accessory
• Number of maneuvers
• Password for access to programming
• Maintenance notice
• STAND-BY consumption in accordance with European regulations (EU) 2023/826

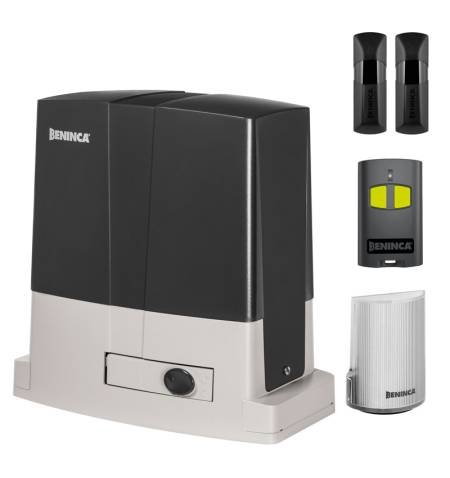

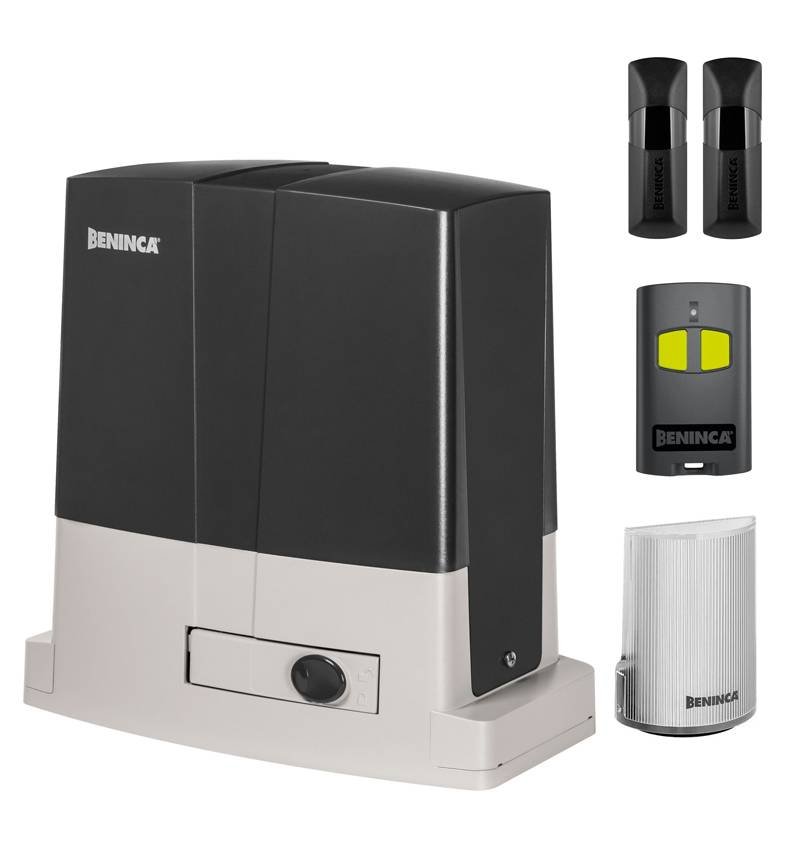

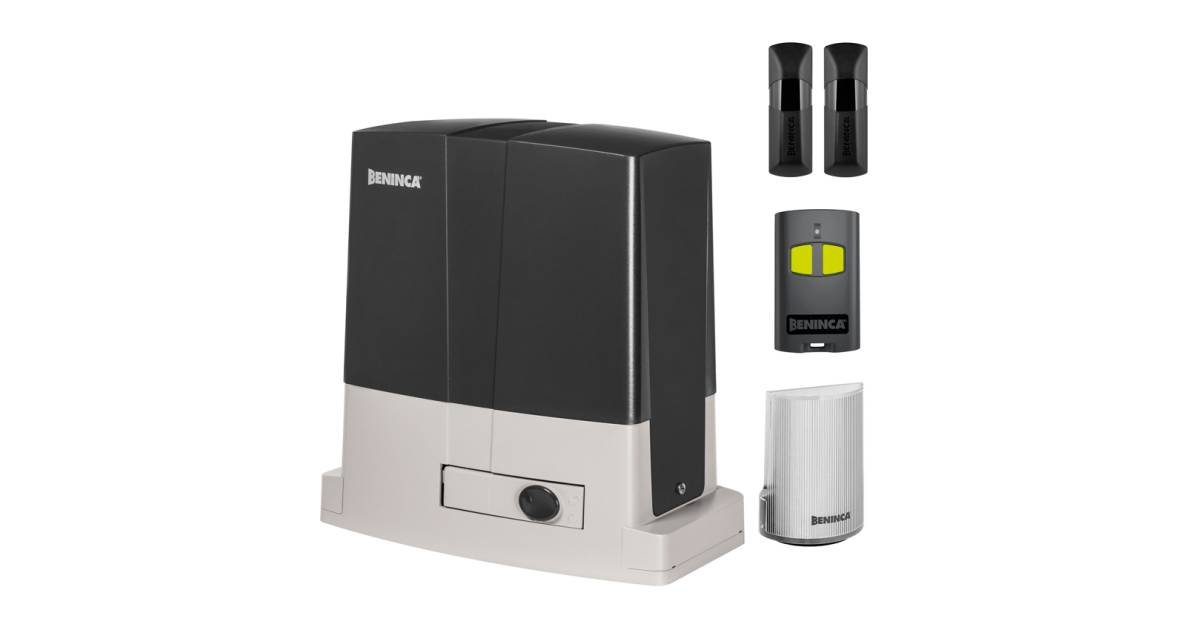

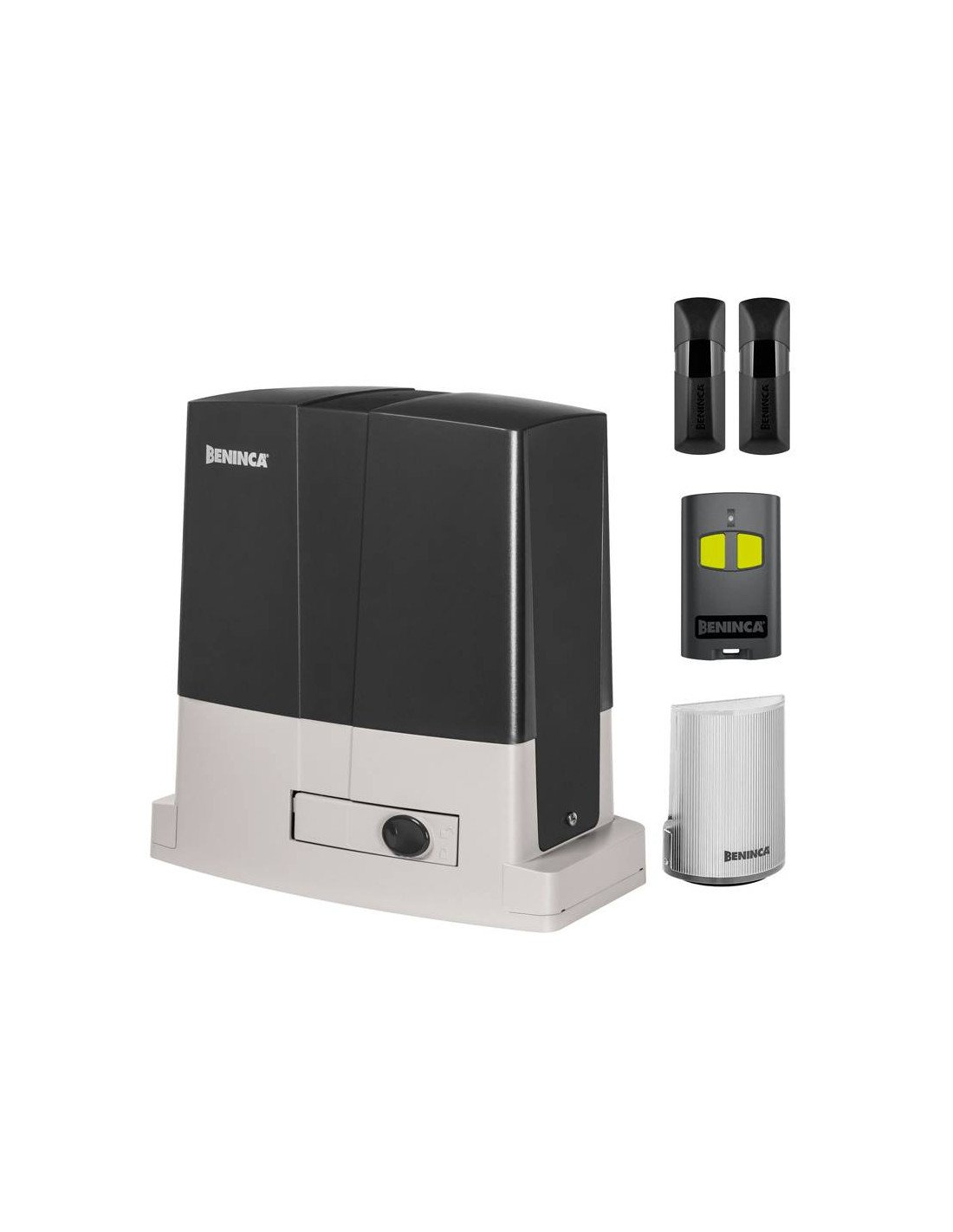

Kit content:

• 1 pc Bull6m (959003951)
• 1 pc Pupilla.t (940901763)
• 1 pc Star (953402665)
• 1 pc To.go2va (9863173)

Measures
