854,26 €

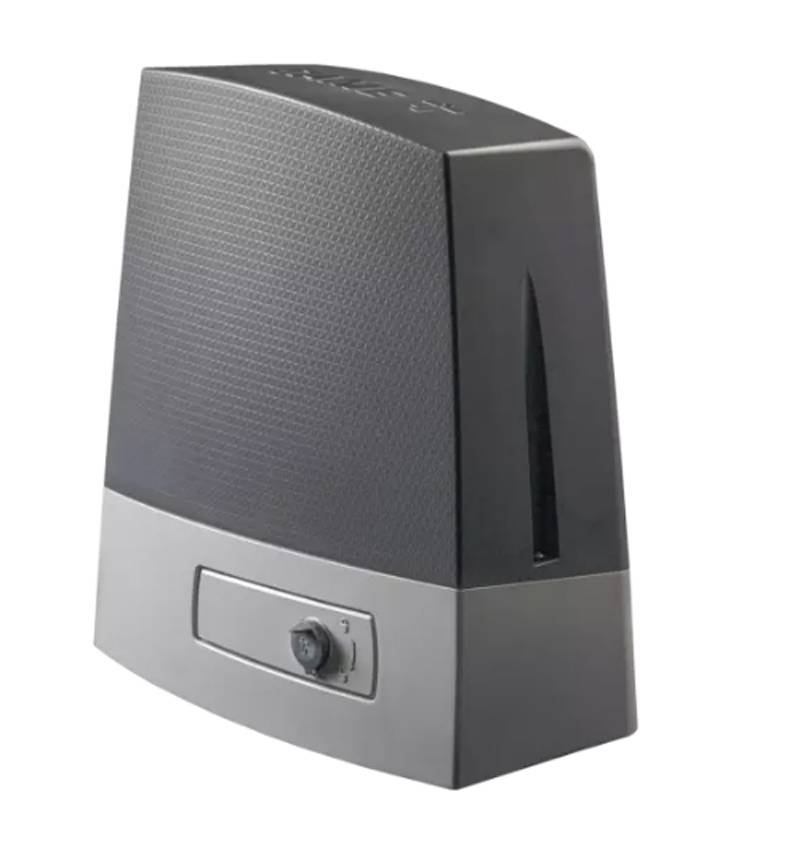

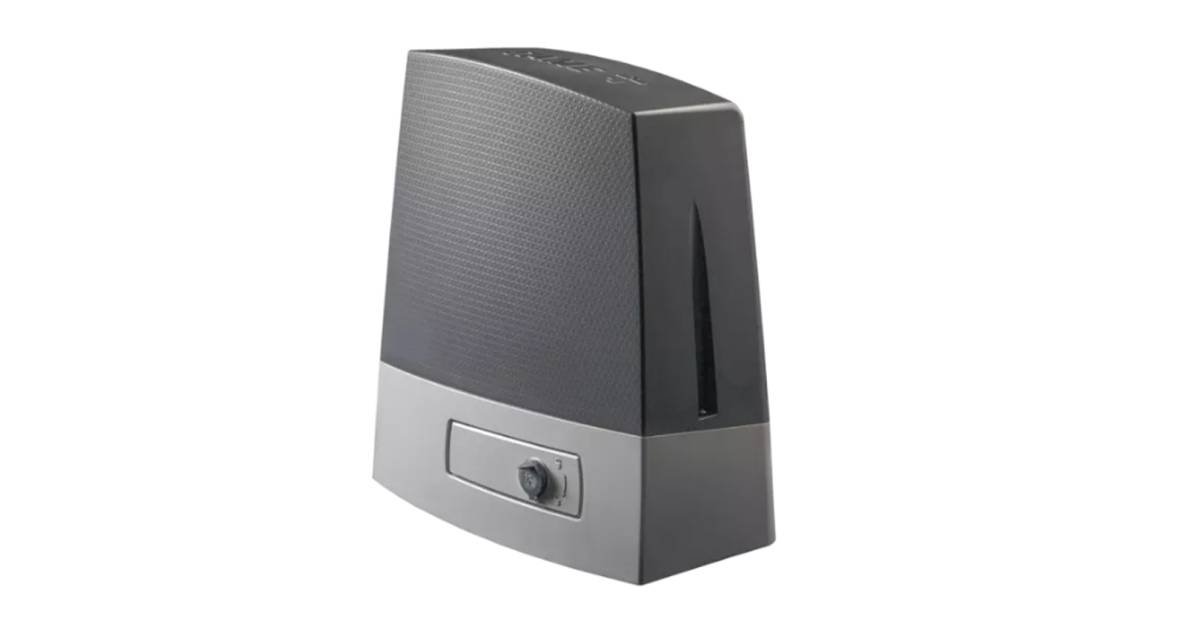

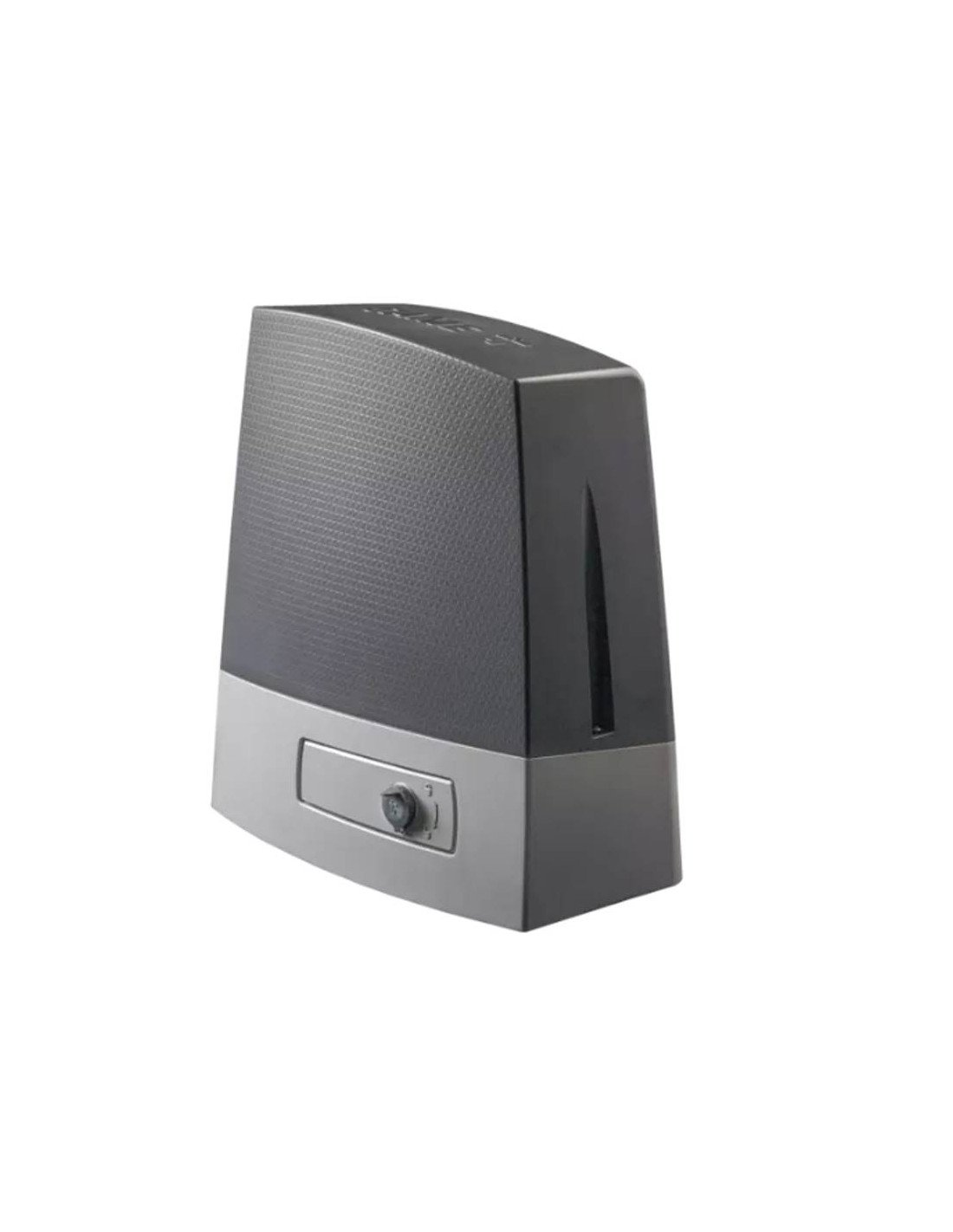

CAME 801ms-0700 BKX12Agm It is an engine for sliding doors designed for residential facilities, neighborhood communities and access with an intensive use. Thanks to your engine 24 V BrushlessIt offers efficient, silent and accurate performance, with a large working capacity.
This automatism incorporates technology Adaptive Speed & Torque Technology, which allows you to intelligently manage the speed and torque of the motor during the movement of the door. In this way, a more fluid maneuver is achieved, safe and adapted to the real conditions of the installation.
The motor CAME BKX12AGM is prepared for sliding doors up 1200 kg and up 20 meters long, being a robust solution for large accesses. Incorporates electronic picture with Display graphic, Magnetic career endings, obstacle detection and integrated radio receiver.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain
Except bulky
CAME 801ms-0700 BKX12Agm It is an engine for sliding doors designed for residential facilities, neighborhood communities and access with an intensive use. Thanks to your engine 24 V BrushlessIt offers efficient, silent and accurate performance, with a large working capacity.
This automatism incorporates technology Adaptive Speed & Torque Technology, which allows you to intelligently manage the speed and torque of the motor during the movement of the door. In this way, a more fluid maneuver is achieved, safe and adapted to the real conditions of the installation.
The motor CAME BKX12AGM is prepared for sliding doors up 1200 kg and up 20 meters long, being a robust solution for large accesses. Incorporates electronic picture with Display graphic, Magnetic career endings, obstacle detection and integrated radio receiver.

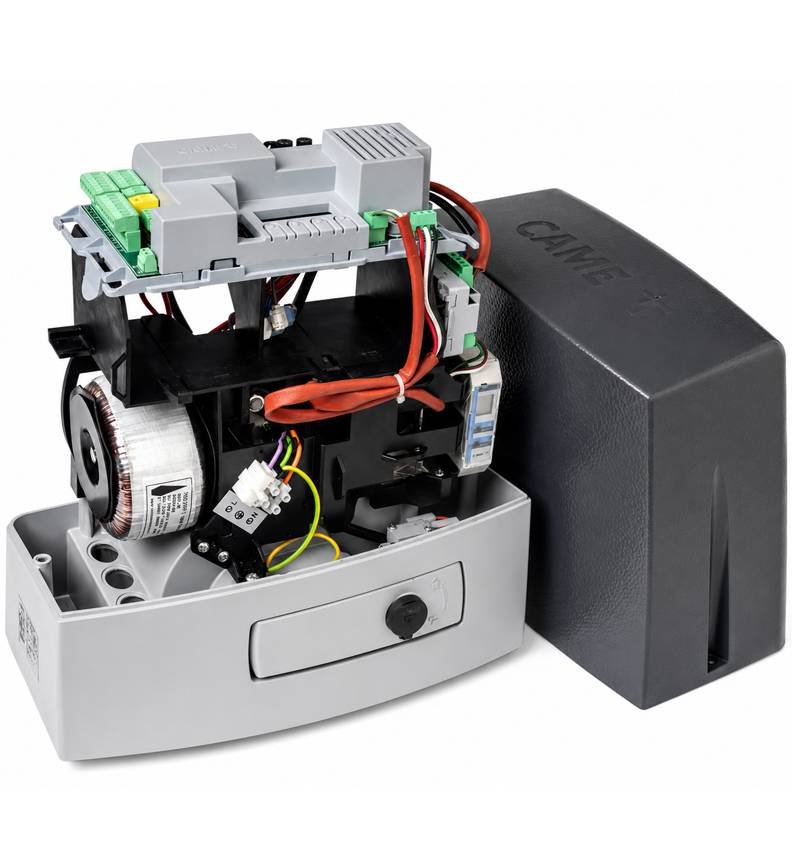

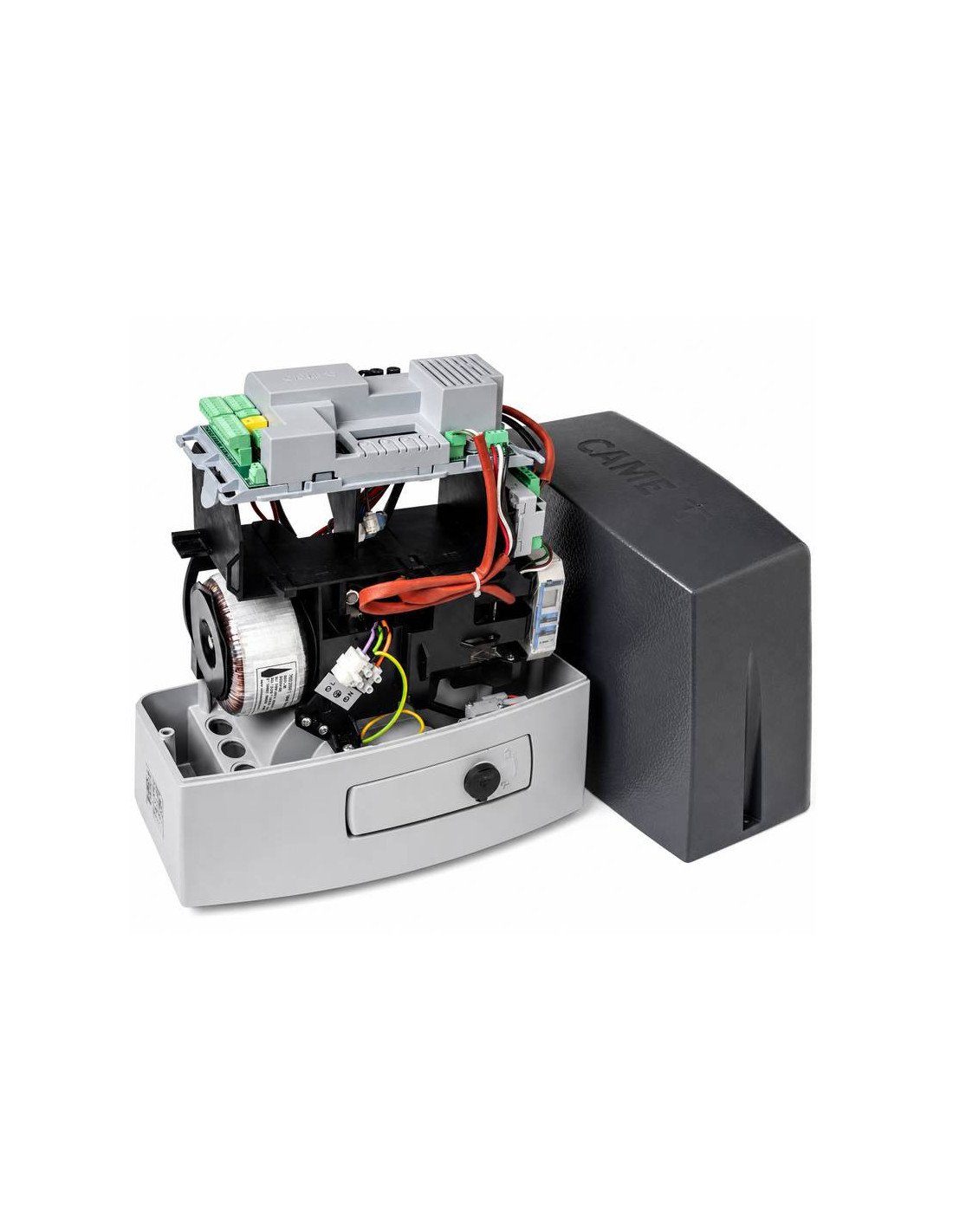

The CAME 801MS-0700 stands out by combining power, advanced electronic control and a professional installation. Its brushless motor allows intensive use with less mechanical wear, while the Display Table facilitates programming and adjustment of operating parameters.
In addition, its magnetic career finishes offer greater accuracy in opening and closing positions, avoiding mechanical systems more exposed to wear. The detection of obstacles brings greater security during the operation of the sliding door.
| Model | 801MS-0700 / BKX12Agm |
| Engine type | Brushless 24 V |
| Feed | 230 V AC - 50/60 Hz |
| Motor feed | 24 V DC |
| Power | 360 W |
| Maximum weight of the door | 1200 kg |
| Maximum length of the leaf | 20 m |
| Maximum maneuver speed | 20 m / min |
| Push | 800 n |
| Maneuvering | ZBB3 with graphic display |
| Run-up | Magnetic |
| Pinion module | Module 4 |
| Degree | Ip54 |
| Insulation class | Class I |
| Operating temperature | -20 ºC to +55 ºC |
| Storage temperature | -20 ºC to +70 ºC |
| Sound pressure level | ≤ 70 dB (A) |
| Consumption in Standby | 0.8 W |
| Color | Gray ral 7024 |
| Motor weight | 17 kg |
| Estimated half-life | 15 years |
| Standard length length | Cycles / hour at 20 ºC | Cycles / hour at 55 ºC |
| 4 m | Continuous use | 76 cycles / hour |
| 10 m | 38 cycles / hour | 32 cycles / hour |
