Cardin SL ACE FAST sliding motor kit

The Kit Cardin SL ACE FAST It is an electromechanical automation for residential sliding doors up to 300 kg, Designed to offer fast, safe and reliable performance in particular use facilities.

This engine works with technology 24v and has Built-in electronic center, which allows precise management of the movement of the door, regulation of force, sensitivity control and detection of obstacles during the maneuver.

Thanks to his Anti-explaught regulation encoder and at Magnetic career endings, the Cardin SL ACE FAST engine guarantees a controlled movement, with the possibility of adjusting the operating speed and improving the safety of the installation.

The motor group is manufactured with a resistant and compact structure, prepared to be installed both left and on the right of the passage hole. Your unlocking system allows you to drive the door manually in case of need.

Strengths of the Kit Cardin SL ACE FAST

• 24V electromechanical motor For residential sliding doors of up to 300 kg.
• Electronic center T124 built-in, with advanced management of maneuver.
• Anti-explashing encoder For greater safety during the tour.
• Magnetic career endings, more accurate and reliable against traditional mechanical systems.
• Adjustable speed of translation between 10 and 16 m / min.
• Soft unemployment function and progressive start for a more controlled movement.
• OC2 Open Collector receiver Integrated, compatible with cardin emitters.
• Vedo180 photocells included, adjustable and synchronized, with a maximum range of up to 25 meters.
• Unlocking For opening the door in case of electric failure.
• Chance emergency batteries Using the optional Power 400 kit.
• Compatible with solar feeding system SunPower optional.

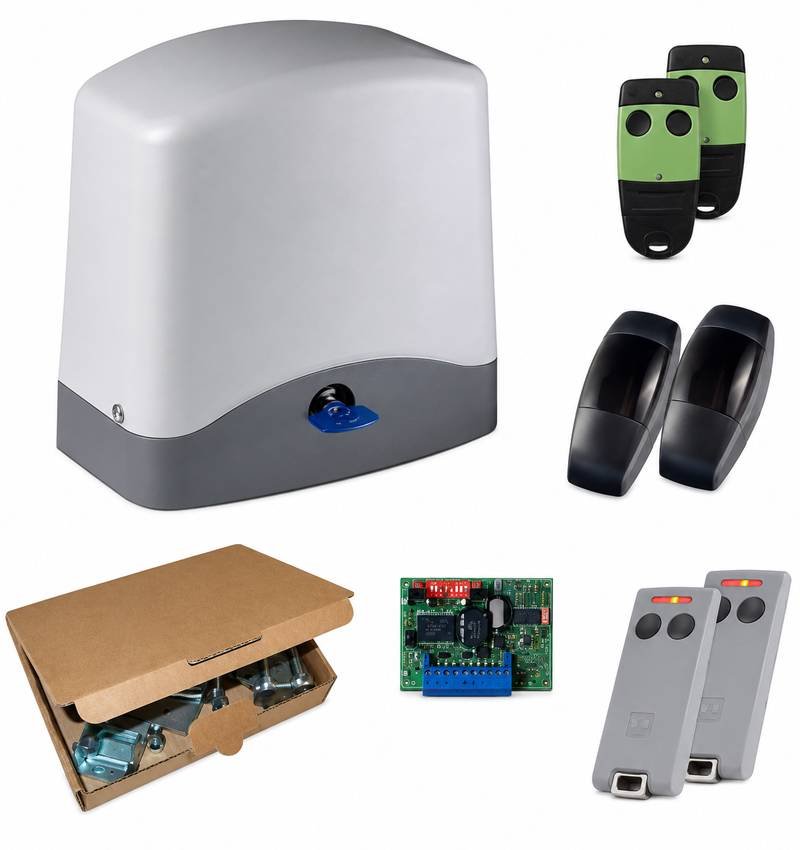

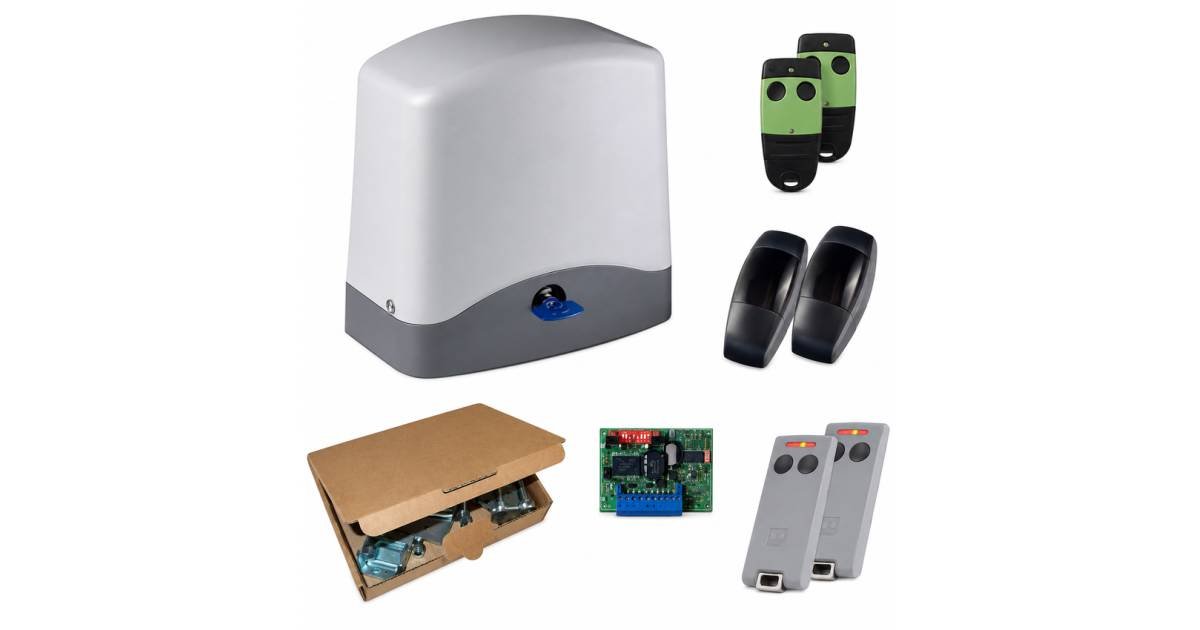

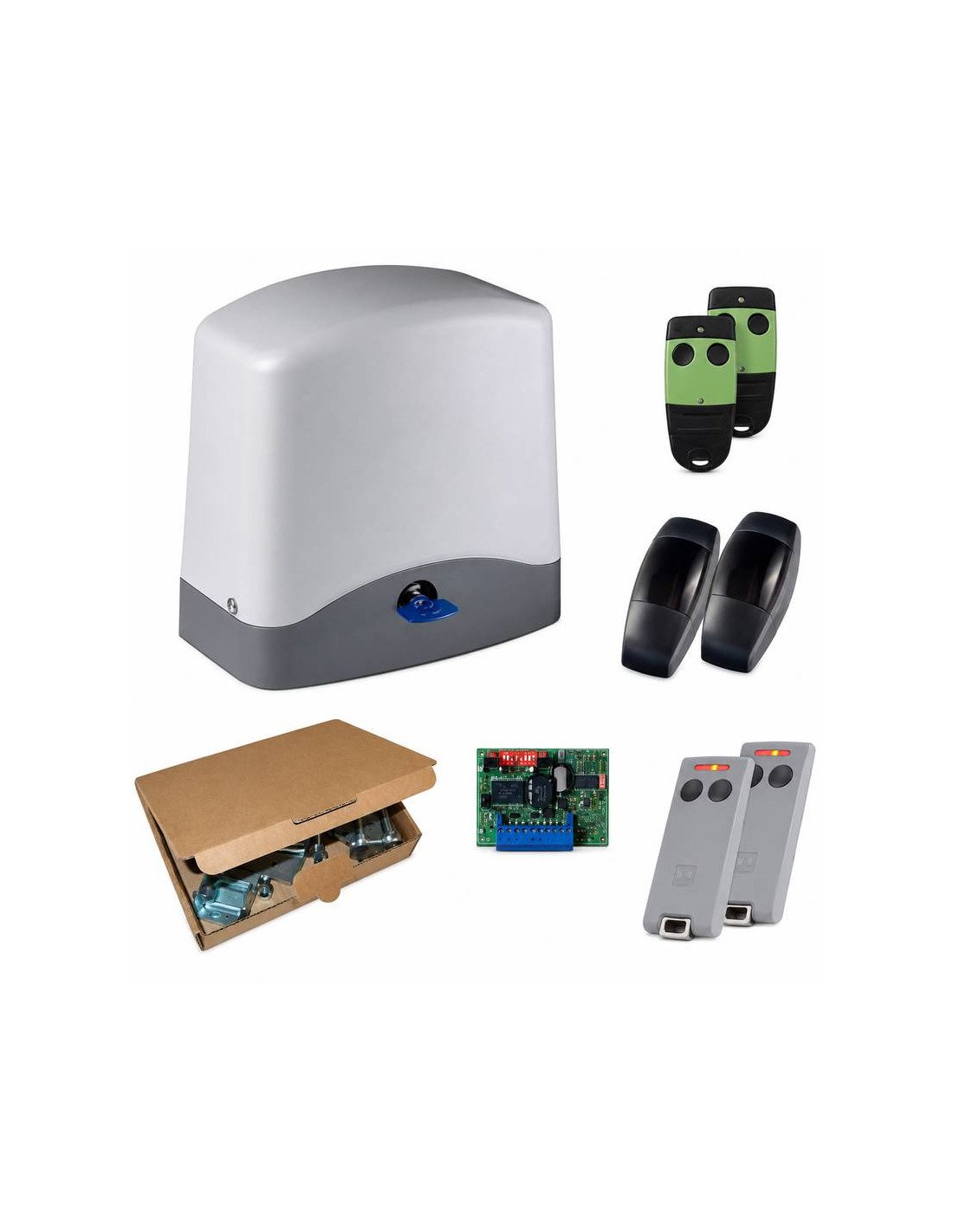

Kit content

• 1 Motor Cardin SL ACE FAST For sliding door of up to 300 kg.
• Electronic Central T124 Built-in the engine.
• 1 OC2 receiver Open integrable collector.
• 1 game of photocells Vedo180 Surface, synchronized and orientable 180º.
• 2 Cardin emitters Compatible with the kit system.
• Mounting kit included.

Technical characteristics

Working technical description

The Cardin SL ACE FAST engine incorporates an integrated control electronics that allows managing the position of the door by encoder, facilitating the programming of the maneuver and optimizing the movement during opening and closing.

The electronic plant allows to adjust the thrust strength and sensitivity, minimizing mechanical efforts over the door and improving safety against possible obstacles during the tour.

The system also incorporates functions of soft boot and soft stop, which help reduce blows at the beginning and end of the maneuver, offering a quieter operation and prolonging the useful life of the installation.

This kit is a complete solution to automate residential sliding doors, as it includes motor, central, receiver, emitters and safety photocells.

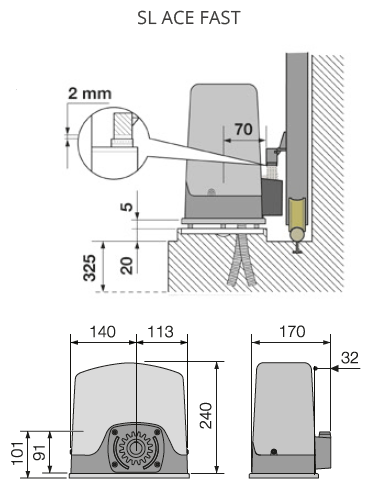

Measures
