Motor kit VDS Geko 230V for residential sliding doors up to 400 kg

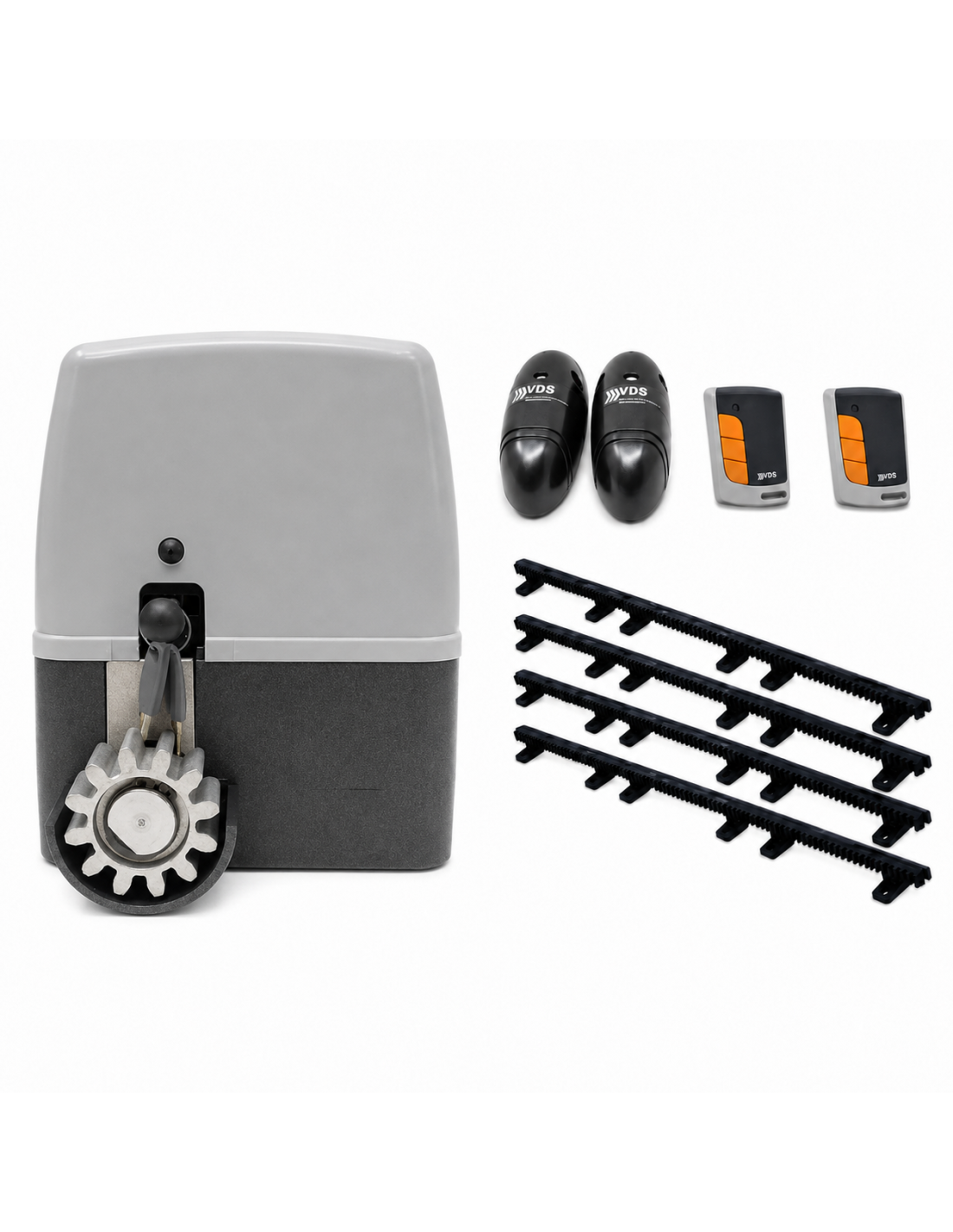

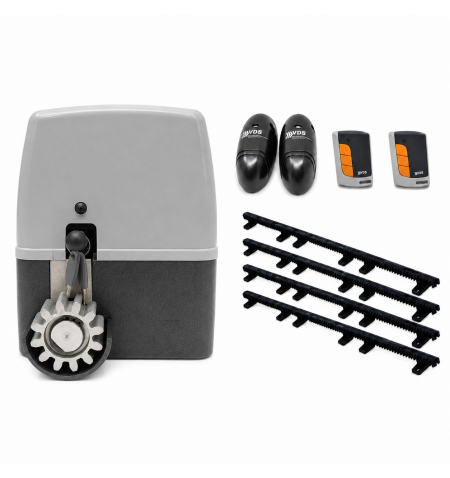

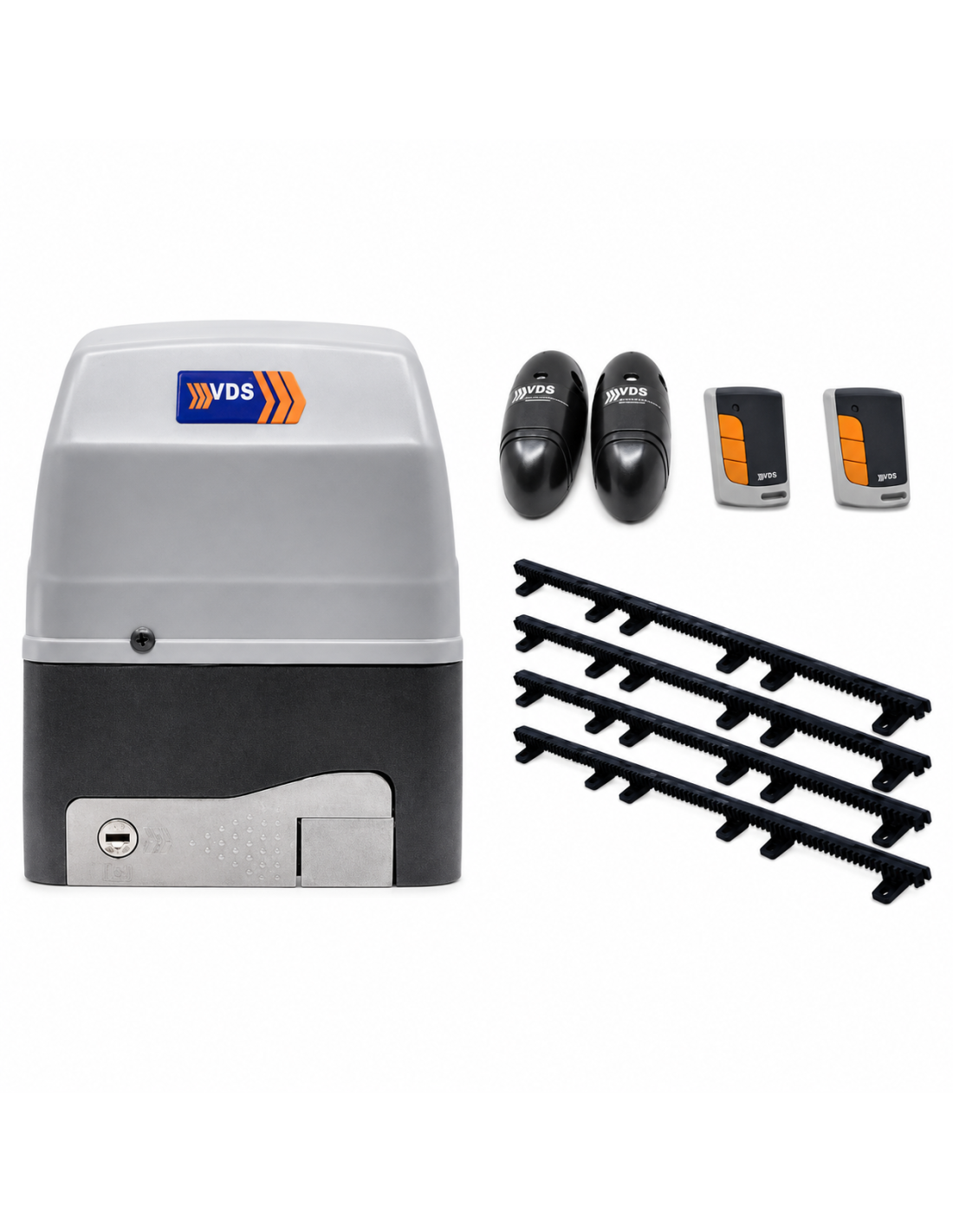

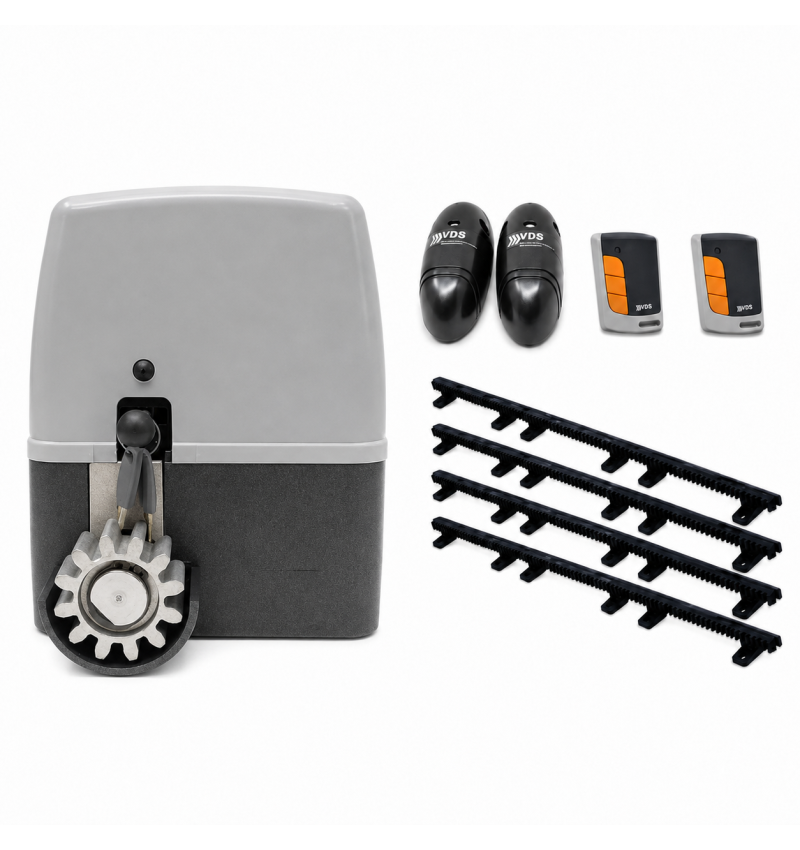

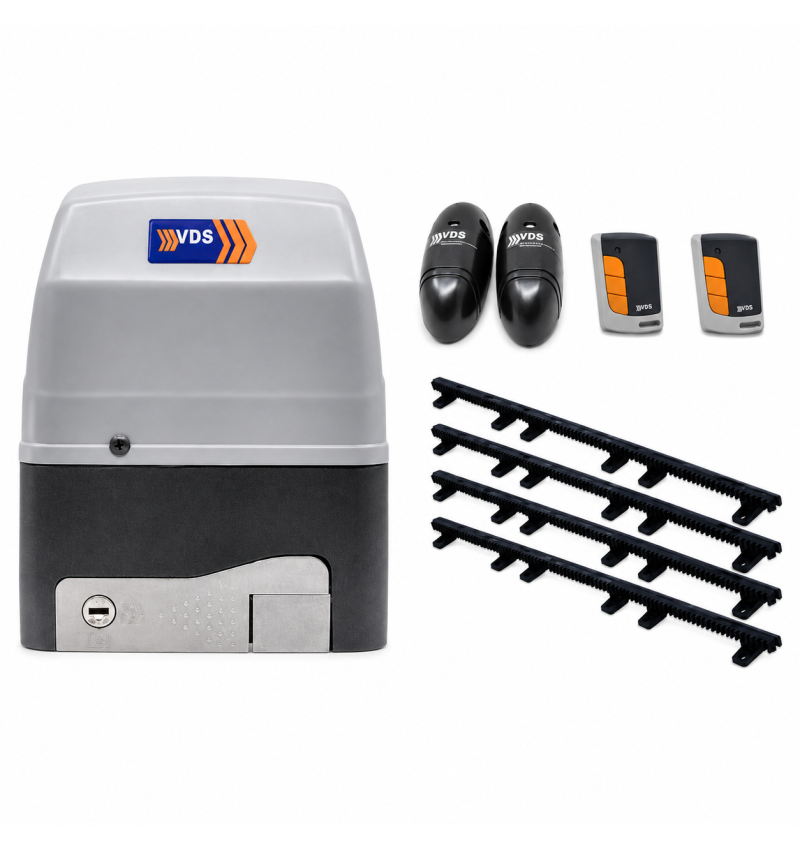

motor kit VDS GEKO it is designed to automate sliding doors up to 400 kg. Includes the gearmotor VDS Geko with built-in radio maneuver and receiver box, two remote controls, a game of photocells and four meters of nylon zipper.

The engine runs to 230 VAC and has electromechanical race end, User unlocking by key and electronic regulation of force. Your control box allows you to configure the automatic closure, the soft stop and the behavior of the door during opening and closing maneuvers.

It is a complete solution to automate residential sliding doors, including the main elements necessary to perform the installation.

Kit content

Main features

• Automation sliding doors up to 400 kg.
• Gearreductor fed 230 VAC.
• Built-in maneuver box.
• Integrated radio receiver 433,92 MHz.
• Electromechanical career endings.
• Manual unlocking by key to maneuvering the door in case of lack of current.
• Electronic regulation of the motor force.
• Soft stop configurable at the end of the opening and close.
• Programmable automatic closure.
• Entrance for security photocells.
• Entrance for opening and stop button.
• Exit for flashing indicator flashing.
• Two remote controls included.
• Four meters of nylon zipper included.

Operation of the maneuvering box

The built-in electronic table allows control of the motor by using the controls or by means of an external button connected to the input START.

During closing, the activation of photocells causes the investment of the maneuver, causing the door to open again. It also allows you to configure different operating modes:

• Automatic closure: the door is closed after the scheduled waiting time.
• Semiautomatic operation: the door remains open until receiving a new order.
• Soft stop: reduces the speed of the motor at the end of the opening and closing.
• Close by photocell: it allows to start the closure after the vehicle has traversed the photocells.
• Regulation of force: it allows adapting the motor push to the characteristics of the door.

Technical characteristics

Unlocking

In case of current cut, the motor can be unlocked by the supplied key. Once the mechanism is released, the door can be scrolled manually.

Installation recommendations

Before installing the automation, it must be checked that the door moves gently, that the guide is level and that the wheels and mechanical stops are in good condition.

The zipper should be installed leaving an approximate separation of 2 to 3 mm between the rack and the pinion, Avoiding that the weight of the door rest directly on the engine.

Important: the installation, the electrical connections and the start-up must be carried out by qualified personnel, respecting the security measures and the current regulations.
