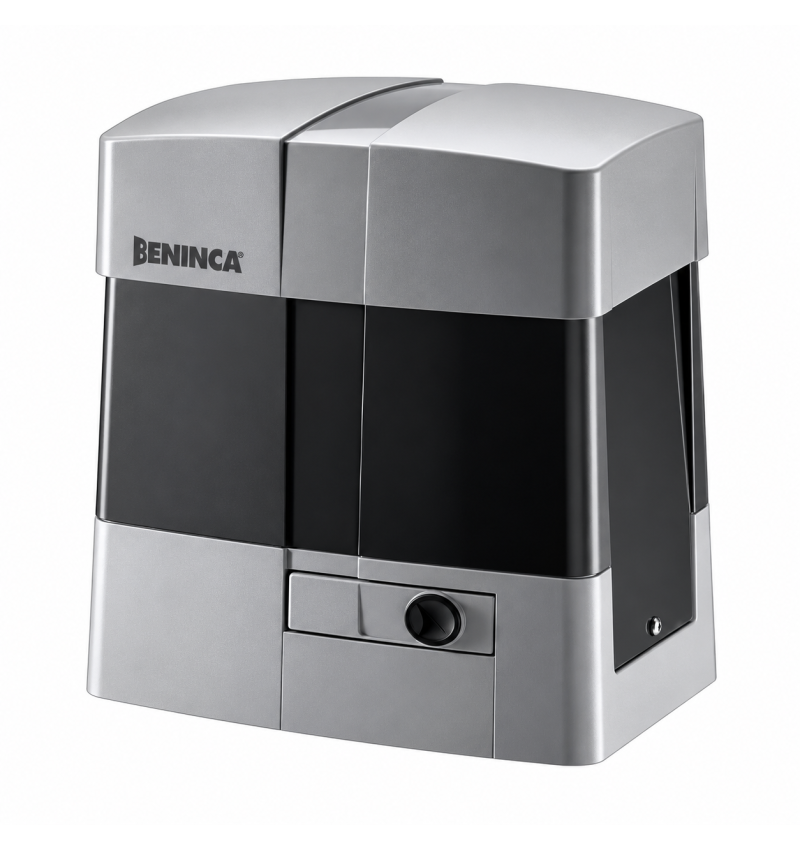

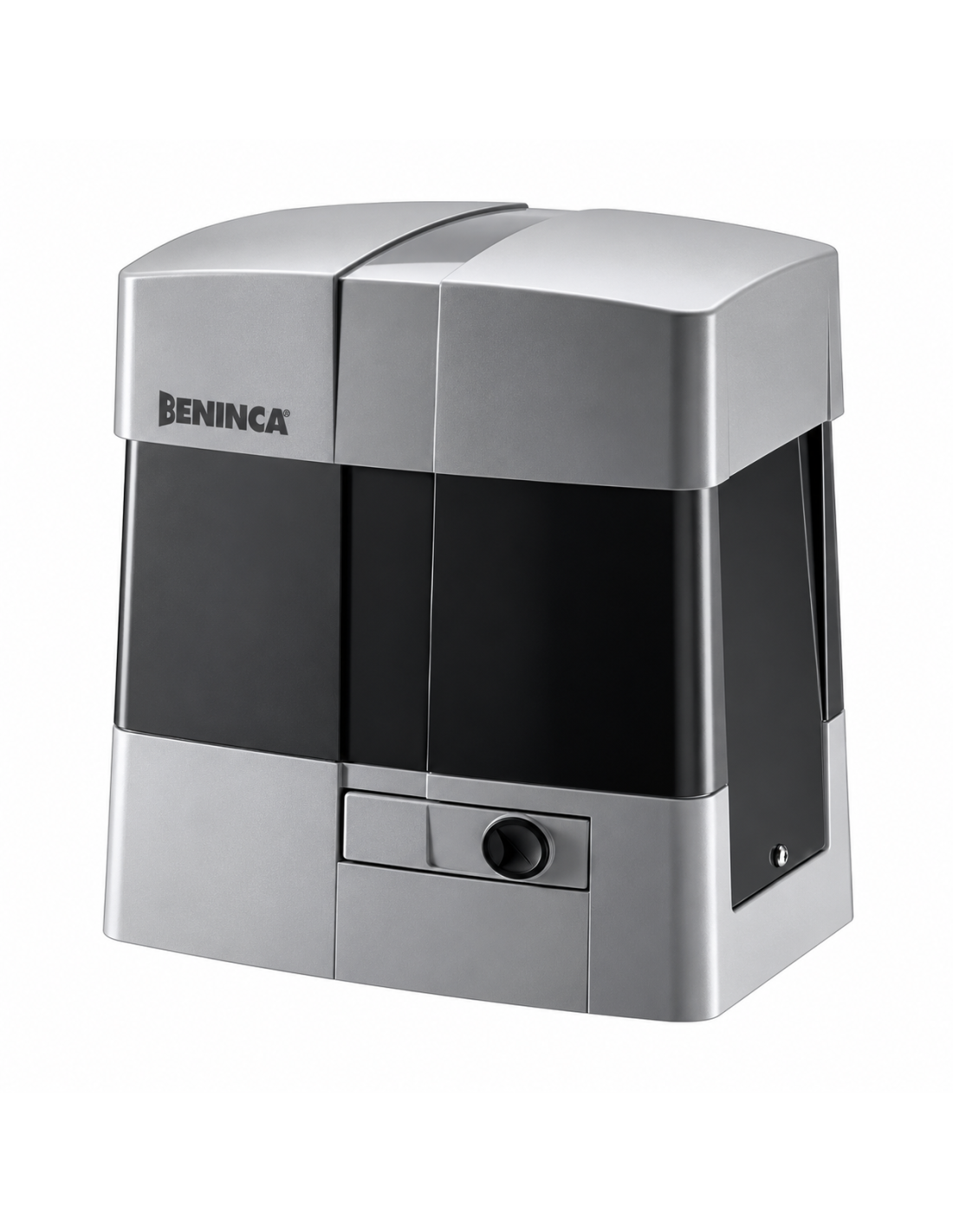

Sliding engine Beninca Bull1024SE 24V Up to 1000 kg

Benincà sliding engine Bull1024SE 24V up to 1000 kg

The Benincà Bull1024SE, reference 959003979, it is an irreversible gearmotor 24 VDC designed to automate sliding doors of up to 1000 kg.

Is especially suitable for installations that require intensive use, combining a robust mechanics with advanced electronics capable of accurately managing speed, torque and phases of slowdown.

Incorporates the electronic plant CP.B24-D120, radio receiver 433,92 MHz ARC, virtual encoder and intelligent system STC to optimize the movement control of the door.

Electronics is also prepared for configuration, diagnosis and update by PRO.UP and the beup application.

Main advantages of Bull1024SE

✓ For sliding doors up 1000 kg.

✓ 24 VDC for intensive use.

✓ INTEGRATED CP.B24-D120.

✓ Receiver 433,92 MHz ARC incorporated.

✓ Virtual encoder for precise control of the route.

✓ STC intelligent couple management.

✓ Anti-explashing system by amperimeter detection.

✓ Integrated battery charger for optional emergency system.

✓ Irreversible gearmotor for sliding doors.

✓ ENGINE EARING TO 24 VDC.

✓ Maximum door of the door 1000 kg.

✓ Maximum push of 892.

✓ Adjustable speed of 5.5 to 10.5 m / min.

✓ Work cycle up 80%.

✓ Zipper pinion M4 Z14.

✓ Electronic power station installed at the top of the engine to facilitate connection and maintenance operations.

✓ Energy saving system THAT +.

✓ Independent electronic settings of opening and closing speed.

✓ Configurable slowdowns.

✓ Manual unlocking system through personalized key.

✓ Reinforced foundation plate included.

The Bull1024SE incorporates the Central Series Benincà cp.b24-D120, designed specifically for the Bull range SE.

The plant incorporates lCD Display to facilitate the programming and diagnosis of automation.

It also has a radio receiver 433,92 MHz ARC integrated with capacity for 2048 codes.

It allows to manage the main safety functions, speeds, slowdown, operating logic and automation accessories.

The virtual encoder recreate the door position information from the operating parameters of the electric motor.

This allows you to manage precisely the phases of slowdown and the tour of the door.

The system STC performs a dynamic calculation of the necessary push during the route and can detect critical points to automatically adapt the pair to the real needs of the installation.

The goal is to achieve a smoother, safe and controlled movement throughout the maneuver.

The plant incorporates a system of ampection amplacement it allows controlling the effort made by the engine and acting before an abnormal resistance during movement.

The integrated receiver works 433,92 MHz and use coding ARC - Advanced Rolling Code of Benincà.

The plant has memory for up 2048 radio ARC codes.

The Electronics of the Bull1024 is ready to use the optional accessory PRO.UP.

By means of the application Beup, the installer can access the configuration, modify parameters, consult error messages and make firmware updates.

The bull1024 is incorporated integrated battery charger and it is prepared to install compatible backup batteries.

With the optional batteries installed, the automatism can continue performing maneuvers in case of temporary absence of power supply.

The engine is supplied with reinforced foundation plate.

Measures of the plate: 326 × 164.5 × 2 mm, with fixing distance of the engine 301 × 75 mm.

Important before placing the order

The Bull1024SE Ref. 959003979 corresponds to the standard version.

If you need the version with magnetic career endings, you must select the model Bull1024se.s ref. 959003987. The zipper and external accessories are not included unless expressly indicated.
