Sliding engine Beninca Bull1024se.s 24v 1000 kg final magnetic career

Sliding engine Benincà Bull1024SE.S 24V Up to 1000 kg with magnetic finishes

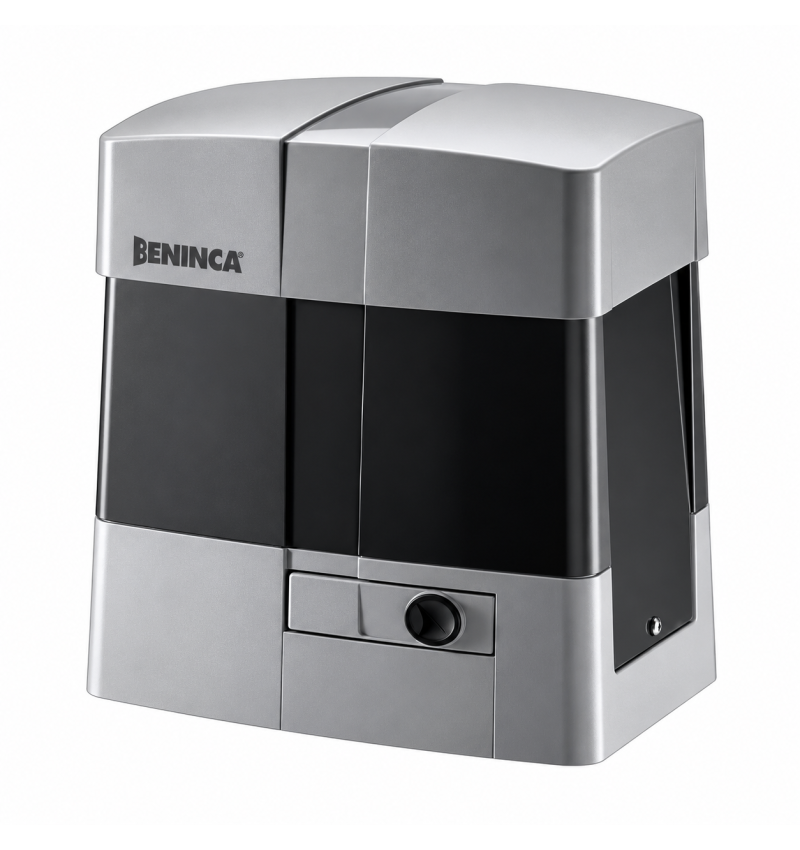

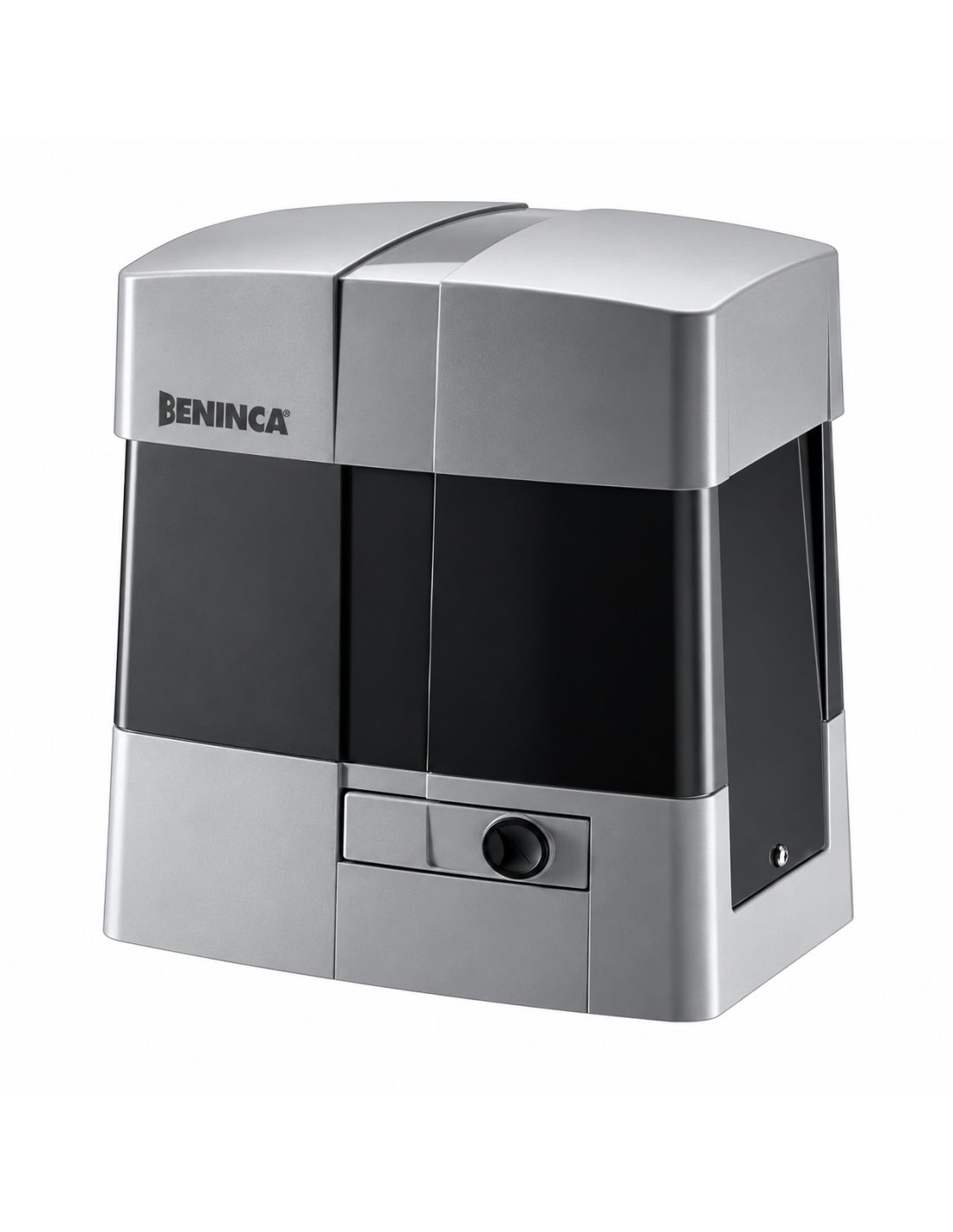

The Benincà bull1024se.s, reference 959003987, it is an irreversible gearmotor 24 VDC designed to automate sliding doors of up to 1000 kg.

It is especially suitable for installations of intensive and commercial use, combining a robust mechanics with advanced electronics to accurately manage speed, torque and slowdown.

This version BULL1024SE.S incorporate series magnetic career endings, differentiating from the standard BULL1024SE model.

Integra the electronic power station CP.B24-D120, receiver ARC 433,92 MHz, virtual encoder, smart system STC and battery charger for emergency feeding.

Version .s with magnetic career finishes

✓ BULL1024SE.S: magnetic career endings included.

✓ BULL1024SE: standard version without magnetic career end.

✓ For sliding doors up 1000 kg.

✓ 24 VDC.

✓ Designed for intensive use.

✓ Magnetic career endings incorporated.

✓ Electronic Central CP.B24-D120 integrated.

✓ Receiver 433,92 MHz ARC incorporated.

✓ Virtual encoder for precise travel control.

✓ STC intelligent couple management.

✓ Anti-explashing security through amperimeter detection.

✓ Independent electronic regulation of opening and closing speeds.

✓ Configurable slowdowns.

✓ Energy saving system THAT +.

✓ Integrated battery charger.

✓ Compatible with configuration and diagnosis by PRO.UP and beup application.

One of the main differences of BULL1024SE.S is the incorporation of magnetic career endings.

The system allows detecting the final opening and closing positions without depending on the traditional mechanical drive of a microSwitch.

This solution is especially interesting in installations exposed to demanding environmental conditions and reduces mechanical contact in the end-of-career system.

The engine incorporates the central Benincà cp.b24-D120, equipped with lCD Display for programming and diagnosis.

Incorporate radio receiver 433,92 MHz ARC memory 2048 codes.

It allows managing automatic, semi-automatic and man present logics, as well as security entries, photocells and resistive band.

It also has independent electronic settings of the opening and closing speeds, configurable slowdown and self-system.

The virtual encoder recreate the position information of the door by analyzing the motor operating parameters.

This allows you to follow the route from the door, manage the slowdown and adapt the pair depending on the position.

The system STC dynamically analyze the necessary effort during the tour, identifying critical points and adjusting the torque according to the real needs of the installation.

Electronics incorporates ampection amplacement, allowing controlling the effort made by the engine and acting before an abnormal resistance during the maneuver.

The integrated receiver works 433,92 MHz coding ARC - Advanced Rolling Code of Benincà.

The memory of the plant allows us to manage up 2048 aRC codes.

The Bull1024SE.S is prepared to use the optional accessory PRO.UP.

By means of the application Beup configuration, diagnostic, error management, firmware update and administration of automatism can be carried out.

The plant incorporates battery charger and it is ready to work with emergency feeding.

The compatible battery kit can be used Benincà BT2.BAT ref. 908602344 to have backup power during temporary current cuts.

The bull1024se.s is supplied with reinforced foundation plate.

Dimensions of the plate: 326 × 164.5 × 2 mm, motor fixing distance 301 × 75 mm and 4 holes Ø8.5 mm.

Important before placing the order

The reference 959003987 corresponds to Bull1024SE.S with magnetic career finishes.

If you do not need magnetic finals, there is version Bull1024SE Ref. 959003979. The zipper, controls, photocells and batteries are not included unless expressly indicated.
