Livi 9 / 24X / M Kit for sliding door 900 kg | 24V + NET24N

The kit DEA LIVI 9 / 24X / M it is a complete solution for the automation of residential sliding doors up to 900 kg, equipped with electromechanical gearmotor 24V and electronic central DEA NET24N.

The whole also includes line-X PHOTOCELLS, lED signaling lamp DEA AURA-X with integrated antenna and 2 manas Dea GTX2, forming a complete kit with original DEA SYSTEM components.

Livi 9 / 24X / M 24V SLIDING ENGINE

The DEA LIVI 9 / 24X / M is an irreversible electromechanical gearmotor designed to automate sliding doors residential up to 900 kg of weight.

Its operation 24V, combined with the Electronic Center of Net24N, allows to obtain a precise and progressive movement, with speed regulation, slowdown and electronic obstacle detection system.

• Electromechanical gearmotor irreversible of 24V.
• For sliding doors up 900 kg.
• Magnetic career endings.
• Approximate speed of 10 m / min.
• Maximum absorbed power of 110 W.
• Maximum thrust 360 N.
• Electronic speed regulation.
• Adjustable slowdown in opening and closing.
• Electronic obstacle detection system.
• Manual unlocking system.
• Electronic NET24N integrated.

Technical characteristics of Livi 9 / 24X / M

Electronic Central Dea Net24N

The LIVI 9 / 24X / M engine incorporates the electronic Central Dea Net24N, developed to manage 24V AUTOMATISMOS and configure the main parameters related to the movement and the security of the door.

• Electronic engine management of 24V.
• Programming and Travel Learning.
• Electronic speed regulation.
• Configuration of phases of slowdown.
• Regulation of sensitivity before obstacles.
• Management of security devices.
• Management of opening and closing orders.
• Possibility of configuring pedestrian opening.
• Compatible with specific Accessories.

Compatible with emergency battery

Thanks to its operation 24V, lIVI 9 / 24X / M can be integrated, through the corresponding accessories, in an installation with backup battery.

This possibility allows automatism to be operative during certain power supply cuts, depending on the installed configuration.

Line-X photocells included

The kit incorporates a game of line-X PHOTOCELLS composed by emitter and receiver to increase safety during door movement.

• Composed emitter and receiver.
• Surface installation.
• Compact design.
• Indicated for automations of doors and accesses.
• They allow detecting obstacles in the area of passage and transmitting the corresponding safety signal to the plant.

LED Lamp Dea Aura-X

The DEA AURA-X it is the signaling lamp included in the kit and allows you to warn visually when the door is performing an opening or closing maneuver.

• Lighting technology LED.
• Designed for automatisms froma.
• Integrated radio antenna.
• Compact design for exterior installation.

2 controls of GTX2 included

The set includes 2 manas Dea GTX2 to control the automation wirelessly.

• 2 channels to control different compatible functions or automatisms.
• Original issuers Dea System.
• Designed to work with compatible Radio Receptors.
• Compact format for use as a remote control.

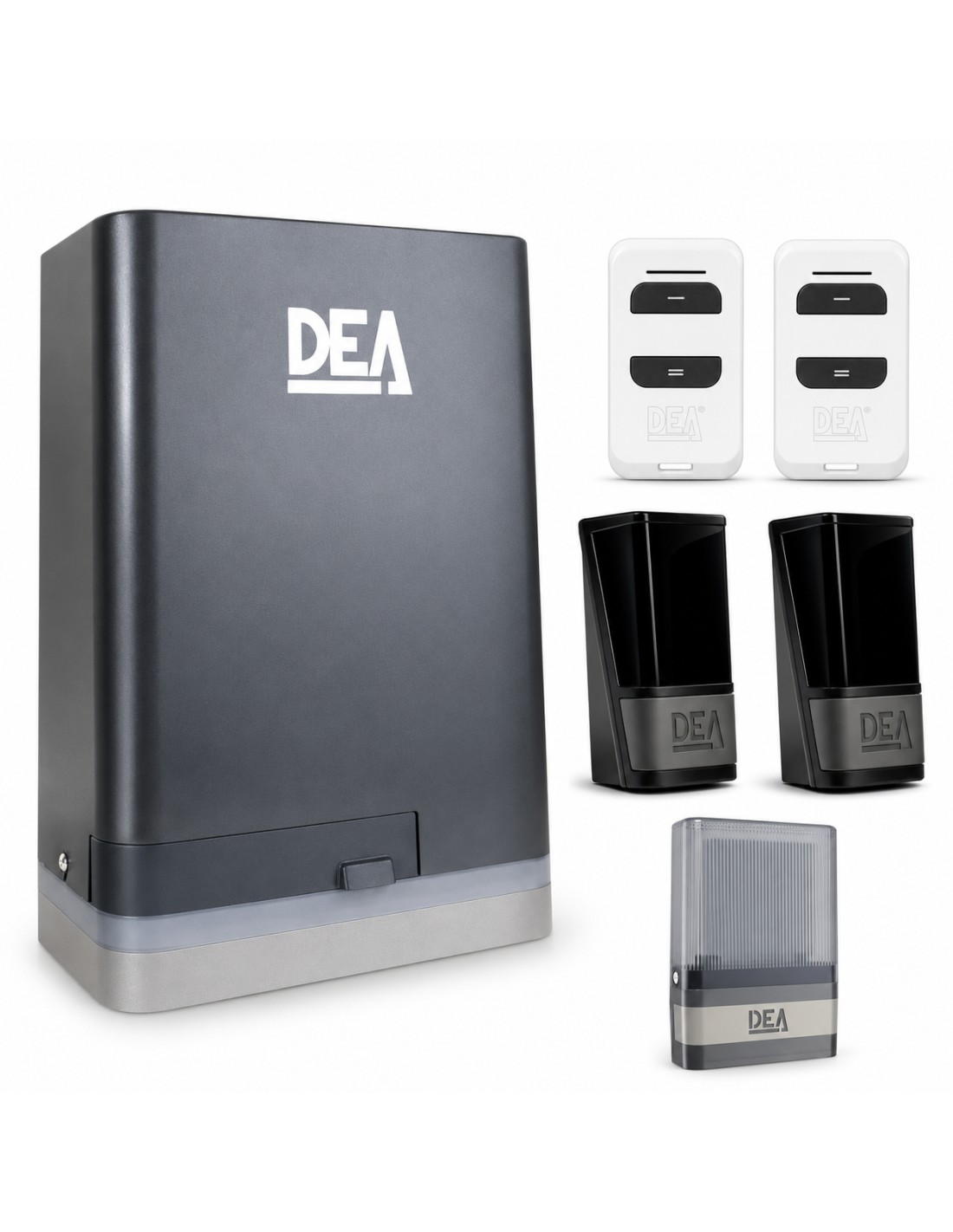

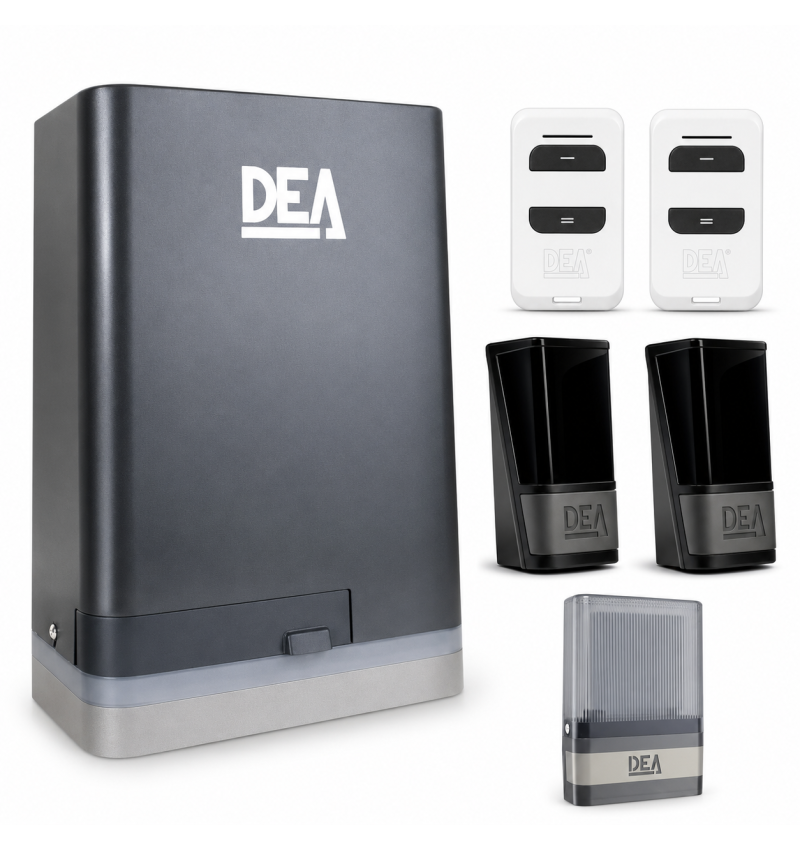

Content of the LIVI 9 / 24X / M KIT

Advantages of Livi 9 / 24X / M KIT

• Complete kit with original components Dea System.
• Automation 24V.
• For sliding doors up 900 kg.
• Magnetic career endings.
• Advanced electronic center NET24N.
• Electronic speed regulation.
• Slowing in opening and closing.
• Electronic obstacle detection system.
• Possibility of incorporating emergency battery using the corresponding accessories.
• Safety photocells included.
• Signaling lamp with integrated antenna.
• 2 gTX2 controls included.
• Possibility of expanding installation with compatible Accessories.

For what type of installation is it recommended?

The kit DEA LIVI 9 / 24X / M it is especially indicated to automate:

• Sliding doors of single-family homes.
• Particular garages.
• Residential entries.
• Sliding doors of greater weight that require an engine of 24V.
• Sliding doors up 900 kg.

DEA LIVI 9 / 24X / M: more capacity maintaining 24V technology

The LIVI 9 / 24X / M expand the capacity of the LIVI / X range to sliding doors of 900 kg, maintaining the advantages of 24V operation and the Net24N electronics.

Thanks to the accessories included in the kit —LINE-X, AURA-X and 2 controls gtx2— a complete solution is available for automation using original DEA System components.

Kit Dea Livi 9 / 24X / M Code 612300: 24V motor with Net24N and Accessories AAA to automate residential sliding doors up to 900 kg.
