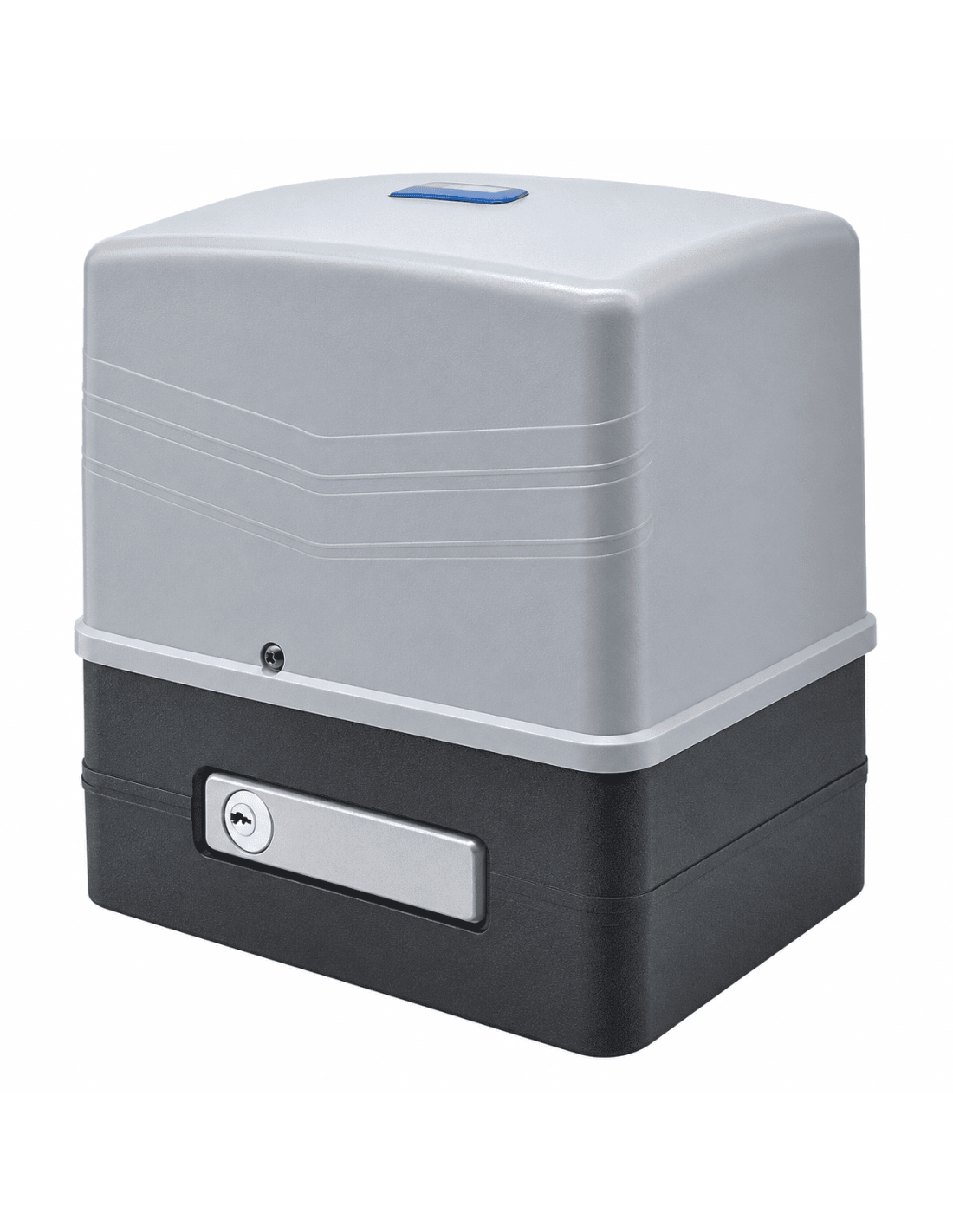

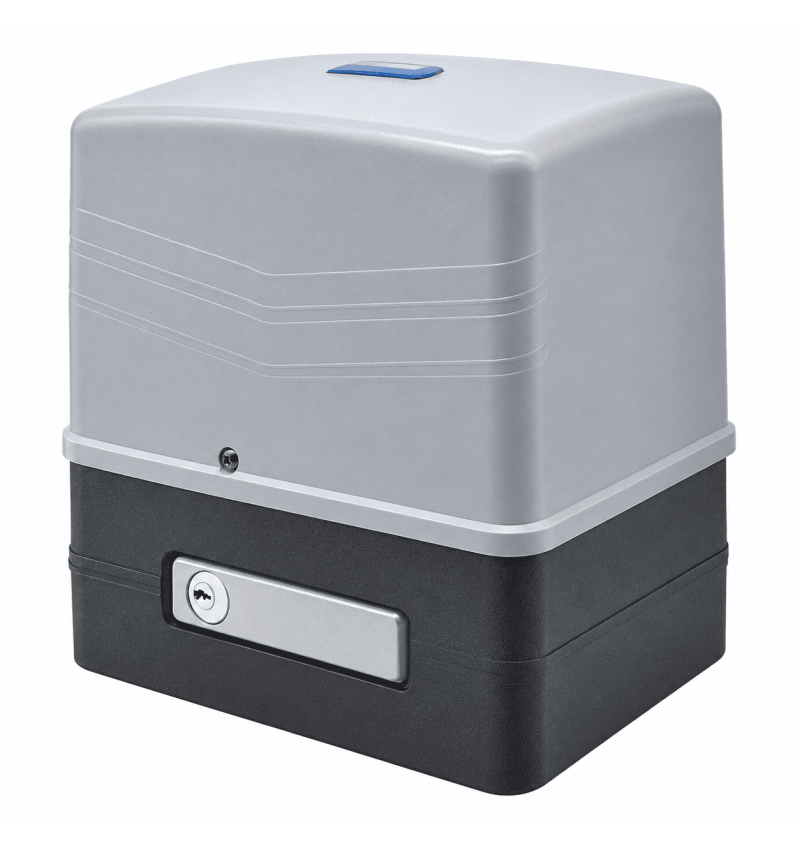

Engine VDS Simply 600K 230V with central for sliding door up to 600 kg

Engine VDS Simply 600K 230V with built-in center for sliding door up to 600 kg

The VDS SIMPLY 600K, reference 11010 / 1FG, it is a gearmotor 230 VAC for the automation of sliding doors of up to 600 kg.

Automatism incorporates the electronic plant VDS EURO230M1, so it is supplied as a compact solution with integrated engine and electronics integrated.

The engine develops a power of 250 W, incorporate electromechanical race end and has unlocking manual by key in order to move the door in case of absence of power supply.

This product corresponds only to engine VDS Simply 600K with built-in euro230m1 box. It does not include controls, photocells or zipper.

Engine with built-in electronics

✓ VDS Simply 600K 230 VAC.

✓ For sliding doors up 600 kg.

✓ Electronic Central EURO230M1 built-in.

✓ Engine power: 250 W.

✓ Career End electromechanical.

✓ Manual unlocking through key.

Important: accessories not included

This product Does not include remote controls, photocells or zipper. These accessories can be purchased separately according to the needs of the installation.

The VDS SIMPLY 600K it is designed to automate sliding doors with a weight up 600 kg.

Work 230 VAC and has electromechanical race end, which allow to establish the final opening and closing positions by means of the corresponding cams installed on the rack.

In case of lack of current, the system of unlocking manual by key it allows to release the gearmotor and manually move the door.

The operator has degree of protection IP44 and is prepared for installation abroad.

The VDS Simply 600K incorporates the plant VDS EURO230M1, designed to control a 230 VAC engine.

The plant allows to manage the operation of the automation and connect different control devices and safety that can be purchased separately.

It has two independent regulations: T1 to regulate force during normal route and T2 to regulate force during slowdown.

Electronics also allows configuring automatic closure, pedestrian opening, step-by-step operation and different safety logics.

✓ Control for 1 engine of 230 Vac.

✓ Function of automatic closure.

✓ Community operation or step by step.

✓ Entry of pedestrian opening.

✓ Start entry.

✓ Stop entry.

✓ Input for closing photocell.

✓ Input for band or safety in opening.

✓ Management of opening and closing career end.

✓ Encoder input.

✓ Function of slow down / soft stop.

✓ Independent regulation of force during travel and slowing.

✓ Exit for flashing lamp.

✓ Exit for courtesy light.

✓ Food for accessories to 24 VAC.

✓ Management of fixed code issuers or ROLLING CODE.

✓ Memory for 254 controls.

The engine can be completed according to the needs of the installation with:

■ Compatible remote controls.

■ Safety photocells.

■ Flashing lamp.

■ Zipper for sliding door.

■ Key selector or push buttons.

■ Other devices compatible with the EURO230M1 power plant.

Important before installing

The door must be moved manually in shape soft, regular and without frogs.

The correct state of the lower guide, wheels and upper guide.

The installation and start-up must be done following the manufacturer's instructions.
