DEIMOS BT A400 Motor KIT, operator for sliding doors up to 400kg. Blade speed 12m/min. Electromechanical limit switch.

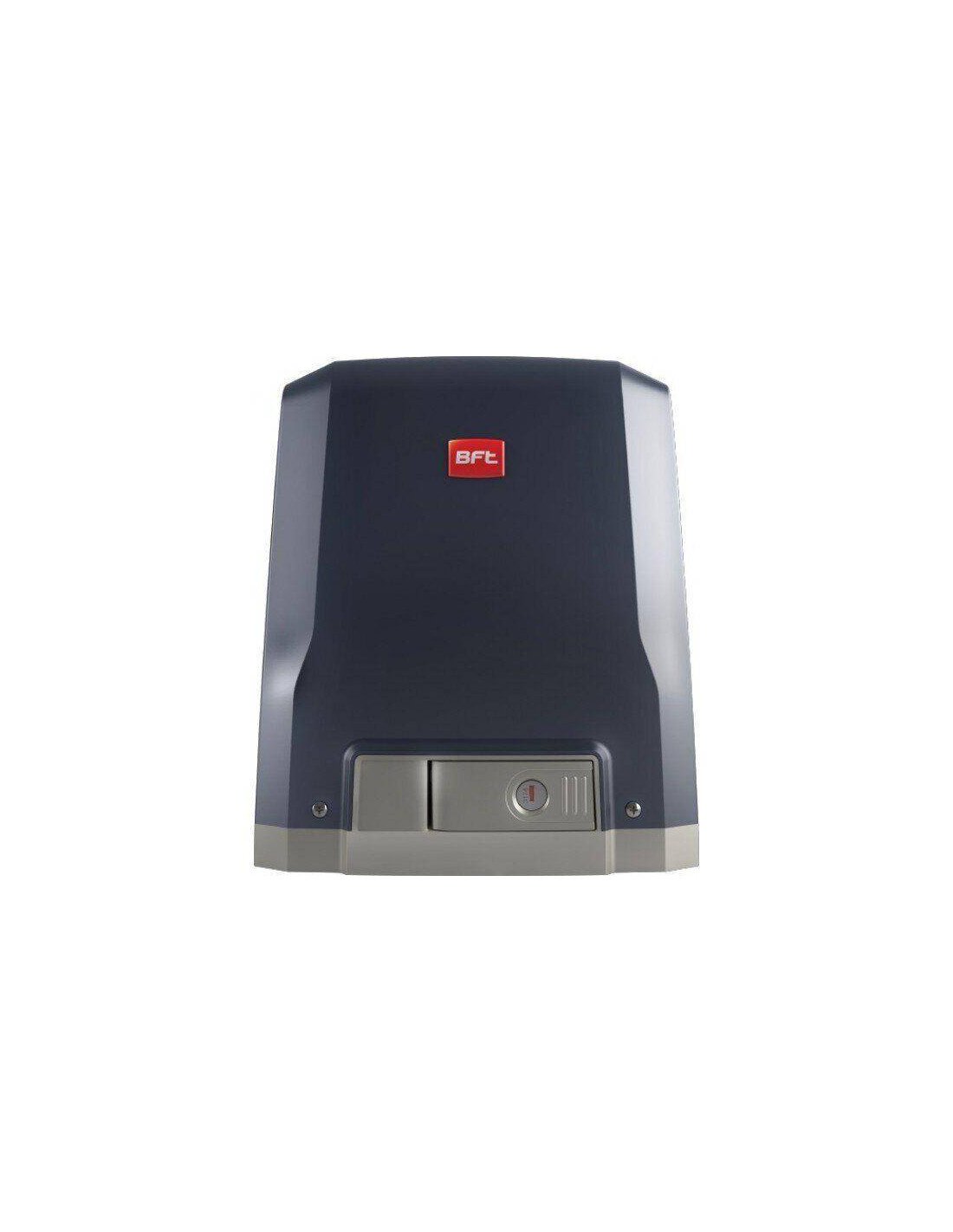

DEIMOS ULTRA BT A400

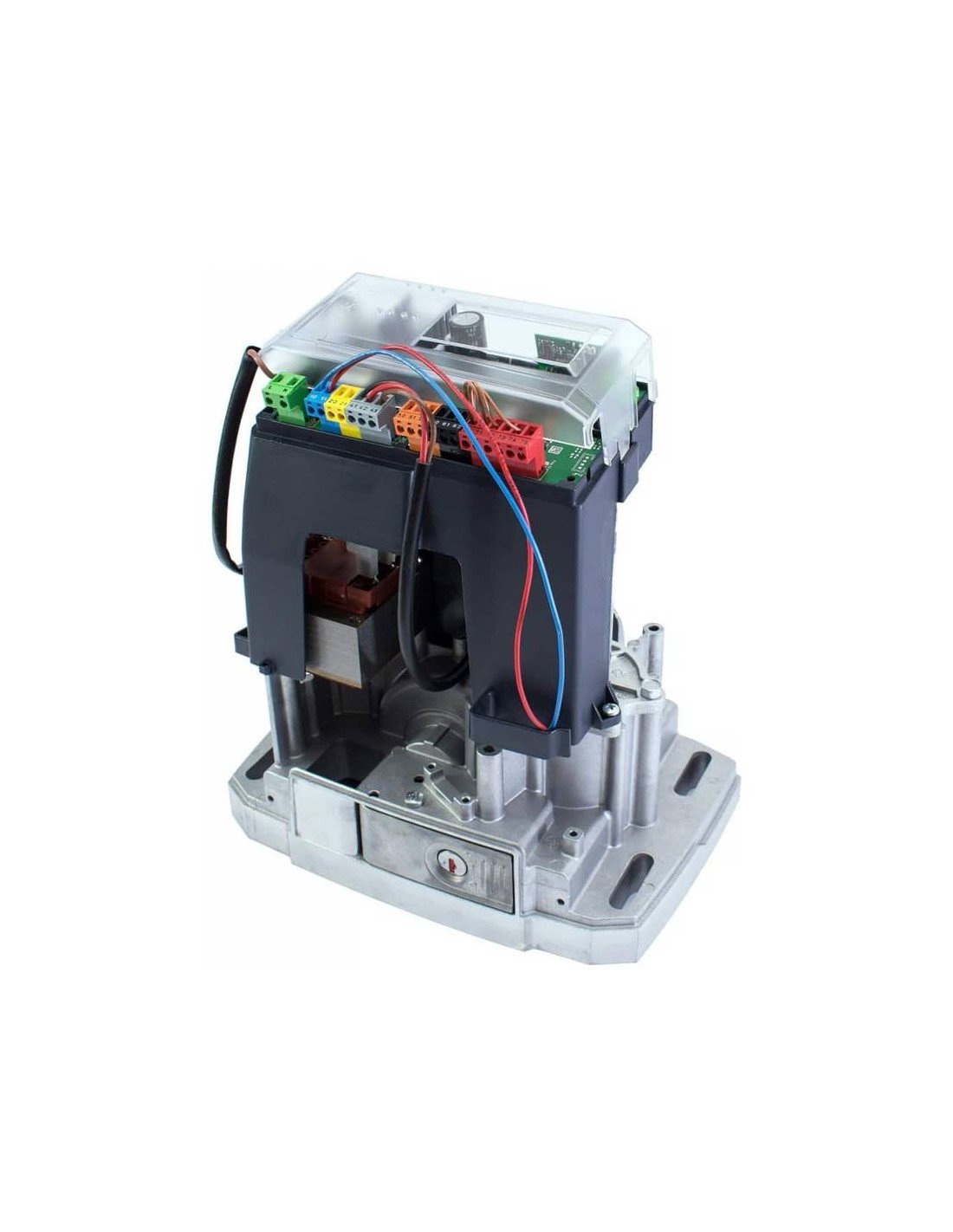

24-volt motor for gates and sliding doors up to a maximum weight of 400 kg. With the built-in Hamal control unit, easily accessible thanks to the front position and programmed via LCD display.

Thanks to the anti-crush system, in the event of contact, the automation reverses the movement, preventing damage to people.

The limit switches are electromechanical.

MANOEUVRING TABLE

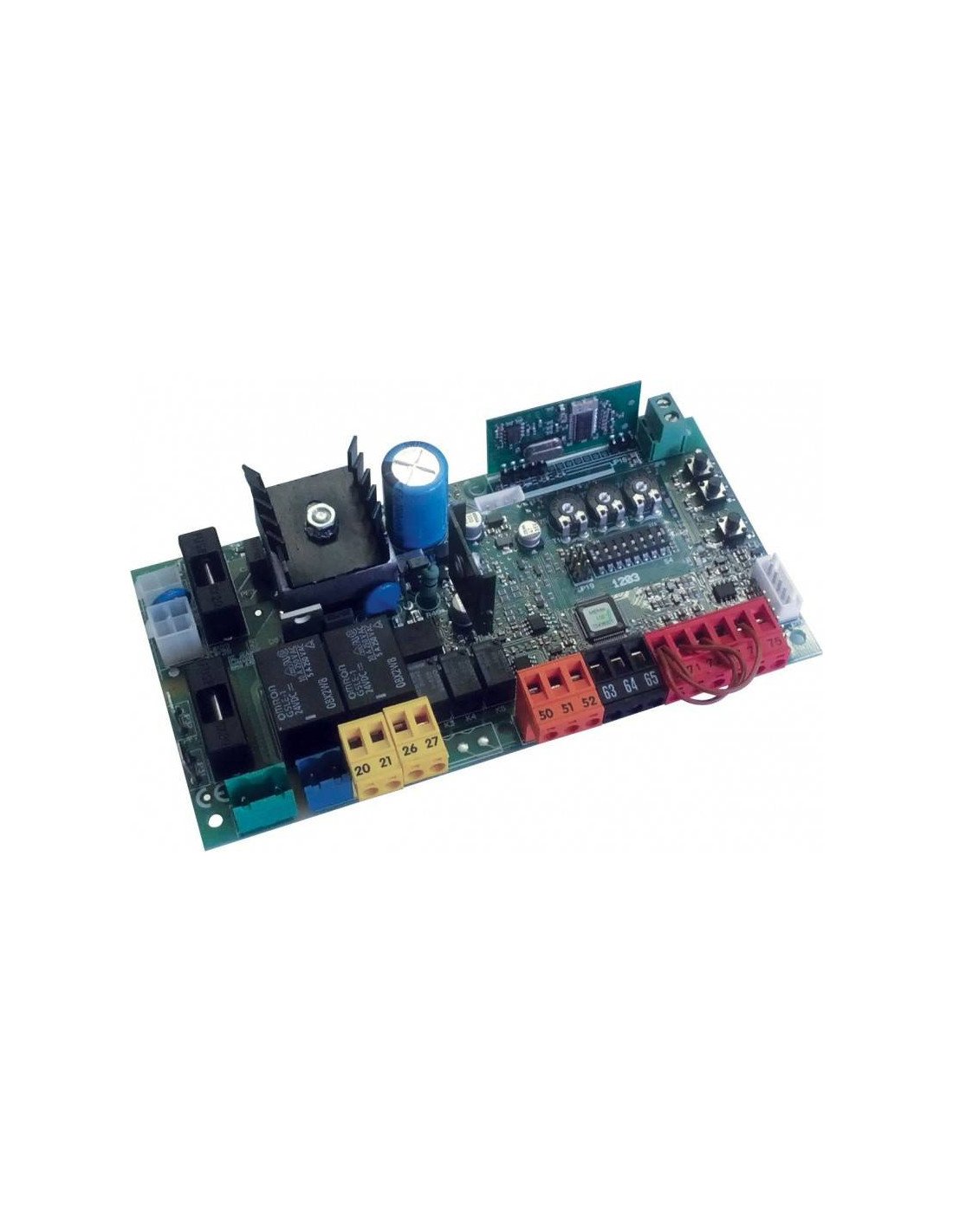

The BFT Deimos BT A400 sliding door motor is equipped with the Hamal electronic board.

This control panel is very sophisticated, the programming is done in display, in which different scenarios can be selected.

Another advantage of this control unit is that the voltage output of the flash lamp can be adjusted for different forms of illumination.

You can also put a security key on it so that your programming cannot be tampered with.

SAFETY PHOTOCELL

The pair of photocells BFT Desme A15 has an average range of 30 meters with infrared beam. The beam angle is not adjustable.

The cells are connected to the output of the control panel (this output is indicated in the manual that comes with the engine).

SPECIFICATIONS

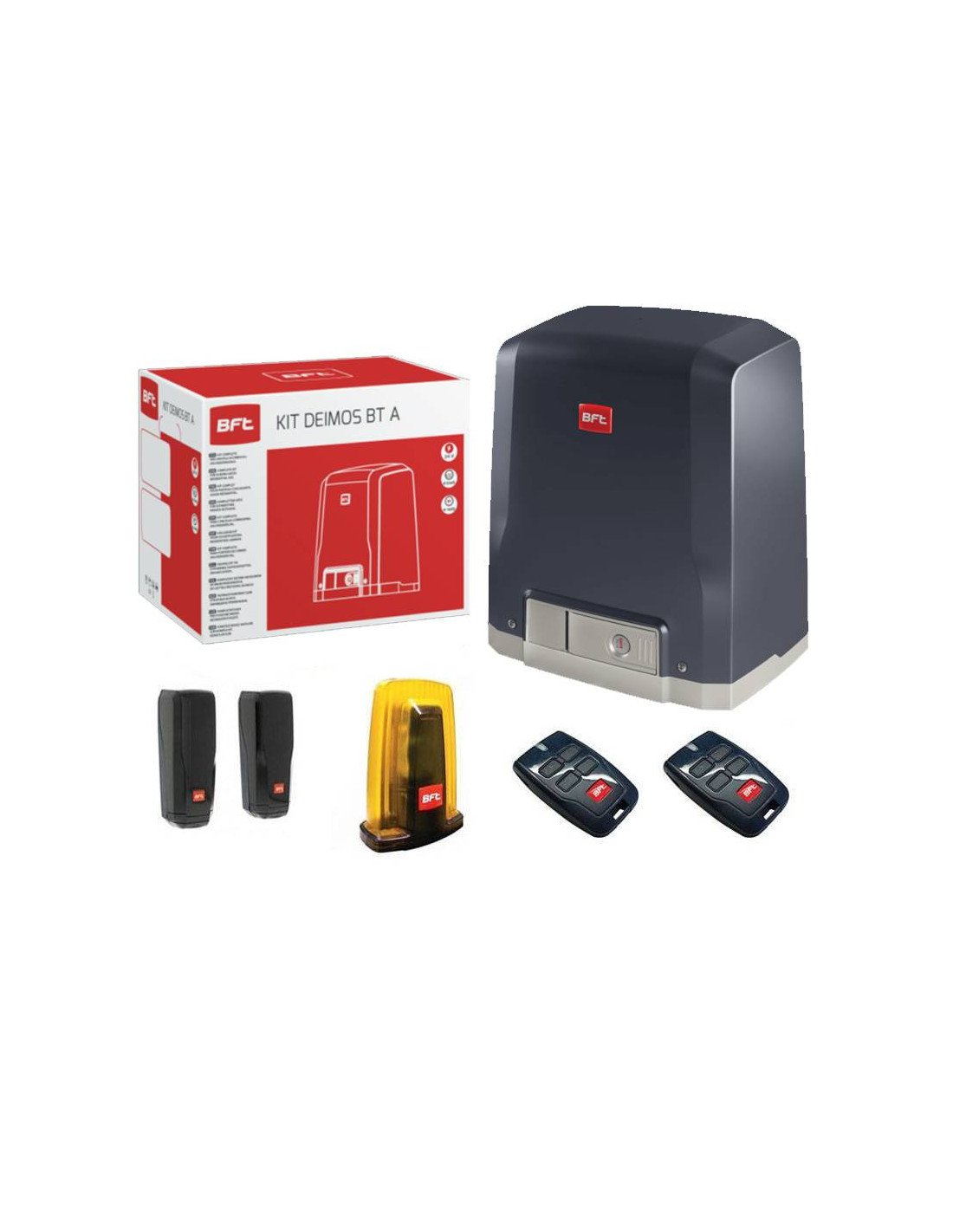

THE KIT CONTAINS

• DEIMOS ULTRA BT A400 Engine
• 2 x 4-channel MITTO 433.92 MHz transmitters
• COMPACTA transmitter-receiver safety photocell
• RADIUS BT 24 warning light

MANUAL

DEIMOS BFT Instruction Manual
