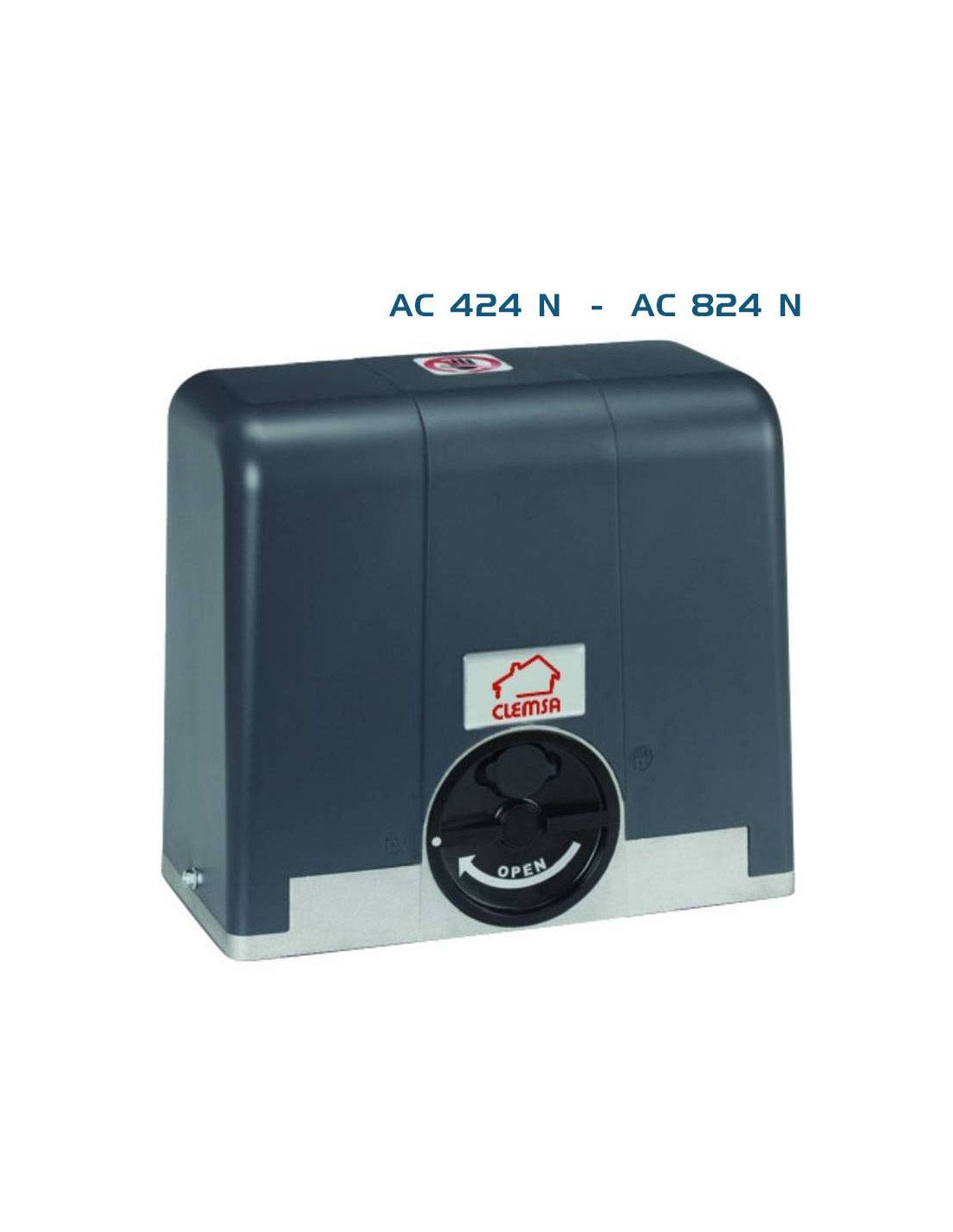

Engine Clemsa for use in the manufacture of products falling within heading 8471 (AC424N) or 800kg (AC824N), with built-in control panel.

CHARACTERISTICS

• 24V gearbox for sliding doors.
• Intensive use
• Sprint M24 control panel with encoder integrated in the drive
• Magnetic race finishes
• Large interior space for wiring and interior adjustments

RANGE OF PRODUCTS

• AC424N: 24V sliding motor for doors up to 400 kg with built-in frame.
• AC824N: 24V sliding motor for doors up to 800 kg with built-in frame.

PRODUCT INFORMATION

Irreversible 24V drive for sliding doors of up to 400 kg/800 kg heavy use. Control panel incorporated SPRINT M24. 24 V DC electric motor. Programmable functions: Logics of operation (automatic, semi-automatic, man present), pausing times, opening speed, closing speed, master-slave, predestelling, partial opening, working time, soft stop. Outputs: flashing lamp, signalling lamp 24Vdc, output which can be programmed. Bearing protecting the motor from axial movements. Magnetic race finishes. Aluminum body painted with polyester powders and ABS plastic protective cage. Unlocking system with lever with possibility of incorporating custom key. Pinon Z16 mod. Four. Speed is 12 m/min. Continuous use. I weigh 20 pounds. Power 140 W, maximum torque is 310N/40N. 288x256x170 mm . Operating temperature from -20oC to +55oC.

CHARACTERISTICS MANEUVER BOARD

MANUALS

• Download the technical file
