Engine Aprimatic Wave 400 electromechanical 230V for sliding doors up to 400 kg

Engine Aprimatic Wave 400 electromechanical 230V for sliding doors up to 400 kg

KT02CC11X
€413.00
VAT excluded

499,73 €

Tax incl.

Motor gearbox Aprimatic Wave 400 to 230 V, use in individual residences up to 400 kg. What. Built on a sturdy aluminum monoblock injected and oven lacquered with special outdoor epoxy resin. It has a precise encoder that facilitates maximum control over the speed, strength and position of the door. Incorporates maneuver chart easy start-up with self-learning of the basic working parameters. Transmission consisting of endless steel screws and bronze crown obtaining a door movement soft, quiet and very reliable.



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain Except bulky



APRIMATIC WAVE 400

Motor reducer at 230 V, for use in individual residences up to 400 kg. What. Built on a sturdy aluminum monoblock injected and oven lacquered with special outdoor epoxy resin. It has a precise encoder that facilitates maximum control over the speed, strength and position of the door. Incorporates maneuver chart easy start-up with self-learning of the basic working parameters. Transmission consisting of endless steel screws and bronze crown obtaining a door movement soft, quiet and very reliable.

  • Motor control by optical encoder.
  • Self-learning of work parameters.
  • Quiet operator thanks to its steel and bronze gearbox.
  • Lever unlock with key.

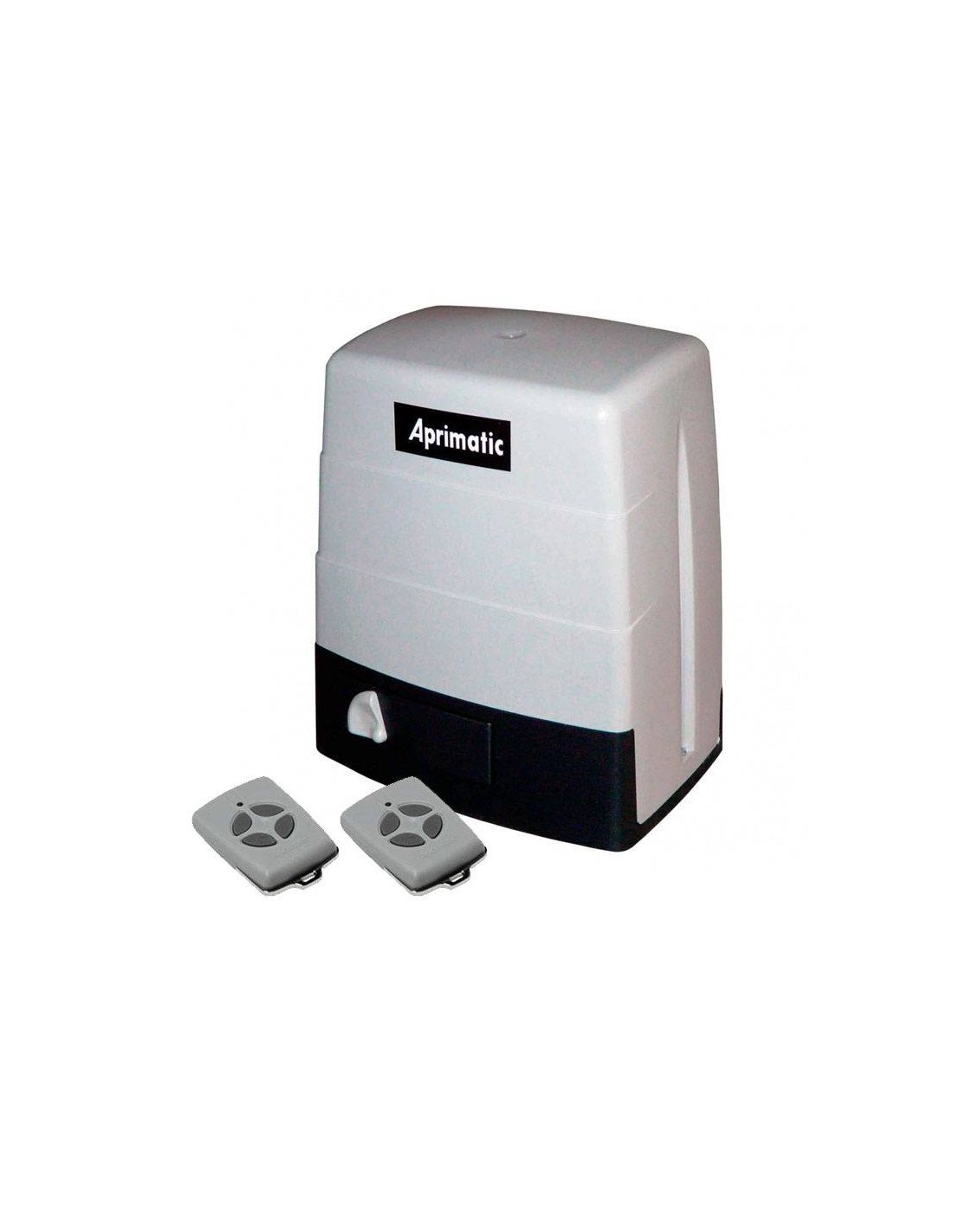

THE KIT CONTAINS:

  • 1 ONDA unit 400 with T240 box incorporated
  • 1 unit RX2R receptor
  • 2 units TX4E

TECHNICAL SPECIFICATIONS

WAVE 400
FOOD 230 VAC / 50 HZ
POWER 210 W
PUSH FORCE 250 N
WORKING FACTOR 50%
HEAT PROTECTION 150 °C
THERMAL RANGE -20o / +55o C
PROTECTION IP 43
SHEET SPEED For the purpose of this Regulation, the following definitions shall apply:
MAXIMUM SHEET WEIGHT 400 kg
DIMENSIONS Other, not further worked than hot-rolled
CONTROL PANEL T240E

MANUAL APRIMATIC WAVE 400

Maximum door weight
Up to 400kg
Type of engine
Electromechanical 230V
