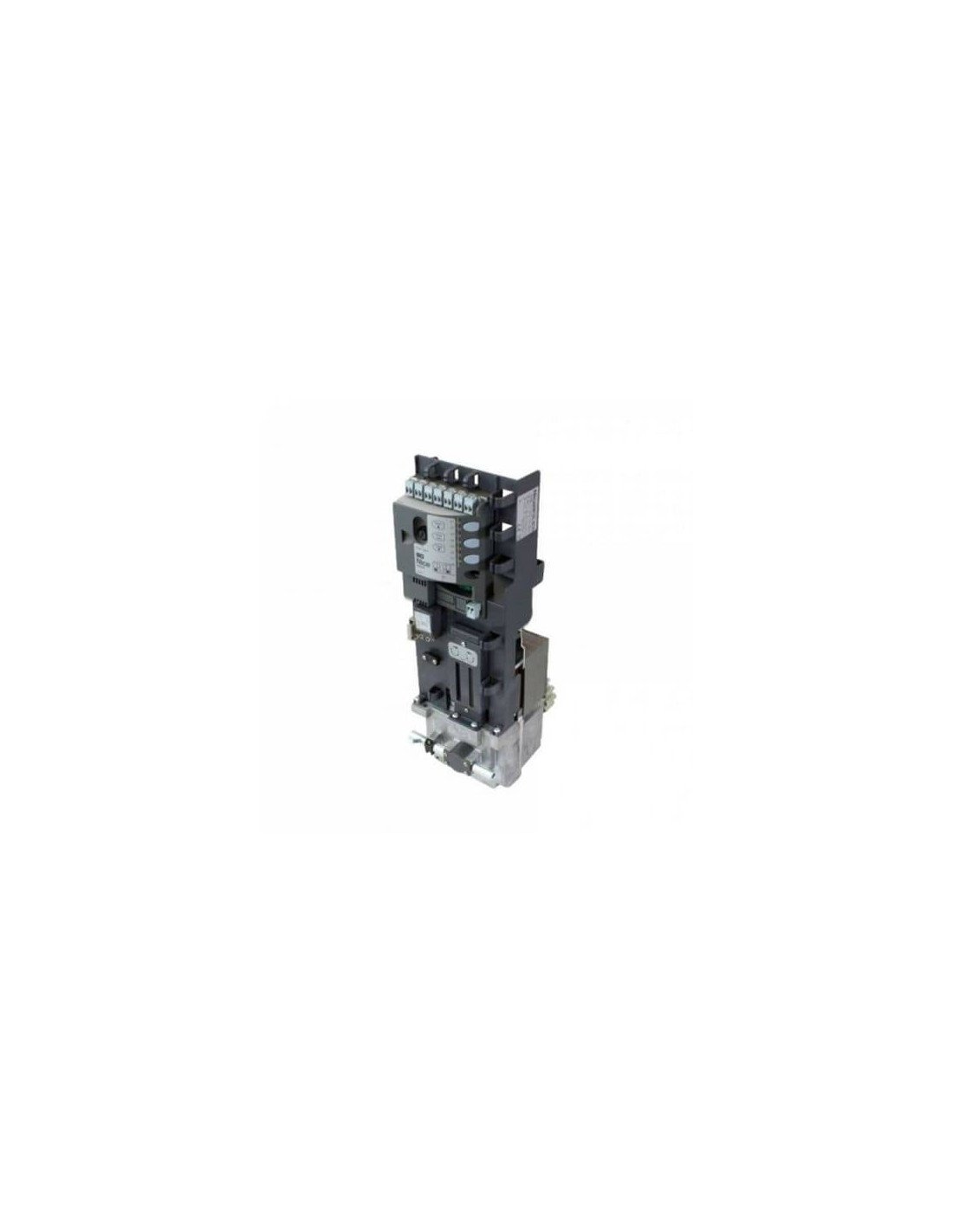

Irreversible 24Vdc motor with integrated control panel and absolute encoder, which can be installed internally on a small column , suitably drilled.

The first motor Nice retractable for sliding gates up to 400 kg and a leaf length of up to 6 m.

The very small dimensions allow the motor to be housed in very narrow columns, with a minimum internal dimension of 140x140 mm.

Simple: using the BlueBUS system, which allows two-wire connections to be made between the control panel and up to 7 pairs of photocells, control, safety and signal equipment.

Master/slave selection: automatically synchronizes 2 motors as well, to automate sliding gates with two opposing leaves.

Intelligent: by detecting obstacles and automatically scheduling operating times. Self-diagnosis with indication by flashing light.

Safe: adjustable acceleration and deceleration at the beginning and end of each manoeuvre.

Simple and precise adjustment of the limit switches: integrated absolute limit switch, fast learning with individual manoeuvring with unlocked motor.

Practical: control unit and PS124 auxiliary batteries (optional), which can be connected via a guided flush-mounted connector.

Flexible: pre-installation option for unlocking on both sides of the column and/or on the outside (with KIO and KA1 accessories). Installation also easy on existing columns.

SPECIFICATIONS

• Power supply (Vac 50/60 Hz) 230
• Absorption (A) 1.1
• Power (W) 250
• Speed (m/s) 0.34
• Strength (N) 400
• Duty Cycle (Cycles/Hour) 35
• Degree of protection (IP) 44*
• Operating Temp. (min/max °C) -20 ÷ +50
• Dimensions (mm) 131x135x405 h
• Weight (kg) 6.5

MANUAL

• Naked Sliding Nice Installation Manual
