FAAC 740 / 741
€432.00
VAT excluded

522,72 €

Tax incl.

a

Motor model FAAC



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain Except bulky

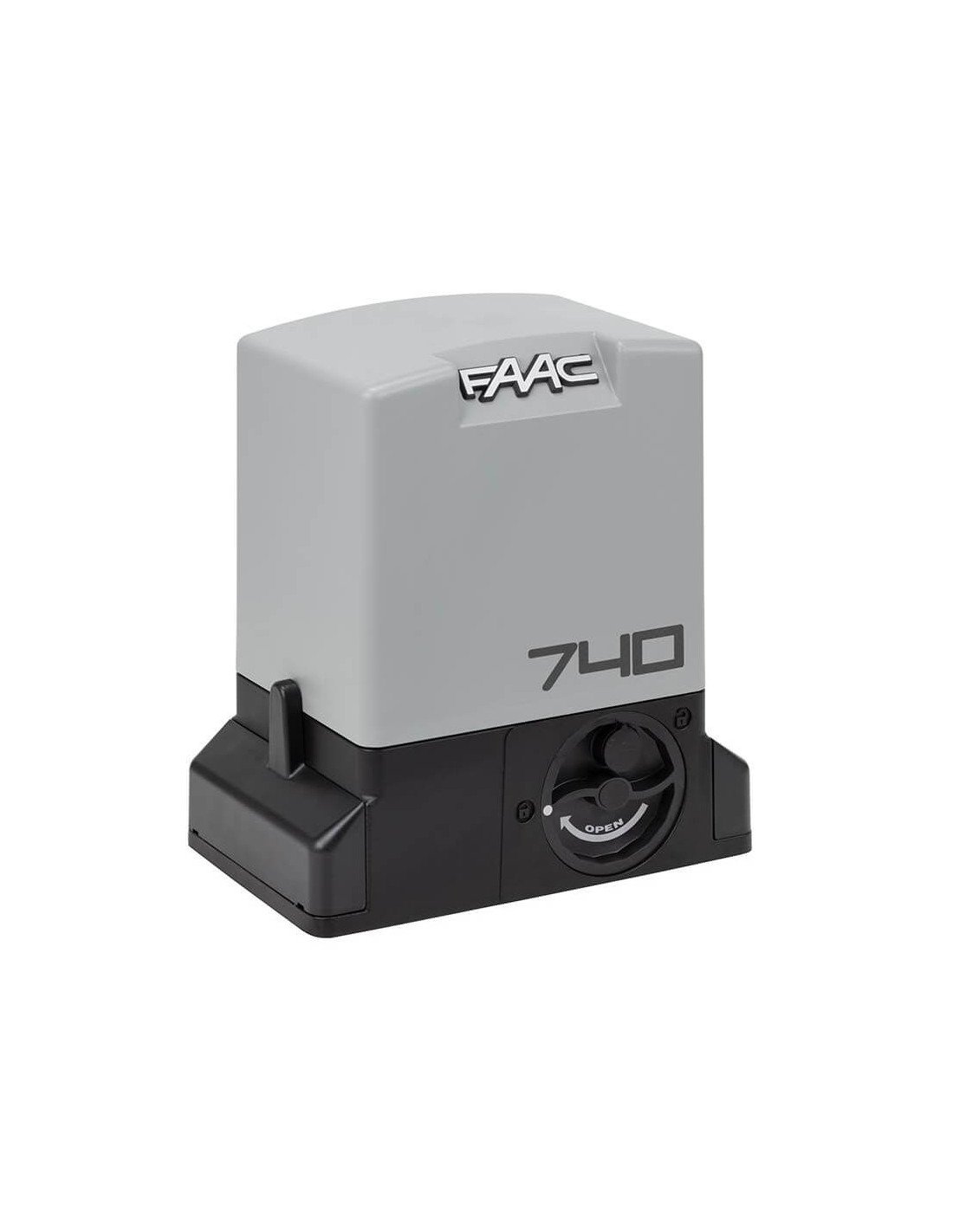

FAAC 740 & FAAC 741 | Sliding engine for sliding doors

Engine FAAC 740 (up to 500kg), and FAAC 741 (up to 900kg), electromechanical 230VAC with encoder and magnetic career endings for sliding cancers for residential or industrial use. Equipped with a mustuke box without a receiver.

Features

✓ Simplified programming thanks to display and preclusive picture.

✓ End of magnetic career

✓ Encoder built for investment in case of finding an obstacle during maneuver, and maneuver accurate from partial opening and soft unemployment.

Technical characteristics FAAC 740 and FAAC 741

740 E Z16 with Encoder 741 E Z16 with Encoder
Model 740 E Z16 with Encoder 741 E Z16 with Encoder
Supply voltage 220-240V ~ 50/60 Hz 220-240V ~ 50/60 Hz
Electric motor Monofase Monofase
Max power 350 W 500 W
Max 18 nm (*) 24 nm (*)
Max. thrust 450 N (*) 650 N (*)
Reduction ratio 1:25 1:25
Max. leaf 15 m 15 m
Max speed leaf 12 m / min. 12 m / min.
Regulation speed and control of the engine Not Not
Run-up Magnetic Magnetic
Pinion Z16 module 4 Z16 module 4
Encoder Optical Optical
Regulation of force Electronic card Electronic card
Operating room temperature -20 ° C ÷ + 55 ° C -20 ° C ÷ + 55 ° C
Termoprotección 140 ° C. 140 ° C.
Degree IP 44 IP 44
Weight 10 kg 11 kg
Dimensions (l x a x h) 295 x 221 x 322 mm 295 x 221 x 322 mm
Max. leaf 500 kg 900 kg
Frequency S3 - 30% S3 - 40%

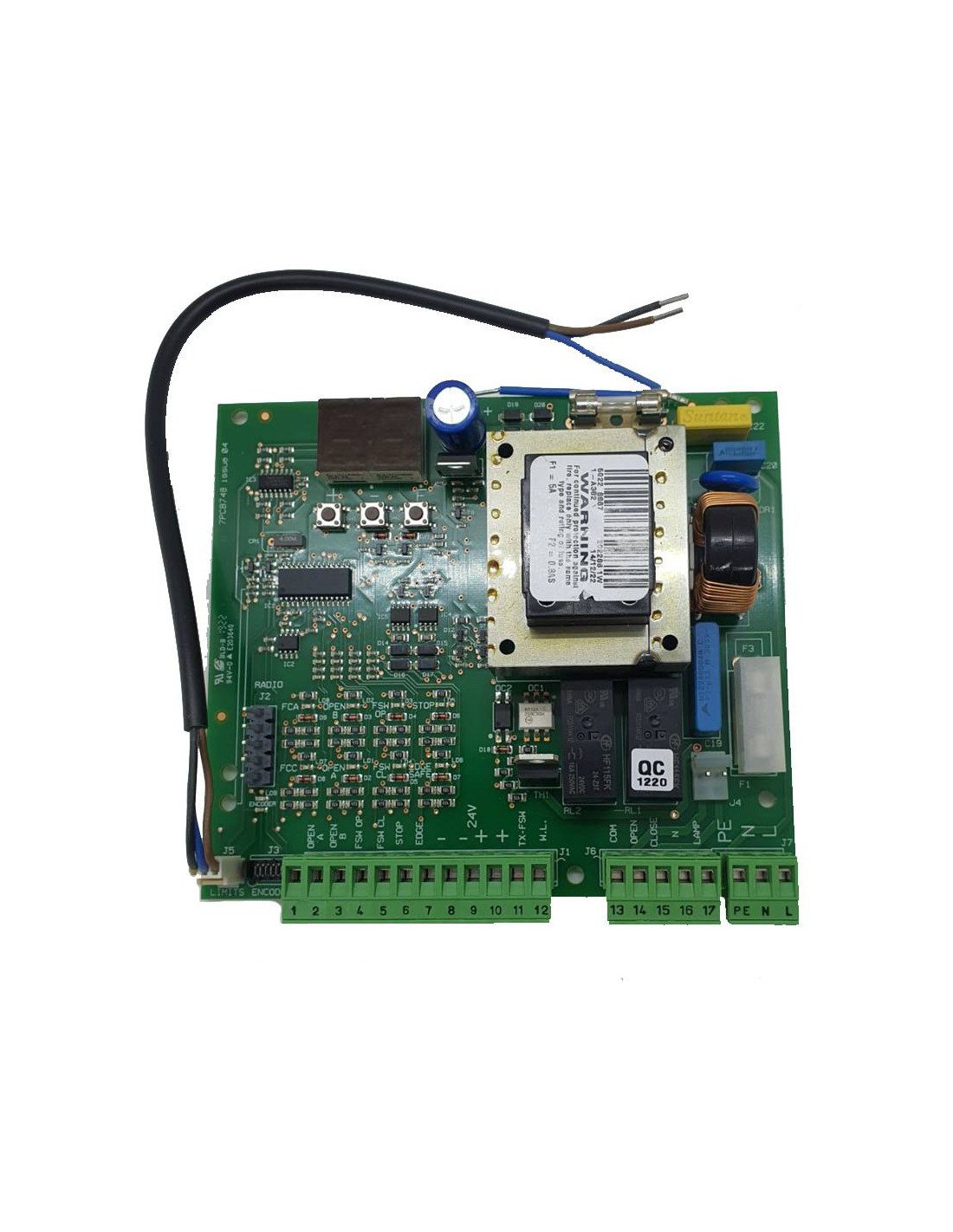

Electronic card 740D built-in 740D built-in

Engine measurements FAAC 740 and 741

The package includes

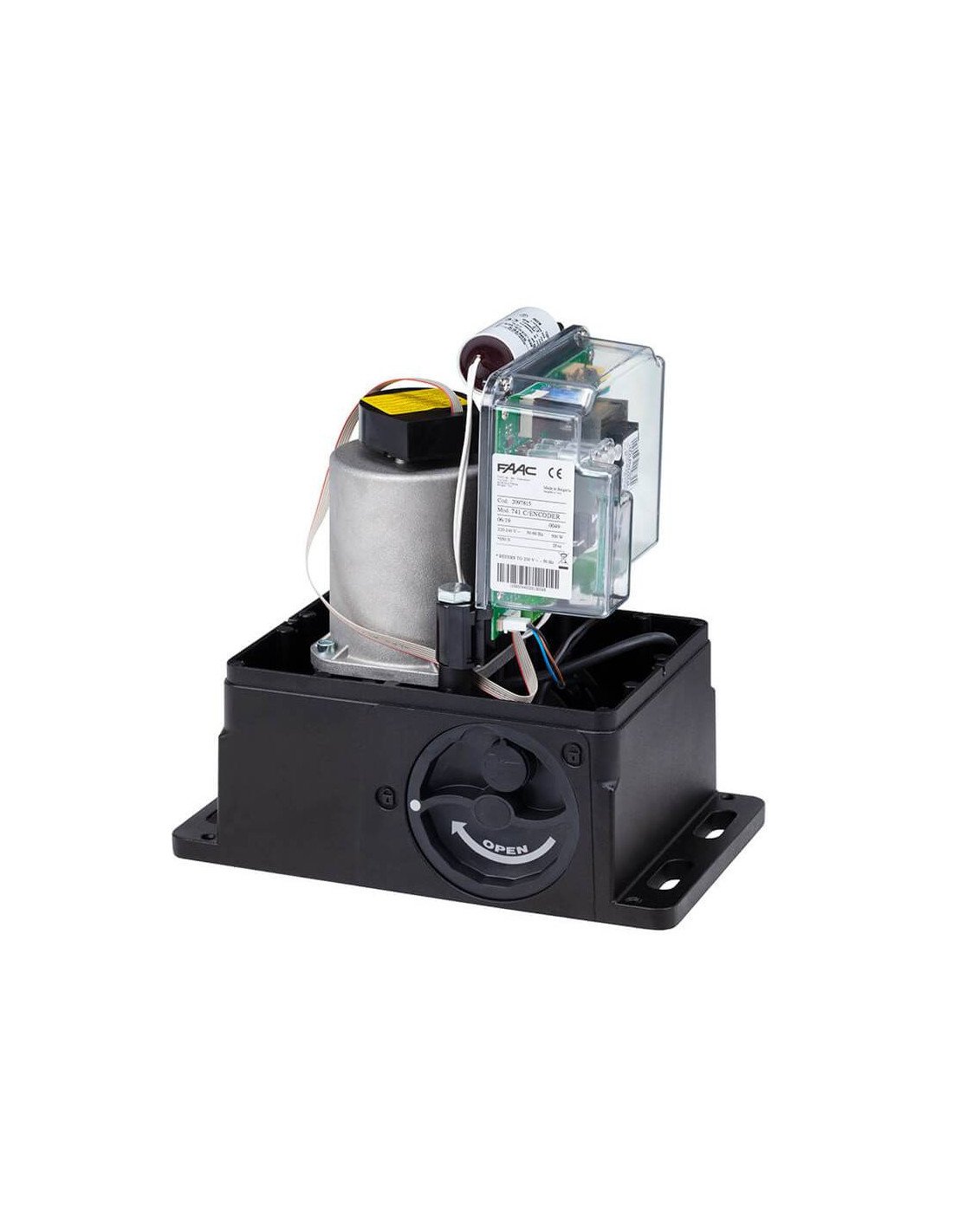

  • Electromechanical gearbox 740/741 with electronic equipment 740 D
  • Zipperella, two unlock keys
  • Foundation plate, stroke end stop plates for mechanical assembly.

Manual

Manual FAAC 740-741
