Set of joints and o-rings for hydraulic engine Erreka Atlas
05B055
€34.00
VAT excluded
41,14 €
Tax incl.

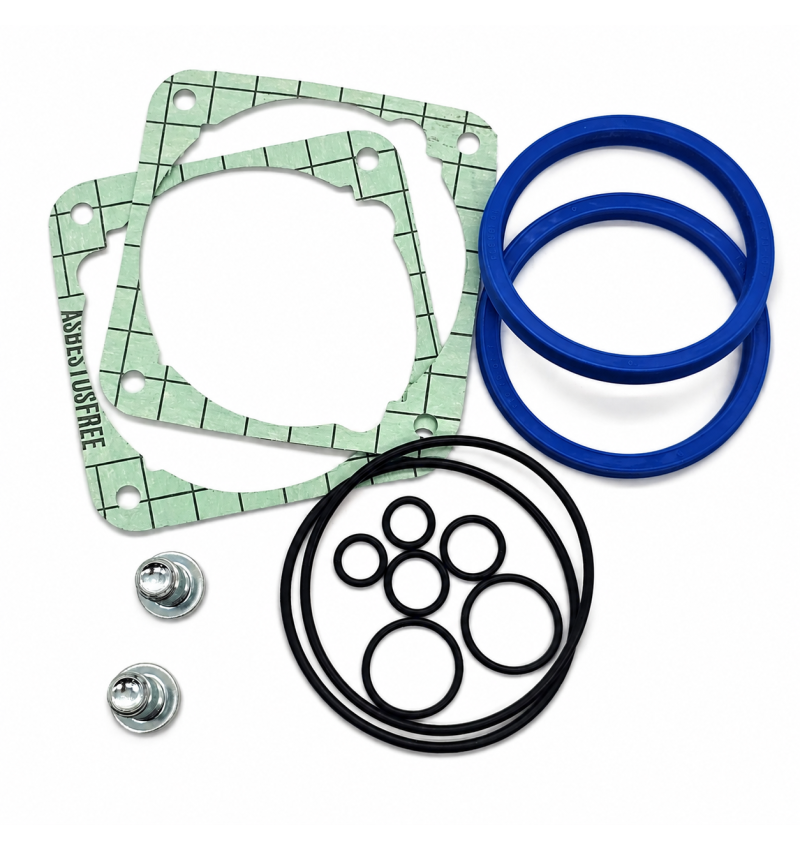

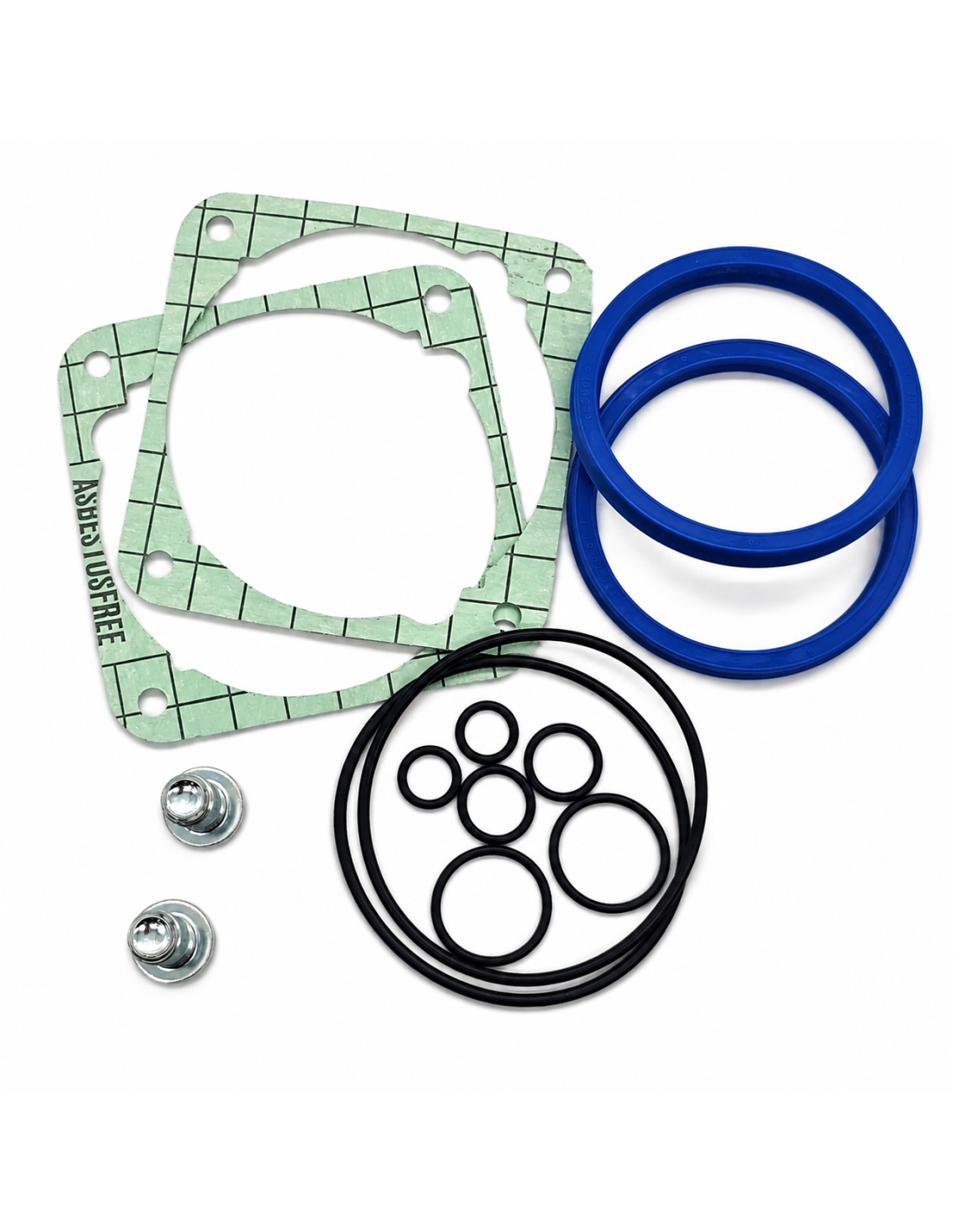

Spare composite set by Together, O-rings and sealing elements For maintenance and repair of hydraulic motors Erreka Atlas Used in tilting doors.
This kit is generally compatible with the engines Erreka Atlas And it allows to replace the sealing elements that can deteriorate with the passage of time, the continued use or aging of the hydraulic oil.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
Set of joints and o-rings for hydraulic engine Erreka Atlas
Spare composite set by Together, O-rings and sealing elements For maintenance and repair of hydraulic motors Erreka Atlas Used in tilting doors.
This kit is generally compatible with the engines Erreka Atlas And it allows to replace the sealing elements that can deteriorate with the passage of time, the continued use or aging of the hydraulic oil.
Compatibility
- Manufacturer: Erreka
- Range: Atlas
- Application: Hydraulic motor for tilting door
- Screws included: Diameter of 10 mm
Difference in the diameter of the screws
The whole is currently supplied with 10 mm diameter screws.
Some ancient Erreka engines can carry screws 8 mm in diameter. The boards and o-rings kit remains compatible; Only the measurement of the screws can vary.
What is this set of joints and row for?
The joints and the O-rings are responsible for maintaining the Hydraulic circuit tightness. When these elements are hardened, elasticity is deformed or lost, oil losses and a decrease in engine performance may appear.
The replacement of these elements can help recover the sealing of the hydraulic assembly and prolong the useful life of the automation, provided that the rest of the internal components are in good condition.
Main replacement applications
- Replacement of aged, hardened or deformed joints.
- Repair of oil losses caused by deteriorated sealing elements.
- Maintenance of the hydraulic block during a complete review.
- Recovery of the internal sealing of the engine.
General indications for the replacement
To perform the repair it is necessary to disassemble the hydraulic assembly, identify the position of each gasket, carefully clean the contact surfaces and mount the new elements without damaging them.
After the intervention, the hydraulic oil level should be checked, purging the circuit when necessary and verifying the operation of the engine without leakage before re-put the door in service.
Professional recommendation
The opening and repair of a hydraulic motor must be performed by a qualified professional. It is important to use the recommended oil for the engine and respect the position and orientation of each gasket during assembly.
Important before placing the order
Check that the engine corresponds to a model Erreka Atlas and verify the Diameter of the screws installed.
A loss of oil may also be caused by wear on axes, cylinders, tapas, housings or other components. This set is intended to repair faults related to the joints and the sealing elements included.
