Faming box of Ghost with cataphoresis treatment

Name: Faming box of Ghost with cataphoresis treatment
Brand: DEA SYSTEM
SKU: 629000

Reference 629000

This product has a special discount!

To view the price or buy the product you have to Register or you can ask us.

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain Except bulky

Description
Product Details

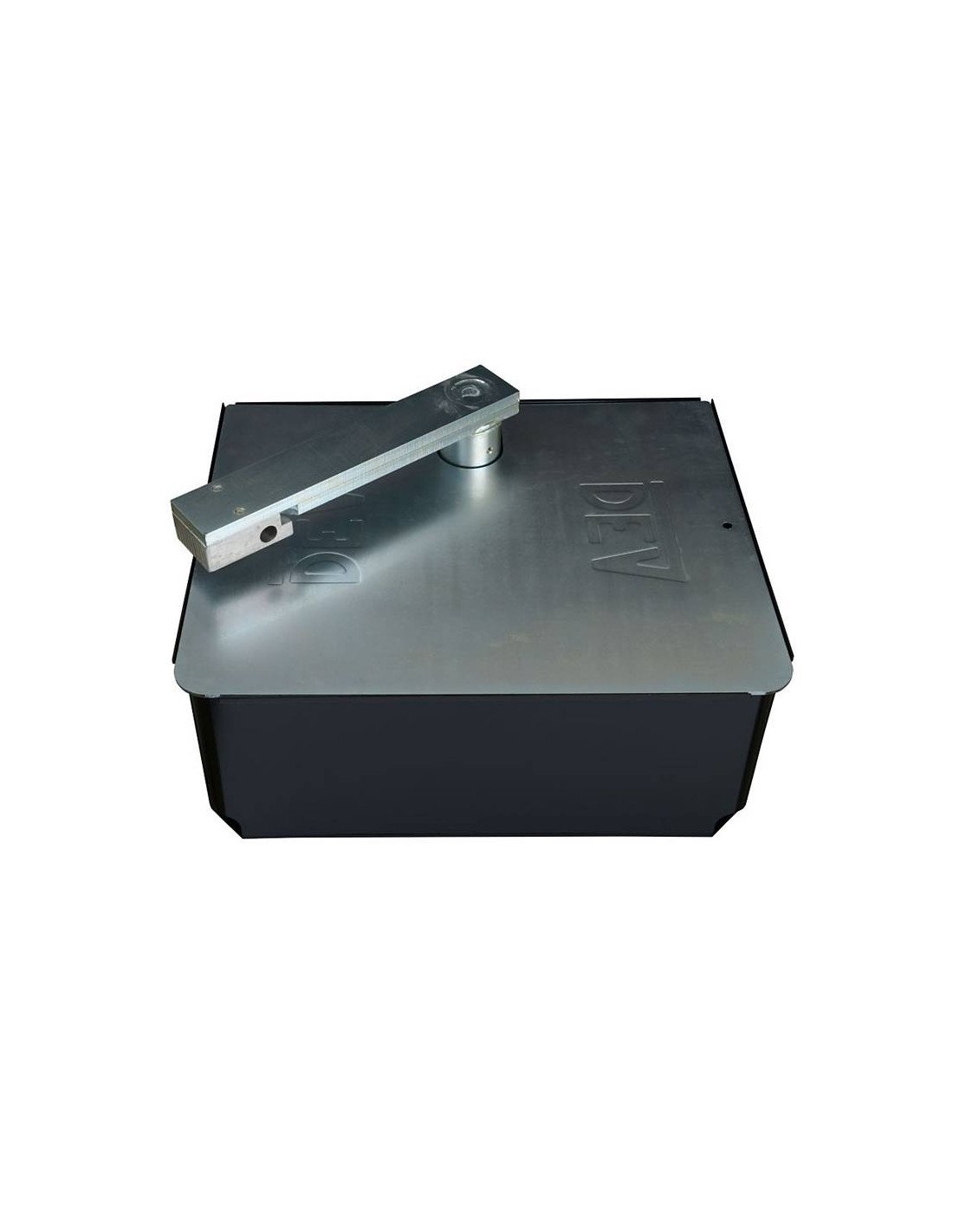

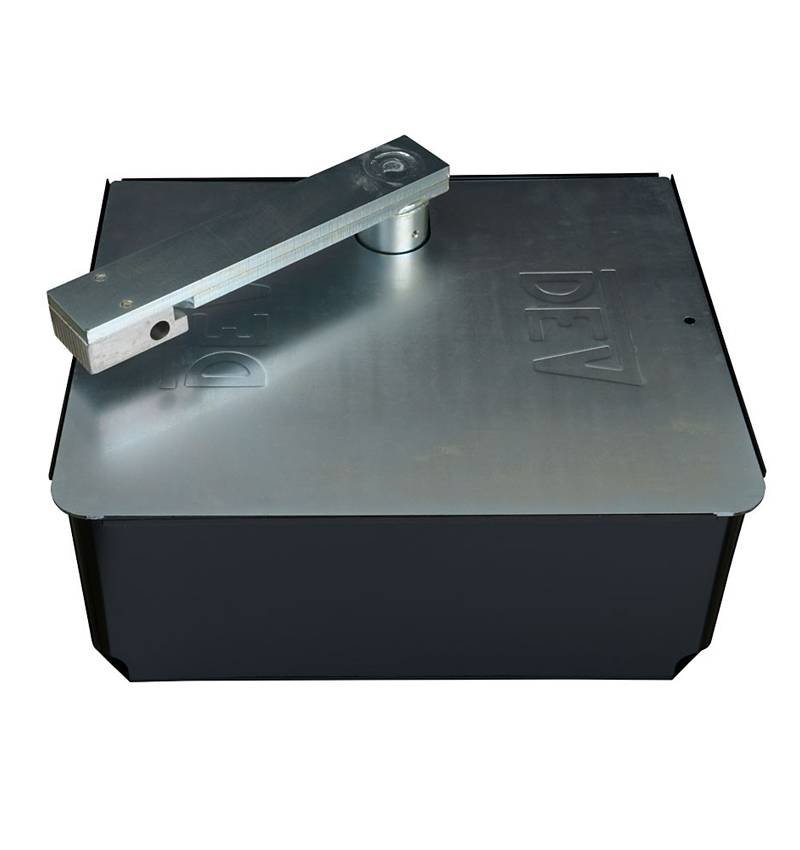

Faming box of Ghost with cataphoresis treatment

The Faming box of Ghost 629000 It is designed to accommodate and correctly fix the buried motors of the series DEA GHOST 200. It is installed under the ground level and allows automation to remain hidden, preserving the aesthetics of the swing door.

Is made of a Cataforesis treatment that improves the resistance of the metal against corrosion. In addition, it incorporates the unlocking mechanism Necessary to transmit the movement of the engine to the sheet and allow manual maneuver from the door when necessary.

Compatibility

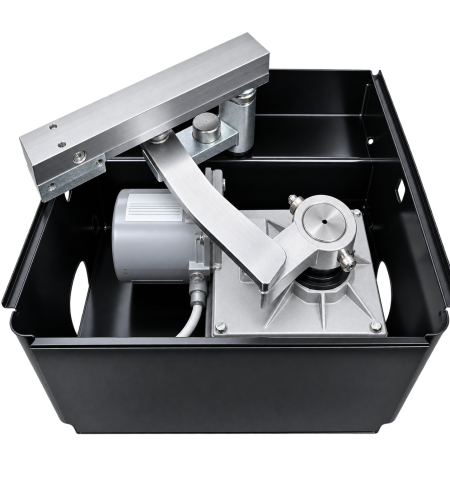

Box compatible with buried Engines of Ghost 200:

DEA GHOST 200 / CL - 621040, 230 V engine.
Dea Ghost 200l / Cl - 621013, Slow motor of 230 V.
Dea Ghost 200 / 24CL - 621050, 24 V engine.
Rest of variants belonging to the range DEA GHOST 200.

Main advantages

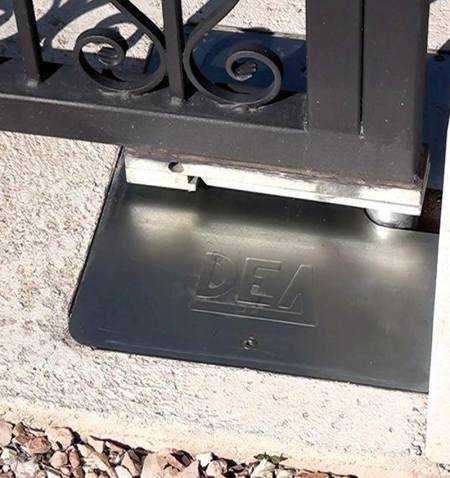

Fully buried installation To keep the engine hidden under the pavement.
Cataforesis treatment To improve protection against corrosion.
Specific housing for engines DEA GHOST 200.
Incorporates the unlocking mechanism From the door.
It facilitates the correct support, alignment and operation of the automatism.
Top cap practicable to allow operations of Inspection and maintenance.

Features of the Ghost 629000 box

Feature	Description
Manufacturer	Dea System
Reference	629000
Code	215
Type of product	Founding box for buried engine
Treatment	Anticorrosive protection by cataphoresis
Compatibility	ENTERED MOTORS OF GHOST 200
Unlocking mechanism	Included in the foundation box
Type of installation	Buried and fixed by foundation

What does this product include?

Measuring box of 215 with treatment of cataphoresis.
Unlocking mechanism For the set of Ghost.

Product supplied without motor

This product corresponds only to the foundation box of 629000. The GHOST engine, the maneuvering box, the mechanical strokes and the other installation accessories are sold separately.

Cataforesis treatment

Cataforesis is a protective treatment applied on metal surfaces to improve its resistance against oxidation and corrosion. It is especially appropriate for a box that must remain installed underground and exposed to environmental moisture.

For installations specially exposed to moisture, salinity or aggressive atmospheric agents, there is also the Stainless steel case of 215i, reference 629010.

Important installation recommendations

A adequate drainage To avoid the accumulation of water inside the box.
The bolt of the box must be correctly Aligned with the hingexis of the leaf.
Before you predict the concrete, you must check that the box is perfectly level.
Electric joints should be done outside the foundation box And inside a tight connection box.
The installation must be performed by Professional staff qualified, Following the manufacturer's instructions.
