AXI Irreversible 24V CAME Motor Kit for double swing doors up to 2.5m per leaf.

The ideal solution for networked residential and condominium swing doors.

CHARACTERISTICS

■ Lever release system protected by means of a three-lobed key, with the possibility of remotization by means of a steel cable

■ Simplified connections with a single three-conductor cable

■ Self-diagnosis of safety devices, both wireless and wired

■ Possibility of emergency operation in the event of a power failure

■ Electronic card, with separate terminal blocks and display. *Memorization of up to 250 different users

■ Keyboards can be operated directly CAME via the R800 accessory or connected transponder selectors CAME via the R700 accessory

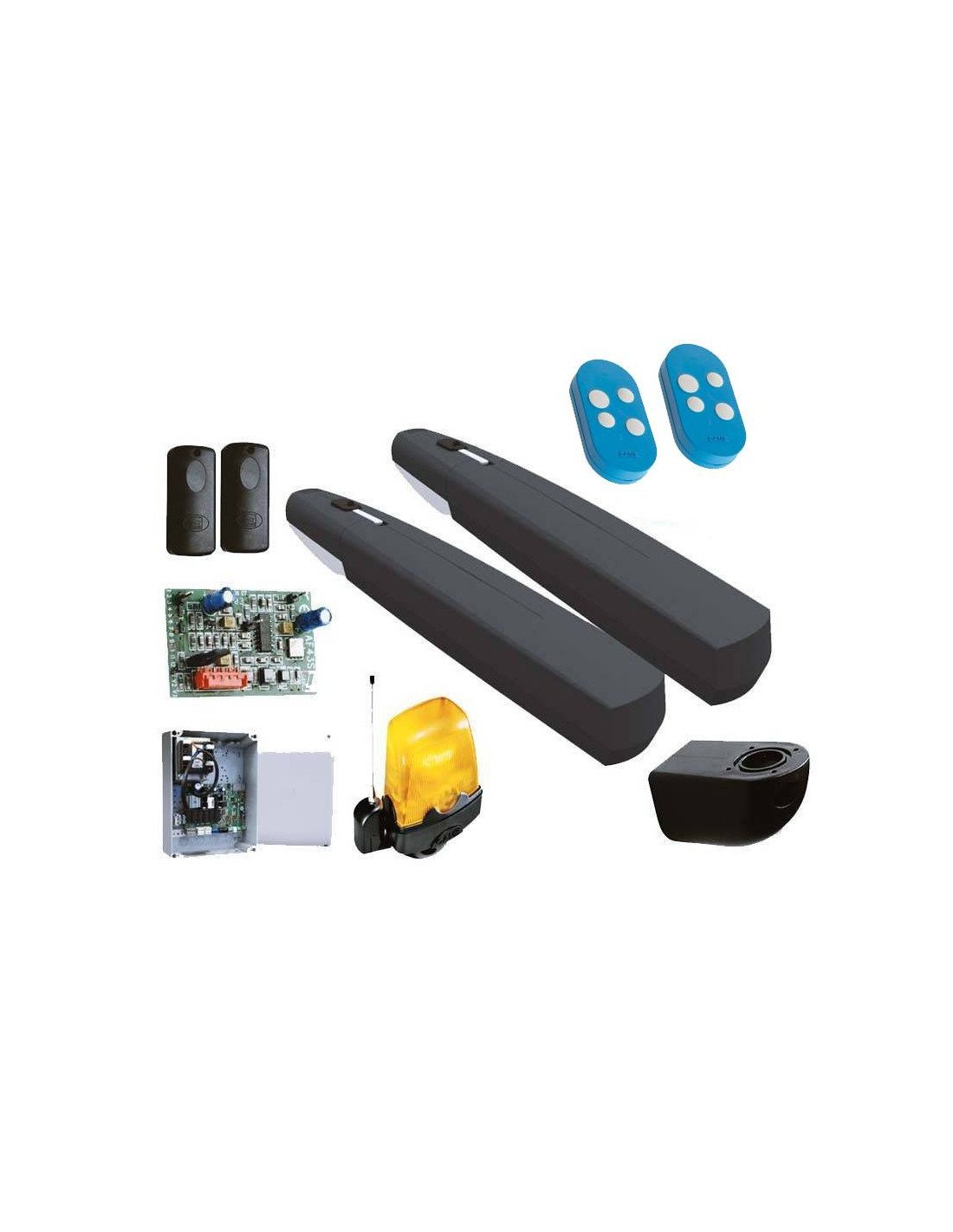

THE KIT CONTAINS

■ 801MP-0040: Irreversible geared motor with encoder for swing gates up to 2.5 m per leaf. Color: RAL7024 Grey

■ 002ZL65: Control panel for single or double hinged gates, with programming display, built-in radio decoding and self-diagnosis of safety devices

■ 806TS-0121: Four-channel dual-frequency rolling code transmitter, blue. (2 units)

■ 001AF43S: Pluggable RF Card

■ 001KIAROS: Wall Mount Bracket

■ 001DIR10: Pair of 12-24 VAC - DC surface photocells. Range: 10 m

■ 001KLED24: Indicator flashing light with 24 V DC LED

■ 119RV826: Indication Plate

SPECIFICATIONS

■ Power supply: 230Vac

■ Motor power: 24Vdc

■ Protection: IP54

■ Max intensity: 5A

■ Maximum power: 120W

■ Duty cycle: 50%

■ 90º opening time: 15*

■ Thrust: 400 ÷ 2000 N

■ Weight: 5.5 kg

MEASUREMENT
