AXO Irreversible 24V CAME Motor Kit for swing doors up to 5m.

Ideal solution for applications in residential and community enclosures

■ 24 V versions allow emergency operation in the event of a power failure

■ Worm screw always protected thanks to the dedicated cover

■ Encoder technology for slowdown management

■ Mechanical stops

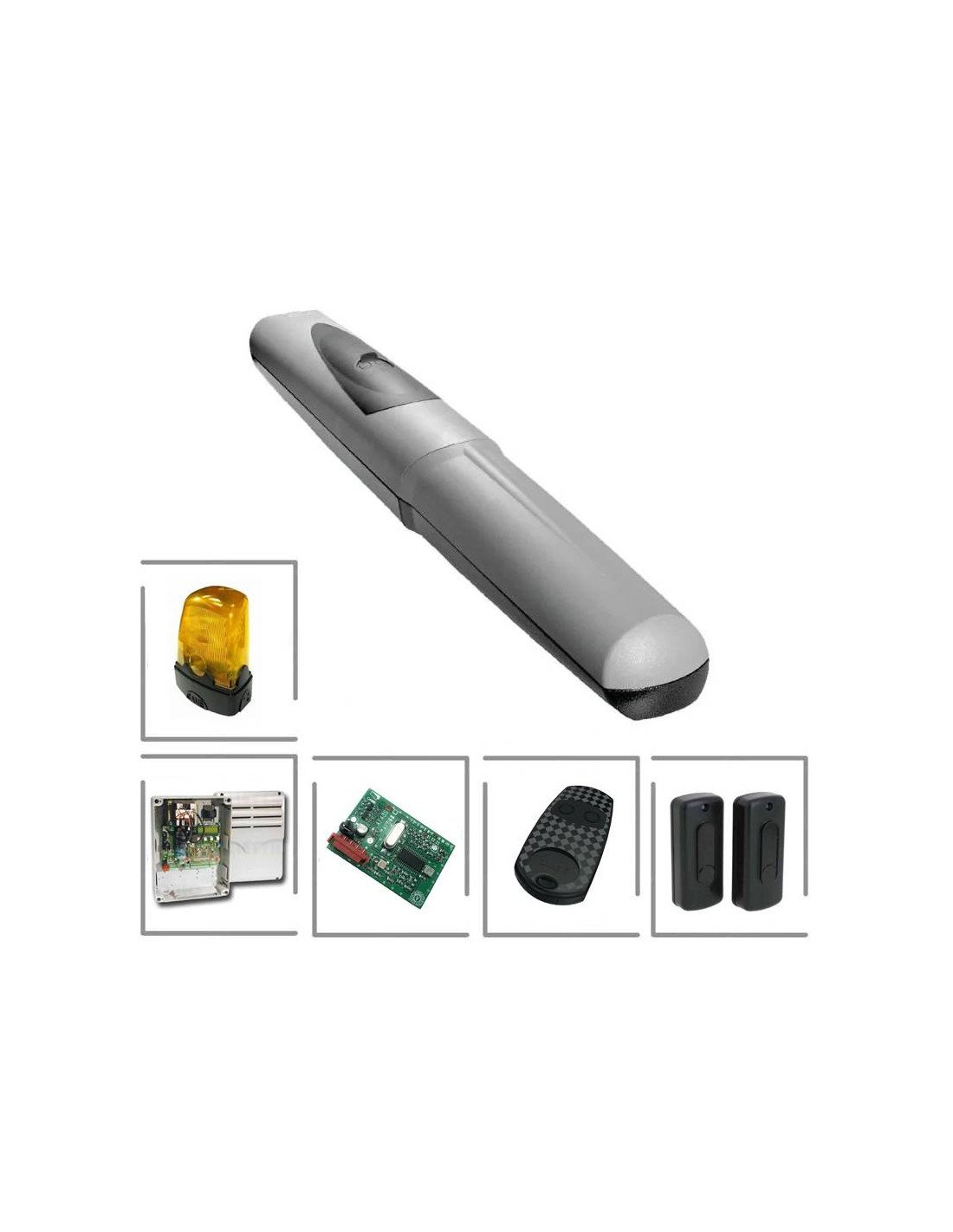

THE KIT CONTAINS

■ 001AX5024: Irreversible geared motor with encoder for swing gates up to 5 m per leaf

■ 002ZLJ14: Multifunction control panel for gates with a swing blade, with graphic display of programming and indication and self-diagnosis of safety devices

■ 001TOP-432EE: TOP-432EE Multi-user two-channel transmitter with self-learning function.

■ 001AF43S: 433.92 MHz plug-in radio frequency card

■ 001DIR10: Pair of 12-24 V AC - DC surface photocells. Range: 10 m

■ 001KLED24: Indicator flashing light with 24 V DC LED

■ 119RV826: Indication Plate

SPECIFICATIONS

• Power supply: 230Vac 50/60Hz
• Motor power: 24Vdc
• Max. Absorption: 10A
• Power: 240W
• Adjustable thrust: 500÷4500 N
• Intermittent operation: intensive service
• Degree of protection: IP44

MEASUREMENT

MANUAL

AXO CAME Instruction Manual

VIDEO CONFIGURATION & INSTALLATION
