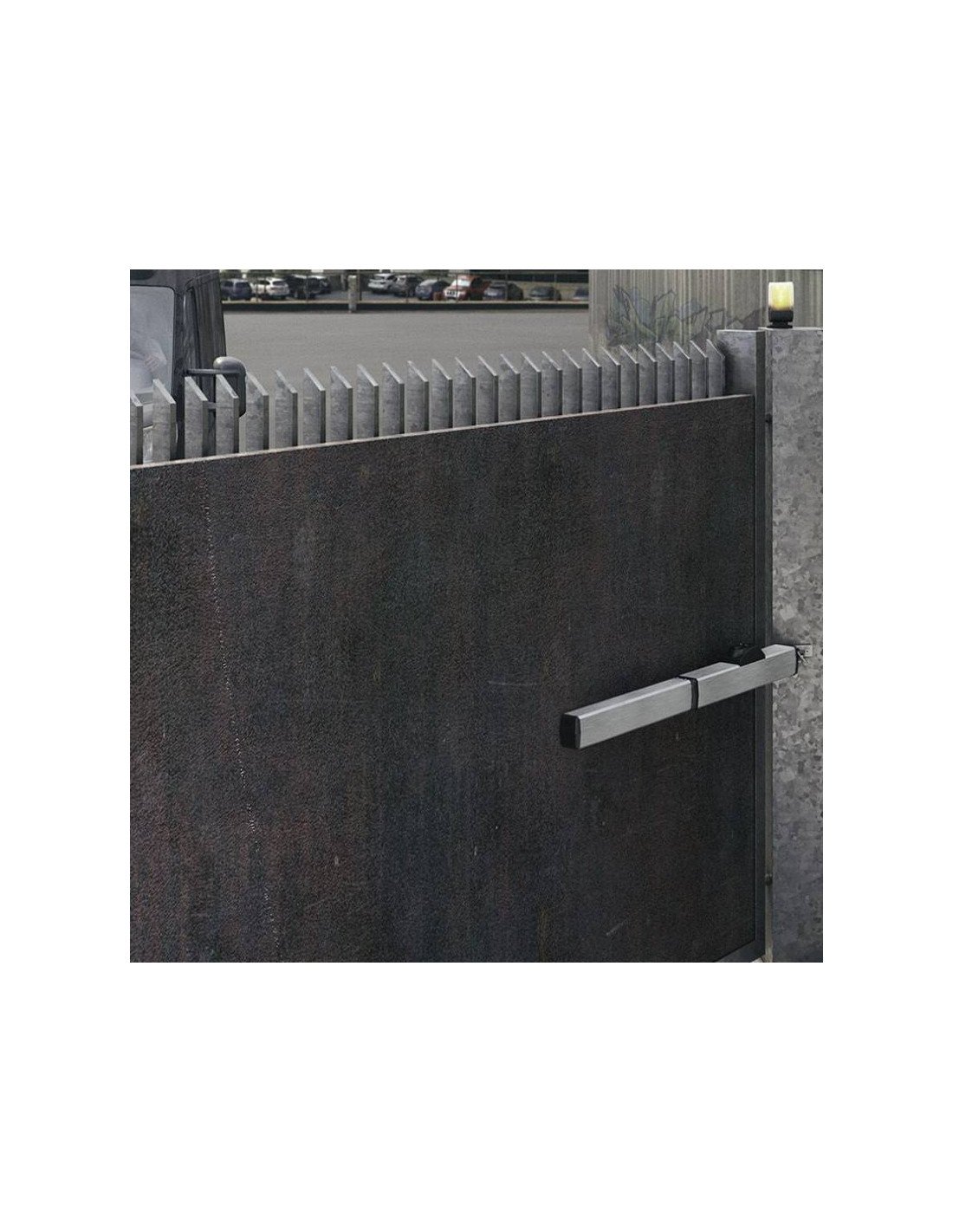

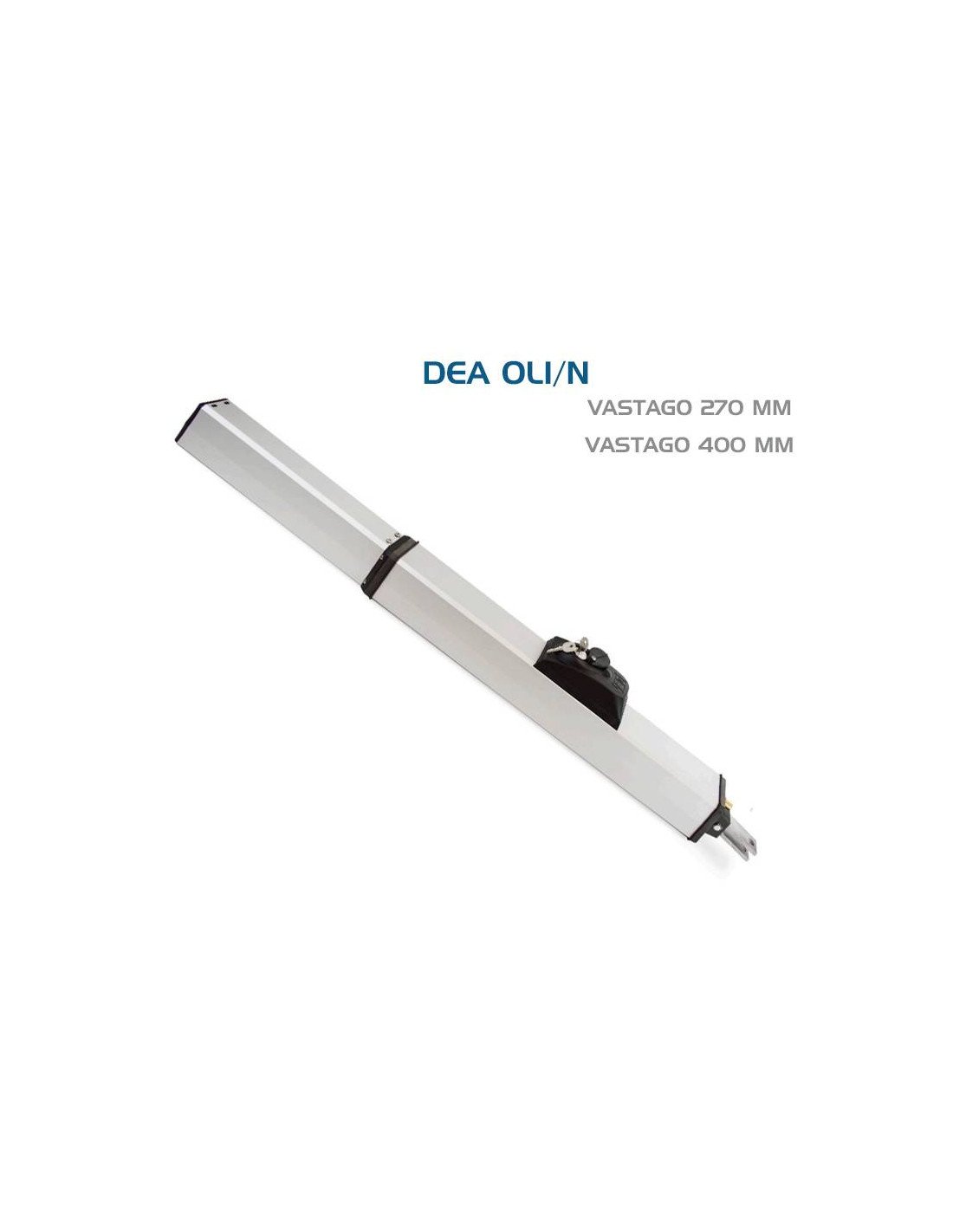

Hydraulic OLI/N DEA geared motors 230V stem 270/400mm for swing doors.

Excellent materials, compact design and adjustable power allow it to be used even in continuous working situations. Precision mechanics and the use of hydraulic oil as the engine fluid are the secret to quiet movement.

The installation, easy and fast, does not require any modification to the structure of the door.

CHARACTERISTICS

■ 230V hydraulic motor reversible or with locking opening/closing.

■ For swing gates from 2 m to 4.5 m

■ Maximum door weight 500 kg

■ Stroke 270/400 mm

■ Safe, quiet and very powerful

■ Residential or community use for intensive use

■ Oil bath reducer

■ Simple and secure manual key unlocking

■ Adjustable anti-crush safety by means of two sensitive by-pass valves

MODELS 270MM SHANK

• OLI 602AN (624005): Shank 270 mm. Lockable in opening, for leaves up to 2m
• OLI 602LAN (624055): Shank 270 mm. Slow, lockable in opening, for leaves up to 2.5m
• OLI 602N (624004): Shank 270 mm. Lockable on lock, for leaves up to 2m
• OLI 602LN (624054): Shank 270 mm. Slow, locked, for sashes up to 2.5m
• OLI 603N (624013): Shank 270 mm. Lockable in opening and closing, for leaves up to 2m
• OLI 603LN (624063): Shank 270 mm. Locking in opening and closing, slow, for leaves up to 2.5m
• OLI 604N (624023): Shank 270 mm. Reversible, for blades up to 2.5m
• OLI 604LN (624073): Shank 270 mm. Reversible, slow, for sheets up to 3m

400MM SHANK MODELS

• OLI 605N (624033): Shank 400 mm. Lockable in opening and closing, for leaves up to 2.5m
• OLI 605LN (624083): Shank 400 mm. Slow, locking in opening and closing, for leaves up to 3m
• OLI 606N (624043): Shank 400 mm. Reversible, for blades up to 3.5m
• OLI 606LN (624093): Shank 400 mm. Reversible, slow, for sheets up to 4.5m
• OLI 607AN (624104): Shank 400 mm. Lockable in opening, for sashes up to 3m
• OLI 607LAN (624114): Shank 400 mm. Locked-in opening, slow, for sashes up to 3.5m

SPECIFICATIONS

MANUAL

Data sheet DEA OLI/N
