The CALYPSO motor for swing doors with a maximum length of 3 m is specially designed for residential doors. With that blade length, the motor is capable of moving up to 300 kg.

It is a 230 Vac locked motor, which depending on the engine version, has a stem length between 400-500 mm and obstacle detection with electronic soft stop. For example. The CA43 locked, 400 mm stem motor with a maximum opening of 100° is recommended for doors up to 2.5 m in length.

On the other hand, the CA53 500 mm stem locked motor with a maximum opening of 120° is recommended for doors up to 3 m in length.

CHARACTERISTICS

■ Possibility of pedestrian entrance.

■ Obstacle detection for safety.

■ Pre-arranged to connect the latest generation of sensitive bands.

■ Practical key release system.

■ Powerful motor.

■ Quiet.

■ High degree of protection against water and dirt.

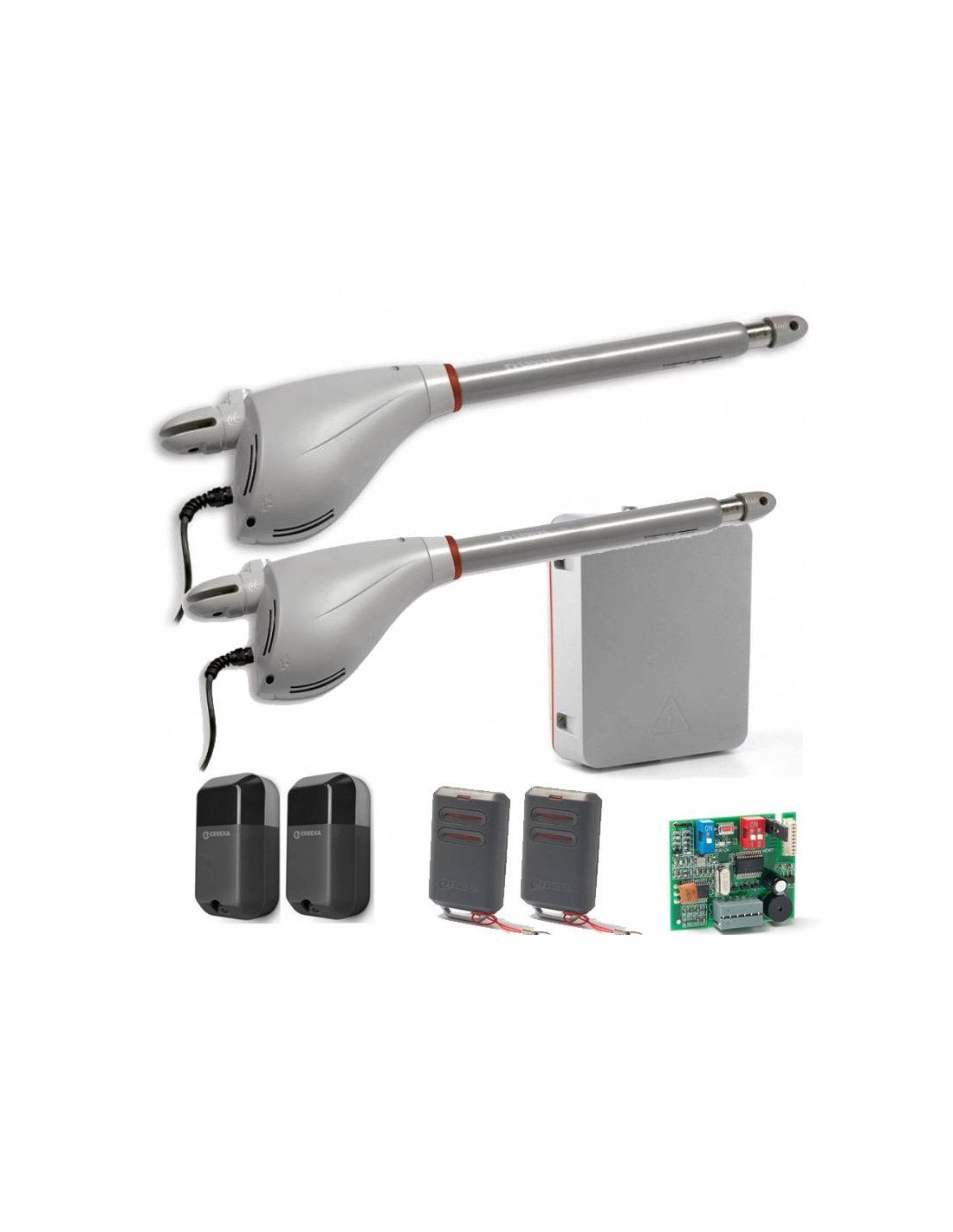

THE KIT CONTAINS

■ 1 pc CA53: Electromechanical motor, rod 500 mm, locked

■ 1 pc VIVO-M201: Analog control panel for 2 x 230Vac motors

■ 1pc IRRE2: Receiver card 433.92 MHz

■ 2 pcs KU02: KUMA transmitter 2 channels Fixcode 433.92 MHz

■ 1pc FT06: Emitter-receiver photocell pair

MANUAL

Technical data sheet Erreka CALYPSO

Quick Guide Erreka CALYPSO

Complete manual Erreka CALYPSO
