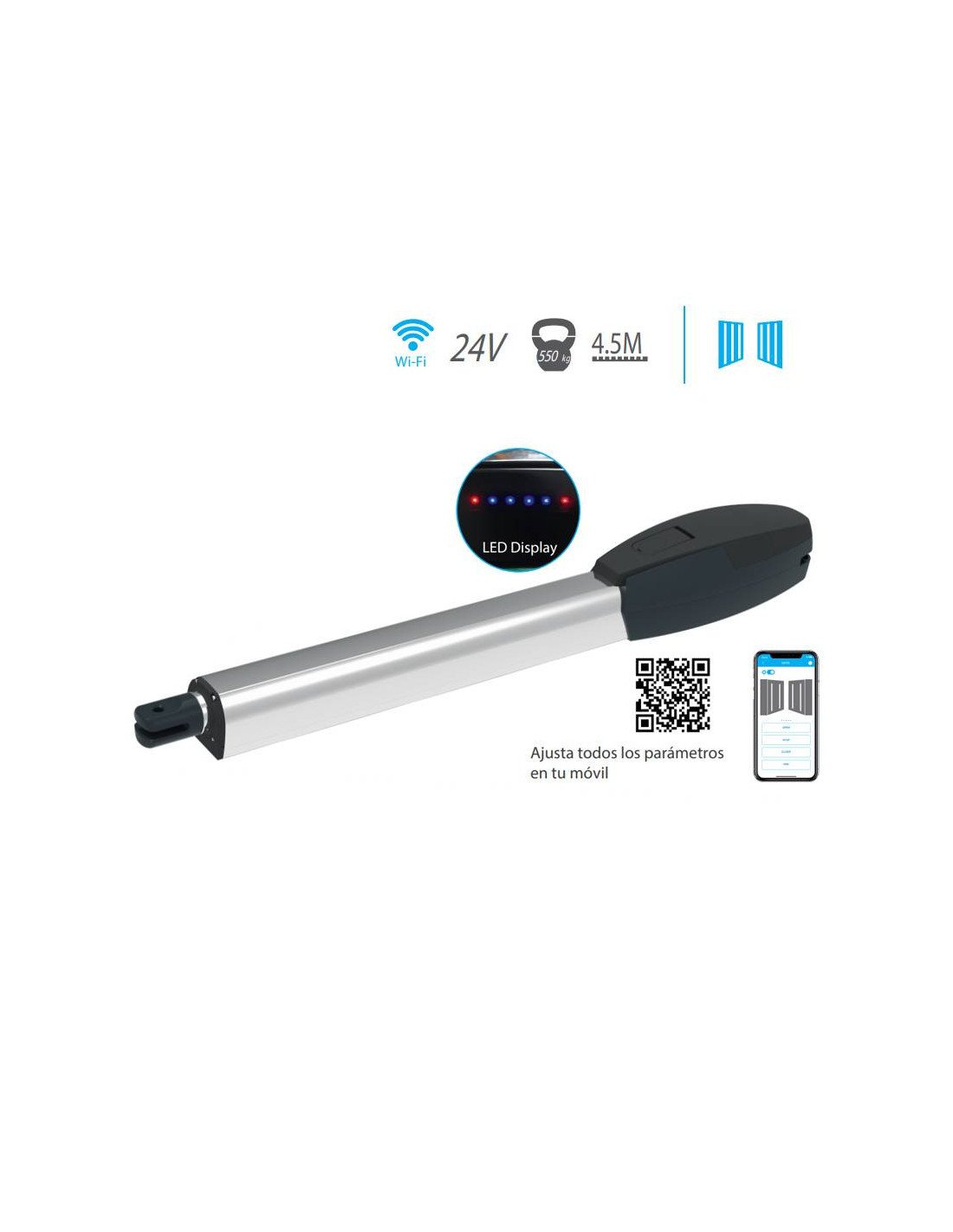

Medva PW530 24V electromechanical motor kit for swing doors up to 4.5 meters or 550 kg in weight.

The PW530 motor is ideal for motorizing residential and community swing doors with semi-intensive use

• It has an LED to show the status of the engine
• Ability to move doors weighing up to 550 kg
• Compatible with limit switch or encoder
• Aesthetic and elegant design

CHARACTERISTICS

• Motor power: 24V
• Maximum weight: 550 kg per sheet
• Max Length: 4.50 meters per sheet
• Nominal thrust: 4500 N
• Travel: 540 mm
• Duty Cycle: 20%
• Cycle Test: 40,000 cycles
• Power consumption: 4.5 A
• Protection level: IP54
• Operating temperature: -20°C to 50°C
• Dimensions: 1041x128x130mm
• Weight: 6.25 kg

FEATURES PC190 FRAME

• Encoder or limit switch operation
• Built-in WiFi
• Soft stop regulation
• Opening and closing speed regulation
• Self-closing
• Opening of pedestrian crossing
• Flashing Light Option
• Option to add batteries to run without power

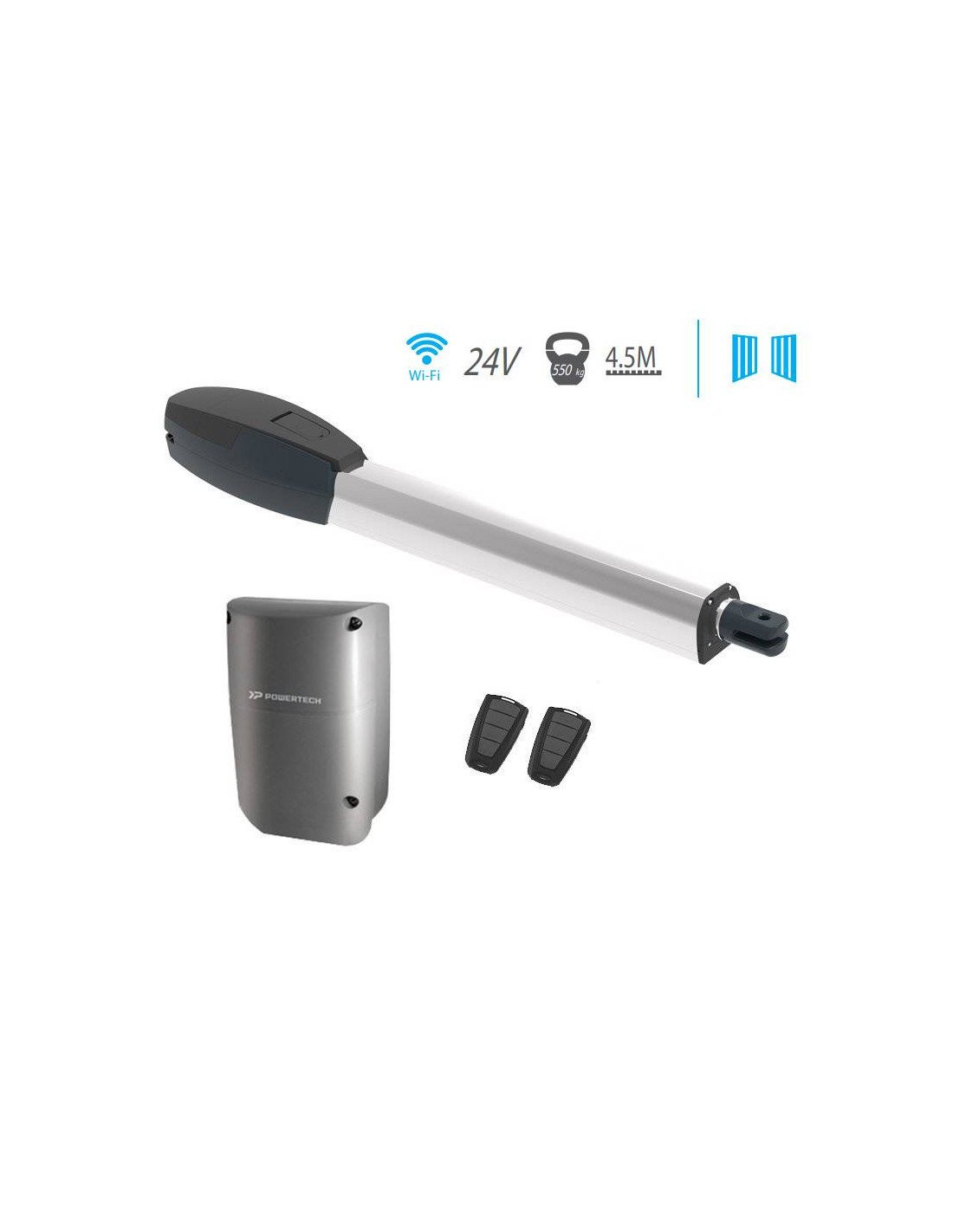

THE KIT CONTAINS

• 1pc PW530L 24V Electromechanical Motor
• 1 pc PC190 control panel
• 2pc Rollingcode PR4 433 MHz Transmitter

MANUAL

Medva PW530L Instruction Manual
