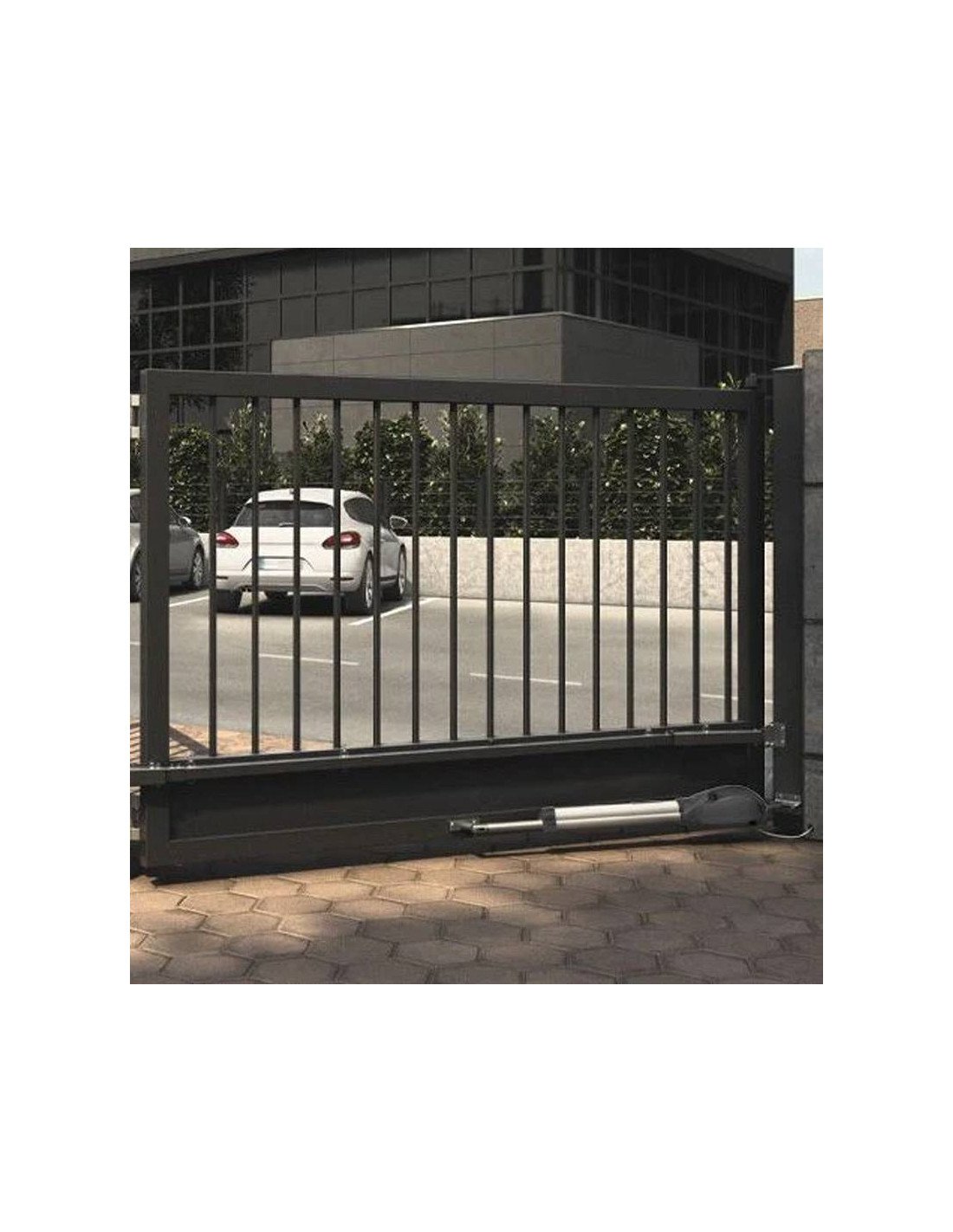

Electromechanical engines DEA LOOK in 230V or 24V format for swing doors of 2 to 3 metres per sheet.

CHARACTERISTICS

• Telescopic piston made of stainless steel that guarantees high corrosion resistance.
• Open the door to 110 degrees.
• The version with encoder guarantees high performance and safety in movement.

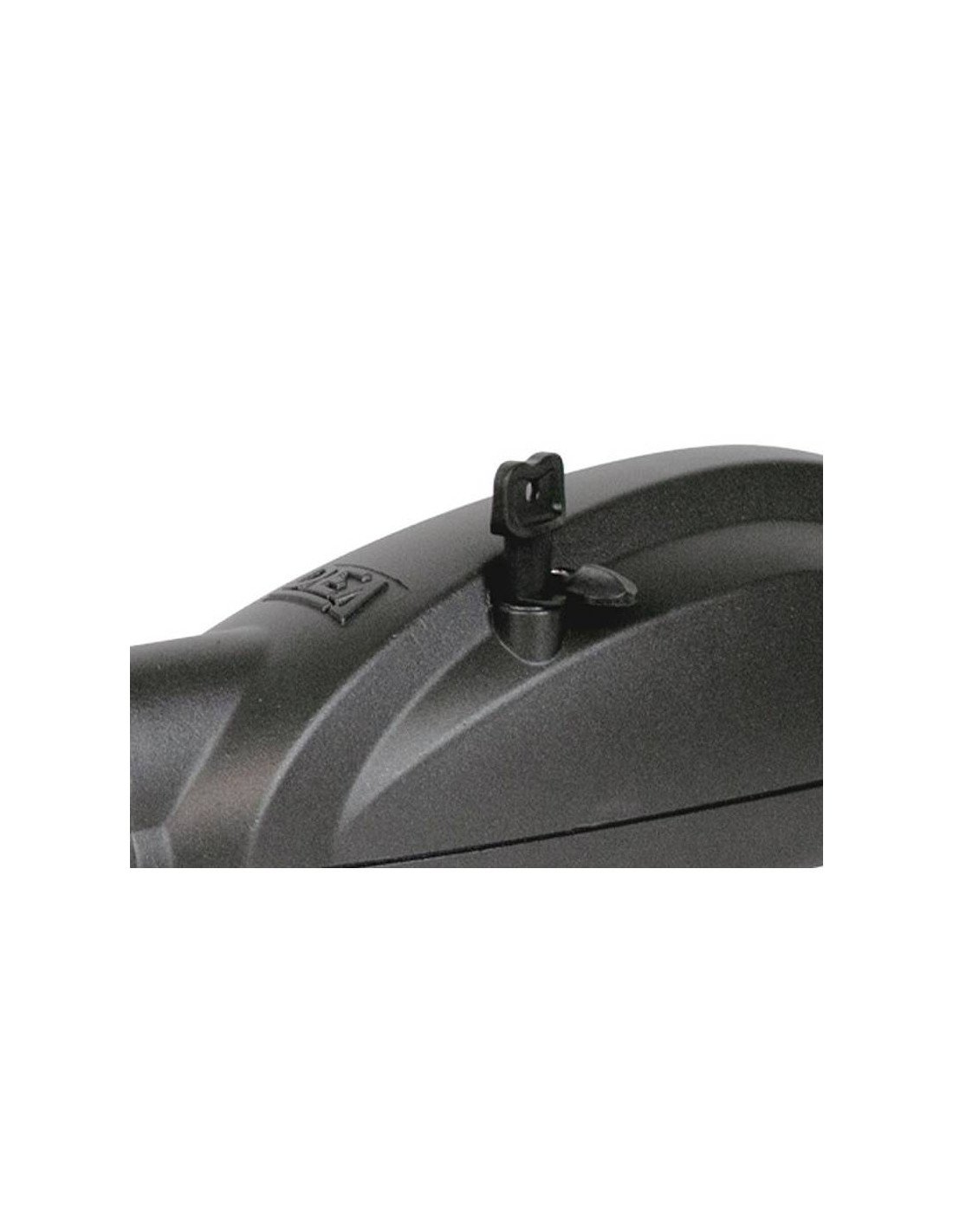

• Unlocking device with plastic key in case of power failure.
• Increased versatility of installation thanks to the adjustable fastening plates of series for screwing (art.
• 2 lengths available: 320mm travel for doors up to 3m, and 520mm travel for doors up to 5m.
• Covers optional rod to protect the telescopic piston and give a more linear aesthetic

OTHER

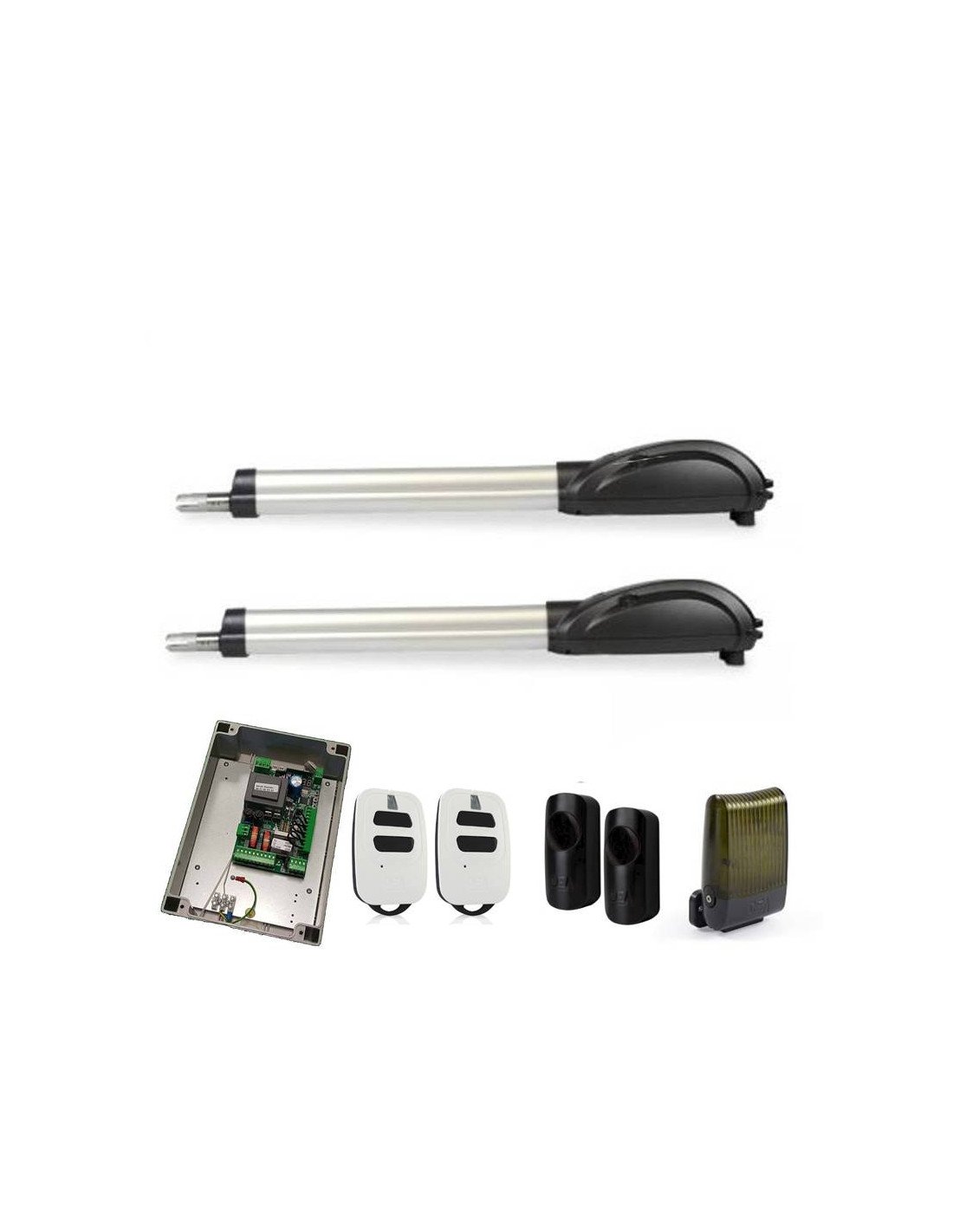

• 2 unid THIS APPROPRIATION IS INTENDED TO COVER:: 230V motor Door length 3 m, stem 320 mm, residential use, locked.
• 1 unit NET230N/C: 230V manoeuvre chart with built-in receiver.
• 1 unit LINEAR/XS: Security photocell from transmitter to receiver.
• 1 unit AURA/N: Flashing lamp
• 2 unid GTI2Rollingcode 433 MHz transmitter with 2 channels

THE NAME AND ADDRESS OF THE MANUFACTURER

• 2 unid FOR THE PURPOSES OF THIS REGULATION, THE FOLLOWING DEFINITIONS SHALL APPLY:: 24V motor Door length 2 m, stem 320 mm, residential use, locked.
• 1 unit NET24N/C: 24V control panel with built-in receiver.
• 1 unit LINEAR/XS: Security photocell from transmitter to receiver.
• 1 unit AURA/N: Flashing lamp
• 2 unid GTI2Rollingcode 433 MHz transmitter with 2 channels

KIT 371NET

• 2 unid 371/SC ((627090): 24V engine Door length 3 m, stem 320 mm, semi-intensive use, locked.
• 1 unit NET24N/C: 24V control panel with built-in receiver.
• 1 unit LINEAR/XS: Security photocell from transmitter to receiver.
• 1 unit AURA/N: Flashing lamp
• 2 unid GTI2Rollingcode 433 MHz transmitter with 2 channels

TECHNICAL CHARACTERISTICS

MANUAL

Technical data sheet DEA LOOK
