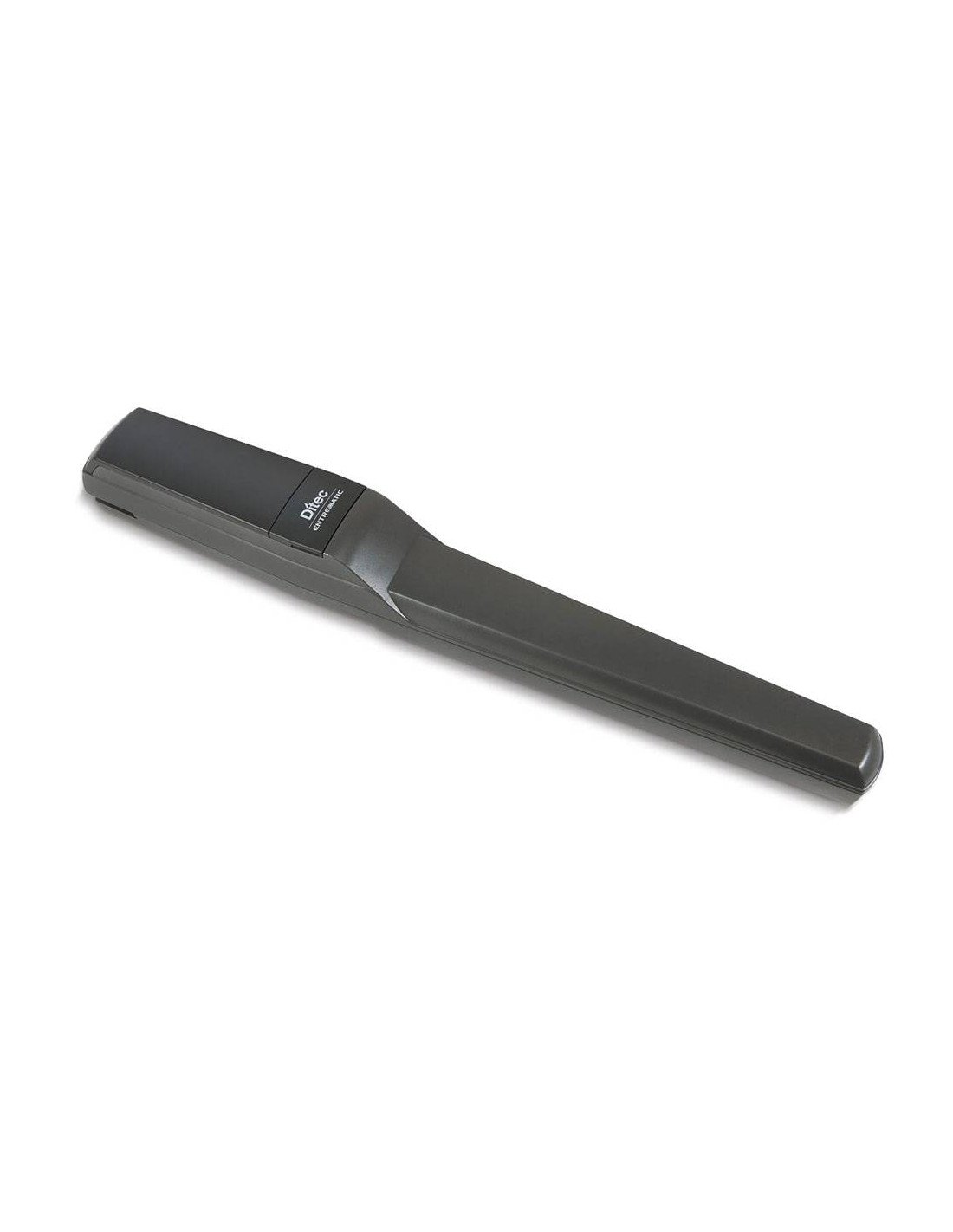

Electromechanical Engine Kit DITEC PWR35H 24V for intensive use swing doors with length length up to 3.5 meters.

The irreversible actuator DITEC 24VCC PWR35H is designed to be used with frequent and intensive use. With Fixing brackets, mechanical stops and plastic protection of the endless screw.

Easy: It is enough to loosen a single screw to be able to remove the plastic cover and access the terminals for the electrical wiring.

Strong: Automatism composed of two resistant aluminum foundries that guarantee a perfect resistance to torsion and cut forces.

Practical: Manual unlocking that guarantees opening with minimum effort and self-catering for easy access to the screw for regulations and maintenance operations.

Technical characteristics

• Electromechanical automation: irreversible for sheet up to 3.5 meters
• Race management: Mechanical stop
• Maximum capacity: 600 kg x 1.75 m 250 kg x 3.5 m
• Motor Food: 24VCC
• Maximum power: 5.5A
• Consumption: 65 W Nom. / 132 W MAX
• Push: 3000 N
• Opening speed: 14 ÷ 80 s / 90 °
• Maximum stroke: 450 mm
• Maximum opening Automation: 110º
• Flashing: 50 consecutive cycles at 20 ° C
• Service class: Intensive up to 300 000 cycles
• Unlock for manual opening: key
• Operating temperature: -20 ° C ÷ + 55 ° C (-35 ° C ÷ + 55 ° C with activated child)
• Degree of protection: IP44
• Weight: 9

Installation measures

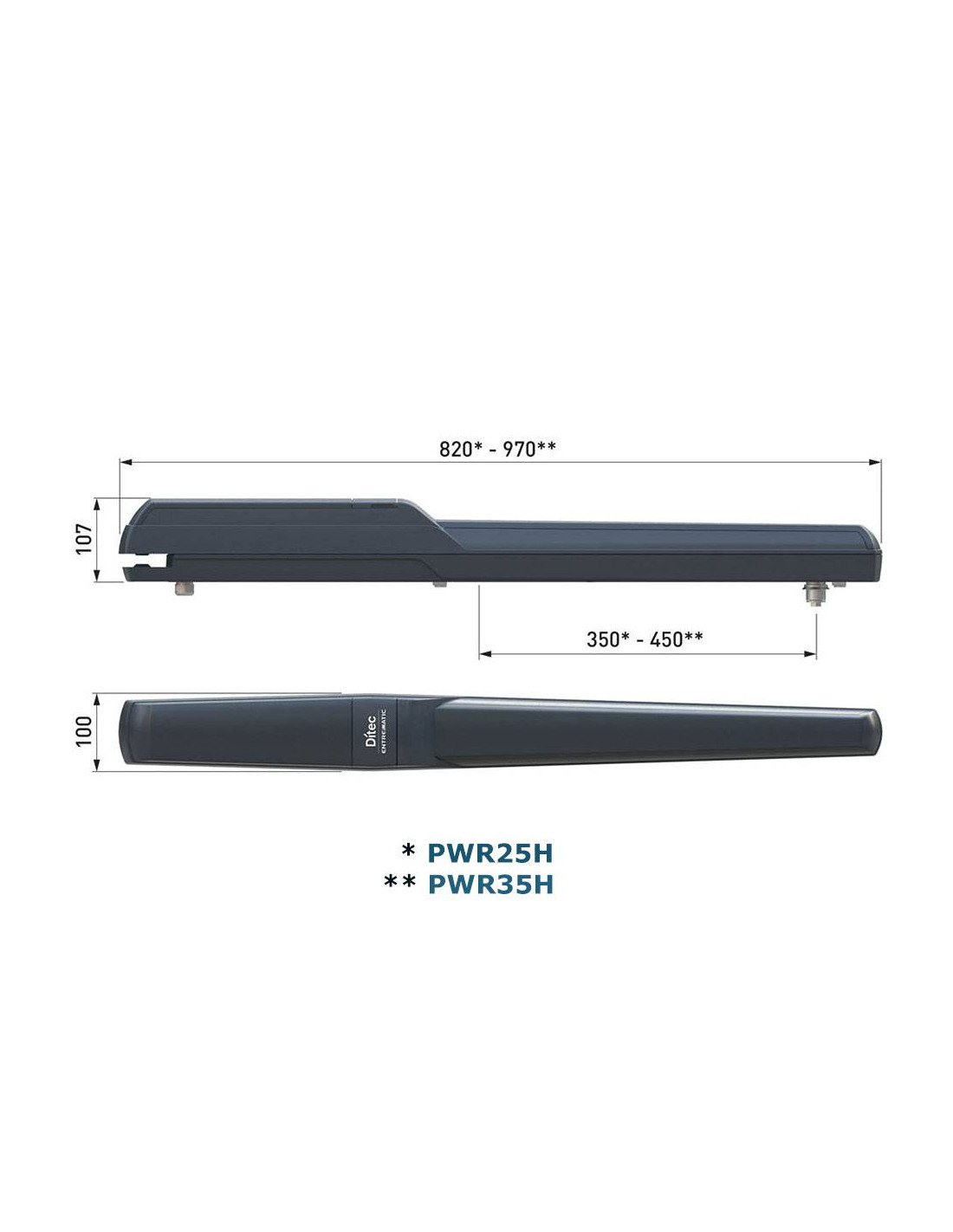

Engine measurements

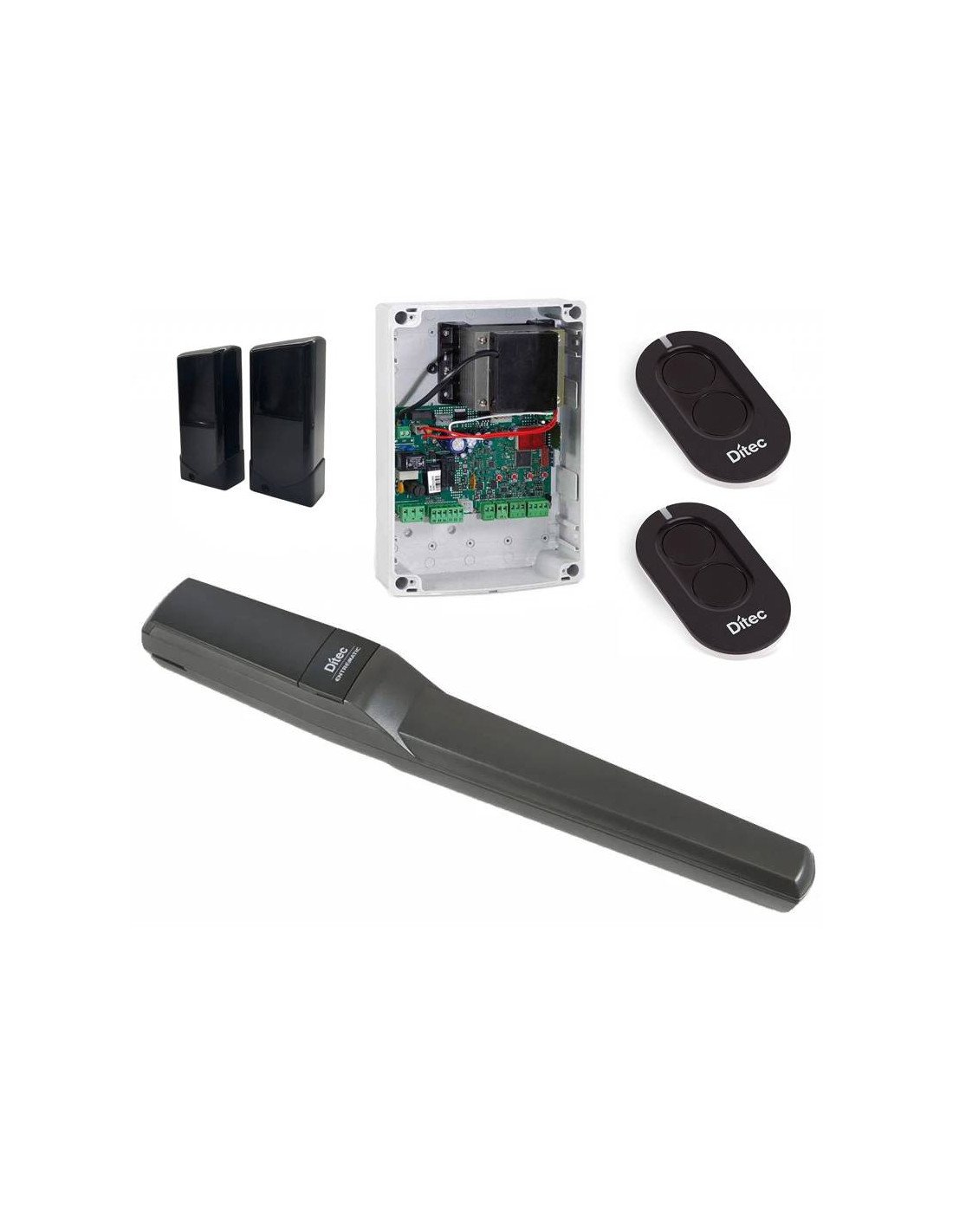

The kit contains

■ 1 pc Pwr35h: Electromechanical operator 24V 3.5m per sheet.

■ 1 pc Lcu30h: 24V Central Operators with built-in receiver.

■ 2 pc Zen2: Rollingcode 433 MHz emitter.

■ 1 pc Foto30-b: Pair of emitting-receiving photocells.

Manual

Manual DITEC Pwr25h / pwr35h

Instruction Manual LCU30H
