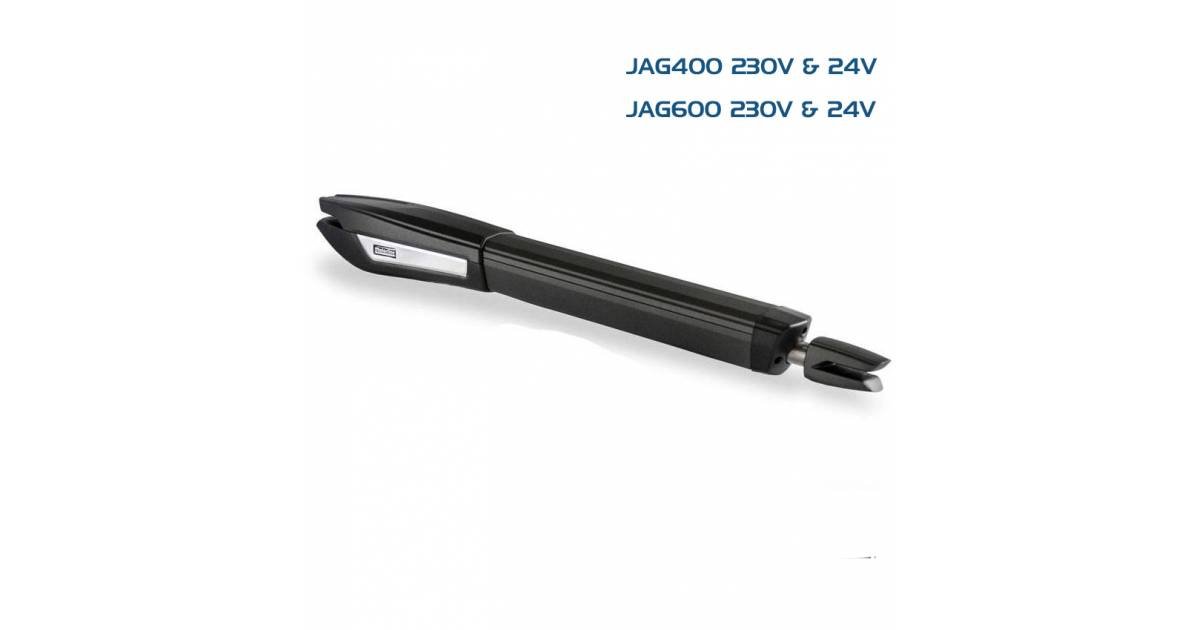

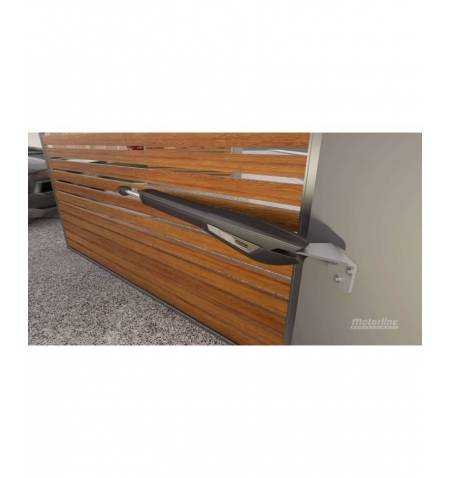

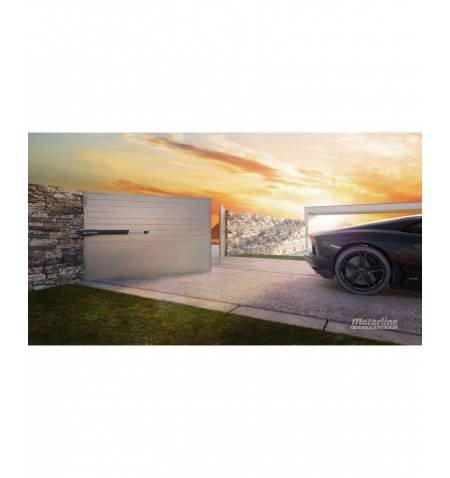

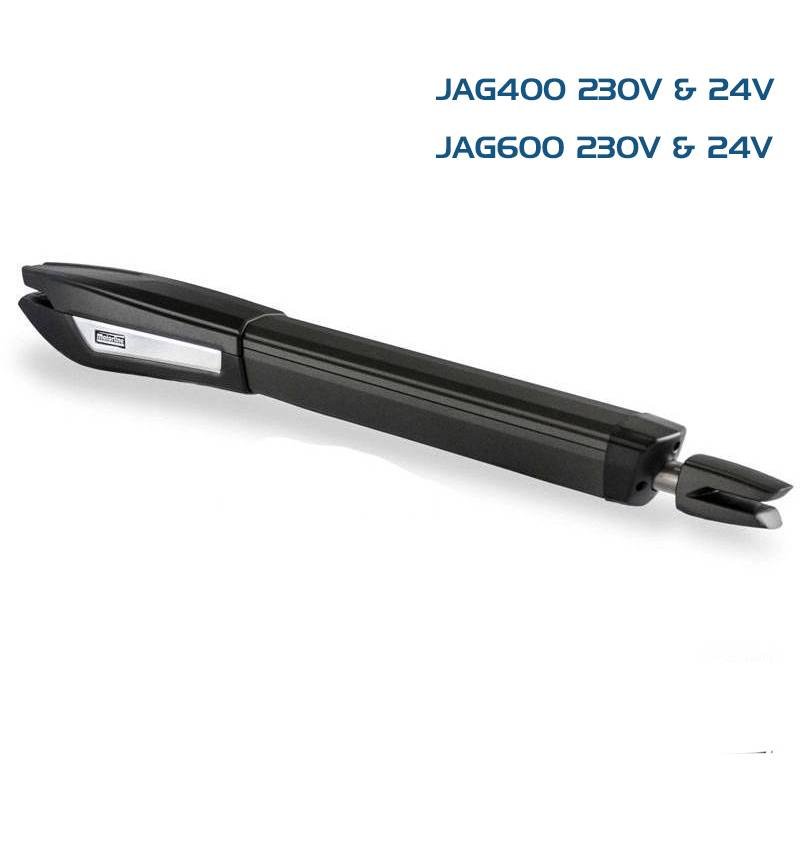

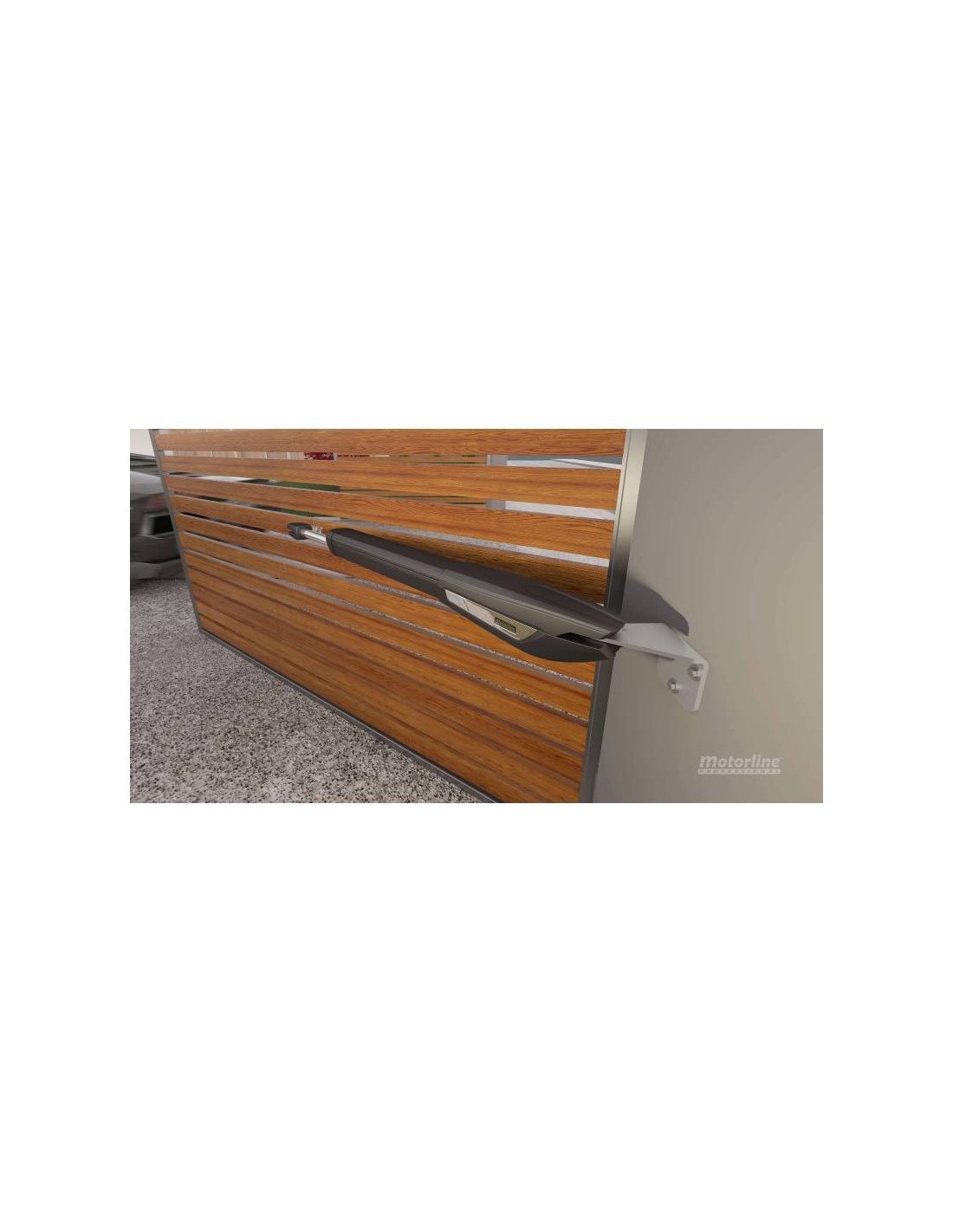

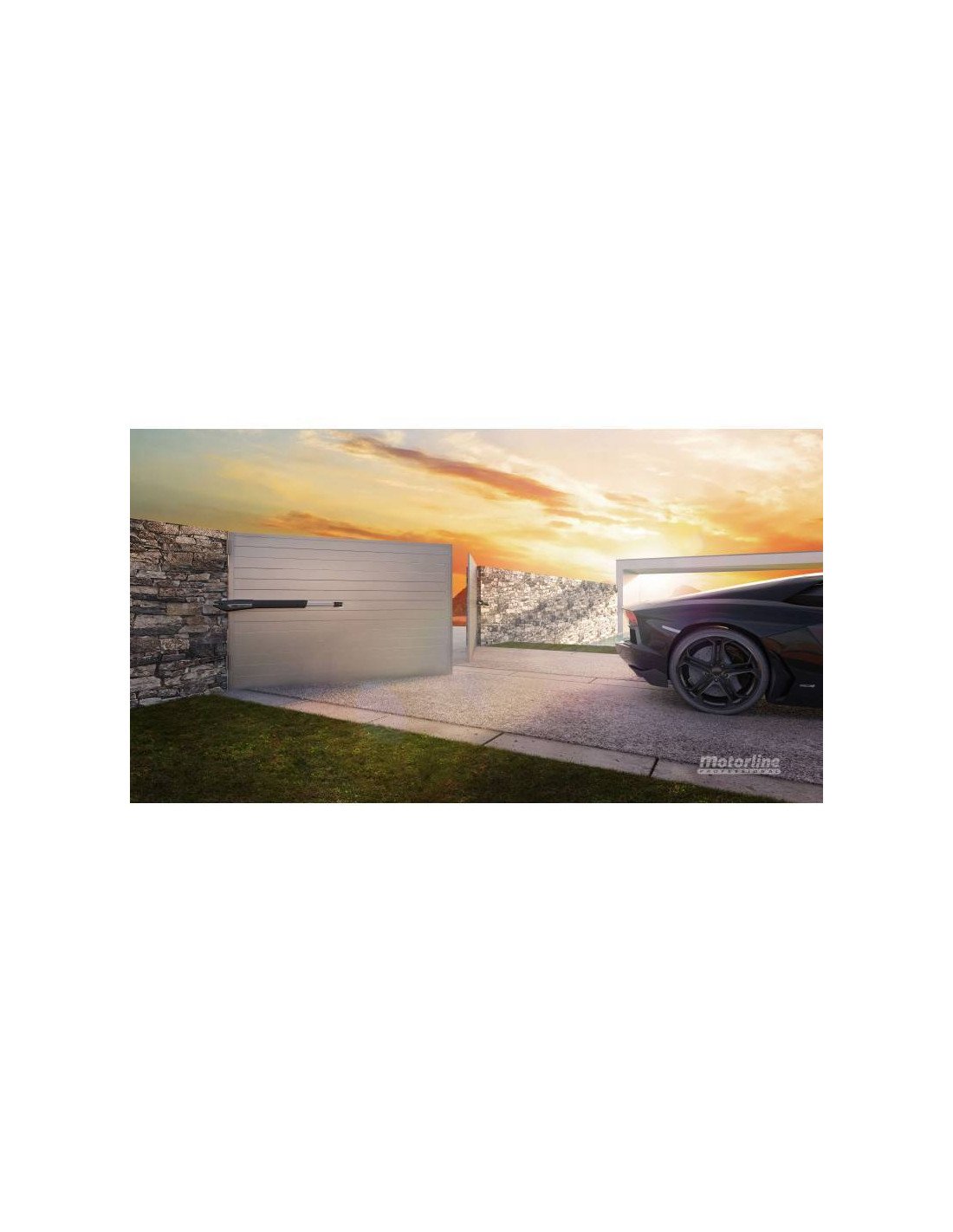

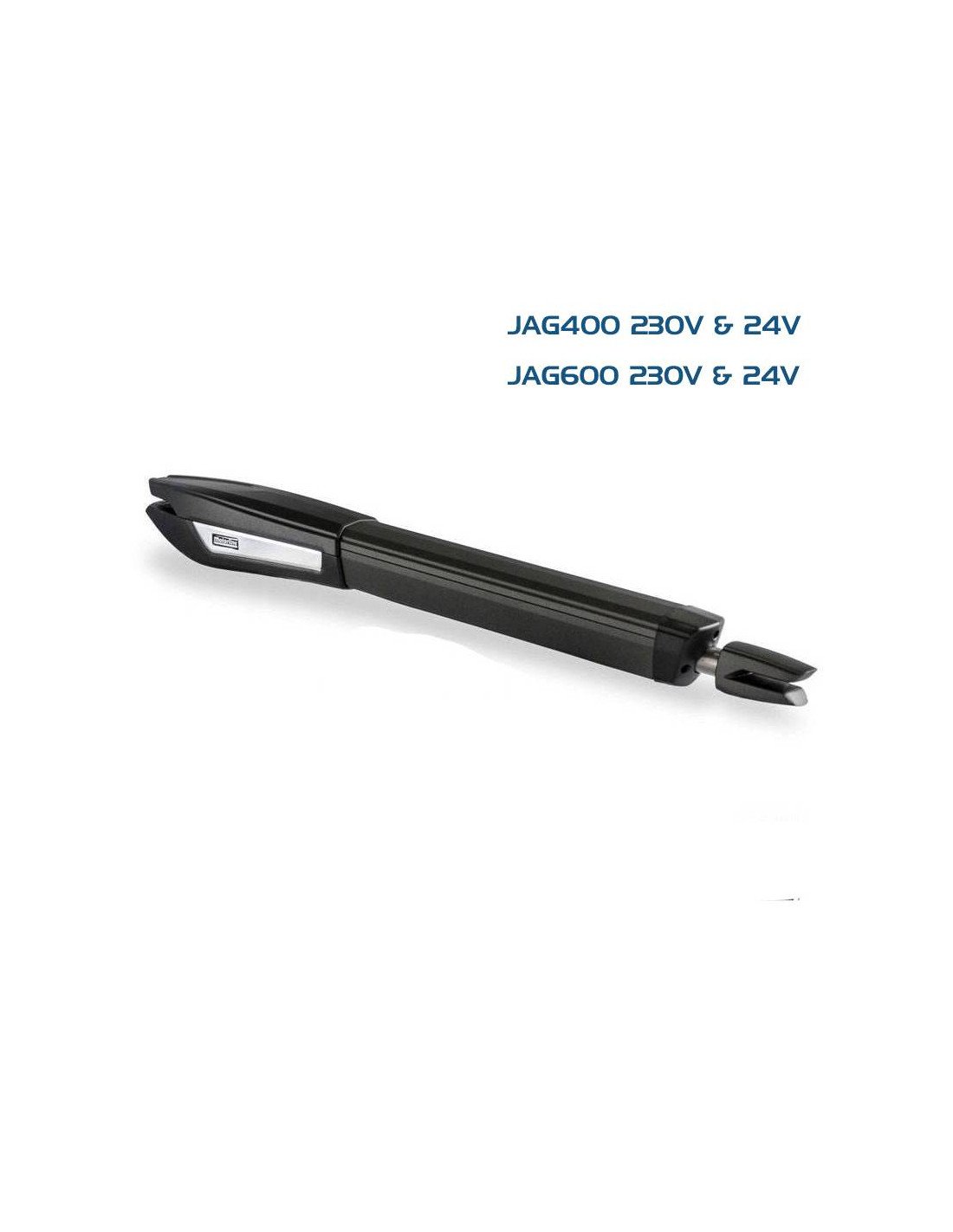

Jag engine Motorline electromechanical In 230VAC or 24VDC format, for swing door up to 4 meters / leaf (Jag400) and for doors up to 6 meters / leaf (Jag600). Irreversible motor that incorporates electrical career endings in opening and closing.

Engine side

ENGINE JAG

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain Except bulky

Description
Product Details

Models available

JAG400 230V: 230V engine for doors up to 4 meters per leaf.
JAG600 230V: 230V engine for doors up to 6 meters per leaf.
JAG400 24V: 24 VDC motor for doors up to 4 meters per leaf.
JAG600 24V: 230 VDC engine for doors up to 6 meters per leaf.

Technical characteristics - Motorline JAG

Technical characteristics	Jag400	Jag600
Feed	230VAC 50 / 60Hz	230VAC 50 / 60Hz
	110VAC 50 / 60Hz	110VAC 50 / 60Hz
	24vdc	24vdc
Power	300W (230 / 110VAC)	300W (230 / 110VAC)
Power	80W (24VDC)	80W (24VDC)
Rpm	1400 RPM (230 / 110VAC)	1400 RPM (230 / 110VAC)
Rpm	1650 RPM (24VDC)	1650 RPM (24VDC)
Noise	LPA ≤ 50 dB (A)	LPA ≤ 50 dB (A)
Strength	2800 n	2800 n
Operating temperature	-25 ° C ~ 55 ° C	-25 ° C ~ 55 ° C
Thermal protection	120 ° C.	120 ° C.
Level of protection	Ip54	Ip54
Labor	25% (230 / 110Vac)	25% (230 / 110Vac)
Labor	Intensive (24VDC)	Intensive (24VDC)
Maximum course	400 mm	600 mm
Leaf maximum leaf	<5000 mm	<6000 mm
Capacitor	12.5 μF (230VAC)	12.5 μF (230VAC)
Capacitor	35 μF (110VAC)	35 μF (110VAC)
