ROGER BE20

KIT ROGER BE20/210GO irreversible electromechanical motors low voltage 24V, intensive use, with internal encoder integrated, for batting cancels with maximum blade 2.8 m, with mechanical tope opening and closing.

✓ Brushless technology: Provides greater durability, energy efficiency and lower maintenance. These brushless engines are especially resistant and can withstand intensive use without overheating.

✓ Quiet and Suave operation: These engines offer a smooth and silent movement, which is important to ensure precise closure and opening without excessive noise, ideal for residential areas.

✓ Intelligent programming: ROGER smoother engines allow a wide customization of the parameters, such as force adjustment, speed, opening and closing time. In addition, they include soft start and stop functions, which reduces wear on the gate and equipment.

✓ Security: They incorporate obstacles sensors and an automatic reversion system that stops the movement of the gate if it detects a obstruction, increasing security for people and vehicles.

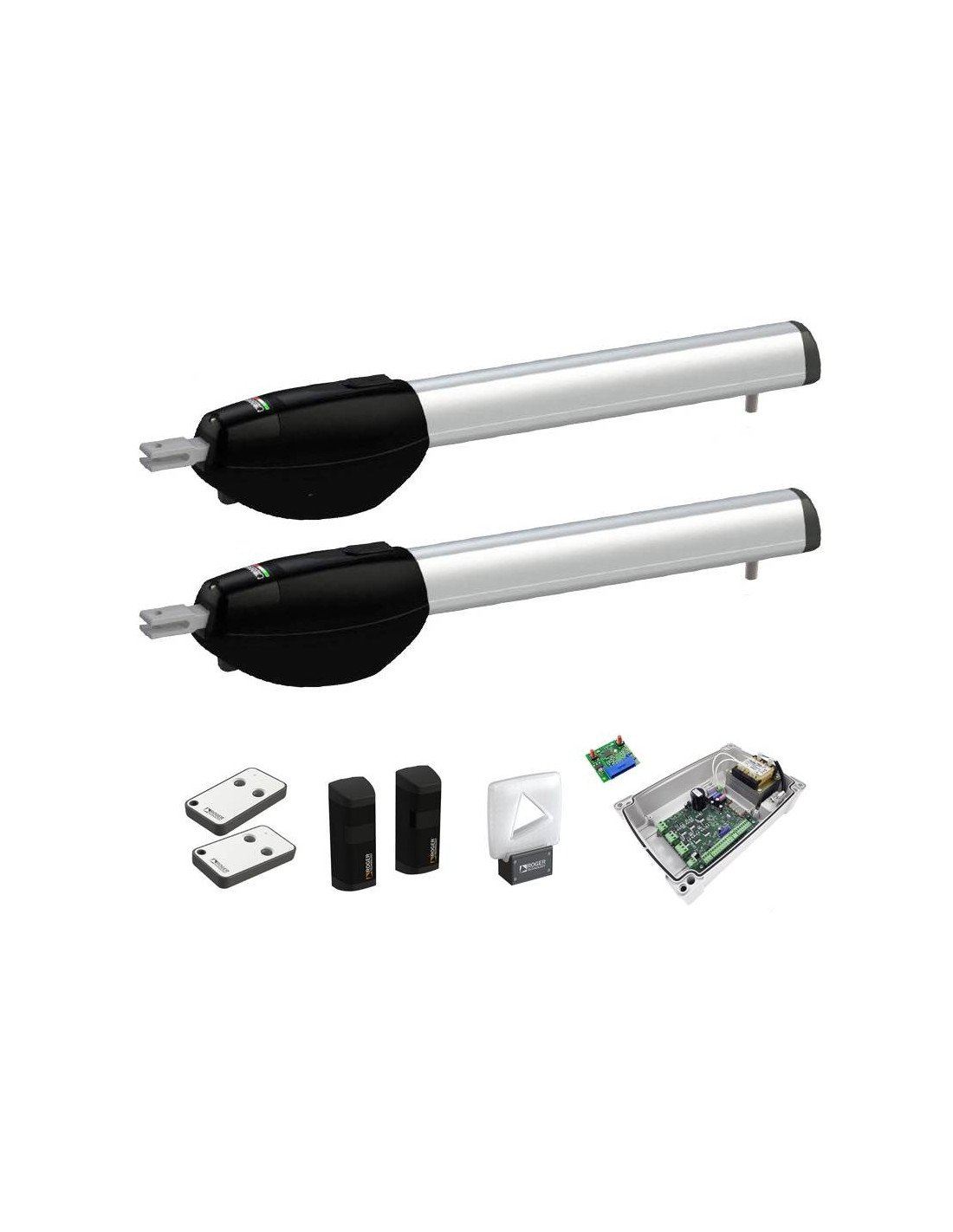

CONTENT OF THE KIT

• 2x BE20/210GO electromechanical motors for doors up to 2.8m per sheet.
• 1x B70 maneuver box.
• 1x H93 receiver card.
• 2x E80 2-channel handles.
• 1x Emisor-Receptor photocell pair.
• 1x LED flash lamp with antenna.

TECHNICAL CHARACTERISTICS

• Food line: 230V AC - 50Hz
• Power supply: 24V
• Rated power: 200W
• Frequency of use: Intensive use
• Push: 100 - 2200N
• Operating temperature: -20 C° +55 C°
• Degree of protection: IP44
• Engine type: Irreversible
• Velocity: 1.66 cm/s
• Opening hours: 15-25 s
• Travel: 400 mm
• End of race: Mechanical top in opening and closing
• Encoding: Digital Encoder 48 PPR SENSORLESS
• Cycles of maneuver per day (opening/closure – 24 hours without stopping): 800
• Maximum dimensions of product (L x W x H): 867 x 105 x 155
• Weight of packed product (Kg): 20.3

DIMENSIONS AND COTAS ROGER BE20

MANUAL

Instruction manual ROGER BE20/210
