Roger BE20 / 400

Kit Swing Motors Roger Be20 / 400 irreversible electromechanics of low voltage 24V, intensive use, with internal encoder integrated, for double cancels swing with Maximum sheet of 4 m, with mechanical opening and closing.

✓ Brushless technology: Provides greater durability, energy efficiency and lower maintenance. These brushless engines are especially resistant and can withstand intensive use without overheating.

✓ Silent and soft operation: These engines offer a smooth and silent movement, which is important to guarantee precise closure and openness without excessive noise, ideal for residential areas.

✓ Intelligent programming: Swinging motors Roger allow a broad customization of parameters, such as force adjustment, speed, opening time and closure. In addition, they include starting and soft stop functions, which reduces wear on the gate and equipment.

✓ Security: They incorporate obstacle sensors and an automatic reversal system that stops movement of the gate if it detects an obstruction, increasing safety for people and vehicles.

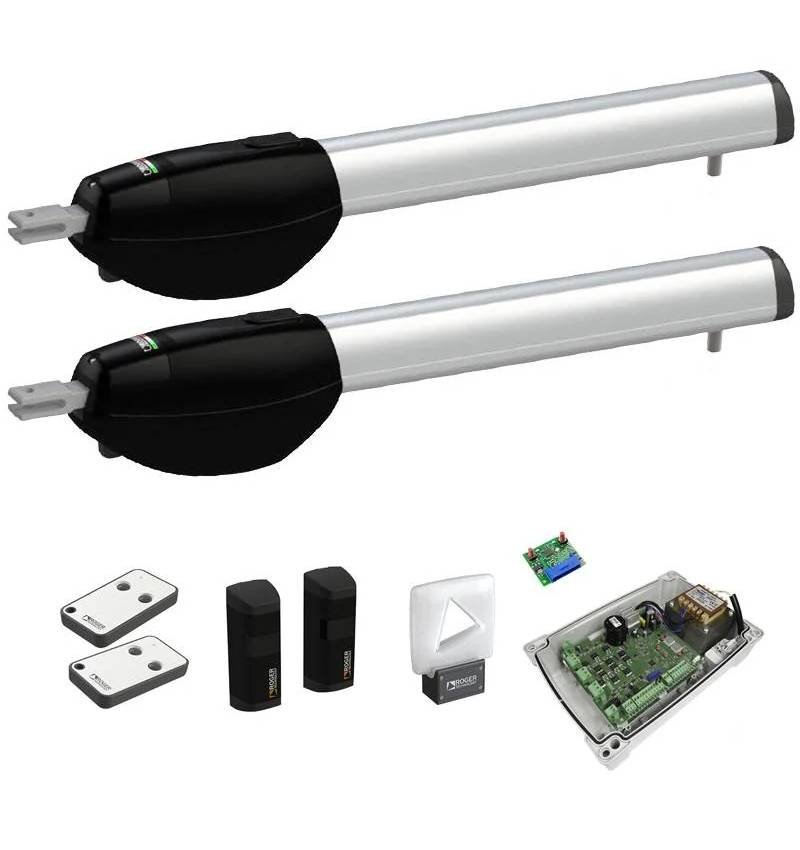

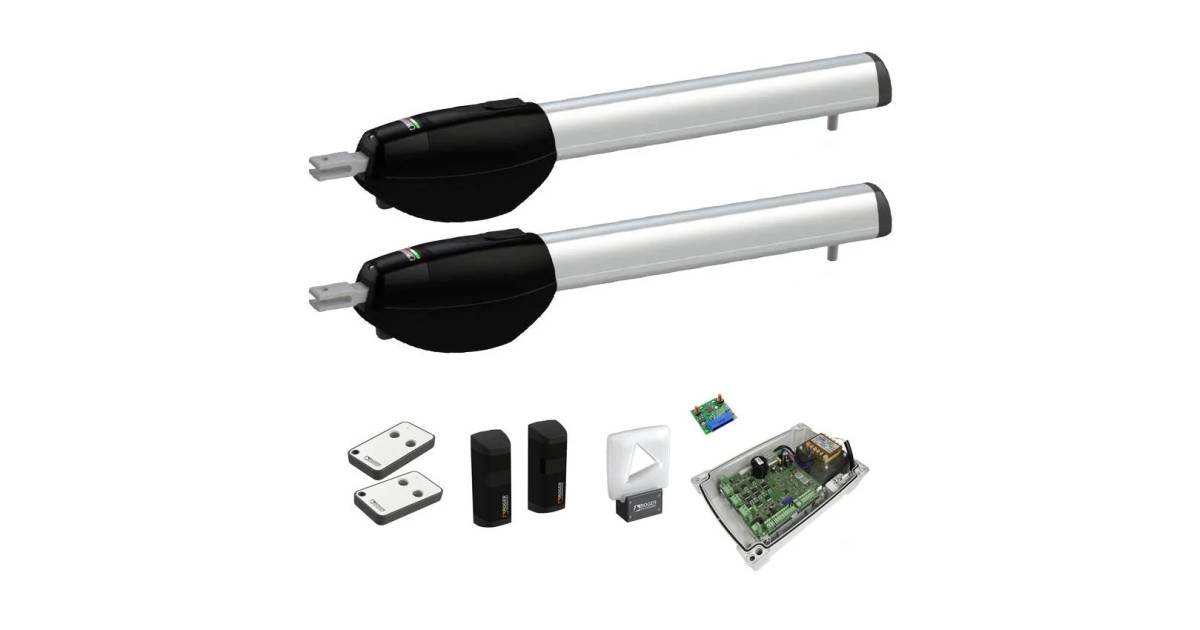

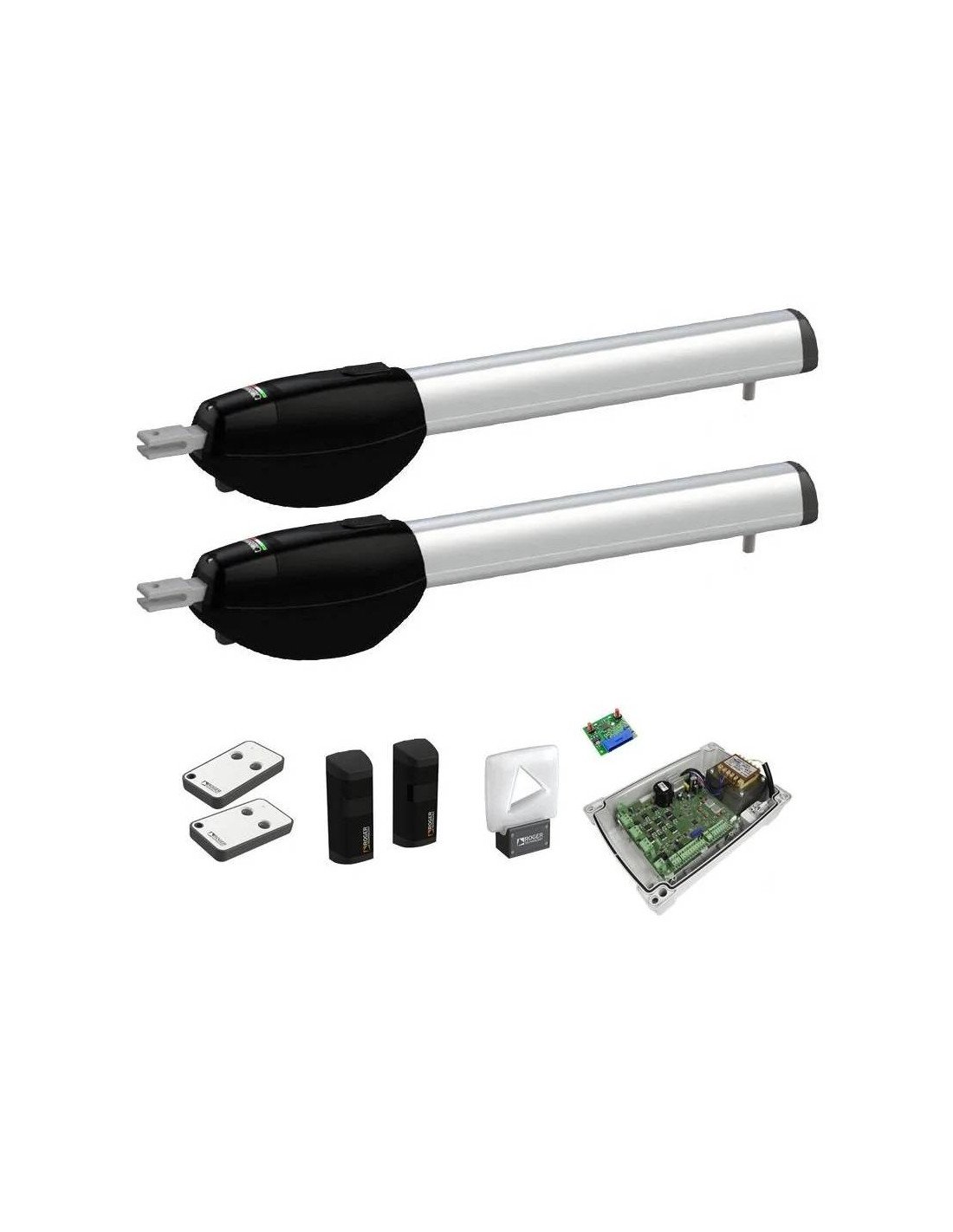

Kit content

• 2x Electromechanical motor BE20 / 400 for doors up to 4m per sheet.
• 1x Edge maneuver box
• 1x H93 receiver card.
• 2x 2-channel E80 controls.
• 1x pair of emitting-receptor photocells.
• 1x LED flashing lamp with antenna.

Technical characteristics

• Line: 230v AC - 50Hz
• Motor feed: 36v
• Nominal power: 200W
• Frequency: Intensive use
• Push: 100 - 2800N
• Operating temperature: -20 c ° +55 c °
• Degree: IP44
• Engine type: Irreversible
• Speed: 1.66 cm / s
• Time opening: 17-26 s
• Tour: 550 mm
• Run-up: Mechanical stop in opening and closing
• Recommended Digital Controllers: 230V: Edge1 / Box - 115V: Edge1 / Box / 115
• Encoder: 48 ppr digital internal sensorless internal encoder
• Maneuver cycles per day (Opening / Closing - 24 hours without stopping): 1000
• Maximum product dimensions (L X W x H): 1019 x 105 x 155
• Weight of the packed product (Kg): 8.8

Dimensions and dimensions Roger BE20 / 400

Manual

Roger Be20 / 400 Instruction Manual
