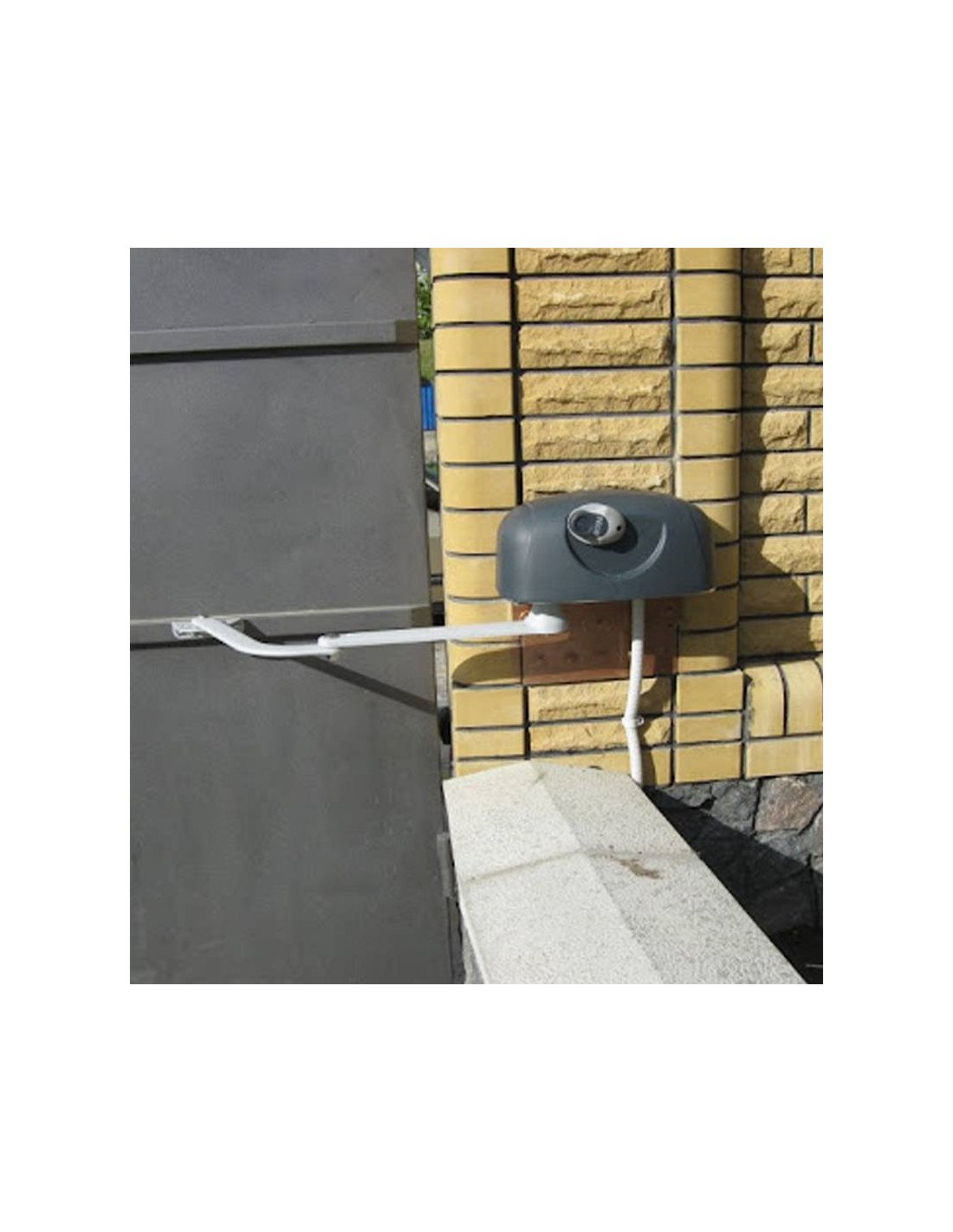

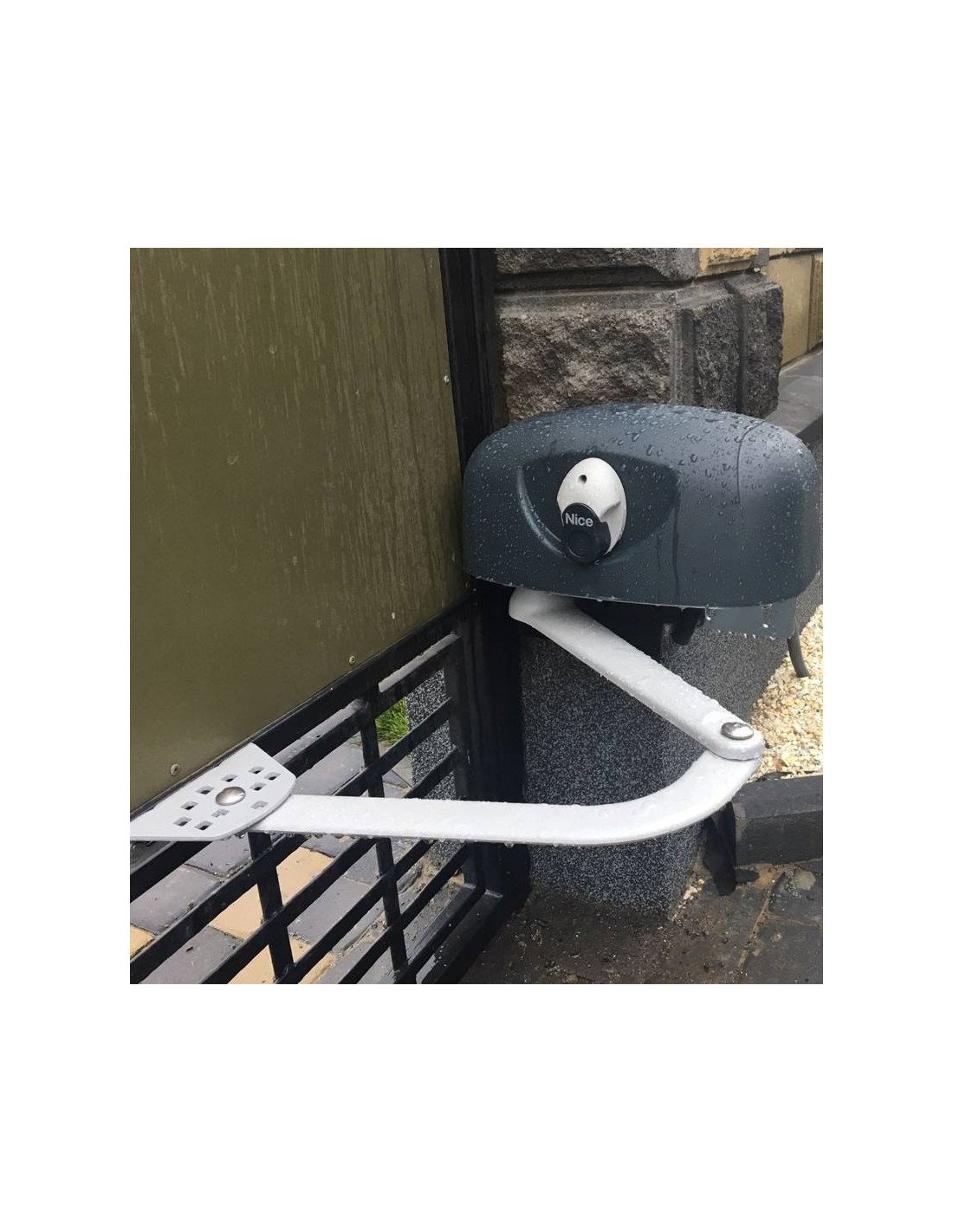

Nice Hyppo 7000 Δ articulated arm motors for swing doors

KIT Irreversible electromechanical motors of articulated arm Nice Hyppo 7000 to motor batten doors up to 3 meters with wide columns.

Two models available:

✓ HY7005: Electromechanical motor 230Vac with dual race end incorporated in opening and closing.

✓ HY7024: 24Vdc electromechanical motor with magnetic encoder.

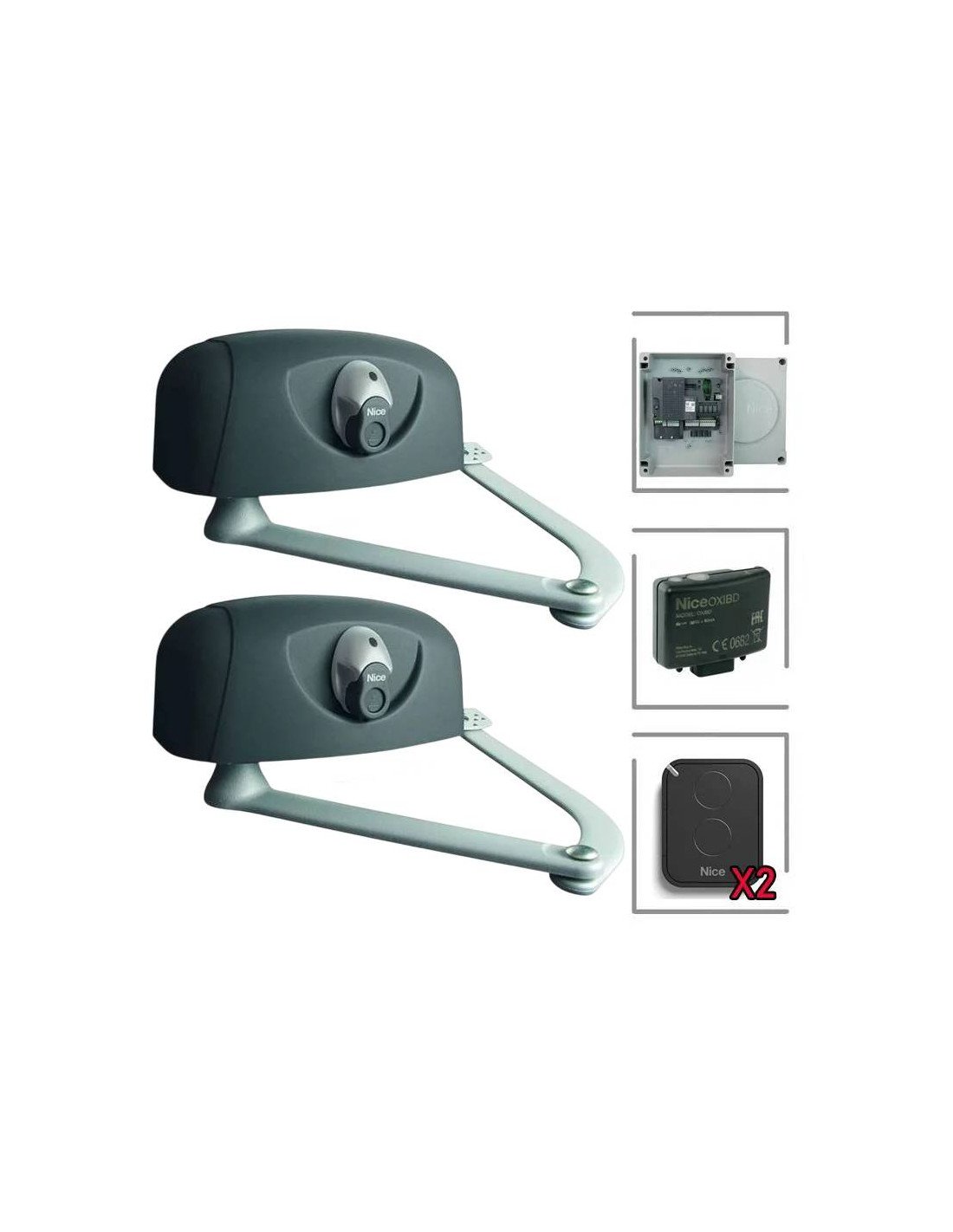

KIT HY7005:

• 2 HY7005: Irreversible motor, 230 Vac, with articulated arm anticulation, galvanized and painted and end of race in opening and closing.
• 1 unid MC800: Central for 230Vac engines with BlueBUS technology and Opera system.
• 1 unid OXIBD: Plug-in 433 MHz.
• 2 FLO2RCE: Handle Nice 2 channels 433 MHz.

KIT HY7024:

• 2 HY7024: Irreversible motor, 24 Vdc, with magnetic encoder, with galvanized and painted articulated arm.
• 1 unid MC824H: Central for 24Vdc engines with Encoder and BlueBUS technology.
• 1 unid OXIBD: Plug-in 433 MHz.
• 2 FLO2RCE: Handle Nice 2 channels 433 MHz.

Features Nice Hyppo 7000:

✓ Single version for right or left leaf.

✓ Two irreversible models with 230 Vac power (HY7005) and 24 Vdc (HY7024) with magnetic encoder.

✓ Quick and simple installation being the reduced connections, no welding is required on the cancel.

✓ Joint arm and external assembly.

✓ Separate independent engine maneuvering frame.

Long-term duration: totally metal mechanics.

Minimum total dimensions: anti-impact housing without live songs.

Recommended command centers: Moonclever MC800 for HY7005; Moonclever MC824H for HY7024.

Version 24 Vdc with magnetic encoder. Ideal for intensive use, compatible with the Moonclever MC824H command center.

Technical characteristics Nice Hyppo 7000

Employment limit

Measures Nice Hyppo 7000

Hyppo 7000 demonstration video
