Linear VDS engine 11

Electromechanical motor kit irreversible VDS Linear 11 230VAC Race 400mm For residential swing doors up to 2.5 meters long.

✓ Semi-intensive use

✓ 50% use frequency for 230VAC model

✓ Opening time 20 - 25 SEC

✓ 2000 N Push Force

Features VDS Linear 11

• Robust engine Extruded aluminum structure
• Useful race mm 400
• Stainless steel stem
• End of career on request (not included)
• Silent performance
• High performance electric motor
• 140 ° thermal protection
• Unlocking manual with key
• Lubricated mechanical pieces with lithium grease against corrosion, oxidation and oxide
• Opening 120 °
• Fast mounting with multi-position supports and block tapas in Tecnopolymers
• Anti-crushing device * (in 12453)
• Speed reduction * (in 12453)
• 230V power

Features VDS Linear 11

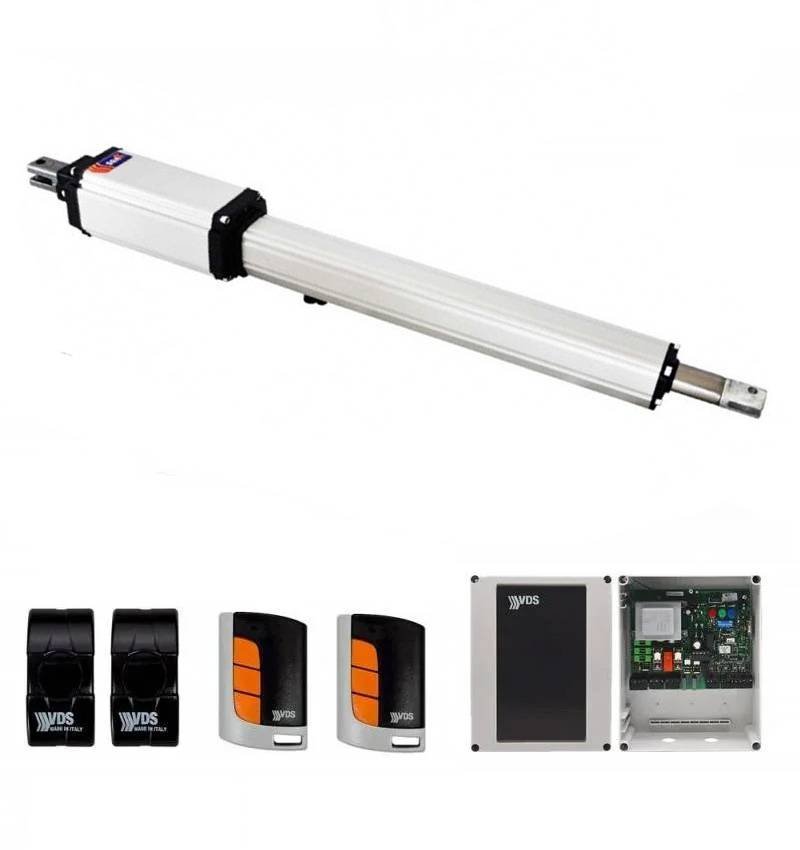

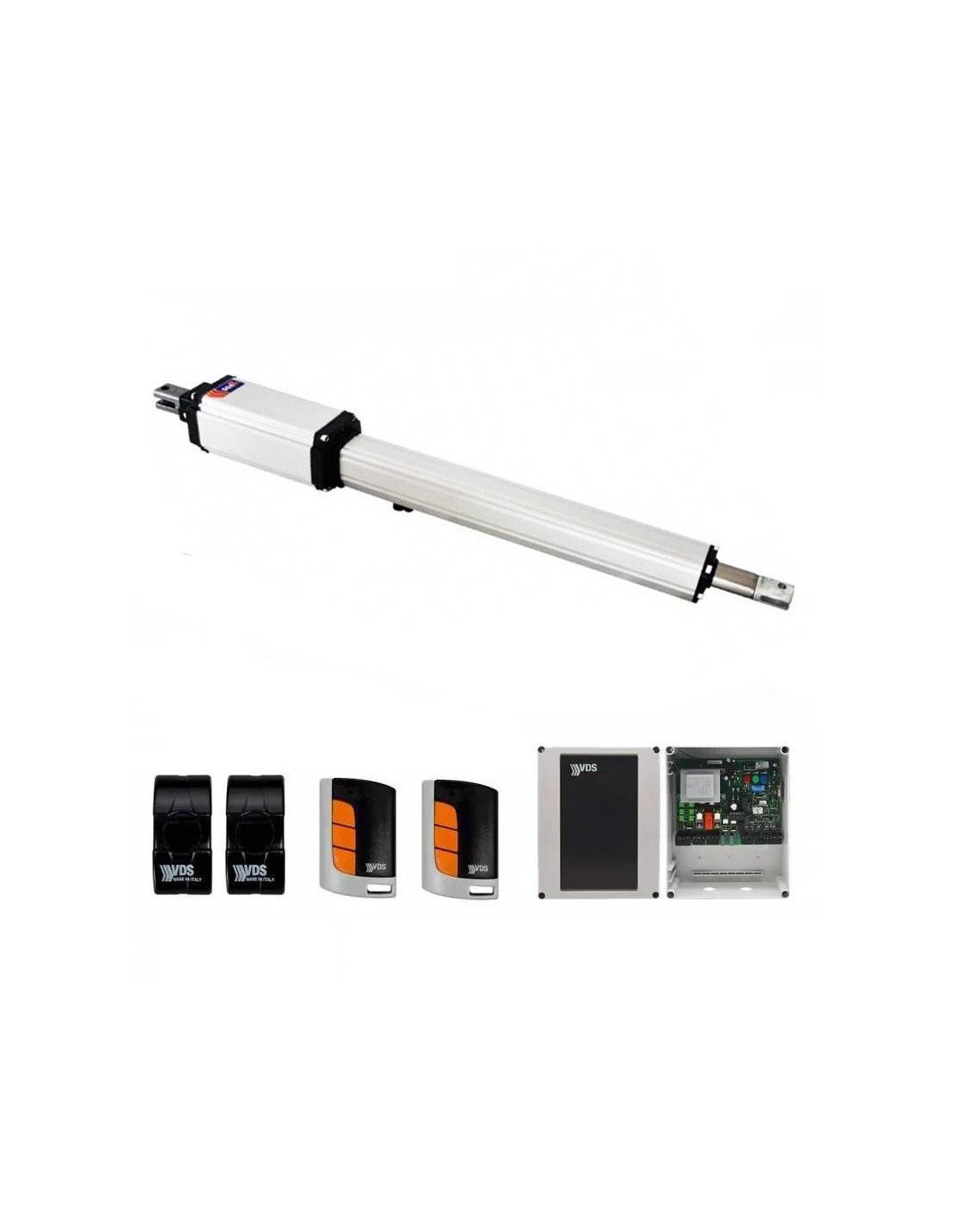

Composition of the kit

• 1 pc Linear 11 400 230V (100018): Electromechanical motor 230V race 400mm doors up to 2.5m
• 1 pc E112: Maneuver box Euro M2 Mini
• 2pc E010: Rollingcode Eco R 433 MHz
• 1 pc 12t: Pair of photocells emitting-receiver

Linear VDS Measures 11
