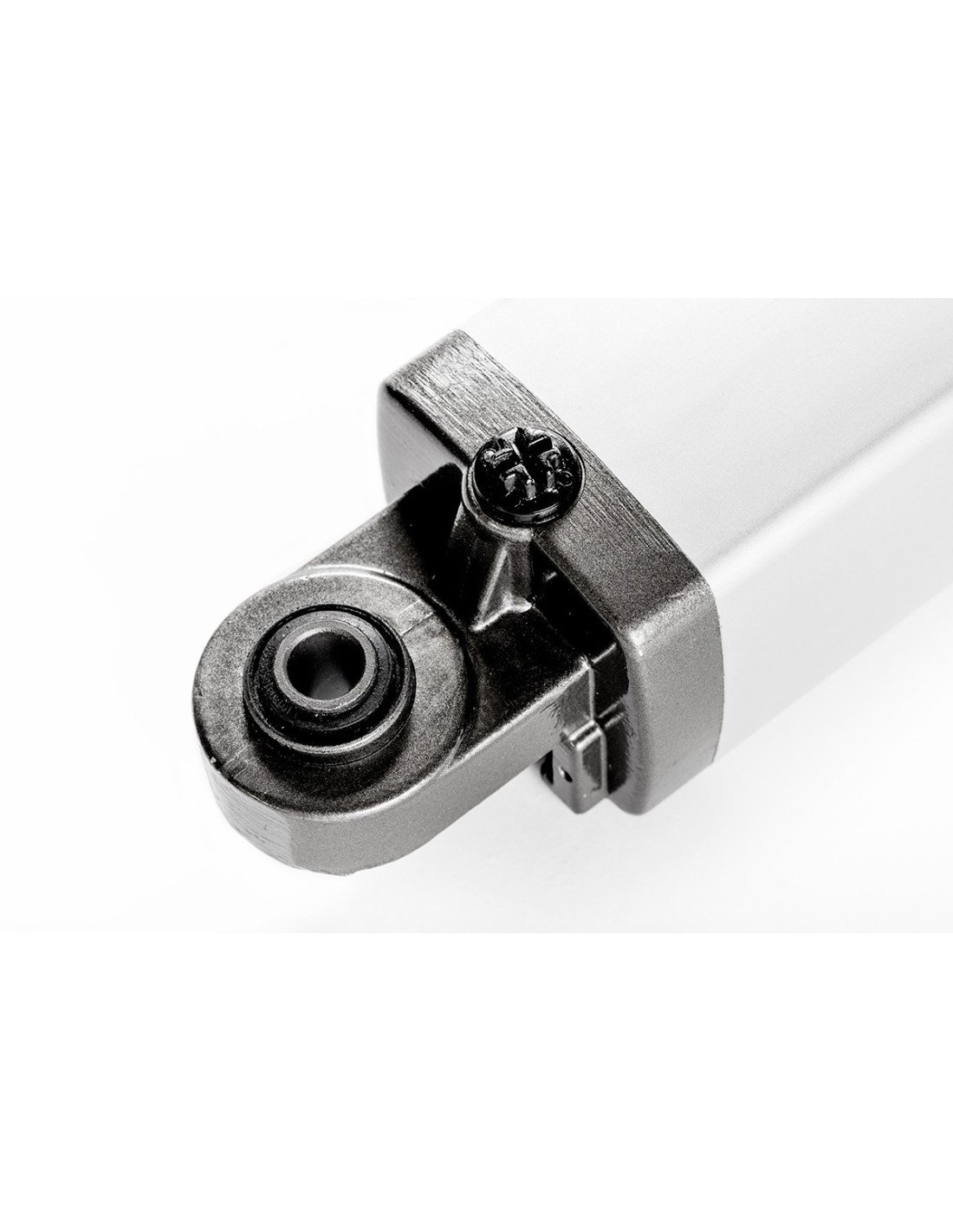

Semi-intensive HyDom hydraulic motor for residential swing doors up to 3.5m - Figure 1

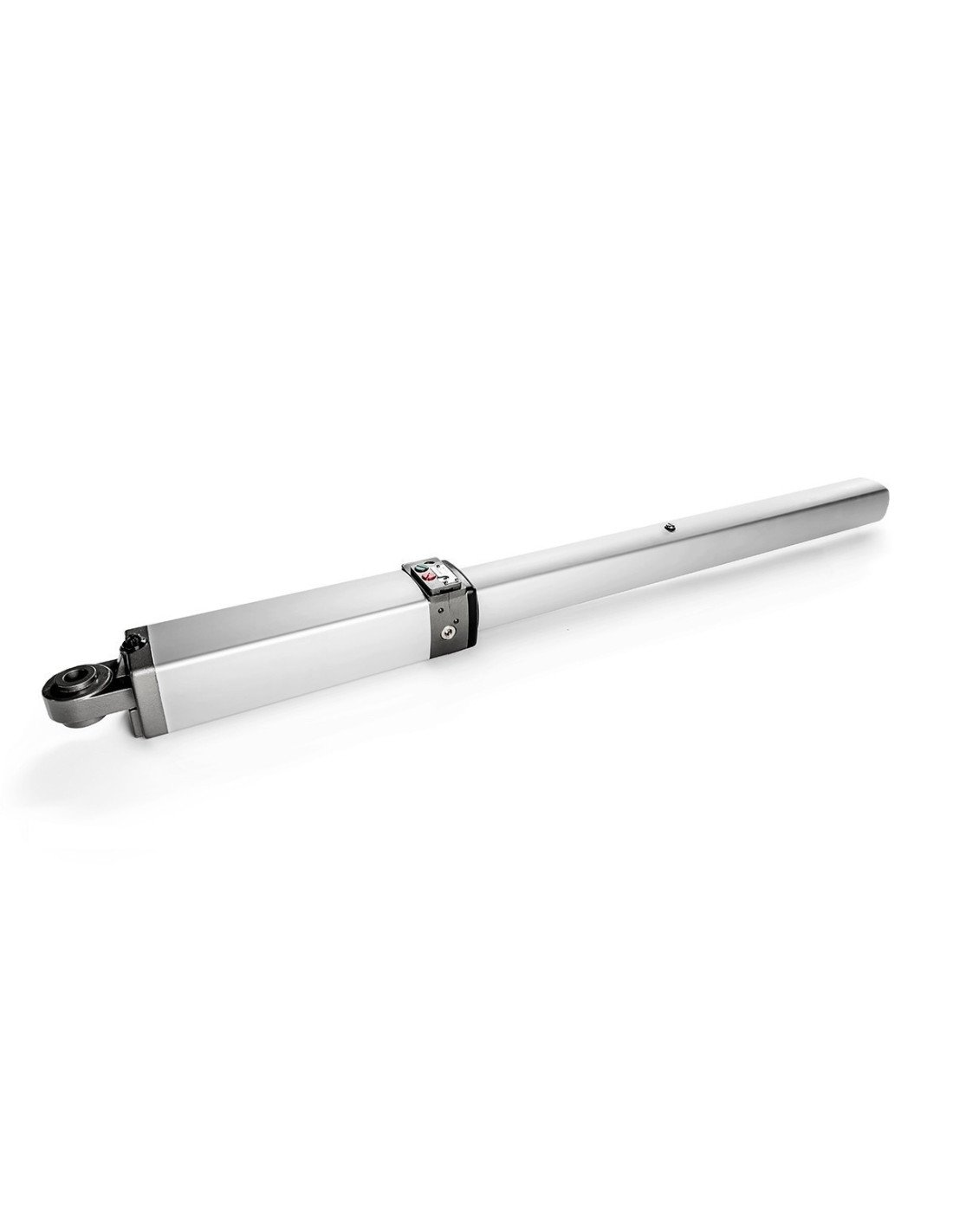

Semi-intensive HyDom hydraulic motor for residential swing doors up to 3.5m - Figure 2

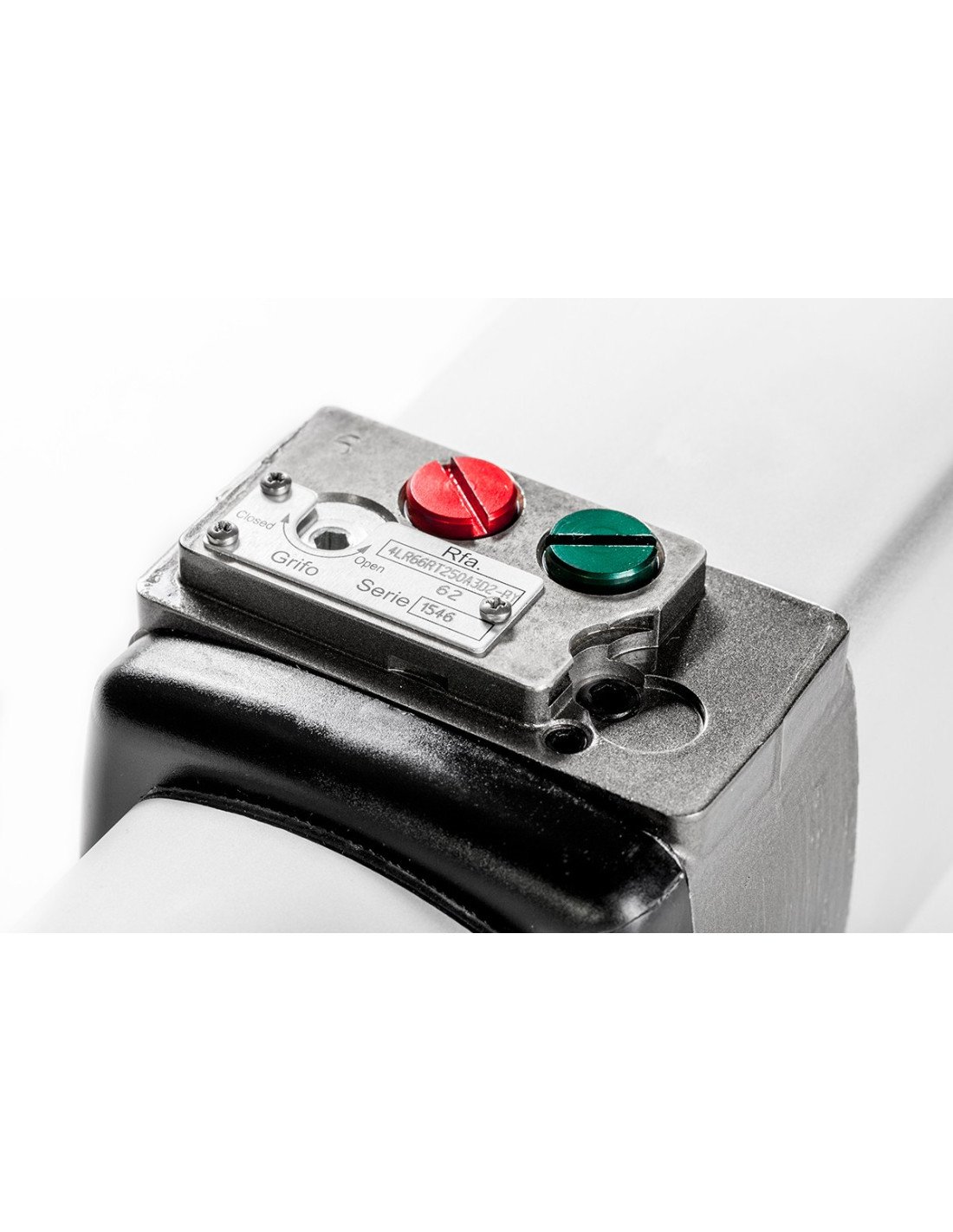

Semi-intensive HyDom hydraulic motor for residential swing doors up to 3.5m - Figure 3
KIT Hydraulic motor HYDOM 4LR Semi Intensive swing doors residential use up to 3,5 meters
Semi-intensive HyDom hydraulic motor for residential swing doors up to 3.5m - Figure 1
Semi-intensive HyDom hydraulic motor for residential swing doors up to 3.5m - Figure 2
Semi-intensive HyDom hydraulic motor for residential swing doors up to 3.5m - Figure 3

KIT Hydraulic motor HYDOM 4LR Semi Intensive swing doors residential use up to 3,5 meters

KIT SIMPLE 4LR
SIMPLE KIT 4LR

This product has a special discount!

To view the price or buy the product you have to  Register or you can ask us.



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain Except bulky



KIT Hydraulic motor HYDOM 4LR Semi-intensive for swinging doors residential use up to 3,5 metres per blade. What. The actuators are powered at 230V and have 250mm stroke, hydraulic damping in opening and closing, available version without lock and with double lock.

CHARACTERISTICS

• Oil-hydraulic actuators for doors up to 6 metres
• Stylised line with high weather resistance
• Hydraulic self-locking
• Damping at both ends
• Unlocked system (D mode) or double lock (RT mode)
• Race: 250 mm
• No need for physical caps
• Adjustable closing speed in RT models

Model Carrera 250 up to 3.5m by sheet

• In the case of vehicles of categories M1 and N2
• Extension: 1015 mm
• Total: 1076 mm

TECHNICAL CHARACTERISTICS

  • FoodOther: 230 V 50-60 Hz
  • Engine power: 125W - 3000 RPM
  • Thermal protectionInternally
  • IP rating44
  • Capacitor: 10 uF
  • Temperature range: -20oC to 80oC
  • Hurry up. Pull back. /Ext.: 12,4 / 10,1 mm/s
  • Careerother:
  • Maximum pressure40 Bar
  • Flow: 1L/min
  • Ext force. / What.: 5500 / 4200 N
  • OilFor the purposes of this Regulation:

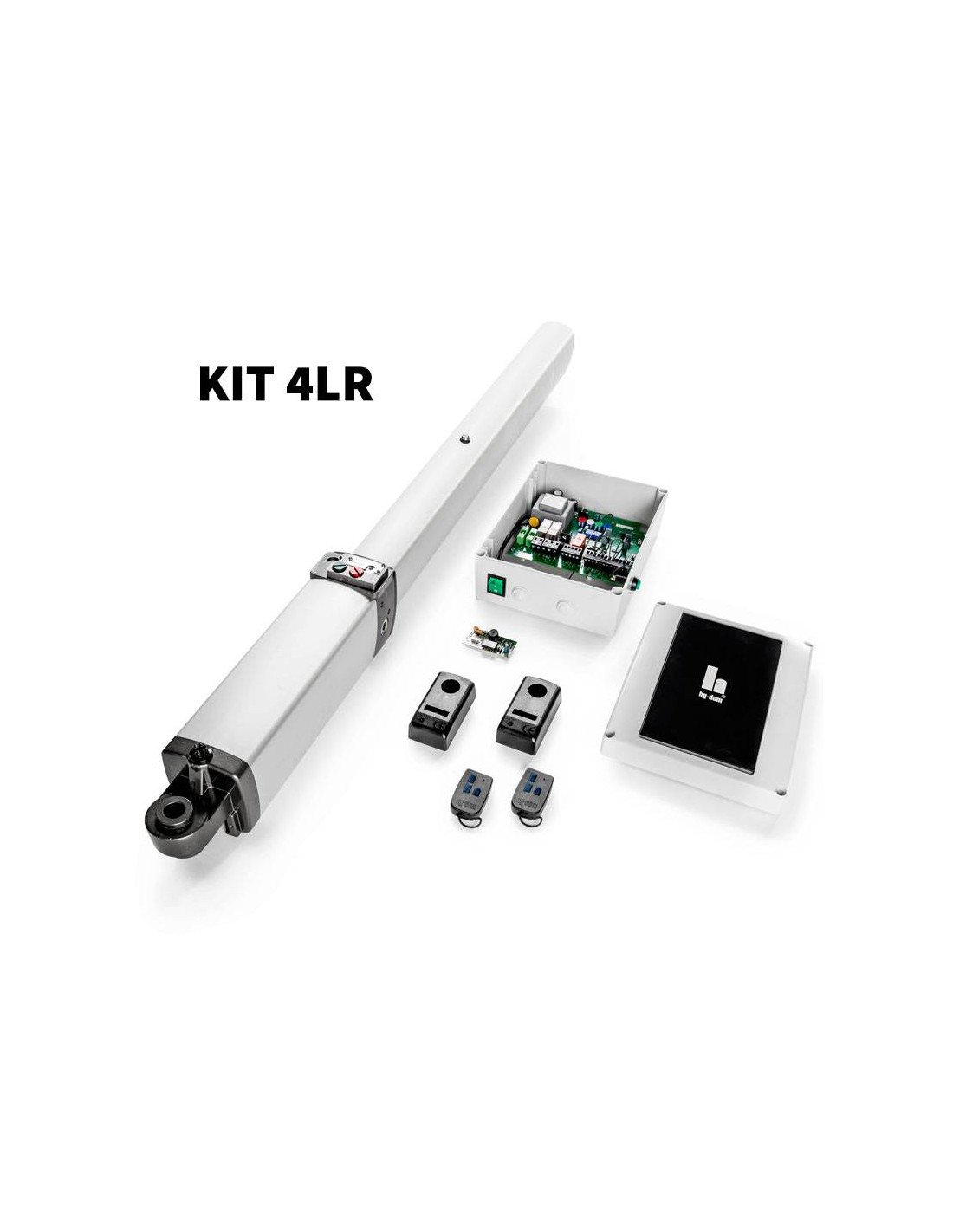

THE UNLOCKED KIT CONTAINS

  • 1 unit 4LR33D250A3A1Semi-intensive engine 250mm race without lock
  • 1 unit OTHER: Electric double-valve lock
  • 1 unit FOTHERNL: Security photocell transmitter-receiver up to 20m
  • 1 unit QMB2PI: Single phase chart
  • 1 unit SRT: Plug-in receiver card 6 pins of 250 codes 433,92 MHz
  • 2 unid HD4: 4 channel transmitter RollingCode 433.92 MHz
  • Fixing media and capacitor

THE LOCK KIT CONTAINS:

  • 1 unit 4LR33RT250A3A2Semi-intensive engine 250 mm dual lock
  • 1 unit FOTHERNL: Security photocell transmitter-receiver up to 20m
  • 1 unit QMB2PI: Single phase chart
  • 1 unit SRT: Plug-in receiver card 6 pins of 250 codes 433,92 MHz
  • 2 unid HD4: 4 channel transmitter RollingCode 433.92 MHz
  • Fixing media and capacitor

MANUAL

Instruction manual for the Hydom 4LR

Technical data sheet Hydom 4LR

Type of engine
Hydraulic
Sheets from the door
1-leaf door
Full kit
Complete kit for 1 sheet
