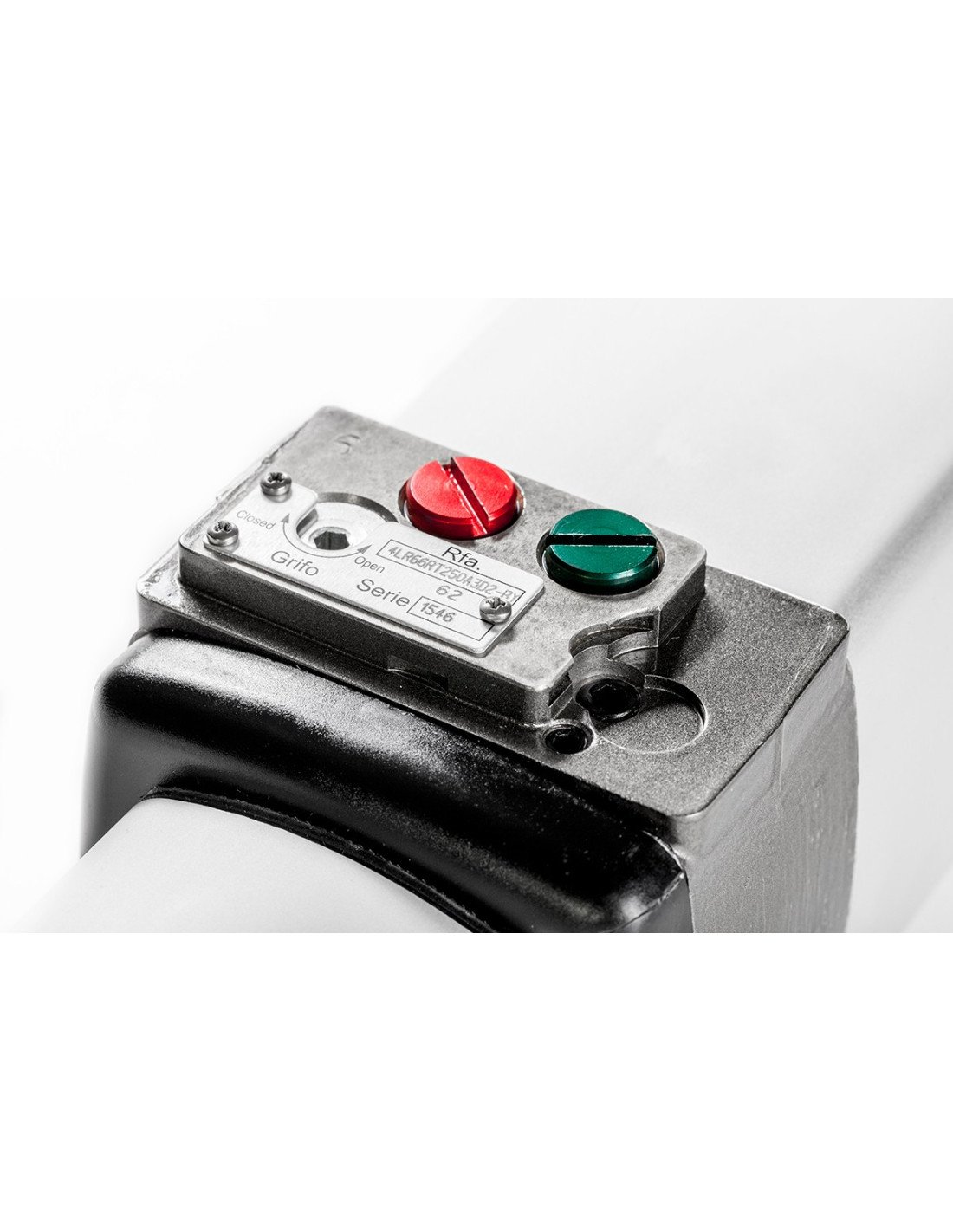

Semi-intensive HyDom hydraulic motor for residential swing doors up to 3.5m - Figure 1

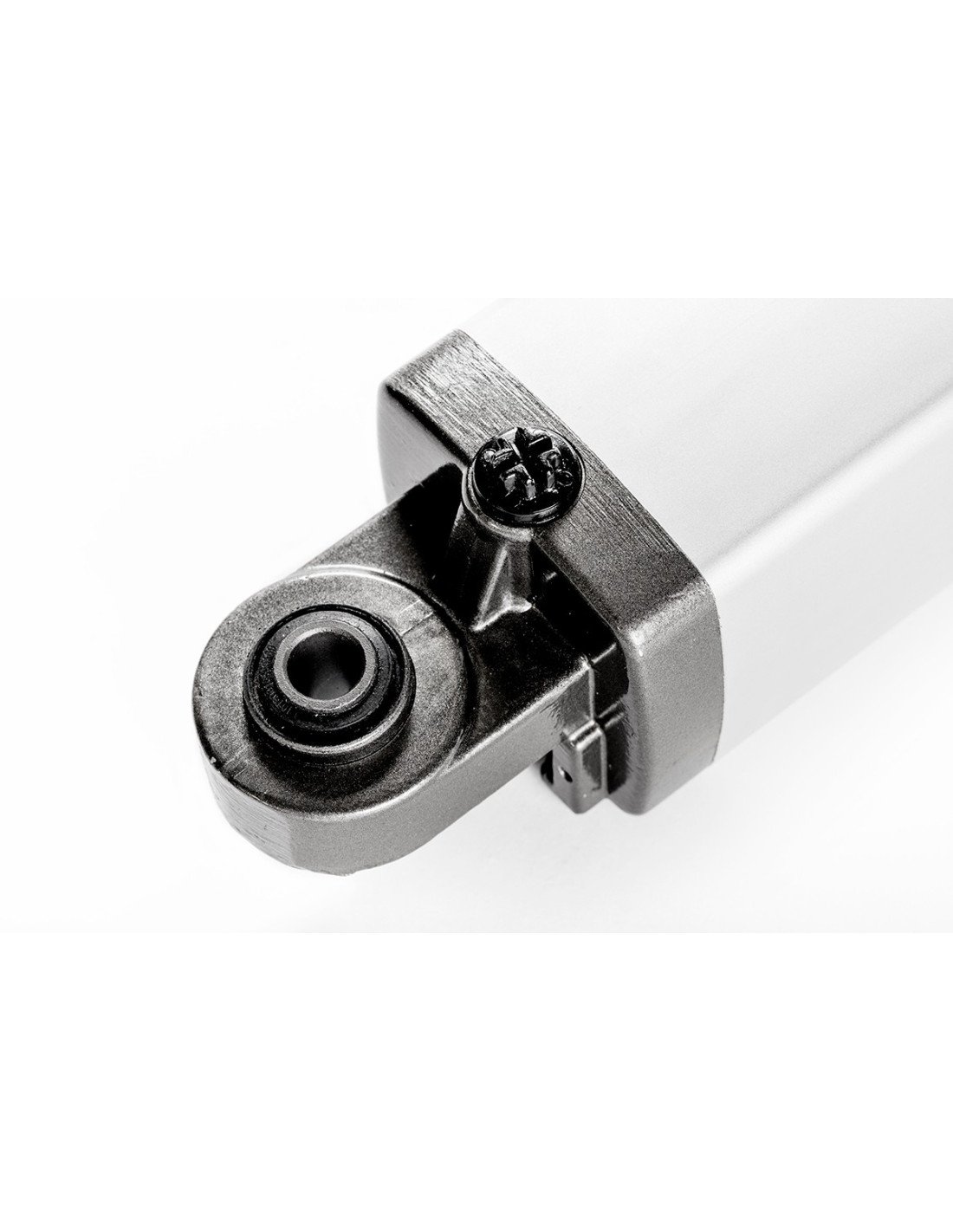

Semi-intensive HyDom hydraulic motor for residential swing doors up to 3.5m - Figure 2

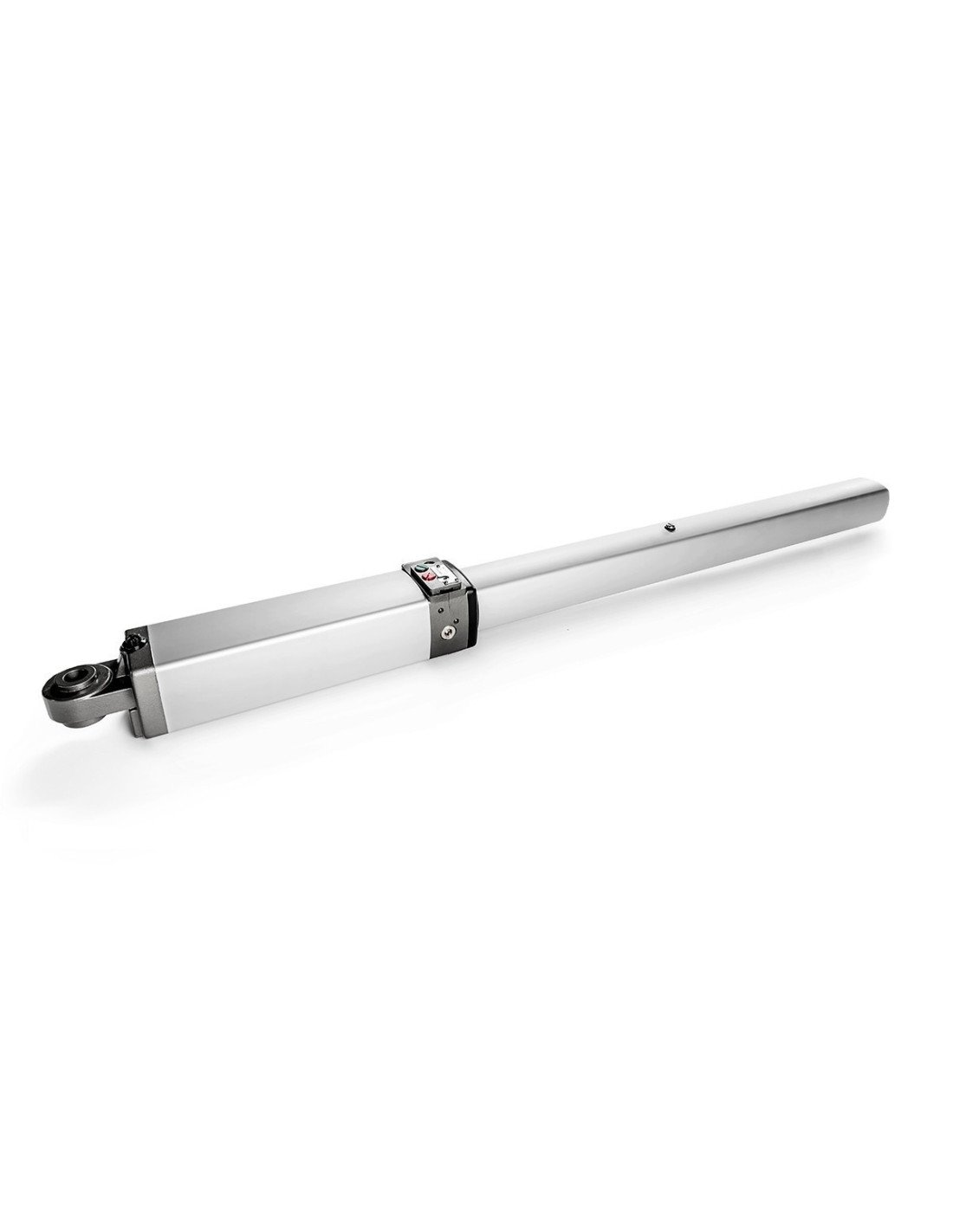

Semi-intensive HyDom hydraulic motor for residential swing doors up to 3.5m - Figure 3
KIT Hydraulic motors HYDOM 4LR Semi Intensive swing doors residential use up to 3.5 meters per sheet
Semi-intensive HyDom hydraulic motor for residential swing doors up to 3.5m - Figure 1
Semi-intensive HyDom hydraulic motor for residential swing doors up to 3.5m - Figure 2
Semi-intensive HyDom hydraulic motor for residential swing doors up to 3.5m - Figure 3

KIT Hydraulic motors HYDOM 4LR Semi Intensive swing doors residential use up to 3.5 meters per sheet

KIT DOBLE 4LR
4LR DOUBLE KIT

This product has a special discount!

To view the price or buy the product you have to  Register or you can ask us.



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain Except bulky



HYDOM 4LR Batteries Motors Automate Your Door with Quality

KIT Hydraulic motors HYDOM 4LR Semi-intensive for swinging doors residential use up to 3.5 metres per sheet. What. The actuators are powered at 230V and have 250mm stroke, hydraulic damping in opening and closing, available version without lock and with double lock.

Hydom 4LR features

• Oil-hydraulic actuators for doors up to 6 metres
• Stylised line with high weather resistance
• Hydraulic self-locking
• Damping at both ends
• Unlocked system (D mode) or double lock (RT mode)
• Race: 250 mm
• No need for physical caps
• Adjustable closing speed in RT models

Model Carrera 250 up to 3.5m by sheet

• In the case of vehicles of categories M1 and N2
• Extension: 1015 mm
• Total: 1076 mm

Technical characteristics Hydom 4LR

  • FoodOther: 230 V 50-60 Hz
  • Engine power: 125W - 3000 RPM
  • Thermal protectionInternally
  • IP rating44
  • Capacitor: 10 uF
  • Temperature range: -20oC to 80oC
  • Hurry up. Pull back. /Ext.: 12,4 / 10,1 mm/s
  • Careerother:
  • Maximum pressure40 Bar
  • Flow: 1L/min
  • Ext force. / What.: 5500 / 4200 N
  • OilFor the purposes of this Regulation:

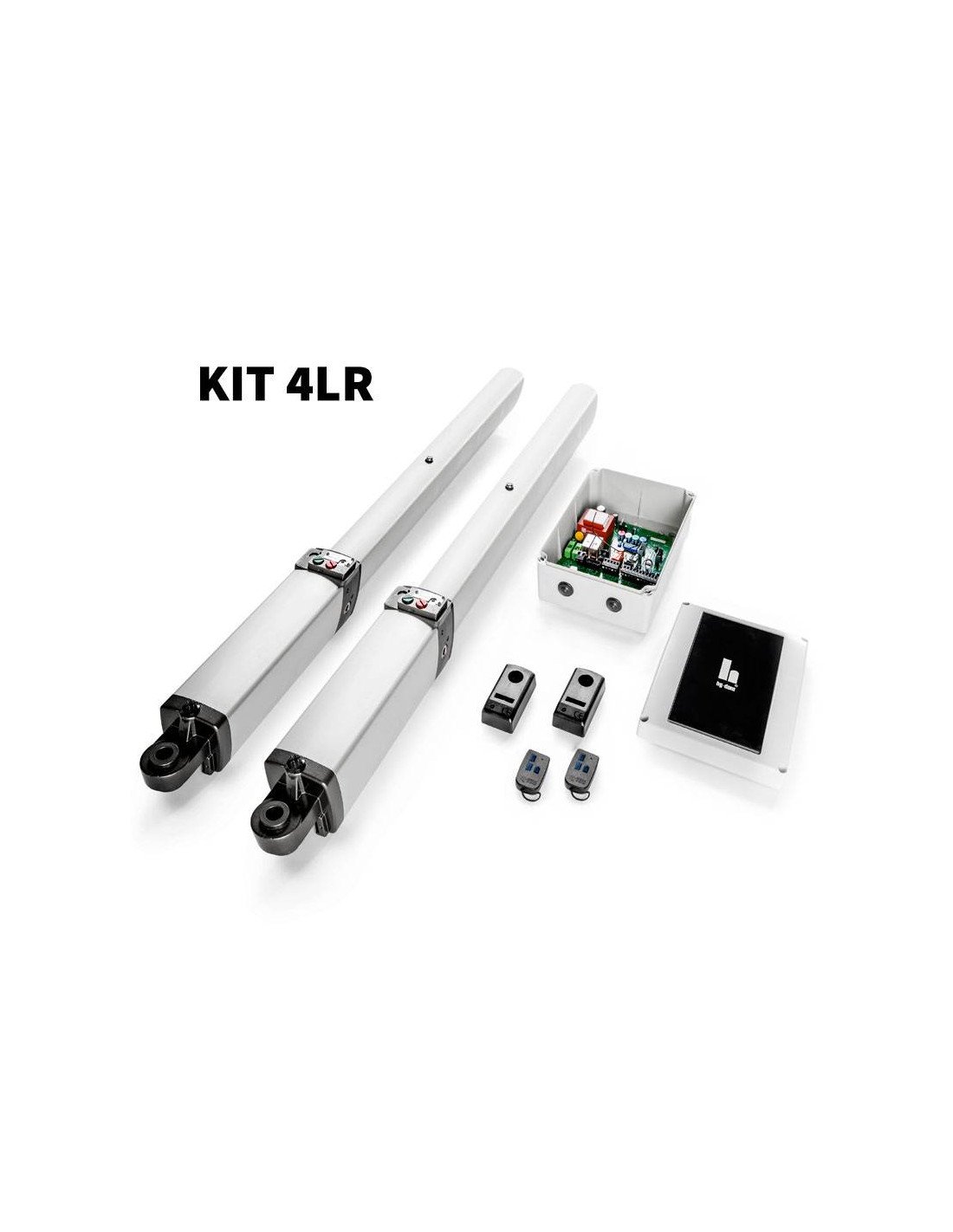

KIT Hydom 4LR content without blocking for two sheets:

  • 2 unid 4LR33D250A3A1Semi-intensive engine 250mm race without lock
  • 1 unit CEB55B: Electric double-valve lock
  • 1 unit FOTERNL: Security photocell transmitter-receiver up to 20m
  • 1 unit Q2MNB+PI: Table for two engines with receiver card included
  • 2 unid HD4: 4 channel transmitter RollingCode 433.92 MHz
  • Fixing media and capacitor

KIT Hydom 4LR content with locking for two sheets:

  • 2 unid 4LR33RT250A3A2Semi-intensive engine 250 mm dual lock
  • 1 unit FOTERNL: Security photocell transmitter-receiver up to 20m
  • 1 unit Q2MNB+PI: Table for two engines with receiver card included
  • 2 unid HD4: 4 channel transmitter RollingCode 433.92 MHz
  • Fixing media and capacitor

Manuals

Instruction manual for the Hydom 4LR

Technical data sheet Hydom 4LR

Type of engine
Hydraulic
Sheets from the door
2-leaf door
Full kit
Complete kit for 2 sheets
