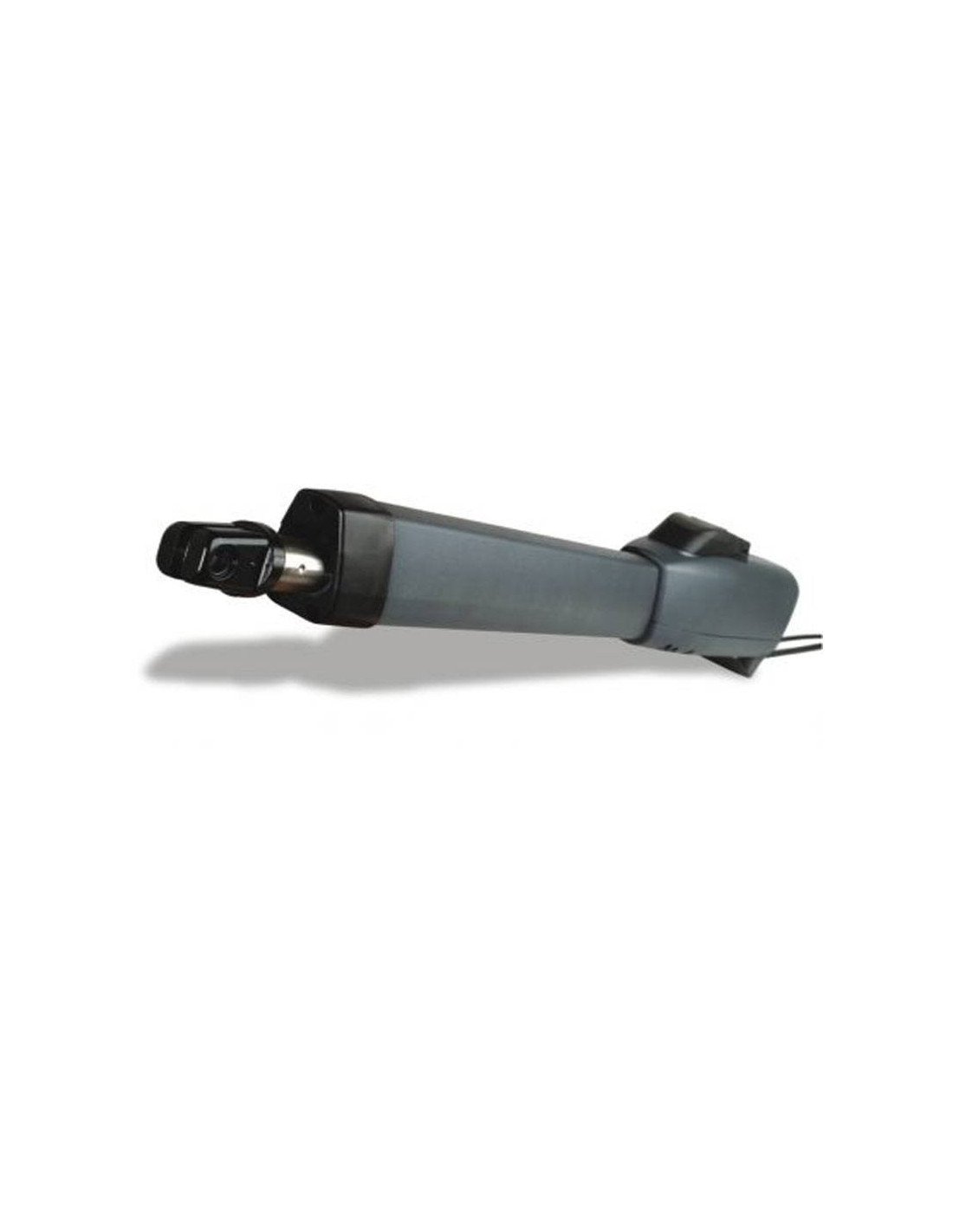

Electromechanical engine Clemsa TO 300 for folding doors up to 3 metres in length per sheet, of semi-intensive residential use.

Unlocked electromechanical drive, with electric running ends, for blades up to 3 m. I use S3 30%. 30 cycles an hour. Power 300 W. Intake 1,3 A. Thermal protection 140 oC. 300 mm race. Stem output speed of 1,6 cm/sec. Operating temperature from -20oC to 55oC. It weighs 7.8 kg. 230 Vac. Exposed components in stainless steel. Protected unlock with lock allowing movement of blade without power.

CHARACTERISTICS

• Electromechanical drive with articulated arm for semi-intensive use on folding doors of not more than 3 metres in width transmitting the movement to the blade by means of an endless screw.
• Quick and easy installation thanks to a floating aluminum fork that compensates for possible structural defects.
• Maximum anti-crush safety thanks to an electronic device that regulates engine shutdown.
• It is equipped with electrical end runners at opening and closing.
• The unlock, fully protected with a lock, allows manual movement of the blade even without electrical power.
• All components exposed to atmospheric agents are made of stainless steel and the body of aluminum painted with double layer for increased durability and safety.

MODELS AVAILABLE

• AA300 B: Electromechanical drive shaft 300 mm with lock.
• OTHER: Electromechanical actuator with 300 mm unlocked rod.
• THE FOLLOWING PARAGRAPH IS ADDED:: Electromechanical drive with 300 mm rod with lock and end of stroke.

MANUAL

Instruction manual Clemsa AA300
