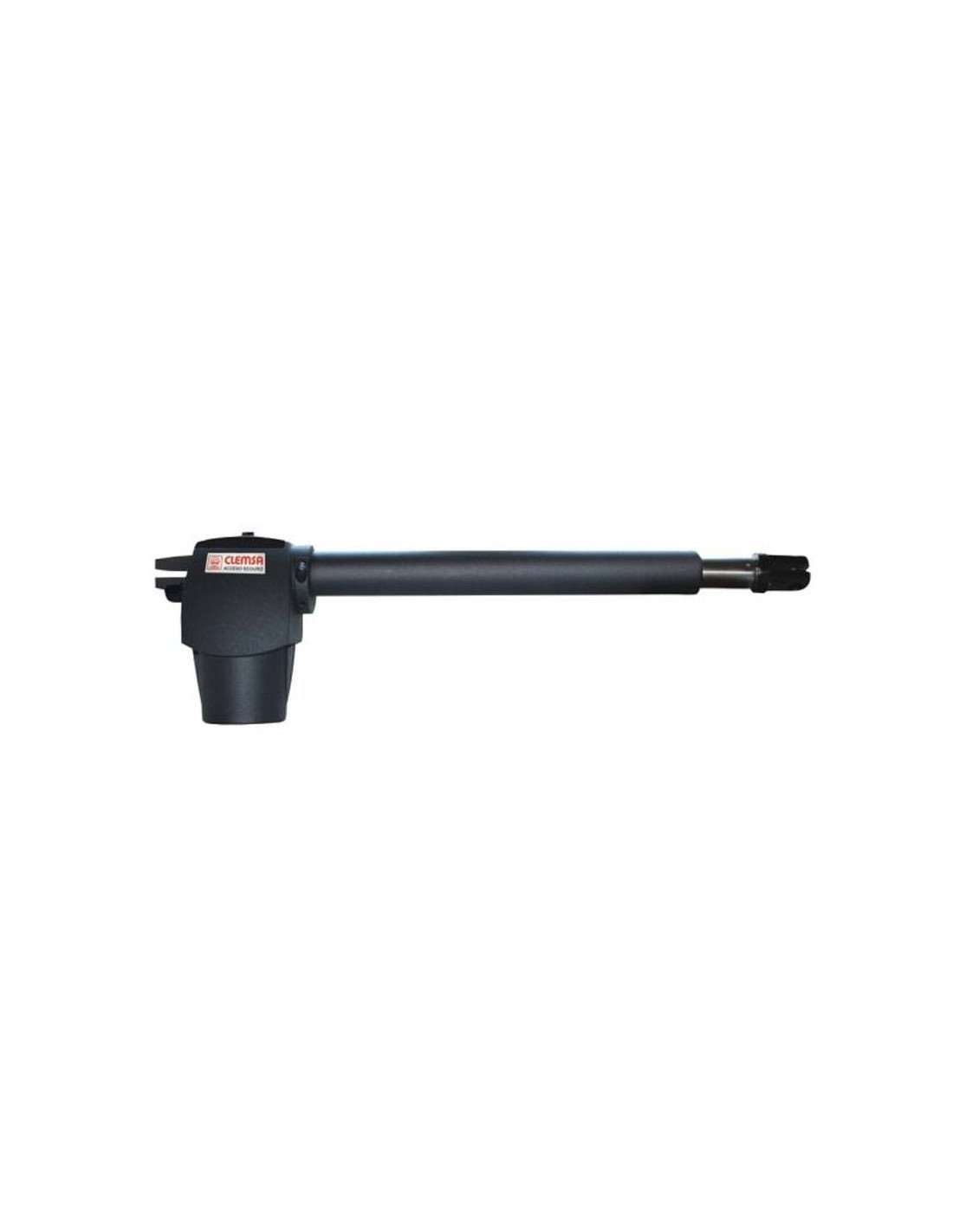

Engine Clemsa AA40 electromechanical 230V for one-bladed swing doors for a maximum length of 4m per leaf. What. The AA40 model is ideal for automating residential doors for non-intensive use.

• Folding motor Clemsa with a left or right position for hinged doors up to 4 metres in length.
• This gearbox motor is electromechanical and feeds at 230VAC, it has a power of 280W.
• Operators wearing the included lock shall avoid the installation of an electric lock.
• Accompanying the motor is an 8μF capacitor
• The installation of this kit is quick and simple, it carries anchors to be able to perform the installation as soon as receiving the motor.

TECHNICAL CHARACTERISTICS

Electromechanical drive with lock on opening and closing, for blades up to 3 m. I use S3 30%. 25 cycles an hour. Power 280 W. Intake 1,2 A. Thermal protection at 140 oC. 300 mm race. Stem output speed of 1,6 cm/sec. Operating temperature from -20oC to 55oC. Weighs 6.5 kg. Exposed components in stainless steel. Protected unlocking with lock allowing blade movement without power supply.
