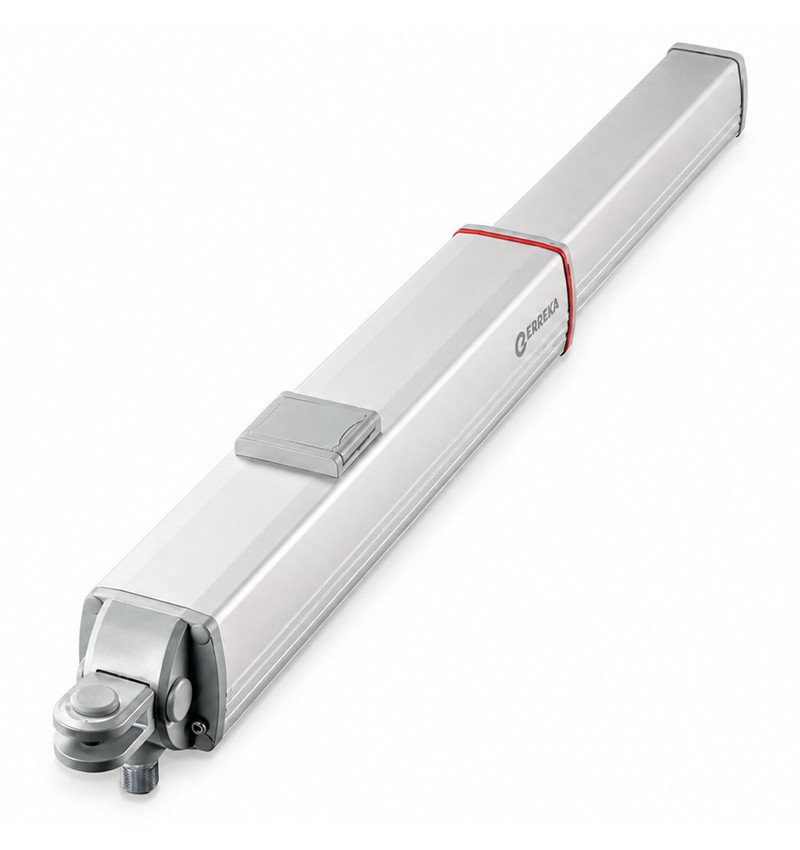

Hydraulic engine Erreka Vulcan

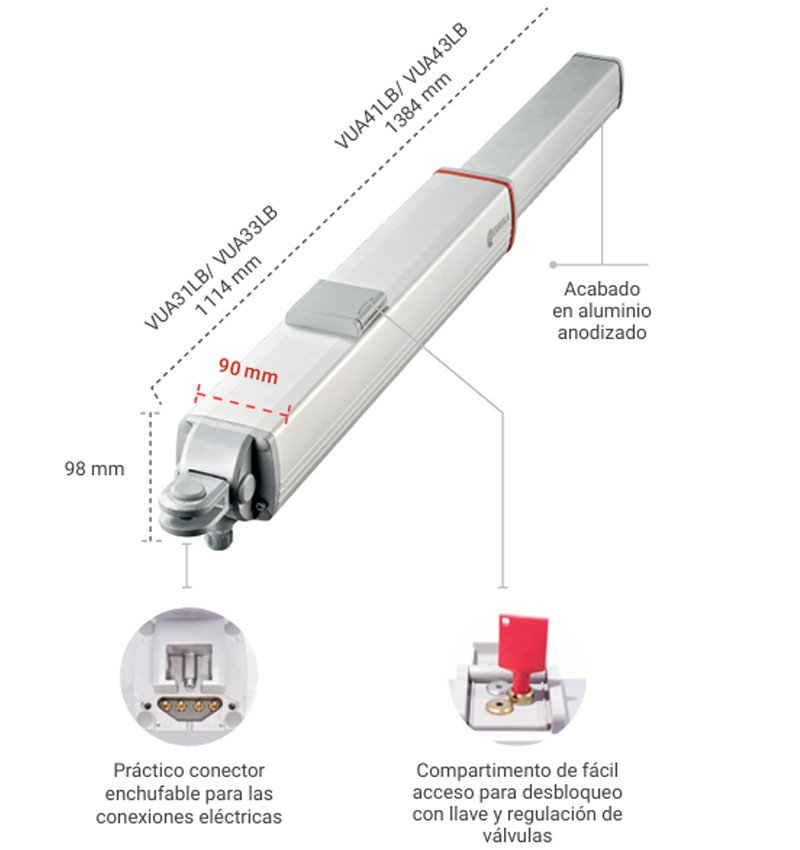

Erreka Hydraulic Motor Vulcan Intensive use for...
Erreka Hydraulic Motor Vulcan Intensive use for...

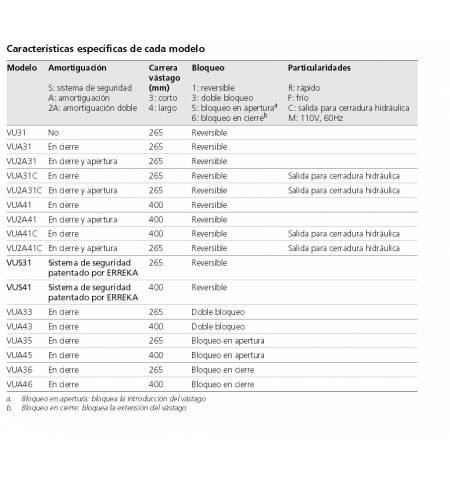

VULCAN hydraulic motor intensive use for sliding doors up to 6m - Figure 3
Hydraulic engine Erreka Vulcan
Erreka Hydraulic Motor Vulcan Intensive use for swing door up to 4 / 6m
Erreka Hydraulic Motor Vulcan Intensive use for swing door up to 4 / 6m

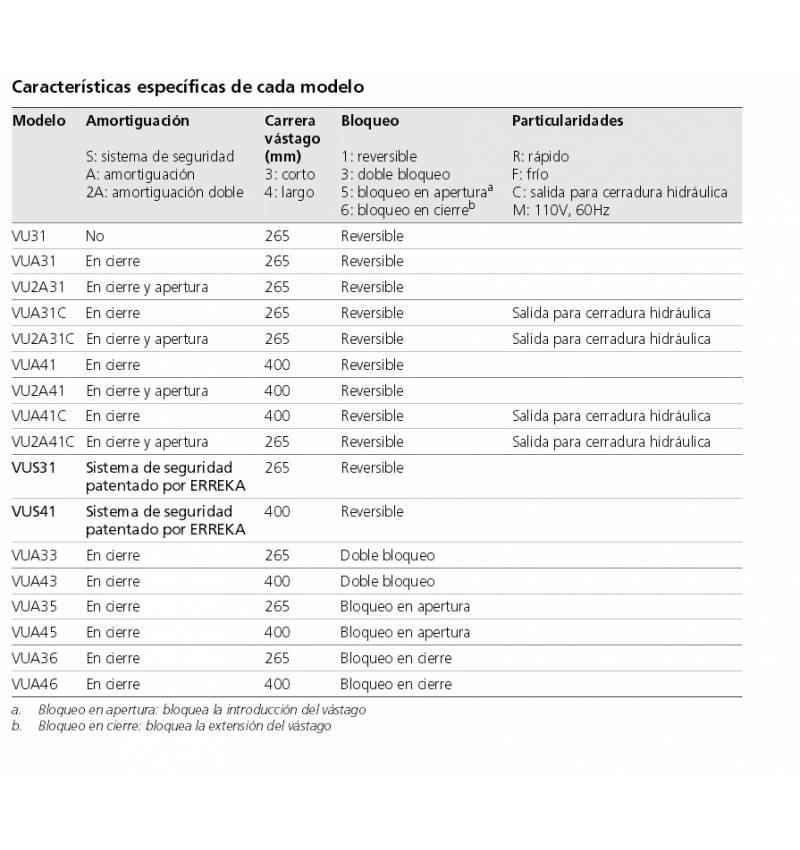

VULCAN hydraulic motor intensive use for sliding doors up to 6m - Figure 3

Erreka Hydraulic Motor Vulcan Intensive use for swing door up to 4 / 6m

VULCAN
€522.00
VAT excluded

631,62 €

Tax incl.

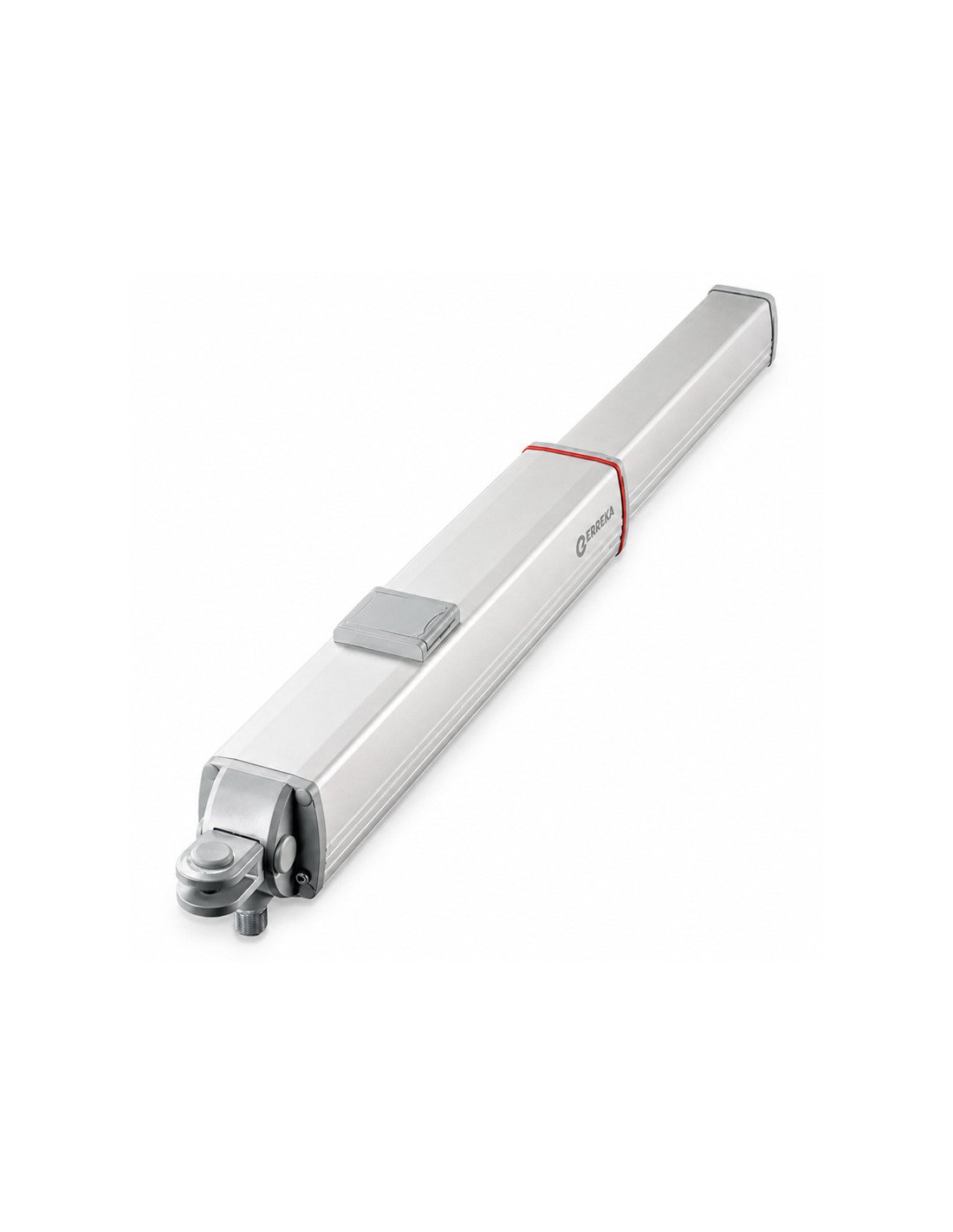

Hydraulic motor Erreka Vulcan for Residential, Community and Industrial with a maximum length of sheet of 6 meters.

Full range: Reversible and blocked actuators, with Stems of 265 mm and 400 mm.

Vulcan



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain Except bulky



Erreka Vulcan | Hydraulic motor for swing doors

Hydraulic motor Erreka Vulcan for Residential, Community and Industrial with a maximum length of sheet of 6 meters.

Full range: Reversible and blocked actuators, with Stems of 265 mm and 400 mm.

Intensive use: Actors specially indicated for access doors to enclosures with great influx of vehicles.

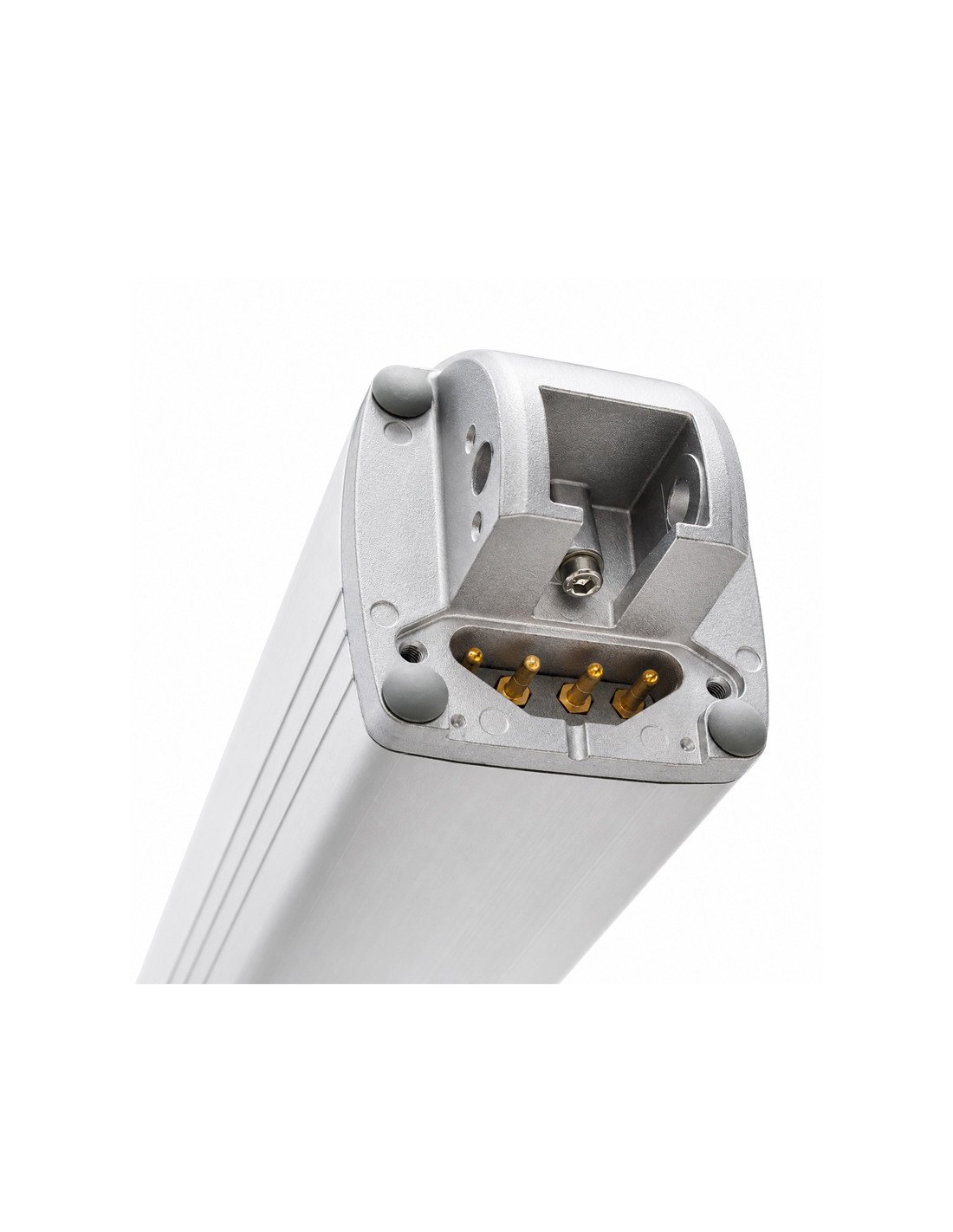

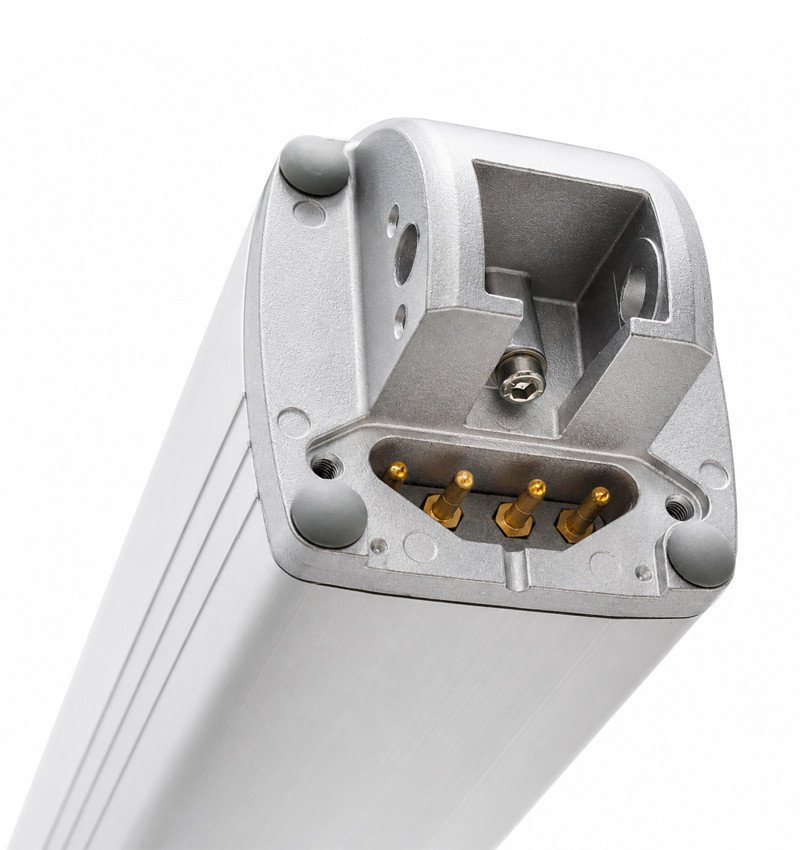

Easy connection: It has extractable terminals both by actuator and in box, to facilitate the connection of the actuator to the maneuvering box.

Features

✓ Very powerful 7000n

✓ Very high use factor

✓ No internal wear for durability

✓ Blocked / unlocked motors

✓ Two sizes of stem (race 265mm, 400mm)

✓ Mechanical soft stoppage

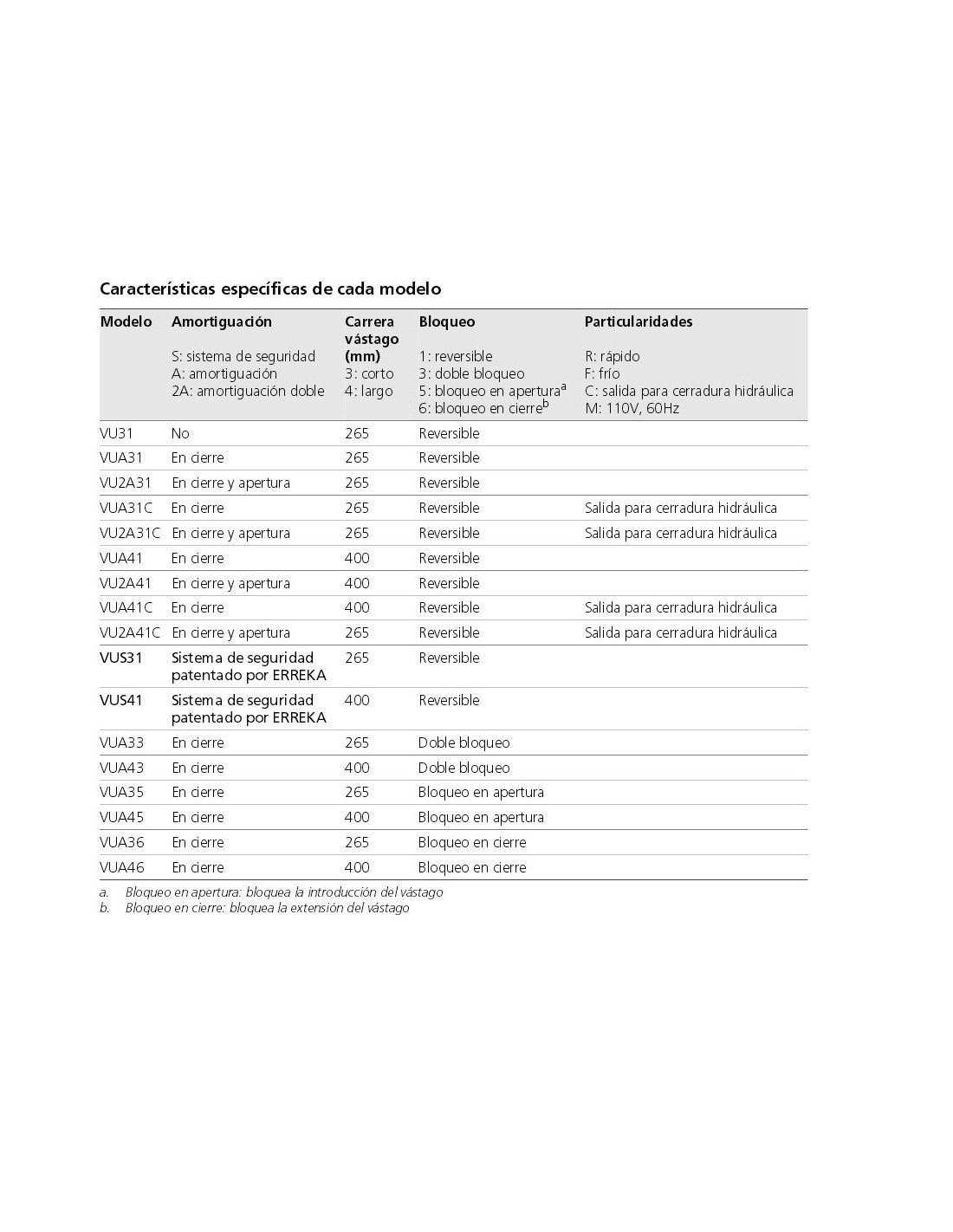

Range of products

  • Vua31lb: Actuator with cushioning in closing, Stem 265mm, Reversible, with lobes pump

  • Vu2a31lb: Actuator with damping in opening and closing, rod 265 mm reversible, with lobes pump

  • Vua31clb: Drilling with cushioning in closing, 265 mm stem, reversible and output Hydraulic lock, with lobe pump

  • Vu2a31clb: Drumpting Damping and Opening, Stem 265mm, Reversible and Exit Hydraul Lock. , Lobby pump

  • Vua41lb: Actuator with cushioning in closing, 400 mm stem, reversible, with lobe pump

  • Vu2a41lb: Actuator with cushioning in closing and opening, 400 mm, reversible stem, with lobe pump

  • Vua41clb: ACTUATOR Damping in closing, 400 mm, reversible and output for hydraulic lock, lobe pump

  • Vua33lb: Drilling with cushioning in closing, 265 mm stem, locked with lobe pump

  • Vua43lb: Actuator with cushioning in closing, 400 mm stem, blocked, with lobe pump

  • Vua35lb: Actuator with cushioning in closing, 265 mm stem, with opening block, with lobe pump

  • Vua45lb: Actuator with cushioning in closing, 400 mm stem, with opening block, with lobe pump

  • Vug2a31lb: Actuator Independent group with cushioning in closing and opening, with lobe pump

  • Vus31lb: ACTORER STOP 265 mm Reversible with anti-drug system, with lobe pump

  • Vus41lb: ACCERADOR STOP 400 mm Reversible with anti-drug system, with lobe pump

Technical characteristics

Vua31lb Vua33lb Vua41lb Vua43lb
Food (VAC / HZ) 230/50
Absorbed power (W) 230
Intensity (a) 1
Capacitor (μF) 10
Maximum force (n) Adjustable up to 7000
Speed (mm / s) 10
Race (mm) 265 400
Opening time 90º (s) 27 40
Work cycles Intensive use
Blocked (B) / Reversible (R) A B A B
Run-up Not
Encoder Not
Maximum opening 110 °
Degree Ip65
Service temperature (ºC) -10 / +60
Motor weight (kg) 9,5 11

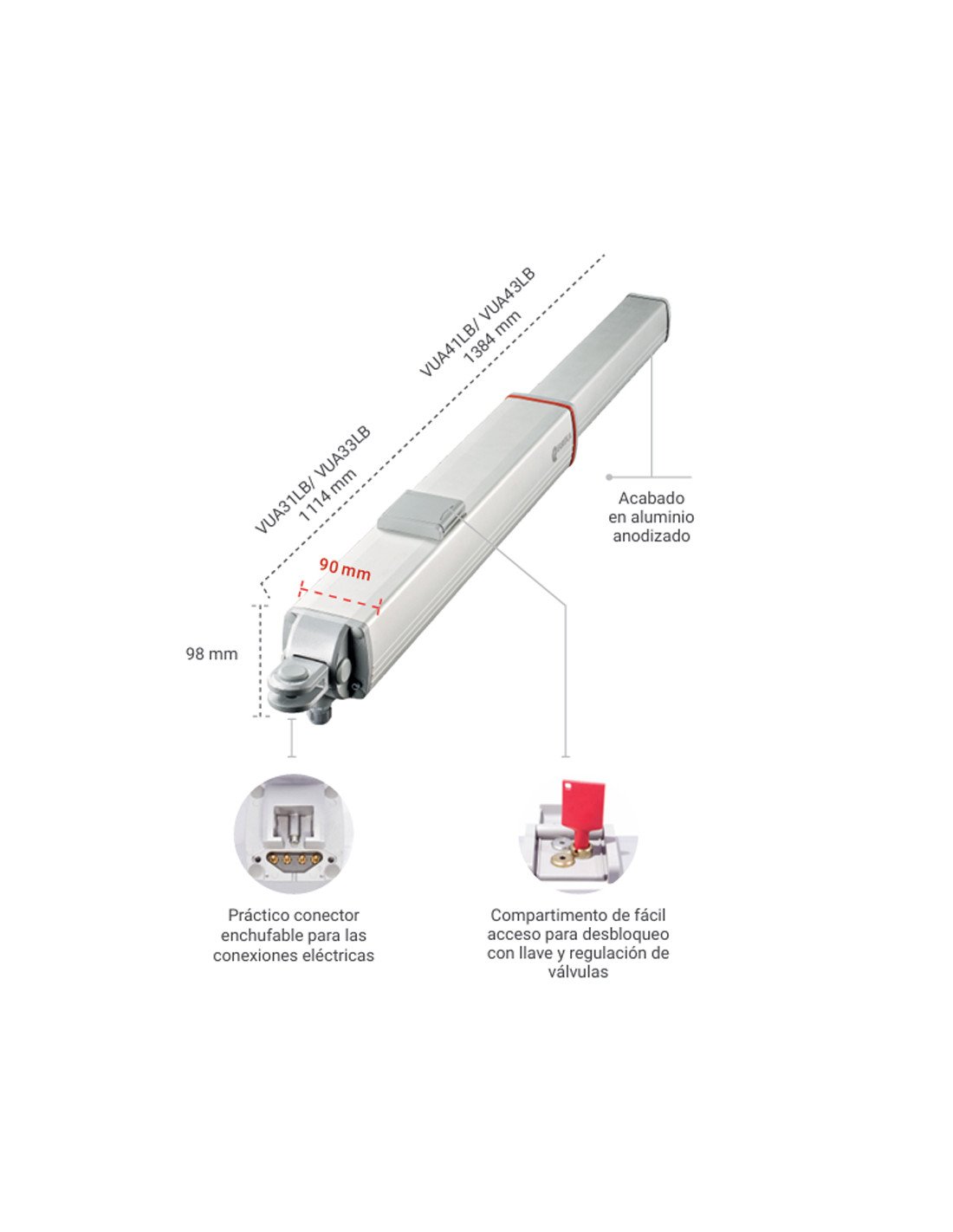

Dimensions Packaging (cm) 73 × 17 × 12 85.5 × 17 × 12
Max door length. (meters) 4 6
Max door weight (kg) 700

Mounting video

Type of engine
Hydraulic
Sheets from the door
1-leaf door
