Kit Electromechanical motors Medva PW230K 24V for swing doors for residential use for sheets up to 3,5 meters.

The PW230K engine is designed to power residential swing doors that we can give semi-intensive use.

• The helical gear provides durability and silence in engine operation.
• Engine reading for precise positioning control.
• Soft stop during the opening and closing phases.
• It can be installed for single sheet or double swing door.

CHARACTERISTICS

• PineappleGear:
• Maximum power absorbed: 144 W
• Push Nominal Peak: 3000 N
• Push race: 2500 N
• Length of career: 350 mm
• Power supply: 24 Vdc
• Classification of current: 3 A
• Maximum door weights: 300 kg per leaf
• Maximum length of door: 3.5 meters per leaf
• Operating temperature20°C to +50°C
• Engine dimensionsThe following: 844x115x106mm
• Weights: 6,25 kg

TABLE PC170 130VA

• With a built-in receiver to store 200 transmitters.
• Adjustment of engine regulation.
• Set to self-lock.
• It has an anti-crush function.
• Modern look and easy to install.
• Option to incorporate 2 back-up batteries (2,2A) in case of power failure.

THE KIT CONTAINS:

• 2 24 V electromechanical motors for swing doors up to 3,5 m
• 1 Manoeuvre table with built-in receiver at 433,92 MHz
• 2 4 channel garage controls at 433,92 MHz

MANUAL

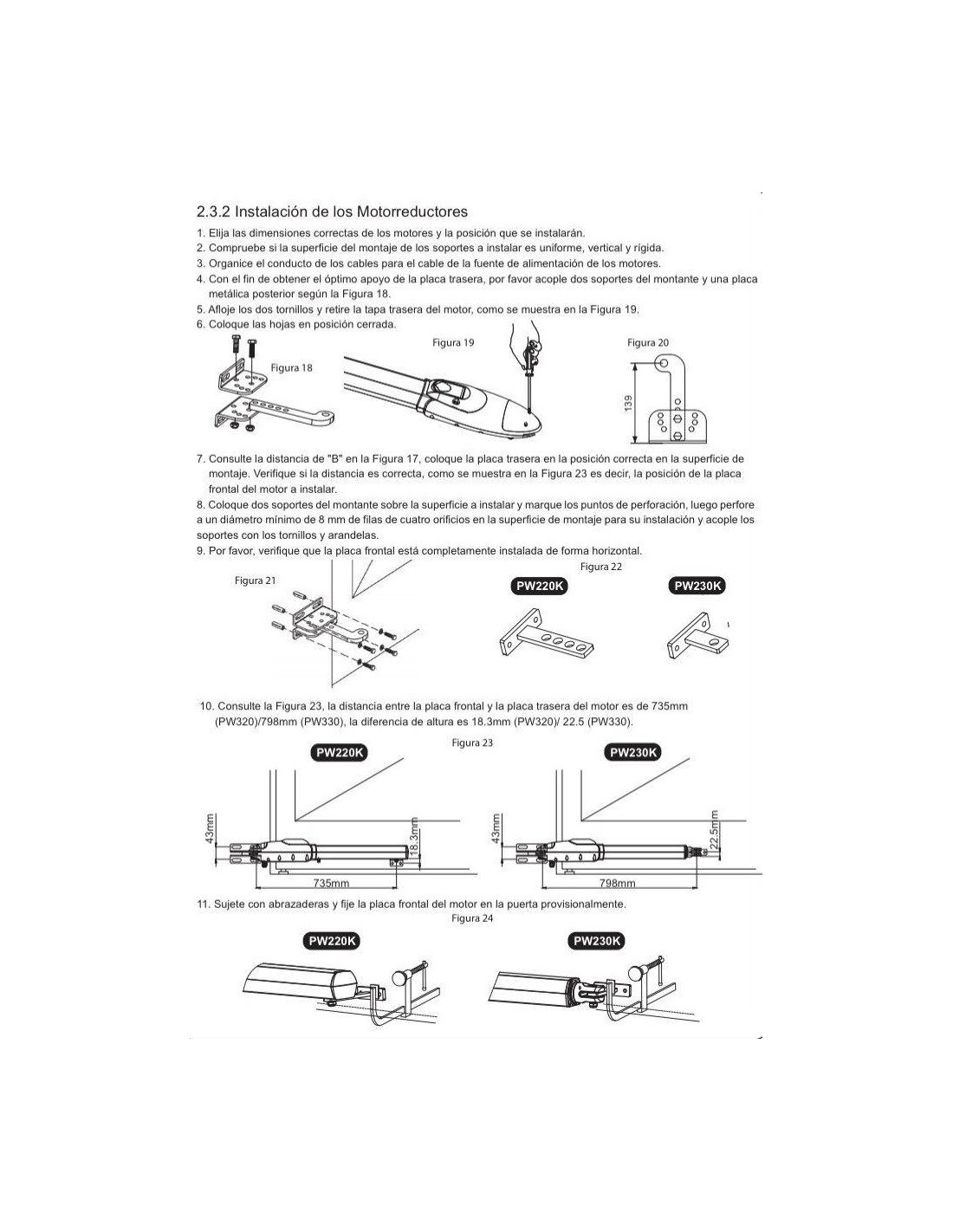

Instruction manual for the Medva PW230K
