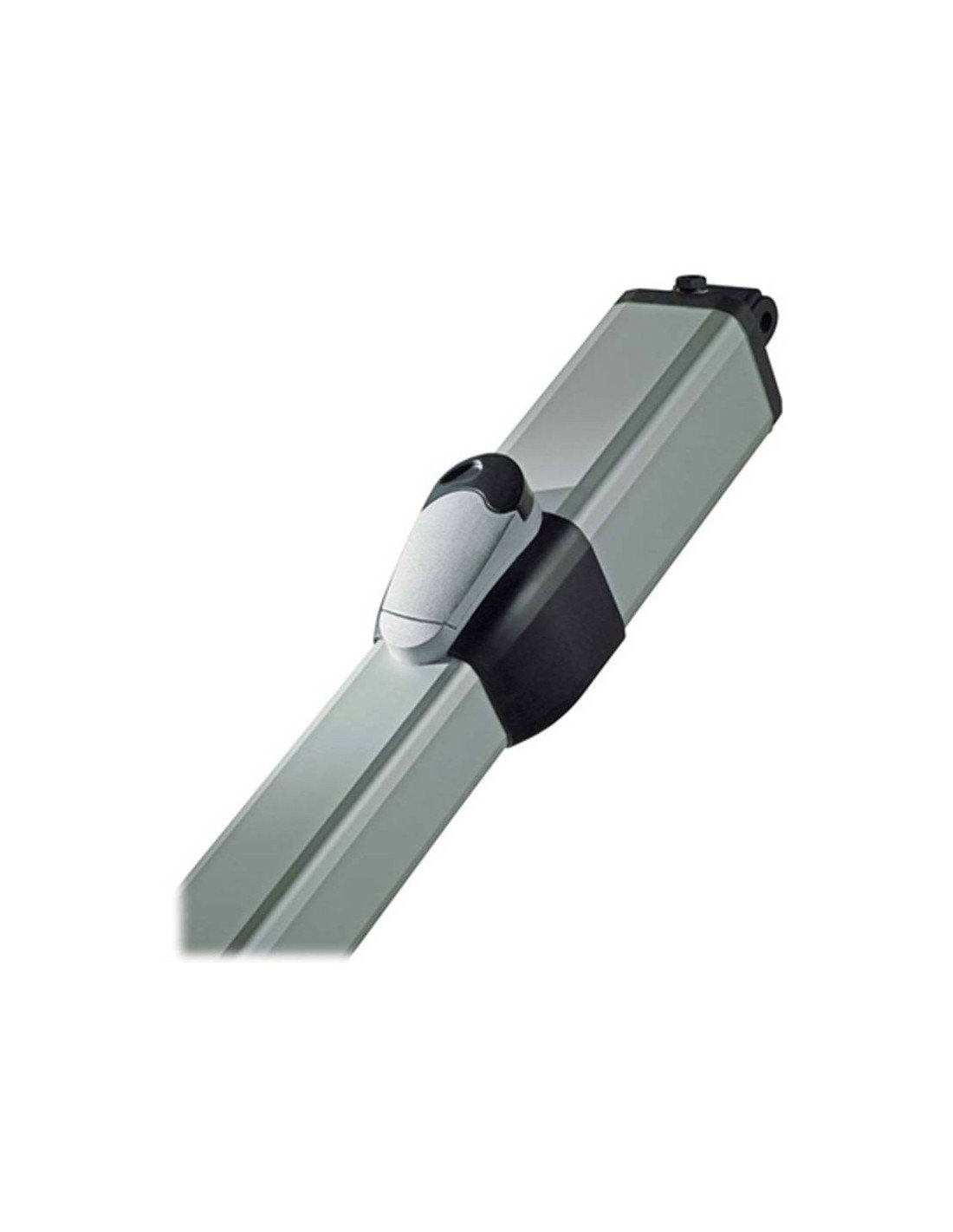

Hydraulic operator Forsa HALF TANK for swing doors for community use for leaves with a maximum length of up to 7 meters.

• Extremely quiet and hydraulically reliable.
• Anti-crush safety guaranteed by maximum thrust regulation valve.
• Available versions with hydraulic soft stop in opening and closing.
• End with ball joint for millimetre adjustment of the travel.
• Oscillating rear anchor back piece made of aluminium.
• Locking (AC) and non-locking (SB) versions.
• Available in two different piston strokes: 270 and 390 mm.
• 390 mm version with PLUS metal release as standard.
• Optional millimeter-positioning linear encoder.

MODELS

• BATS025A: HALF TANK 270 BC. BAT. AUTOBLOC HYDRAULICS - Leaves up to 6 meters
• BATS025R: HALF TANK 270 SB. BAT. REVERSIBLE HYDRAULICS - Blades up to 6 meters
• BATS027PSA: HALF TANK SOFT STOP 270 BC. BAT.HID. AUTOBLOC - Blades up to 6 meters
• BATS027PSR: HALF TANK SOFT STOP 270 SB. REVERSIBLE BAT.HID. - Blades up to 6 meters
• BATS029PSA: HALF TANK SOFT STOP 390 BC. BAT.HID. AUTOBLOC - Blades up to 7 meters
• BATS029PSR: HALF TANK SOFT STOP 390 SB. REVERSIBLE BAT.HID. - Blades up to 7 meters
