Tubular CAME Edison B4 13 NM with rechargeable battery | 809y4-0020

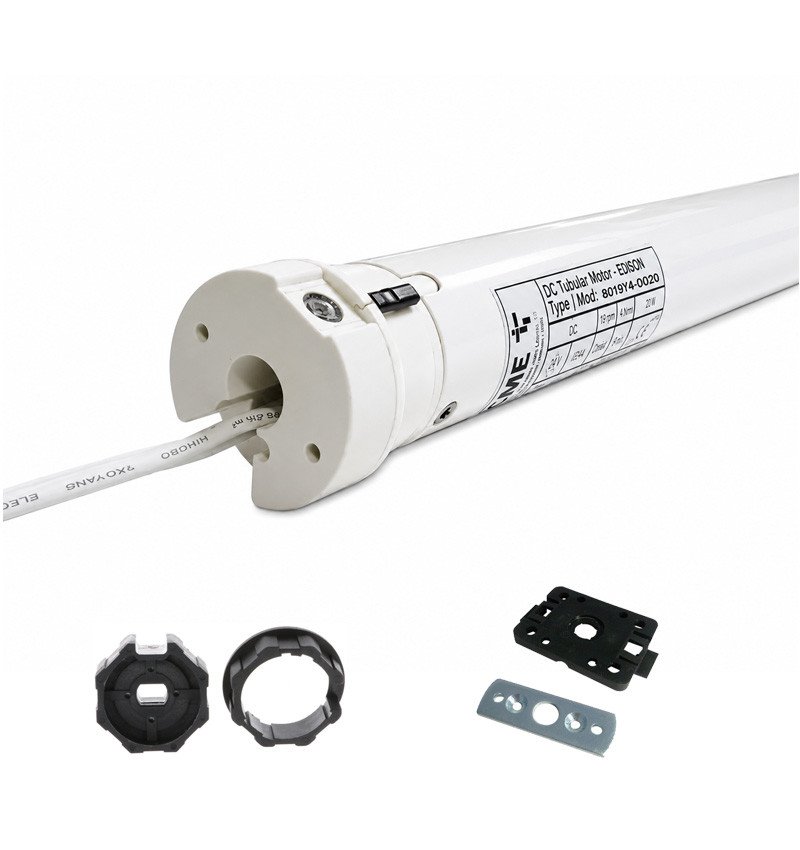

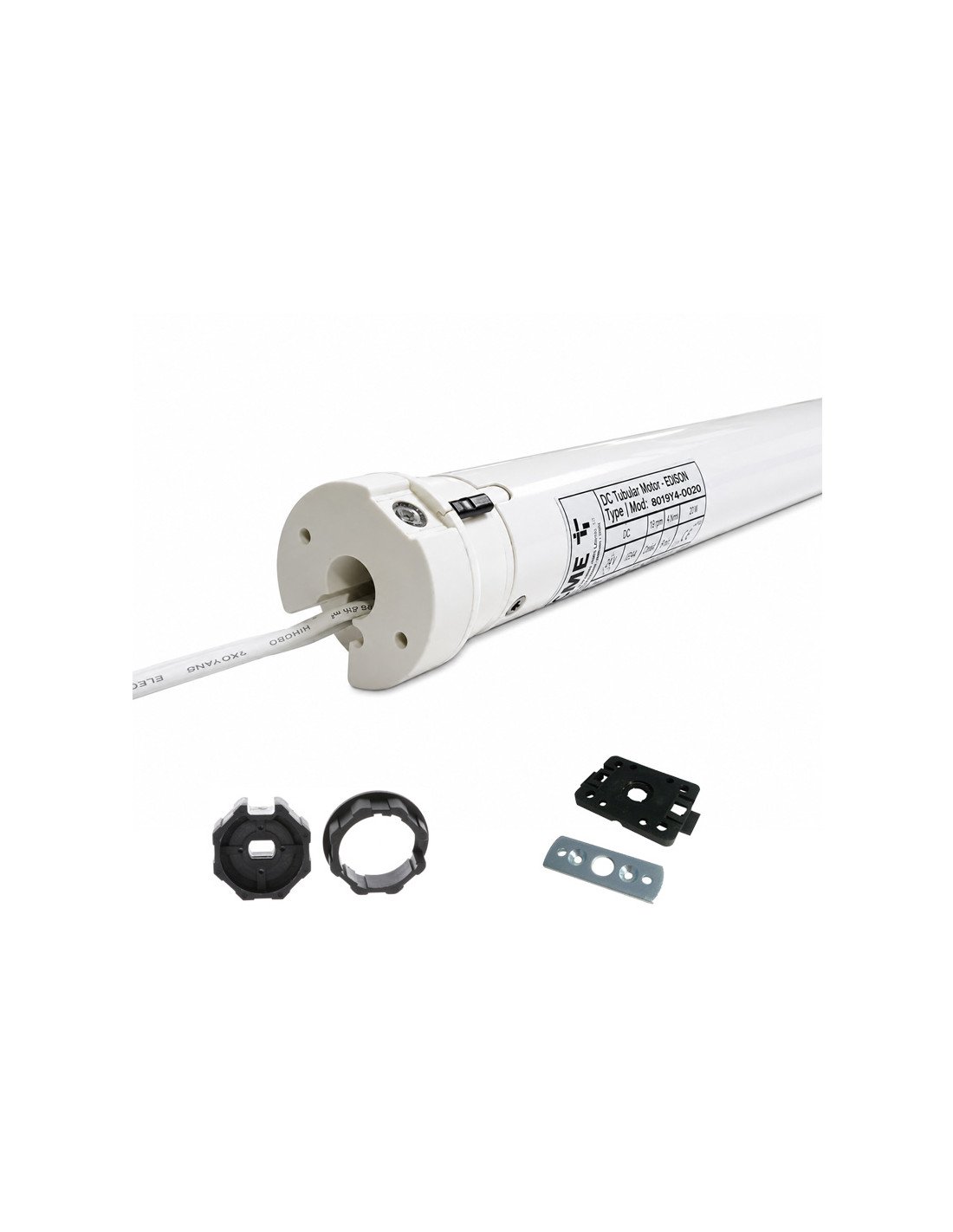

CAME Edison B4 809Y4-0020 is a tubular 35 mm diameter motor with integrated rechargeable battery, Designed to automate blinds and roller closures without having to carry power to the engine.

Its battery operation allows you to make a fully wireless installation, avoiding wiring work and facilitating the assembly in places where there is no proximal outlet. This solution is especially practical for reforms, facilities already finished or windows where it is desired to avoid performing rings and additional works.

The engine incorporates end of Electronic Career by Encoder and a radio frequency receiver of 433.92 MHz integrated. It is compatible with the issuers CAME of the KLT series, allowing to control the opening, stop and close by means of a compatible remote control, without the need to install an external receiver.

In the engine head are the power connector for battery recharge and the programming button, Facilitating configuration, memorization and maintenance operations.

With the battery fully charged, the motor can perform approximately 300 cycles of operation, equivalent to some 5 months of normal use. The time needed to carry out a full charge is approximately 6 hours.

The recharge is done through a 5 V DC charger and 2 A with Type-C connector. The charger is not supplied with the engine. As an alternative, the solar panel CAME 809xg-0100, Available separately, to keep the battery charged by solar energy.

The CAME Edison B4 offers a maximum torque of 13 nm, a speed of 13 revolutions per minute and a lifting capacity indicated by the manufacturer up to 23 kg.

Advantages of the engine CAME Edison B4

• Operation by integrated rechargeable battery.
• Fully wireless installation.
• You do not need power wiring up to the engine.
• Ideal for reforms and facilities without proximal outlet.
• Approximate autonomy of 300 cycles with a full load.
• Equivalent to about 5 months of normal use.
• Full loading time of approximately 6 hours.
• Type-C charging connector located on the head.
• Programming button integrated in the head.
• End of Electronic Career by encoder.
• Radio receiver of 433.92 MHz incorporated.
• Compatible with emitters CAME of the KLT series.
• Maximum torque of 13 nm.
• 13 rpm speed.
• Diameter of the 35 mm motor.
• Compatible with optional solar panel for battery recharge.

Kit content

Technical characteristics

Optional accessories not included

Important: before selecting the motor, it must be checked that the weight, the dimensions and the axis of the shutter are compatible with the adapters and with the lifting capacity of the CAME Edison B4.
