Vivaldi Timer TX5 | Programmer for engines CAME Mondrian

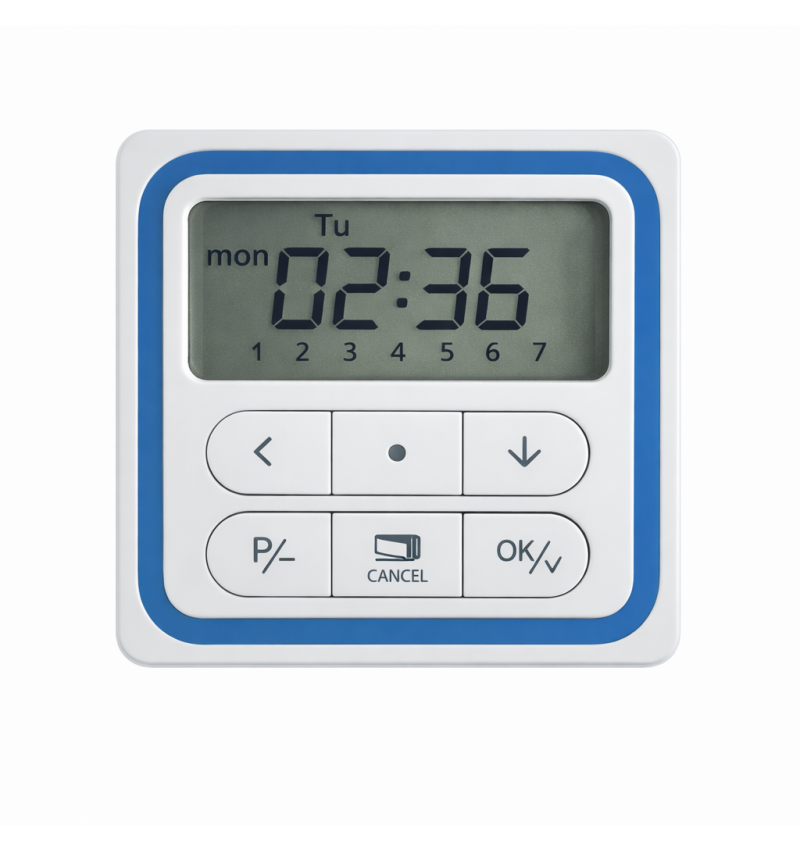

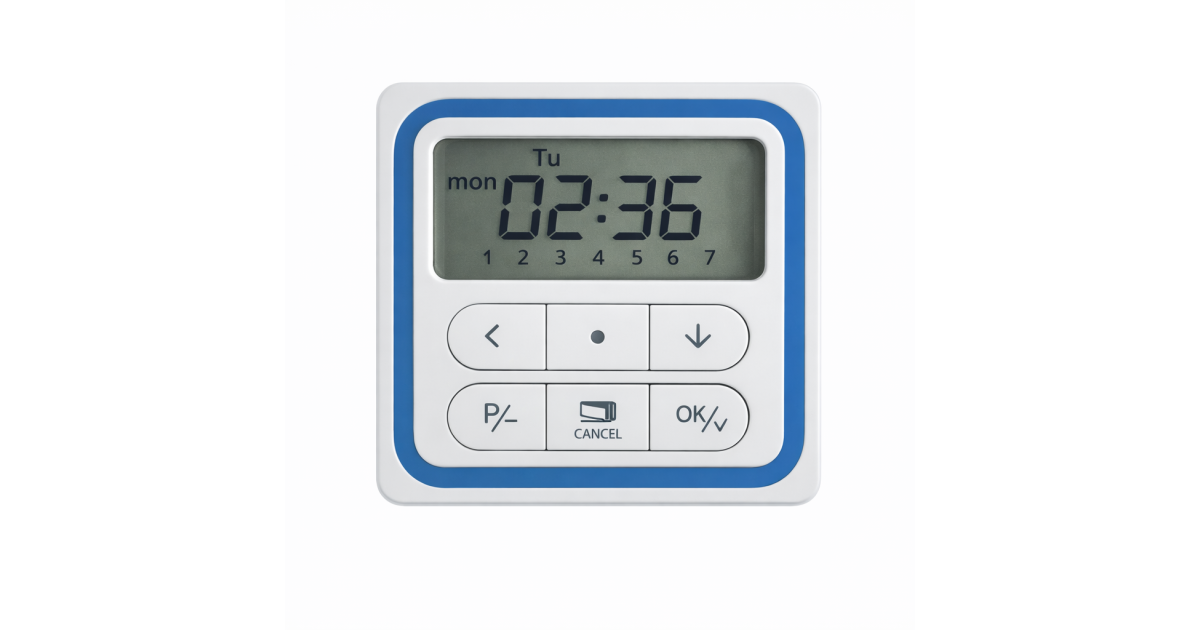

The Vivaldi Timer TX5 CAME It is a remote control with programmable timer Of 5 channels that serves to automate radio motors according to schedules.

It is designed primarily for:

✔ Awnings

✔ Blinds

✔ Roller systems or Screens

✔ Automatisms compatible with receivers CAME KLT series

It works by sending upload orders and automatically downloaded at a scheduled time

This device allows a motor to move without the user press the knob.

Example for programming a awning

09:00 → Low awning

20:00 → Upload awning

The TX5 automatically sends the order.

Operating modes

The TX5 has 3 modes:

Manual

It works as a normal control (up / stop / down).

Automatic

The engine moves according to scheduled schedules.

Random

The motor acts approx. ± 15 minutes around the scheduled time to simulate presence in the house.

Important technical data

• 5 channels
• 433.92 MHz or 868.35 MHz
• 24 bits
• 4.194.304 Code combinations
• Battery CR2430 3V
• Scope approx. 35-200 m according to installation

Measures

• Without wall bracket: 50x50x13mm.
• With wall bracket: 80x80x15mm.
