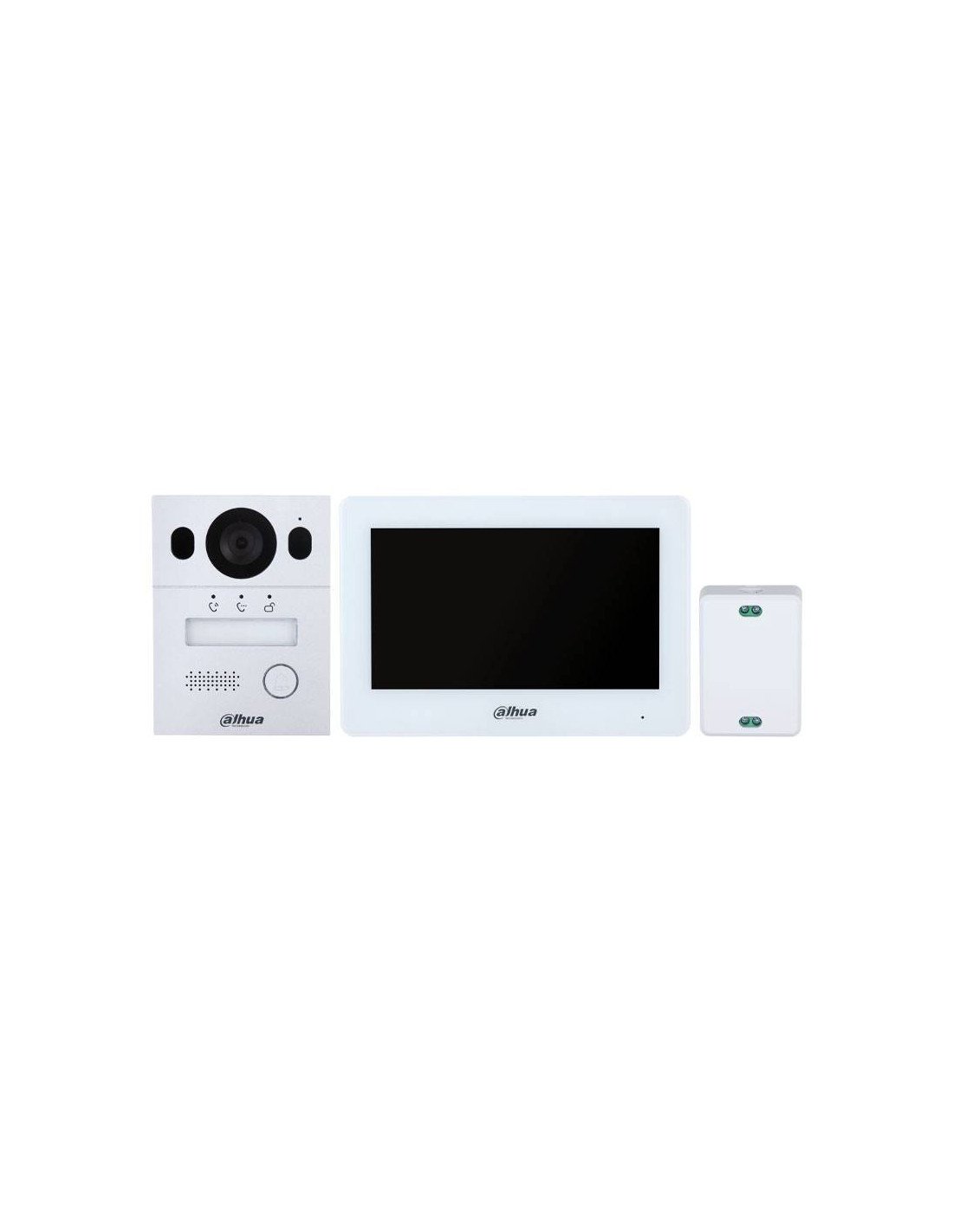

Dahua 2-wire hybrid video intercom kit consisting of:

• 1x 2-wire DHI-VTO2003F video door entry
• 1x DHI-VTH5123H-W 2-Wire WiFi Monitor
• 1x 2-wire controller VTNC1003C
• 1x VTM114 accessory for flush installation
• Language: Spanish.

Dahua 2-wire hybrid video intercom kit that includes:

1x DHI-VTO2003F 2-wire hybrid video door station

• Dahua 2-Wire Hybrid Video Intercom Station Suitable for Outdoor Use
• 2 MP CMOS camera with a 110°(H)/60°(V) viewing angle
• Day/Night Mode with Removable Mechanical Filter
• Automatic infrared illumination
• Picture Modes: Digital WDR, 3D-NR
• Two-way half-duplex audio
• Built-in microphone and speaker
• Allows you to leave video messages for unanswered calls (requires SD card)
• Supports Local Lock, Second Lock
• Anti-tampering alarm
• Mobile Phone App: Talk to the visitor or unlock the door remotely on your phone
• 1 Alarm Output
• 1 Port Exit Request Button
• 1 Door Status Detection Port
• 1 Door Lock Control Port
• 1 x RS485 port
• 1 x 12V DC, 200 mA power output
• Power supply: 2-wire controller
• Power consumption: ≤1.5W (idle), ≤10W (operating)
• Operating temperature of -40°C ~ +60°C
• Operating relative humidity of 10%~95% (non-condensing)
• IP65 degree of protection and IK07 vandal protection
• Aluminum alloy front panel
• Color: Silver
• Dimensions: 96 (W) x 130 (H) x 28.5 mm
• Weight: 326 g
• Recessed installation

1x DHI-VTH5123H-W 2-Wire WIFI Monitor

• 7" TFT capacitive touch screen (1024x600)
• Communicates with VTOs via half-duplex, and with the application via full-duplex
• Supports video recording and snapshot capture (requires SD card)
• 1 x Audio Input
• Built-in speaker
• G.711a, G.711u, PCM audio compression
• 6 Inputs / 1 Alarm Output
• 1 x RS485 port
• Power output 12V, 200 mA
• The app can be used to receive calls and alarm notifications
• Connects to an HDCVI camera
• Built-in WiFi
• Network protocols: IPv4, DNS, RTSP, RTP, TCP, UDP
• Power supply: 2-wire controller
• Power consumption: ≤4W (idle), ≤10W (running)
• Operating temperature of -40°C ~ +70°C
• Operating relative humidity of 10%~95% (non-condensing)
• Polycarbonate and ABS shell
• Dimensions: 189 (W) x 130 (H) x 23.9 mm
• Weight: 370 g
• Surface Installation

1x 2-wire controller (VTNC1003C)

• Power supply: 48V DC
• Power consumption: 3.5W
• Operating temperature of -10°C ~ +55°C
• Operating relative humidity of 10%~95% (non-condensing)
• Polycarbonate and ABS shell
• White
• Dimensions: 46.2 (W) x 65.2 (H) x 23.2 mm
• Weight: 130 g

1x Surface Mount Accessory DAHUA-2097 (VTM114)

• Recessed box for video intercom
• Constructed of ADC12 aluminum alloy
• It consists of a recessed box and trim plate
• Case dimensions: 123 (W) x 157 (H) x 35 mm
• Trim dimensions: 128.9 (W) x 162.9 (H) x 34.5 mm
