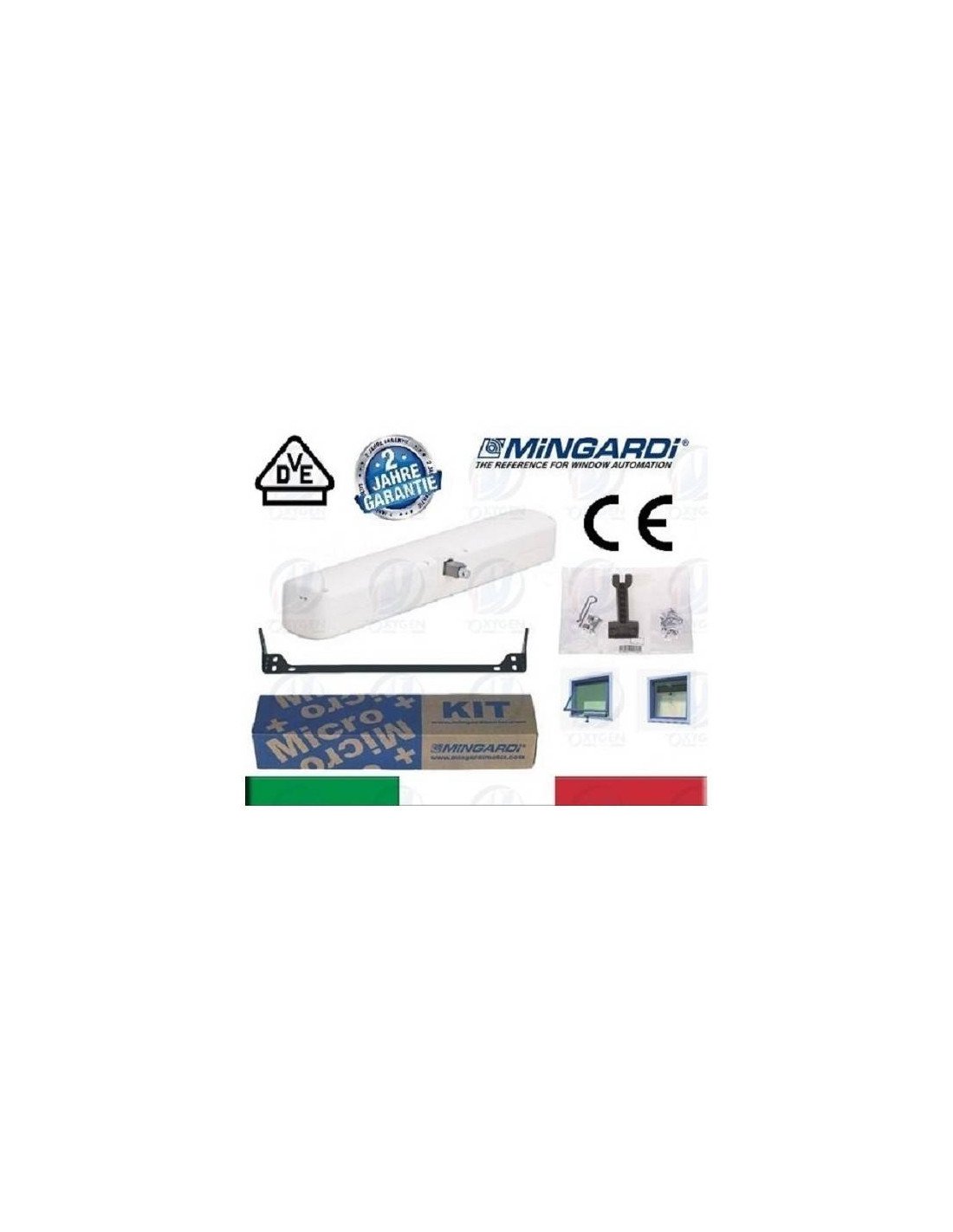

MINGARDI MICRO+ chain actuator for hanging windows.

MINGARDI MICRO+ string actuator for hung windows.

Drive rod for hinged lid windows and transom windows.

The Mingardi activator is ideal for motorizing:

• Windows
• Hung windows
• Skylights
• Domes

CAUTION:

Brackets included (attack for hinged windows, crossbar windows on attack).

• Micro + Mingardi electric linear actuator with articulated movement of the chain contained within the housing.
• Operation on 230 V ~ / 50 Hz power.
• In accordance with LVD 2006/95 - EMC 2004/108.
• It is equipped with an electronic limit switch for opening and closing.
• Stroke selectable by magnet.
• Parallel.

Micro KIT+ version includes fixing accessories for hinged windows and transom windows.

Characteristics:

• Applicable to every type of overlap and the height of the window frame thanks to the unique pivoting bracket that allows 6 different positions for the application;
• High thrust force due to double chain;
• Maximum flexibility in stroke adjustment;
• Degree of protection: IP 20;
• Switch Closing Limit - Open: Electronic;
• Color: black, grey, white (optional).
• Push-pull force: up to 300mm 250N (200N) up to 400mm.

Technical data:

* The performance values shown in the table have been produced at a temperature of -10°C / +40°C, with a maximum relative humidity of 60%.
