AR Small 2000 24V AR Small Arm Motor Kit for Beating Doors up to 2 meters per leaf

The AR SMALL 2000 24V It is an electromechanical actuator of articulated arm designed for the automation of Residential swing doors with leaves 2 meters and a maximum weight of 250 kg per leaf.

Thanks to its articulated arm system, it is an ideal solution for installations in Average or large pillars, where other linear motors can have assembly limitations. Its operation 24v It allows safe, efficient and suitable use for accesses with a high number of maneuvers.

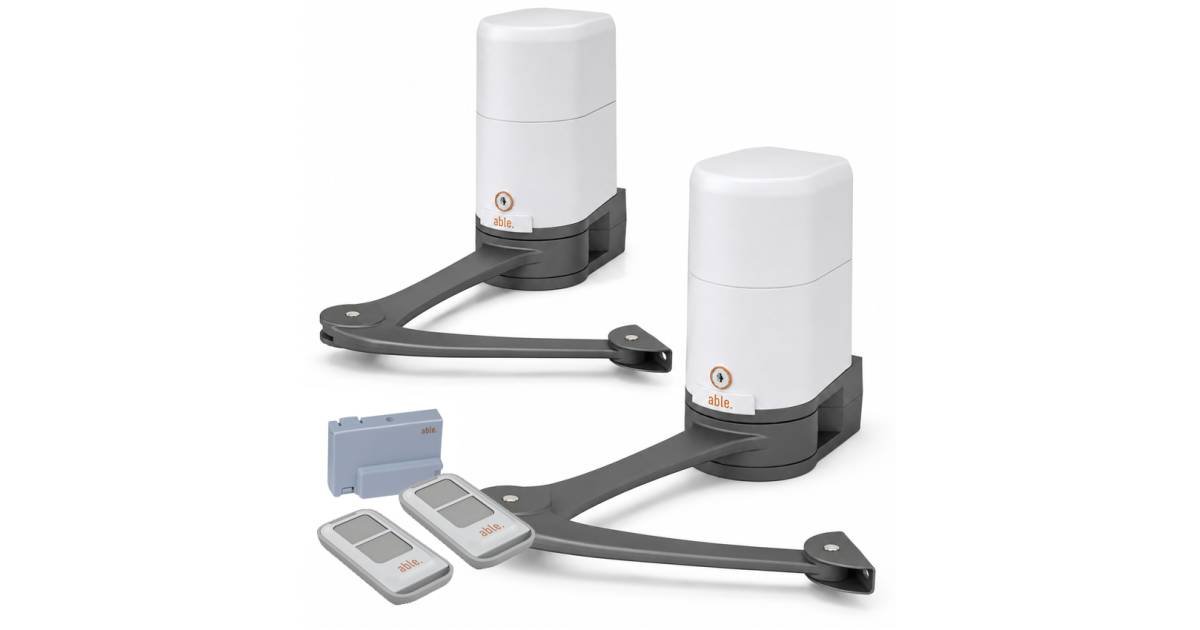

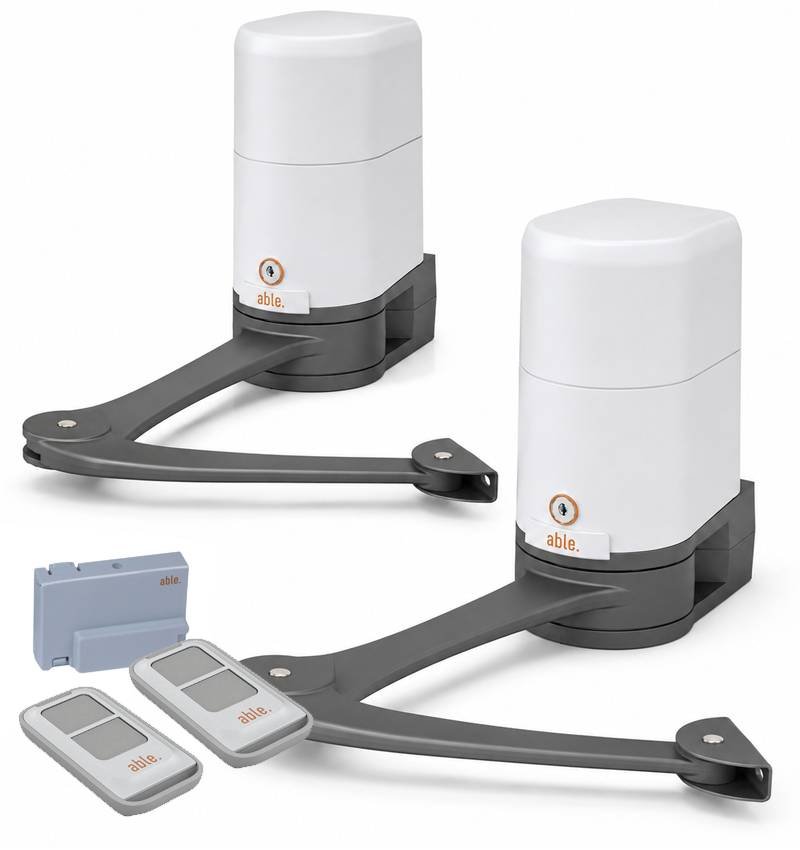

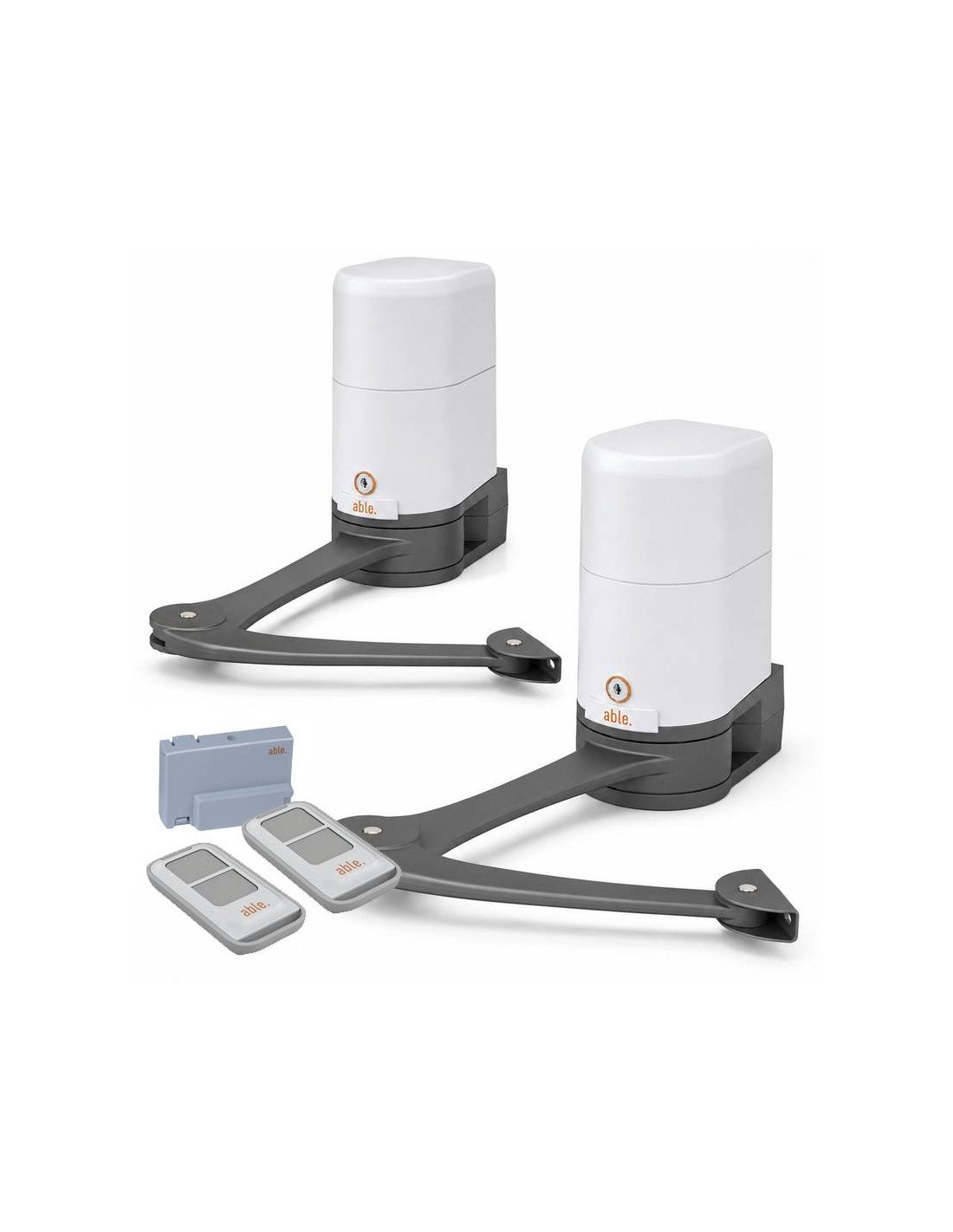

Kit content

• ✔ 1x AR Small 2000 24m (22Y001): 24V Master Electromechanical Engine with Built-in Central.
• ✔ 1x AR Small 2000 24S (22Y002): 24V Slave Electromechanical Engine.
• ✔ 1x RX MR 433 (11Y001): Plug-in receiver 433 MHz
• ✔ 2x TX TOH2 433C (10Y001): RollingCode 433 MHz transmitter

Main features of AR Small 2000 24V

• 24V electromechanical motor For swing doors.
• Upper 2 meters.
• Maximum leaf weight up 250 kg.
• Simple installation on Medium or large pillars.
• Obstacle detection For greater safety during the maneuver.
• Programmable acceleration and deceleration.
• Self-learning of opening and closing times.
• Operation in case of absence of energy by emergency battery.
• Compatible with solar energy.
• Programming by 3 buttons and screen.
• Plug-in adapter for modular radio receiver.
• Exit for flashing light 24V with or without intermittence.
• Cheerful light output.
• Maneuver cycle counter with programmable maintenance reminders.
• ADI connector for optional modules.
• In accordance with low energy consumption regulations at rest Eu2023 / 826.

Security and Advanced Control

The AR Small automatism incorporates functions designed to improve the safety of the installation. Has 2 tickets for photocells with self-test function and 2 Inputs for Mechanical or Resistive Safety Bands, allowing the system to adapt to different protection needs.

In addition, it has a Always active auxiliary output For opening devices, which facilitates integration with accessories and external control systems.

Technical characteristics

Recommended applications

This articulated arm motor is especially recommended for Snack doors for residential or light community use, where a reliable, secure and low energy consumption installation is required.

Its design makes it an adequate option for doors installed in wide pillars, private accesses, neighborhood communities and entries where a compact, efficient and easy-to-configure automation is sought.

Advantages of the Motor AR Small 2000 24V

✔ Compact solution for swing doors up to 2 meters.

✔ Soft operation thanks to the programmable acceleration and deceleration.

✔ Greater security by detecting obstacles and tickets for security accessories.

✔ Low consumption at rest, less than 0.5 W.

✔ Possibility of operation with emergency battery or solar energy.

✔ Simple programming via screen and built-in buttons.

The AR SMALL 2000 24V It is an efficient and reliable solution for motorizing swing doors with articulated arm, offering security, low consumption and ease of installation in residential accesses.

Measures
