Aprimatic

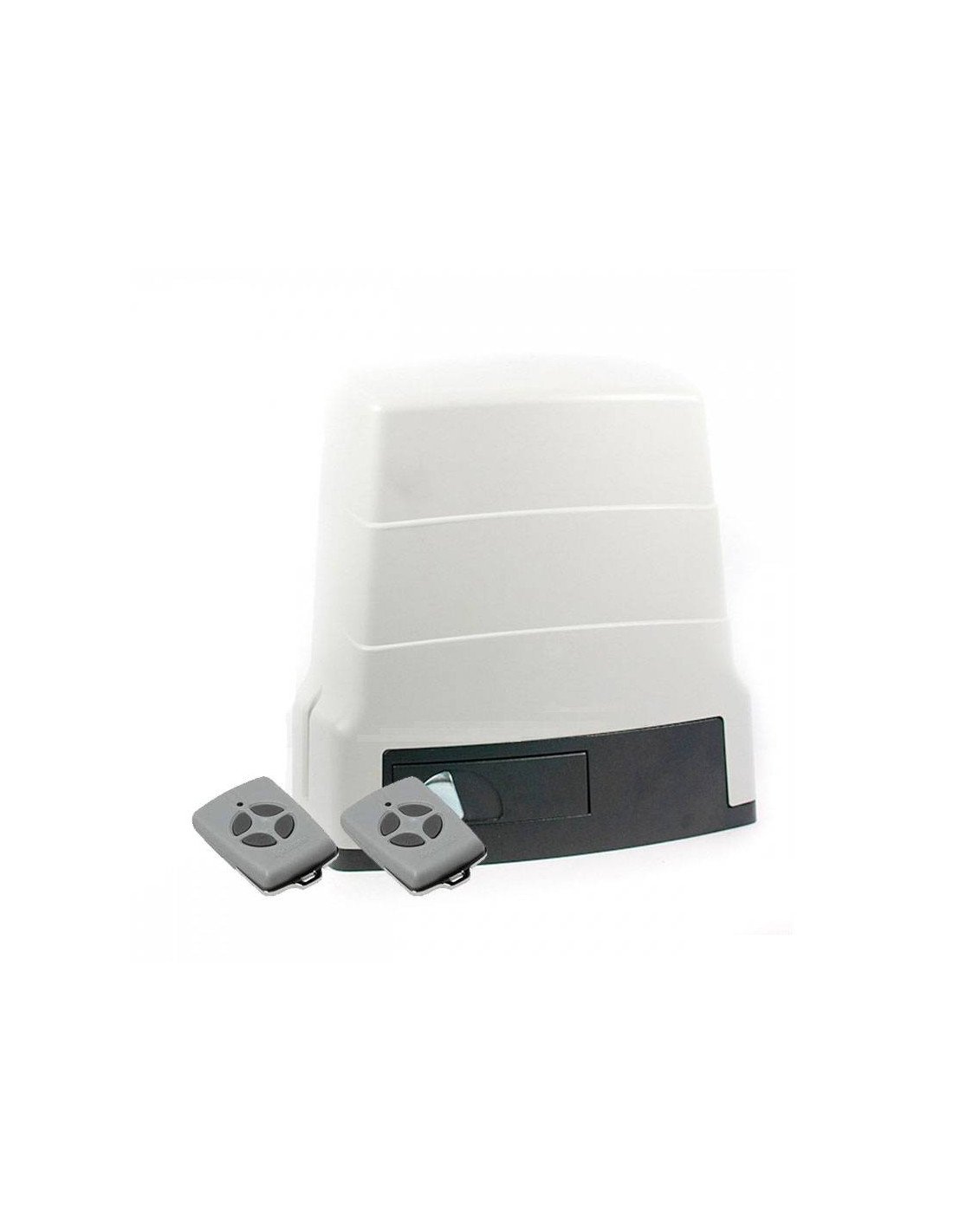

Engine Aprimatic Wave 600 electromechanical 230V for sliding doors up to 600 kg
Referencia: KT02CC15X
€368.00
IVA excluido
445,28 €
IVA incluido
Motor gearbox Aprimatic Wave 600 to 230V, use in individual residences up to 600 Kg. What. Built on a sturdy aluminum monoblock injected and oven lacquered with special outdoor epoxy resin. It has a precise encoder which provides maximum control over the speed, force and position of the door. Incorporates maneuver chart easy start-up with self-learning of the basic working parameters. Transmission consisting of endless steel screws and bronze crown obtaining a door movement soft, quiet and very reliable.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain
Except bulky
Aprimatic wave 600
Motorreductor at 230V, use in individual residences up to 600 kg. Built on a sturdy monoblock of injected aluminum and baked lacquered with special epoxy resin for outdoor. It has a precise encoder that facilitates maximum control over the speed, strength and position of the door. Incorporate maneuvering box easy start-up with self-learning of the basic work parameters. Transmission constituted by Steel Sin-End Screws and Bronze Crown Getting a Gate Movement soft, silent and great reliability.
- Engine control by optical encoder.
- Self-learning of work parameters.
- Silent operator thanks to its steel and bronze reducer.
The kit contains
- 1 pc 600 with T240 built-in T240
- 1PC RX2R receiver
- 2pc controls TX4E
Technical specifications
| Wave 600 | |
|---|---|
| Feed | 230 VAC / 50 Hz |
| POWER | 240 W |
| Push force | 300 n |
| Work factor | 50% |
| Thermal protection | 150º C |
| Thermal range | -20º / + 55º C |
| PROTECTION | IP 43 |
| Leaf speed | 9.5 m / min |
| Leafy | 600 kg |
| DIMENSIONS | 315x165x329 mm |
| Dashboard | T240e |
Manual APRAMACTIC ONDA 600
Product Details
KT02CC15X
Data sheet
- Maximum door weight
- Between 500 and 650 kg
- Type of engine
- Electromechanical 230V
Specific References
