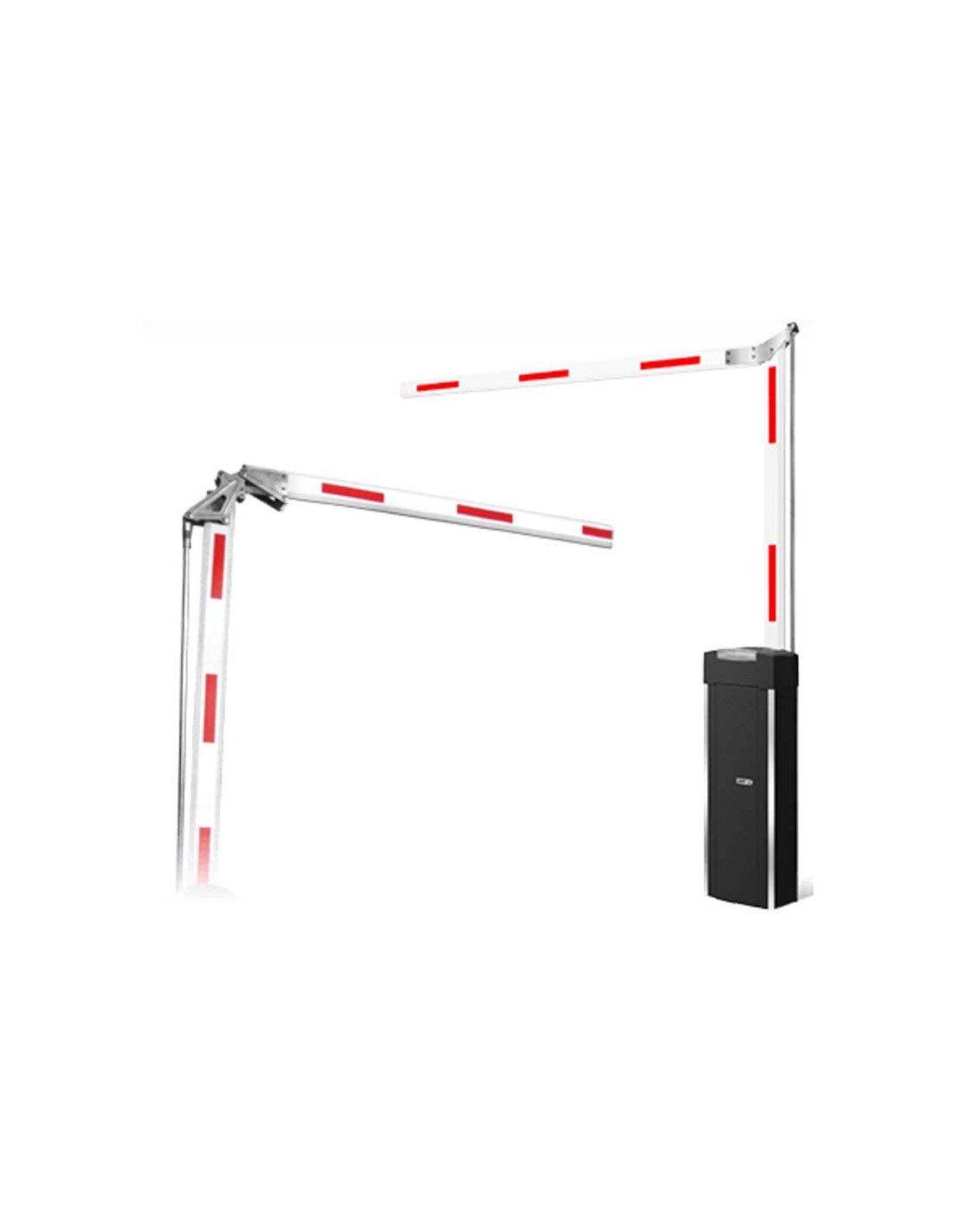

Electromechanical barrier 24 V Motorline SIGMA-XA5 with 5-metre articulated aluminium mast This is equal to 2,5 + 2,5.

SIGMA-XA5 is an electromechanical barrier for intensive use (ventilated motor). It has an articulated aluminium mast, composed of two profiles of 2.5m, totalling a width of 5m which makes this barrier the perfect solution for traffic control in indoor environments, such as underground parking lots.

KIT CONTIENE

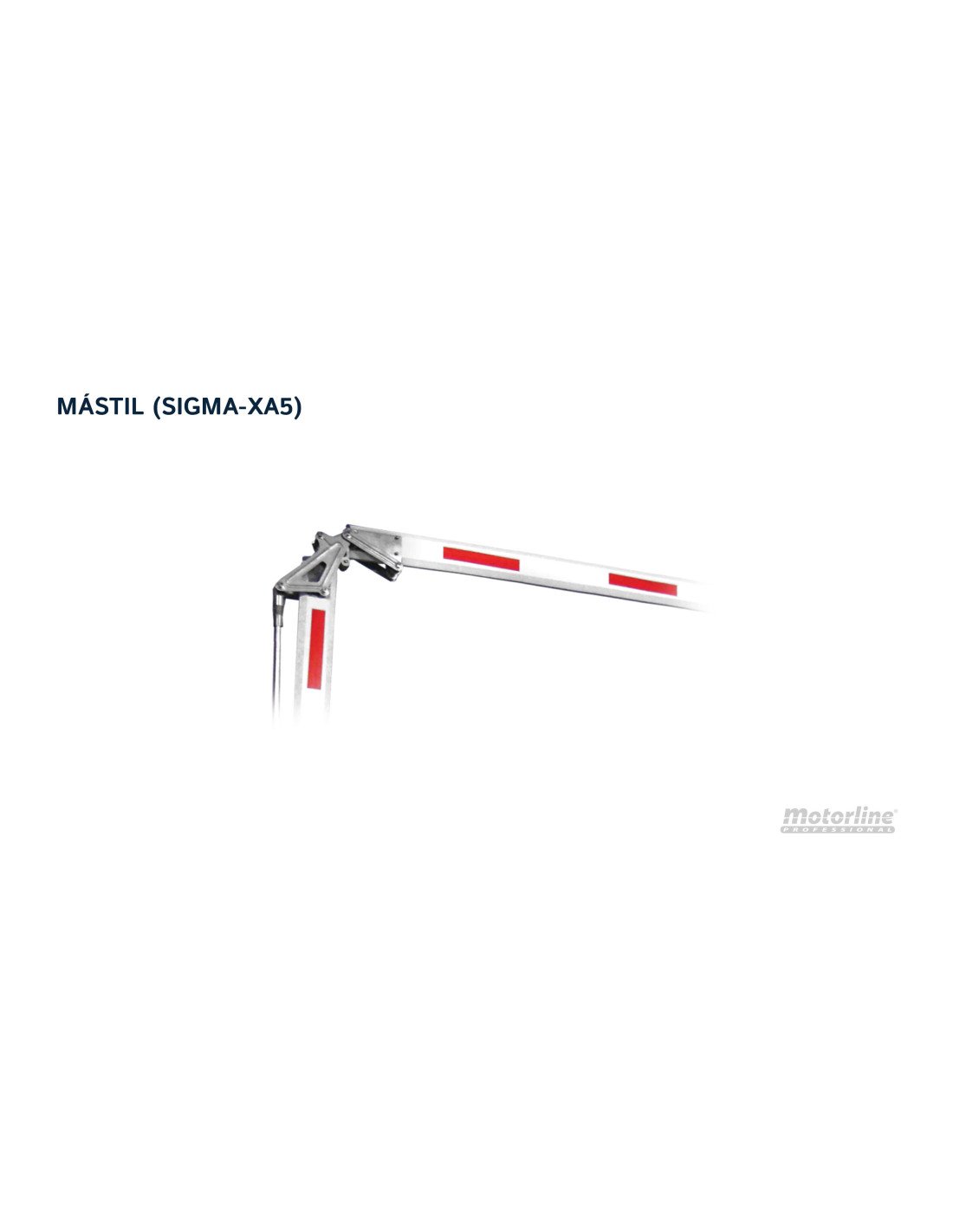

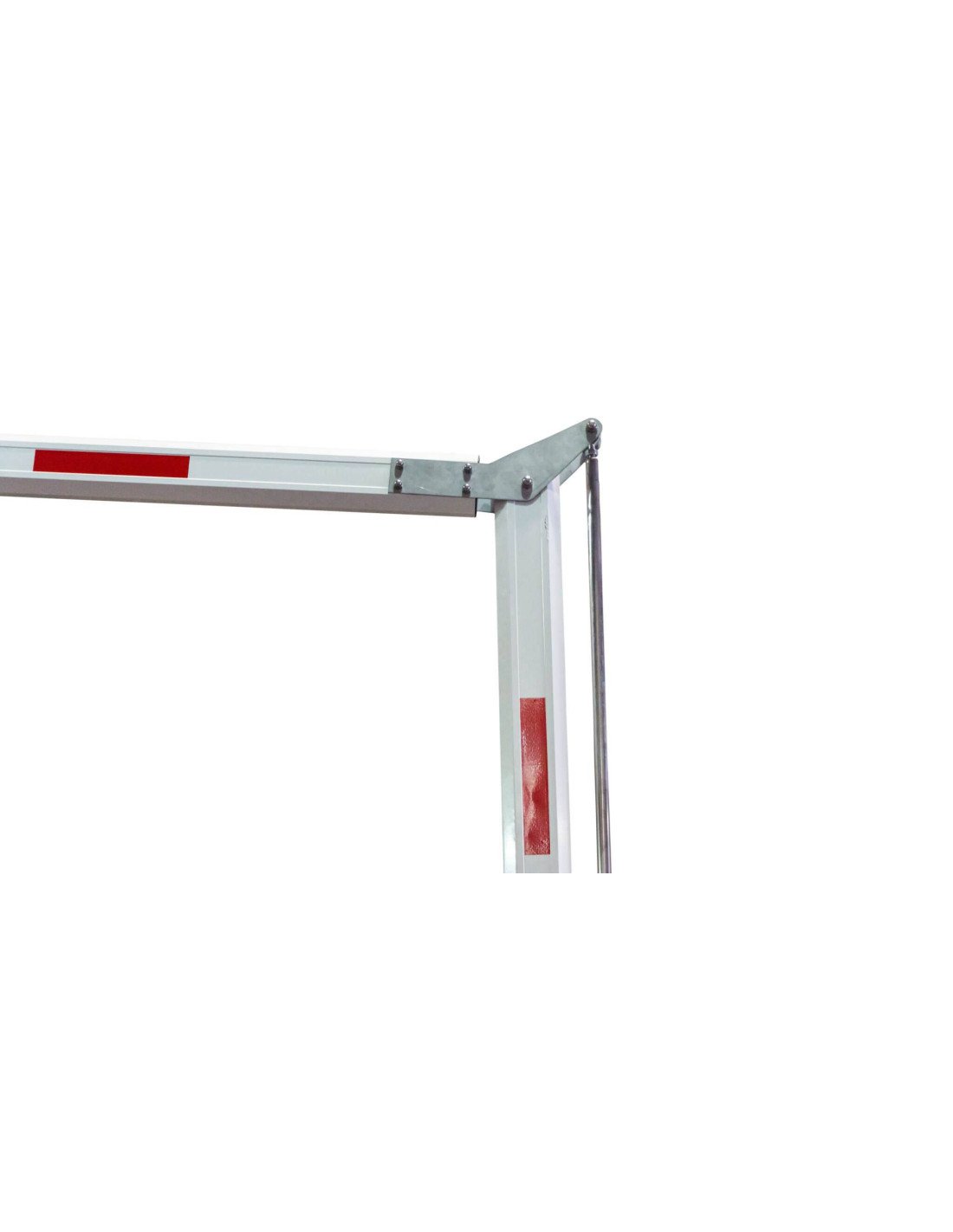

■ Aluminium mast up to 5m = 2.5m + 2.5m articulated

■ 1 24Vdc engine

■ 1 Central MC60, with soft start and stop

■ 1 set of MF30 cells

■ 2 FALK controls

■ Integrated RGB flashing lamp

SPAT not included

CHARACTERISTICS

3 COLOR LED: LED flash built into the top of the barrier, emits red light at closing, green at opening and blue at break time.

RESISTANCE: Built with extremely robust materials, capable of being exposed to intensive use.

VERSATILITY: This product is adaptable to various environments and situations

SILENCE: Motor and mechanical system developed for silent movement

VELOCITY: Total barrier aperture between 3 and 6 sec (adjustable in the control unit).

COMPACT: Designed to occupy low-altitude gaps

ELETRÓNICA PROTEGIDA E FÁCIL ACESSO: Location of the control plate on top of the barrier ensures protection from snow/moisture and provides quick access for programming and maintenance.

TECHNICAL CHARACTERISTICS

■ Power supply: 230Vac 50Hz

■ Power: 90W

■ RPM: 2800

■ Operating time: 3~6 seconds

■ Bar size: 5 meters
