Electromechanical barrier 24 V CAME Gard GT8 heavy duty with aluminium mast in white lacquer of 130x85 with a length of 6350 mm.

CHARACTERISTICS

■ 24 V DC gearbox with advanced speed control.

■ Tested for heavy use at 160 cycles/hour with MCBF 3 million cycles.

■ Cabinet available in galvanized and painted steel RAL7024, AISI 304 and AISI 316, or in custom colour.

■ Electronic card with display, CONNECT technology and tickets for CXN BUS accessories.

■ Accessories can be mounted directly on the cabinet.

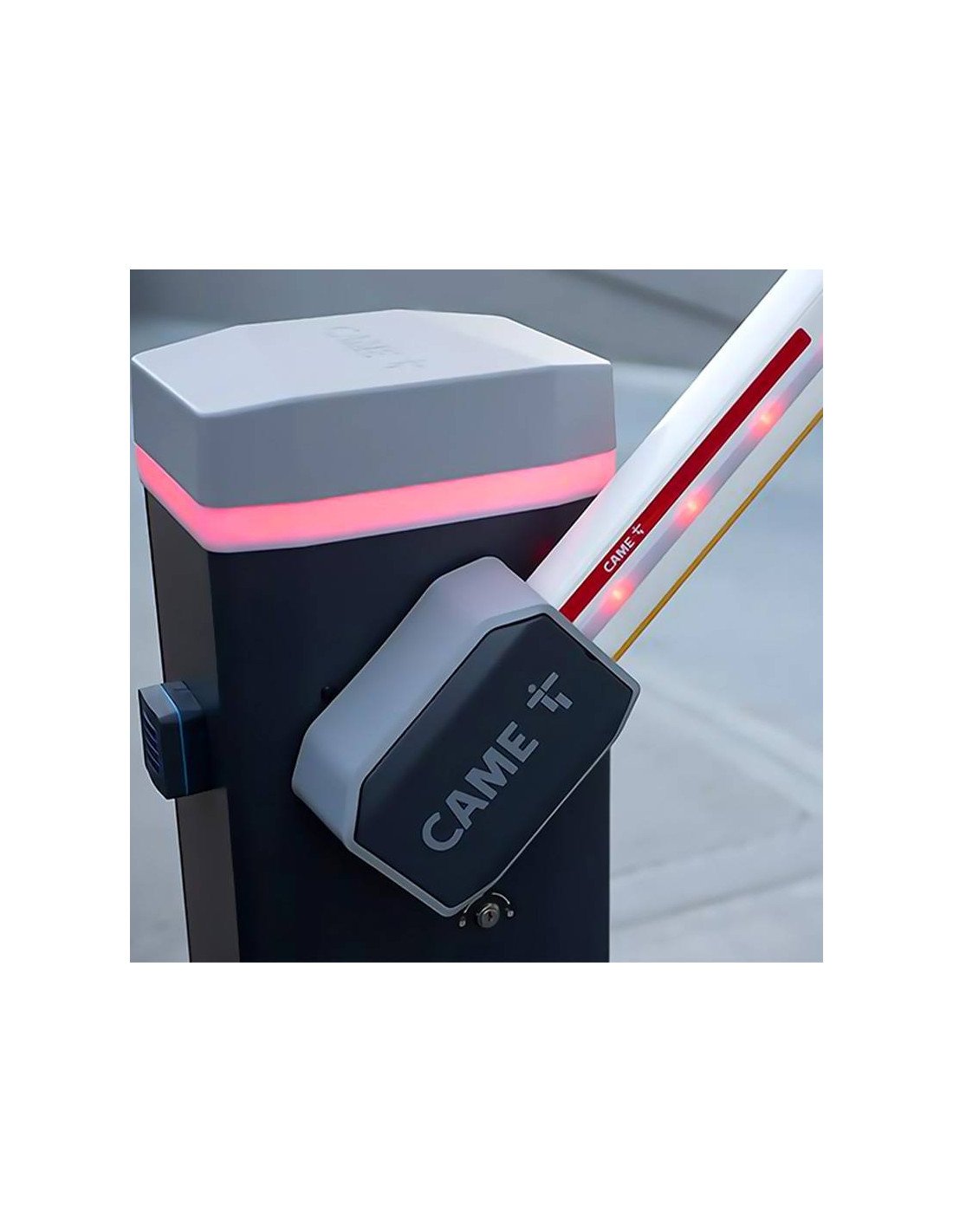

■ High visibility red/green LED indicator on the crown and on both sides of the mast.

■ Compatible with third party systems using the MODBUS protocol.

TECHNICAL CHARACTERISTICS

■ Grade of protection: IP54

■ Power supply: 230Vac

■ Motor power supply: 24Vdc

■ Power: 300W

■ 90o opening time: 4 ÷ 8 s

■ Cycles/hour: 160

■ Operating temperature: -20 ÷ +55 oC

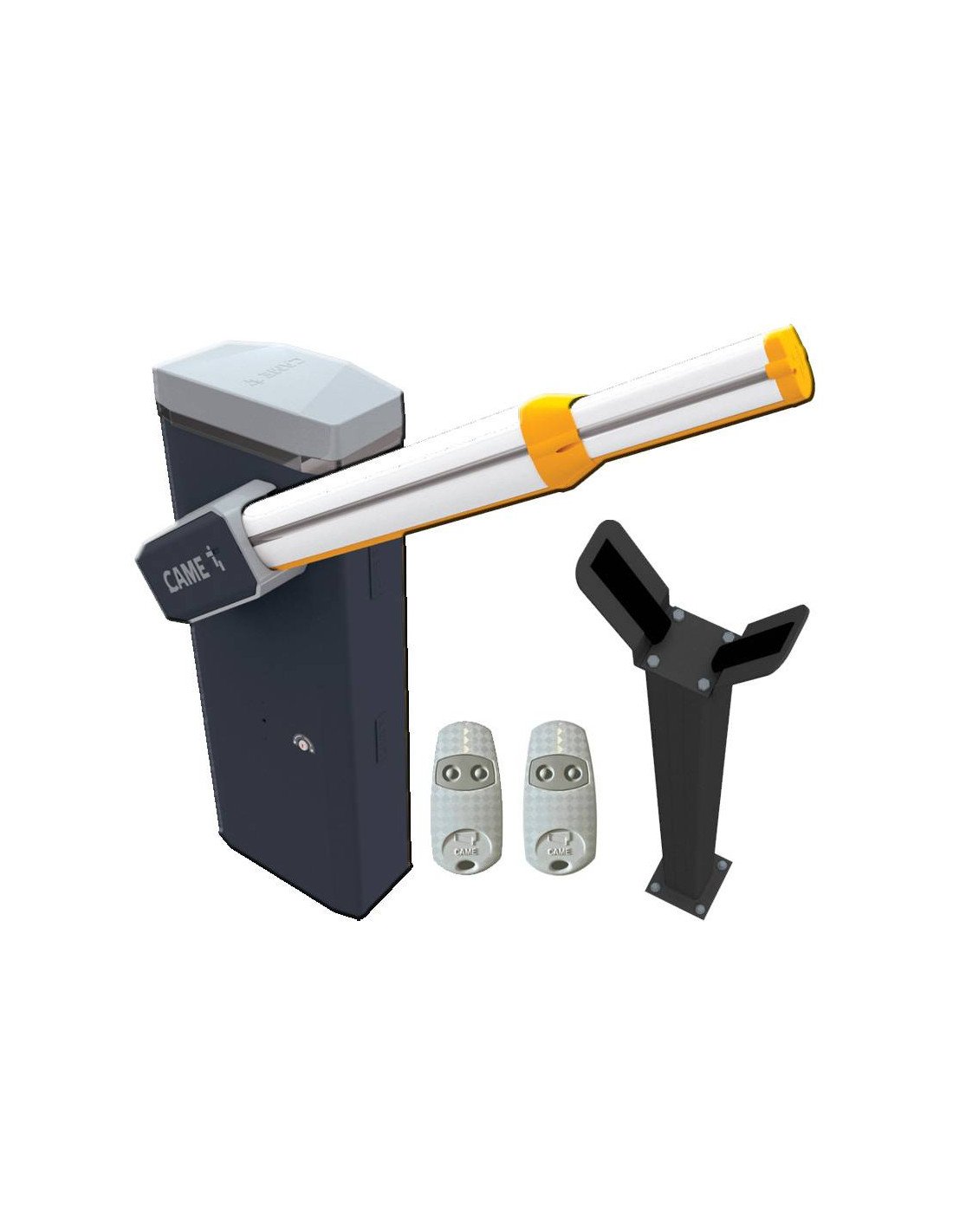

THE KIT CONTAINS:

■ 1 unit FOR THE PURPOSES OF THIS REGULATION:The following: Automatic GT8 barrier with 24 V DC gearbox.

■ 1 unit MANUFACTURE FROM MATERIALS OF ANY HEADINGThe following: White lacquered aluminium mast 130x85 with internal reinforcement, L=6350 mm.

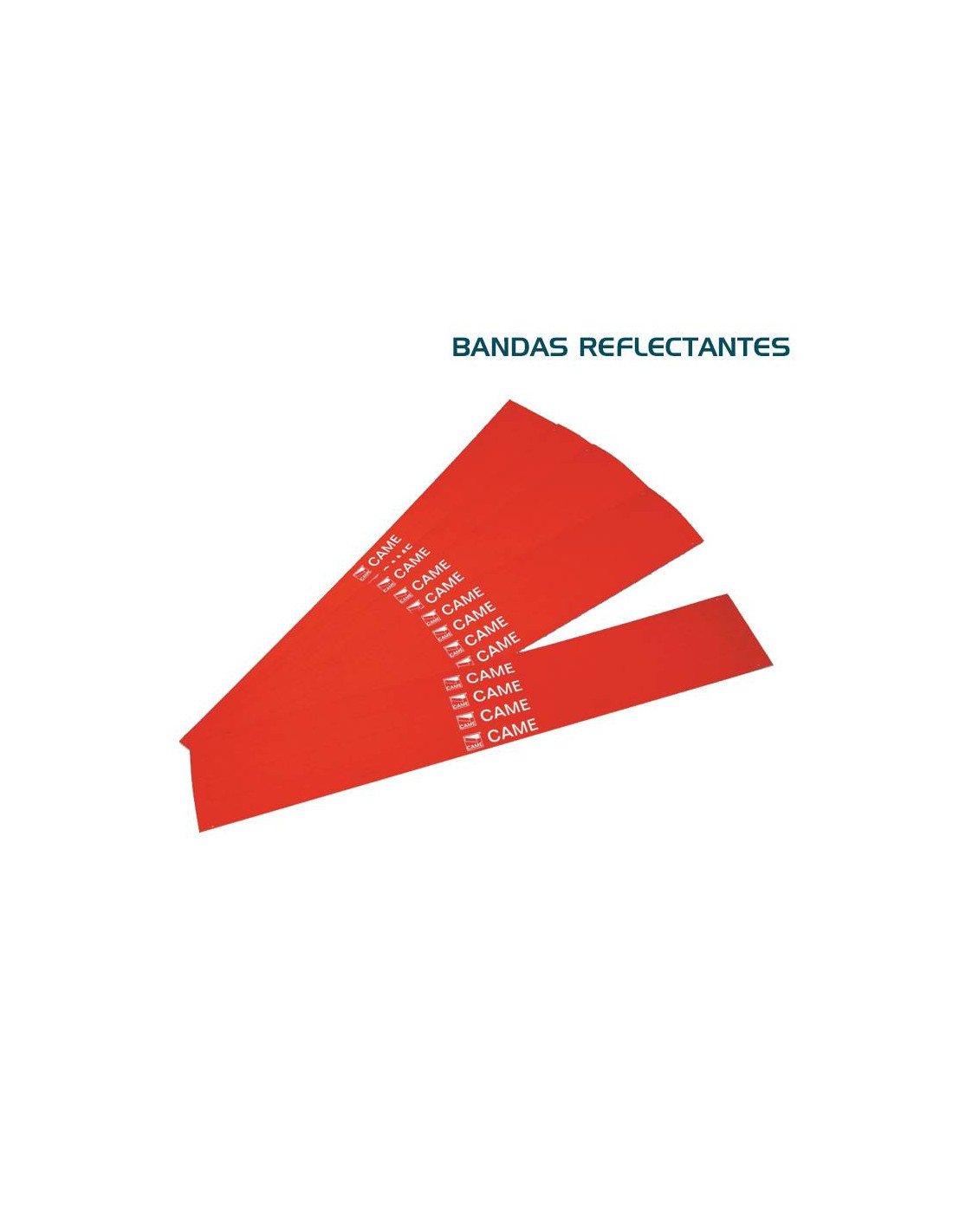

■ 1 unit MANUFACTURE FROM MATERIALS OF ANY HEADINGThe following: Pack of 20 red reflective adhesive strips.

■ 1 unit 001AF43S: Plug-in radio card at 433.92 MHz.

■ 1 unit MANUFACTURE FROM MATERIALS OF ANY HEADINGThe following: Fixed mast support.

■ 2 units 001TOP-432EE: Two channel Fixcode transmitter 433.92.

MEASURES

PRESENTATION CAME GT8

OPERATION CAME GT8

MANUAL

Instruction manual Barrier CAME GT8
