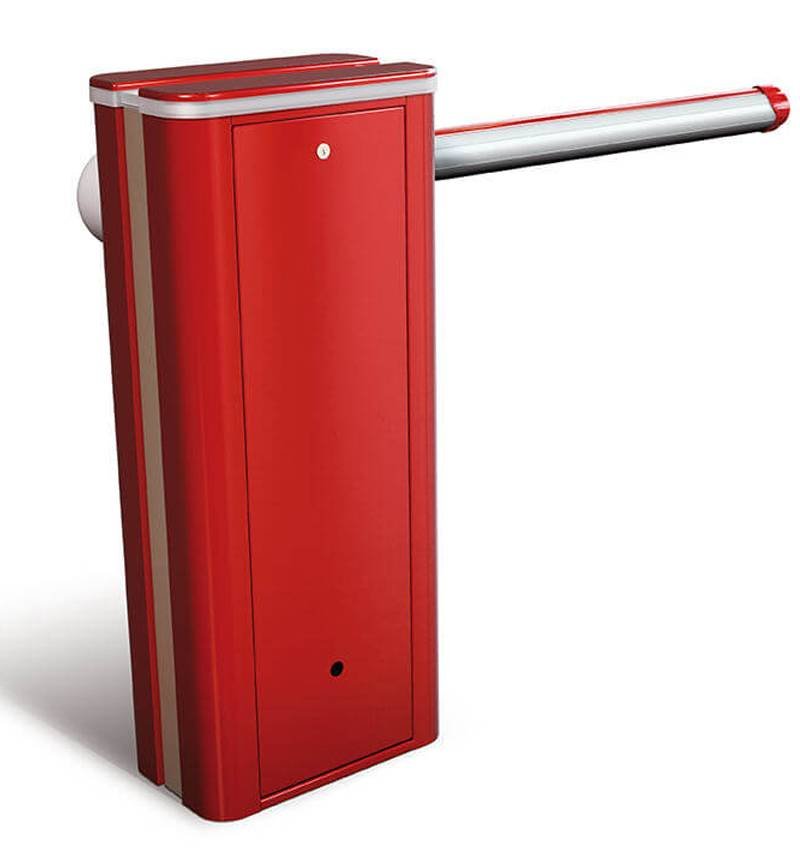

Automatic barrier FAAC B680h

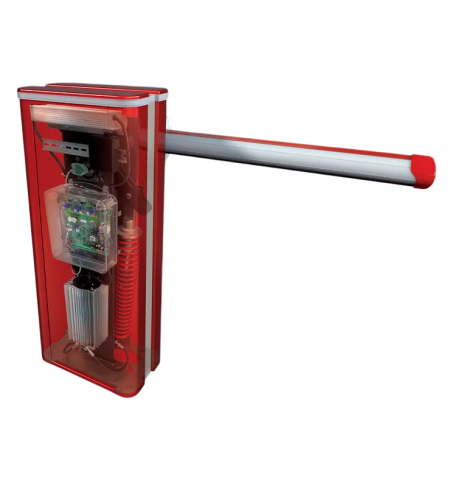

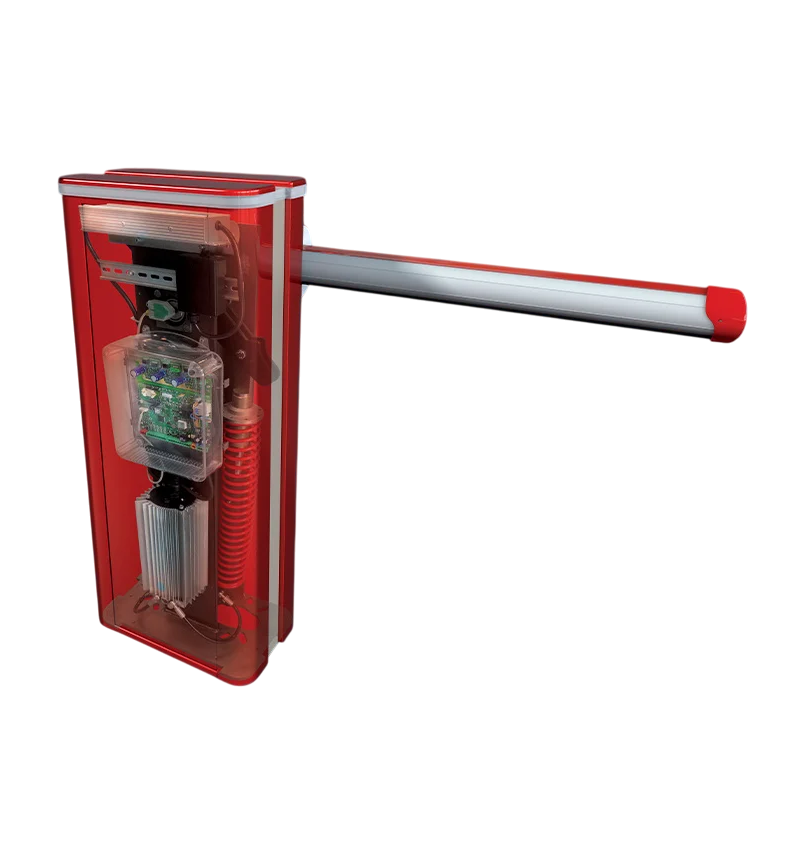

The automatic barrier FAAC B680h is the ideal solution for control access Vehicles in parking, garages, communities, industrial enclosures and zones continuous traffic. Its hybrid technology - 36 V Brushless Engine + Hydraulic System - combines power, speed and durability, guaranteeing more than 2.000.000 of opening and locking cycles without maintenance.

Highlights for its High security and reliability: It incorporates a Absolute encoder for obstacle detection and automatic reverse in case of contact, which reduces the risk of accidents.

Her sturdy body with anti-corrosion treatment and degree of protection IP56 makes it suitable for exterior use even under adverse weather conditions.

Features FAAC B680

✔ 24V Hybrid Automatic Barrier. 2.000.000 of cilos thanks to the 36V + Oleodynamic motor and spring "infinite" dock.

✔ Maximum mast length 8 m.

✔ Opening time (90 °) 1.5 S (2 m) - 6 s (8 m)

✔ 100% use frequency.

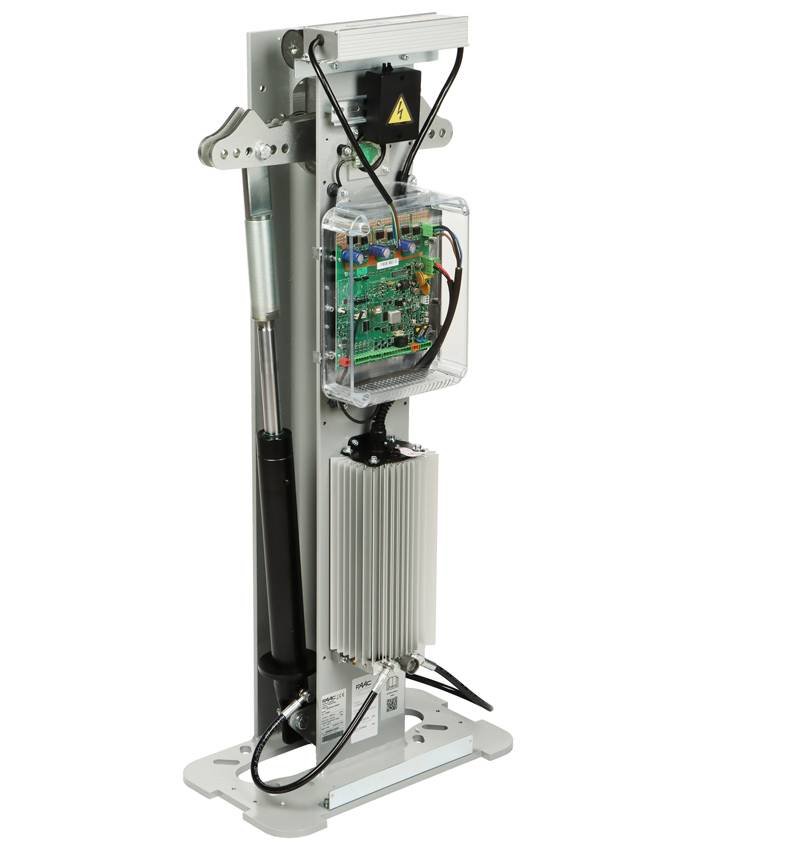

✔ Electronic Electronic Equipment E680 built-in.

✔ Absolute magnetic encoder, electronic slowdown - by encoder.

✔ Low consumption switching power supply: 100 ÷ 240V ~ 50/60 Hz.

✔ Steel furniture with galvanized 100 microns 100 microns paint anti-corrosive treatment.

✔ Temp Operating environment -20 ° C ÷ + 55 ° C

✔ Degree of protection IP56 (TÜV certificate)

✔ Weight 85 kg (65 kg Altante + 20 kg Box)

✔ Type of oil FAAC HP OIL

✔ Dimensions (L x a x h) 469 x 279 x 1100 mm.

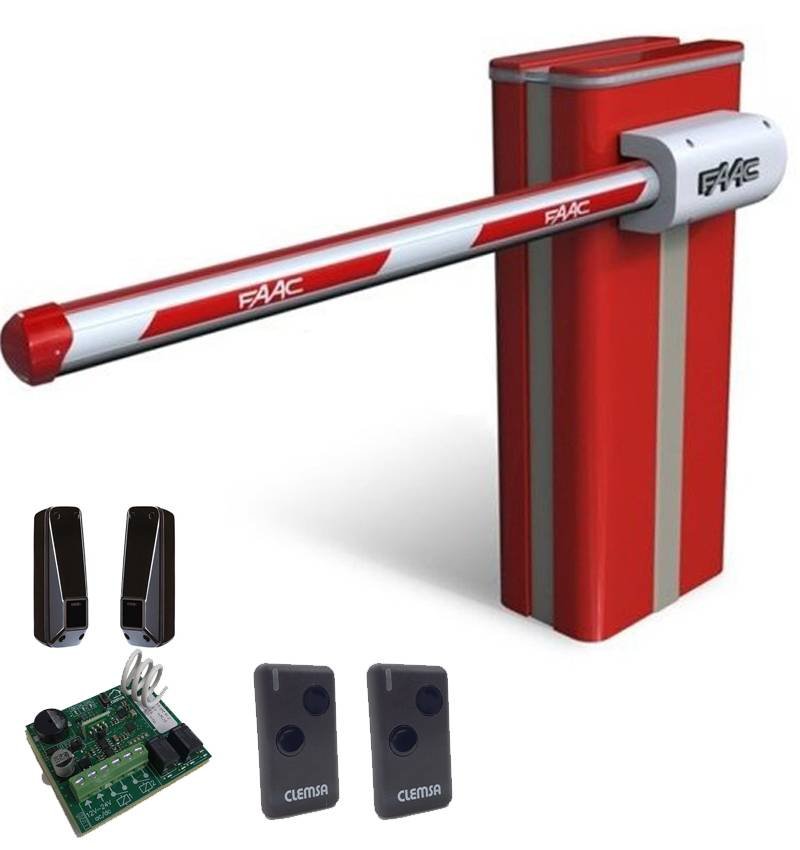

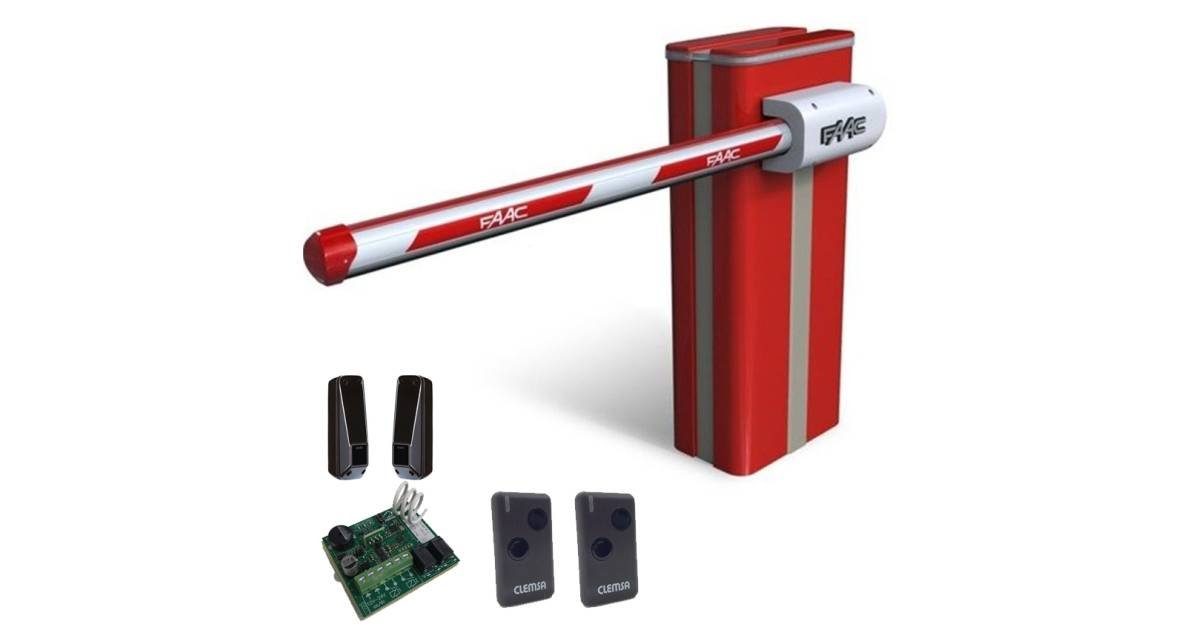

This barrier is composed of:

• 1 pc 104680: Automatic barrier FAAC B680H 24V
• 1 pc 416016: Full chest B680 RAL 3002
• 1 pc 428044: Mast of 5.3 meters
• 1 pc 490139: Fixing plate
• 1 pc 410033: Red and green integrated flashing
• 1 pc 460000005052: LED red / green mast
• 1 pc 490117: Catarifragenti adhesive kit
• 1 pc 785104: Safety photocell XP 20W D
• 1 pc 120000002910: RNE 248 U wiring reuction
• 2pc 110000002730: Transmitter Mutan NT2S 433 MHz

Full bars S in different sizes:
