88,33 €

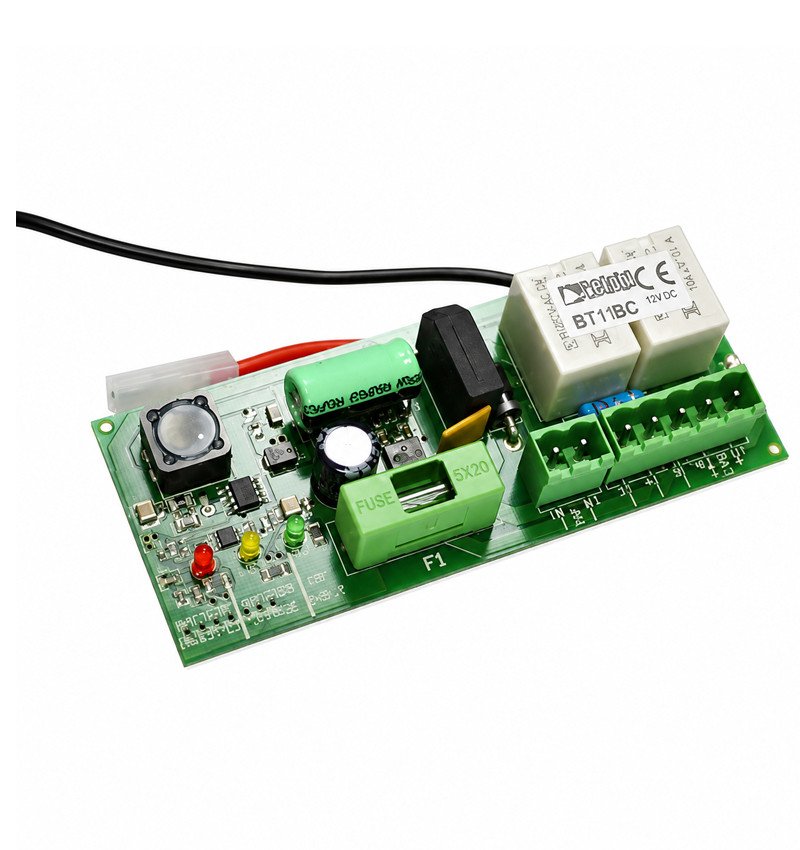

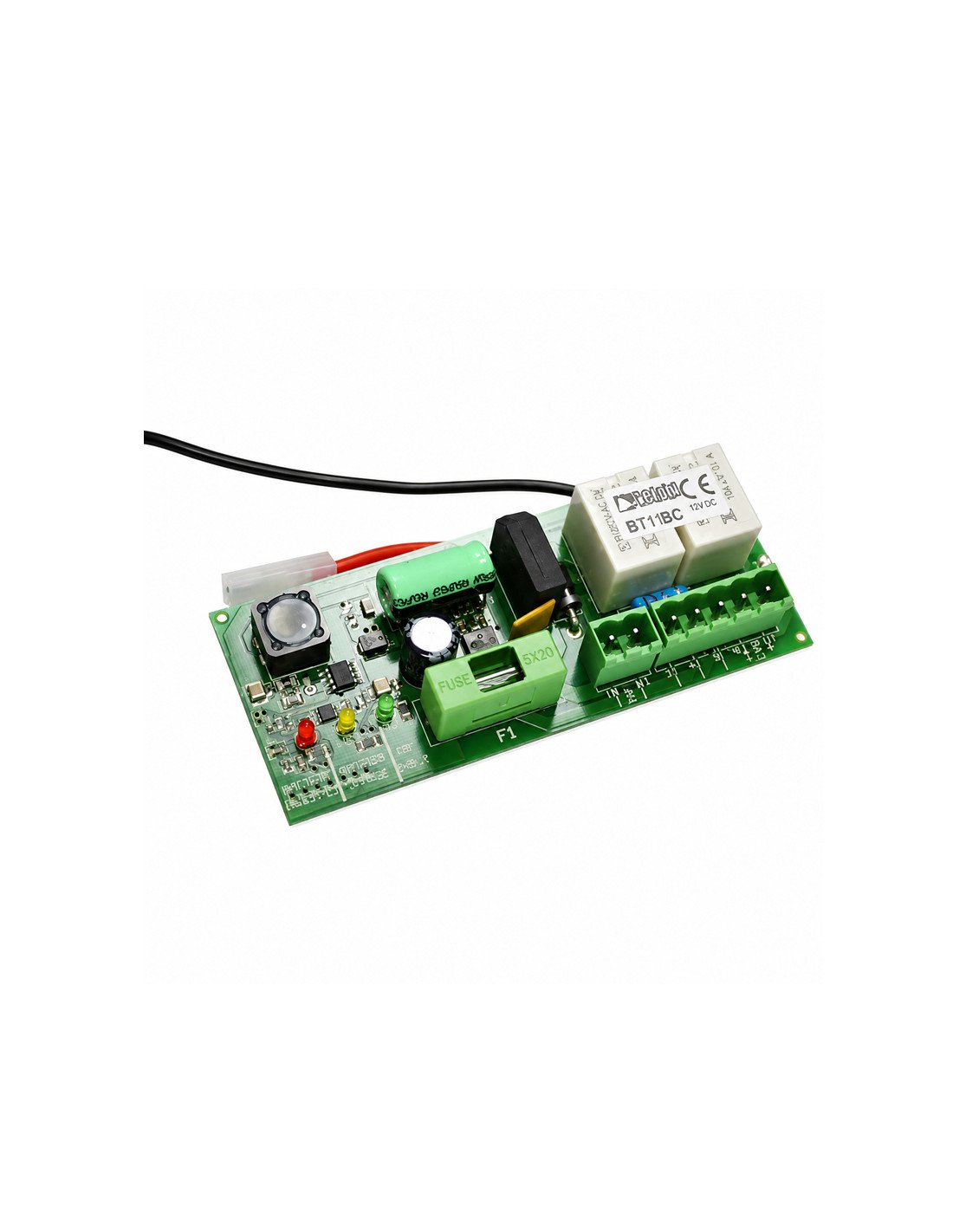

Roger B71 / BC It is a battery charger designed for brushless digital maneuver boxes Roger Technology B70 / 1DC and B70 / 1T.
This module allows you to connect and maintain two 12 V lead batteries connected in series, providing backup power to the automatism in case of failure or interruption of the electric current.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
Roger B71 / BC It is a battery charger designed for brushless digital maneuver boxes Roger Technology B70 / 1DC and B70 / 1T.
This module allows you to connect and maintain two 12 V lead batteries connected in series, providing backup power to the automatism in case of failure or interruption of the electric current.
Technical characteristics of the Roger B71 / BC
| Line | 16 VAC - 24 VAC |
| Operating temperature | -20 ° C to +55 ° C |
| Maximum absorbed power | 15 W |
| Lead batteries | 2 batteries of 12 Vdc and 1200 mAh, connected in series |
| Rated voltage | 27.6 VCC |
| Minimum battery voltage for self-protection | 19.5 VCC |
| Load current with bridge «Br» open | 250 mA, for 1200 mAh batteries |
| Load current with closed bridge closed | 400 mA, optional for fast loading of 4500 mAh batteries via B71 / BC / EXT |
| Maximum product dimensions | 243 × 49 × 89 mm |
| Weight of the packed product | 0.1 kg |
Compatibility: Digital maneuver paintings Brushless Roger Technology B70 / 1DC and B70 / 1T.
